Specifications
General
- Order code
- TI-LYE-9711A
- Input
- 230VAC
- Power rating
- 9W
- Beam angle
- 30°
- Brightness
- 1071 lm
- Efficacy
- ≥119 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 2700K / 3000K / 4000K / 5000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Adjustable
- Mounting
- Surface Mounted
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
- Finish
- Black
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

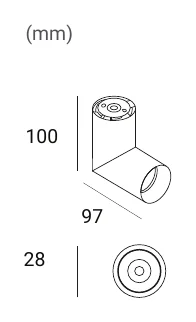

Technical drawings
Downloads
Datasheet1
FAQ

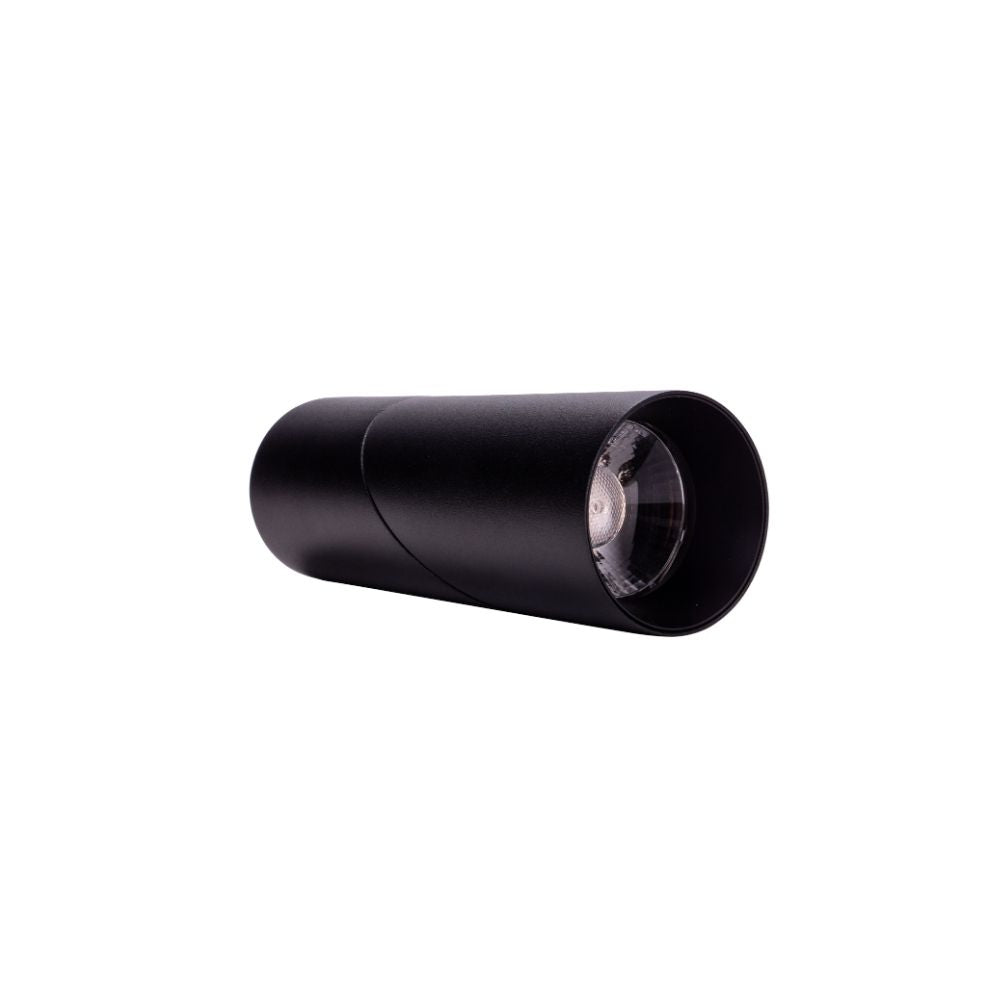

What type of fixture is the Archilight Venus Surface Downlight?

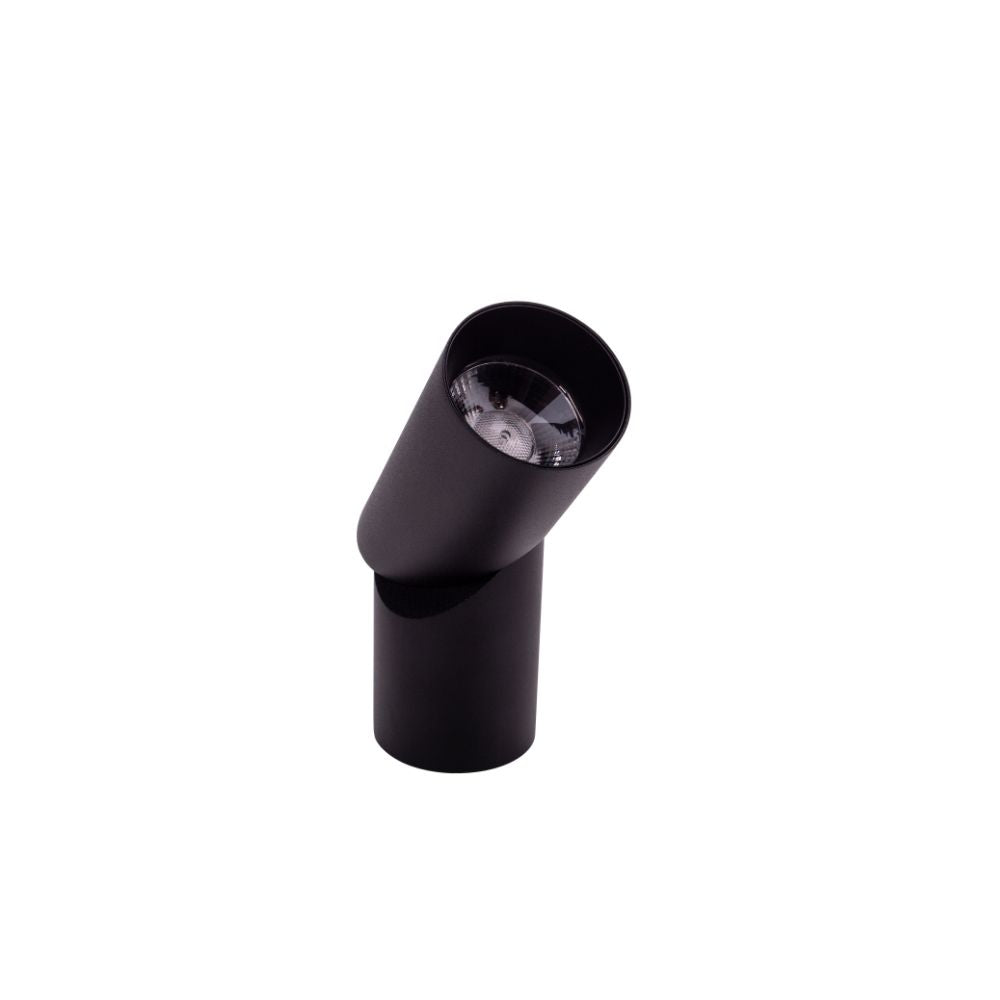

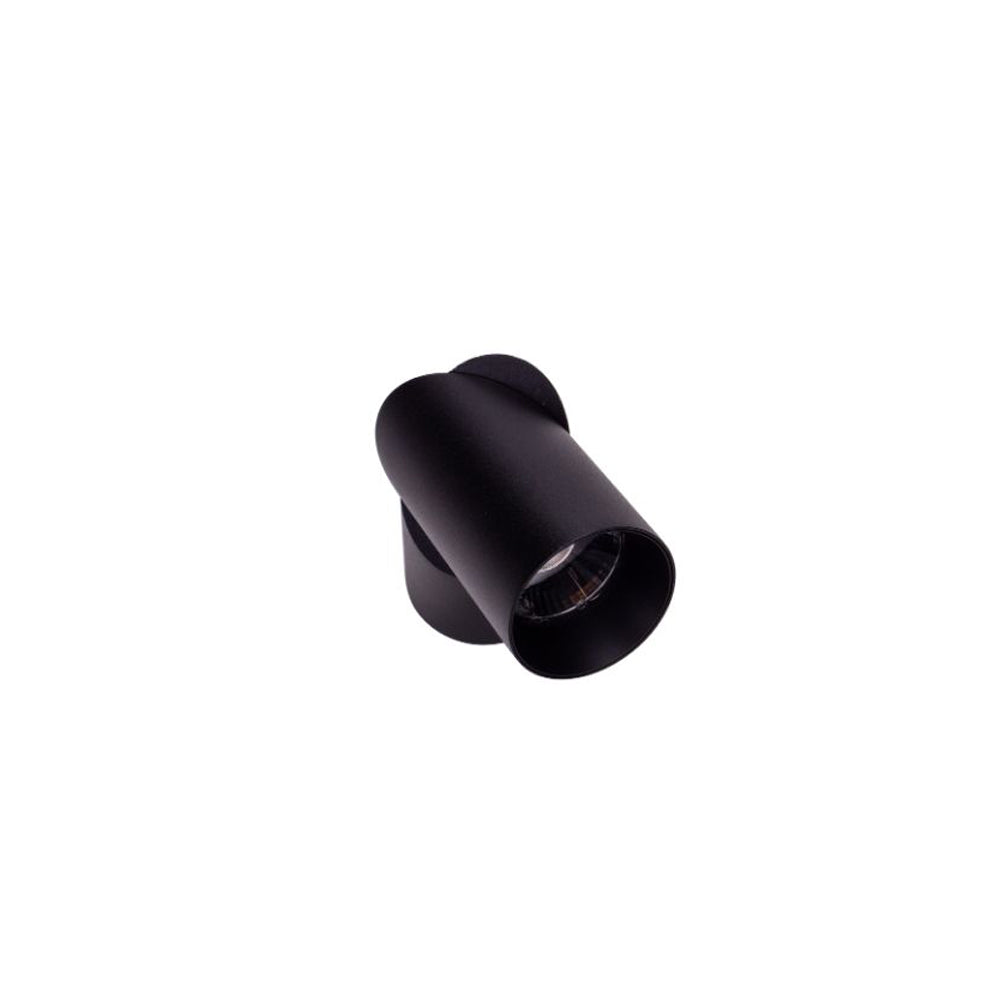

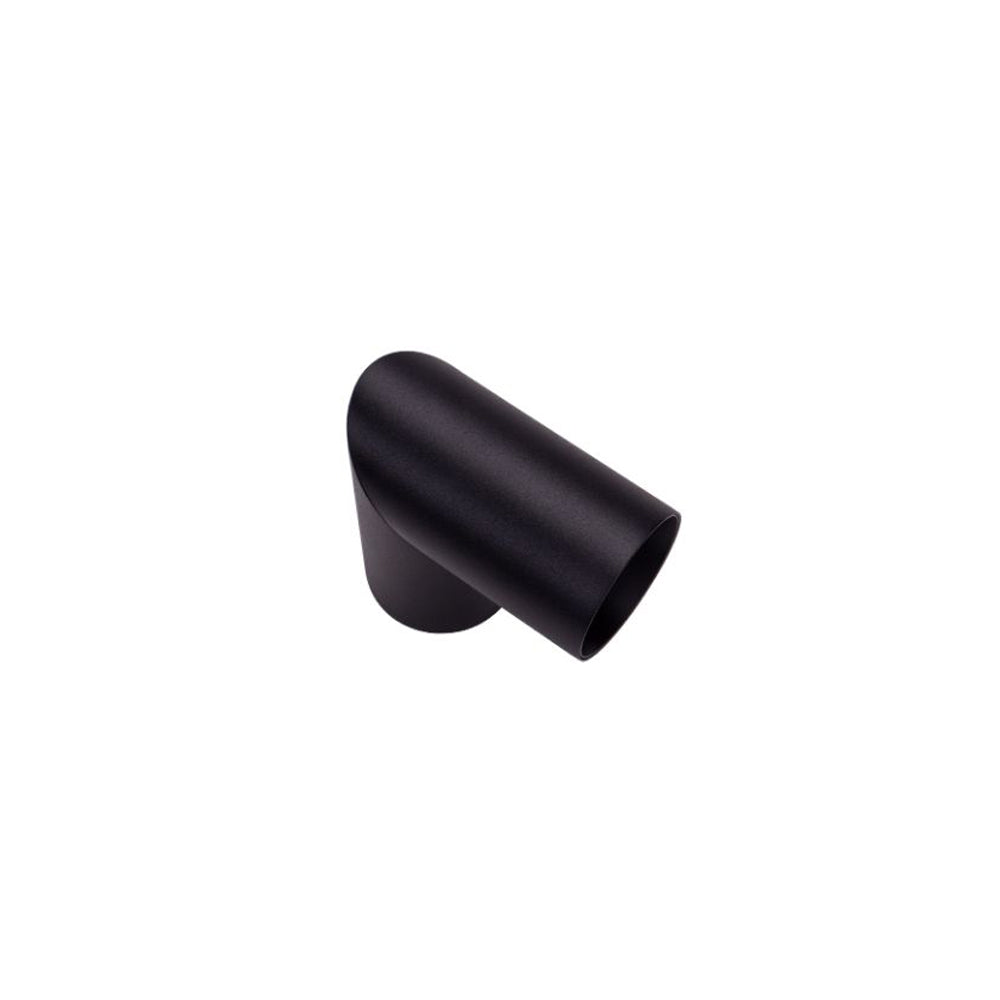

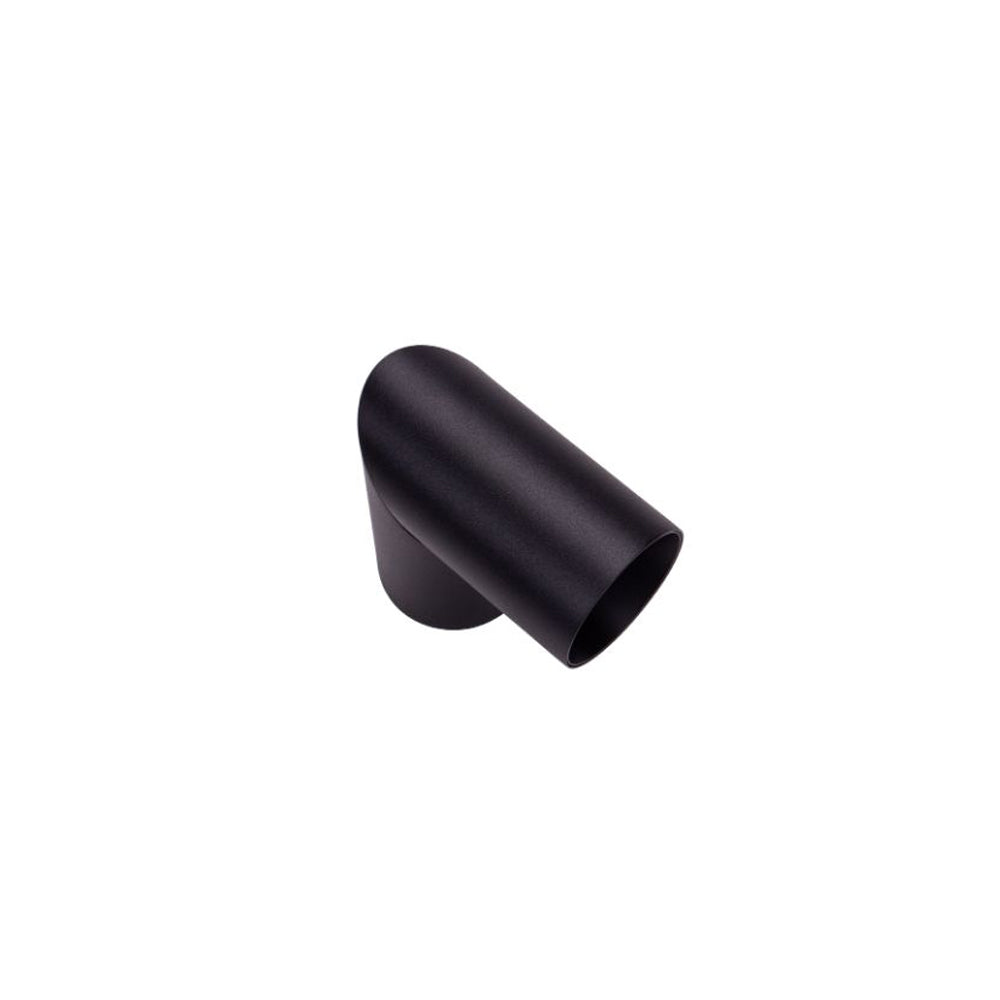

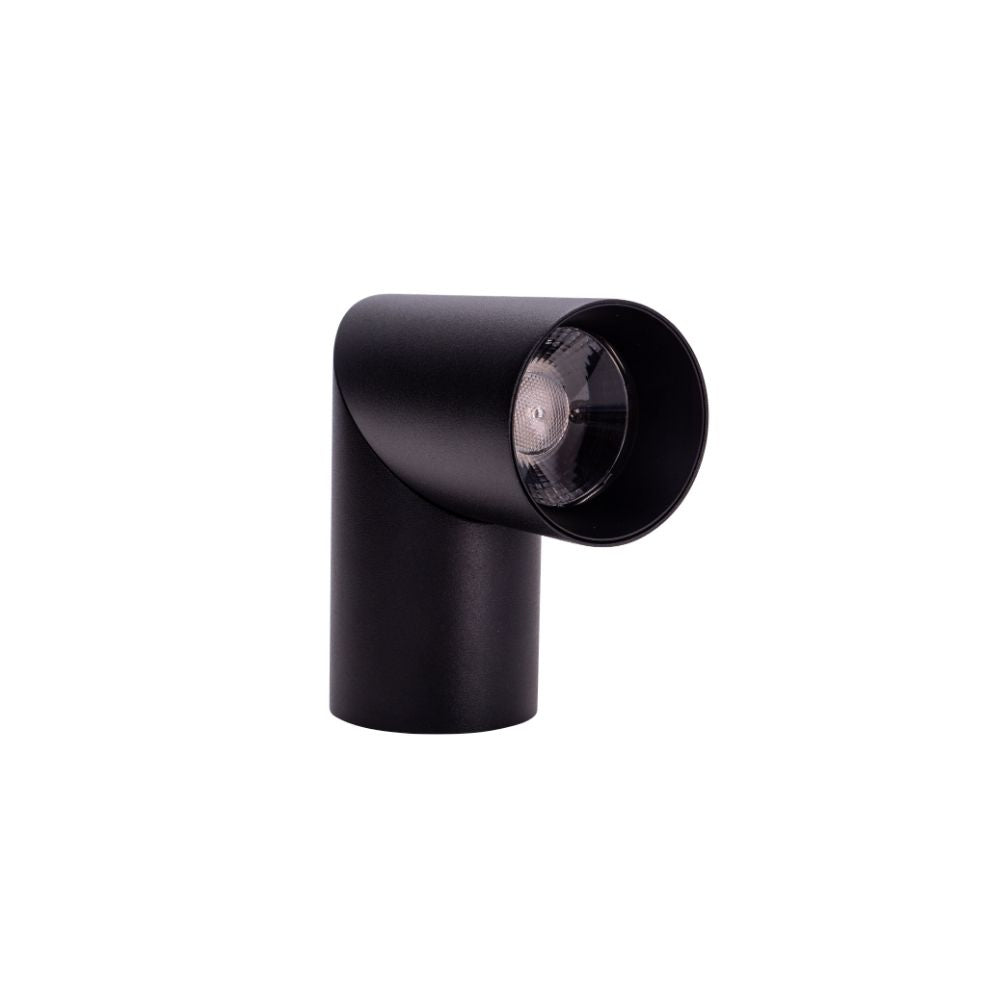

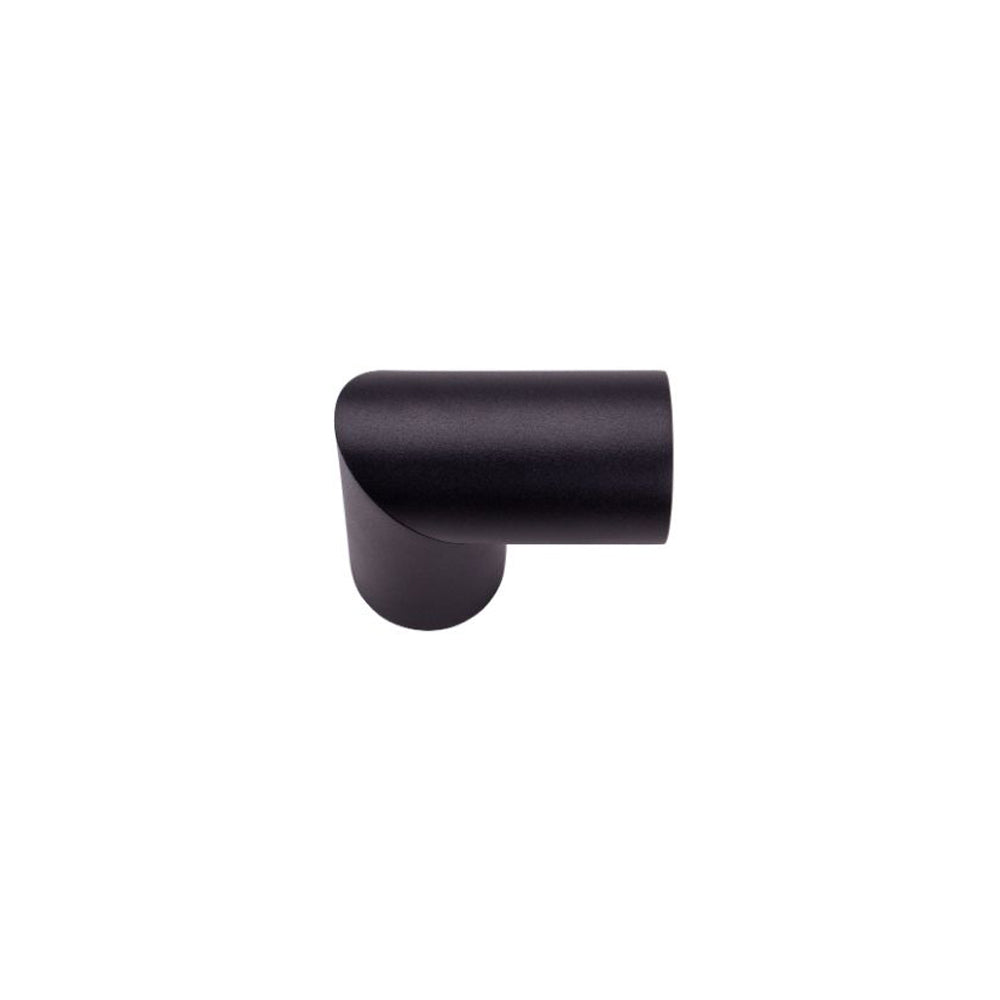

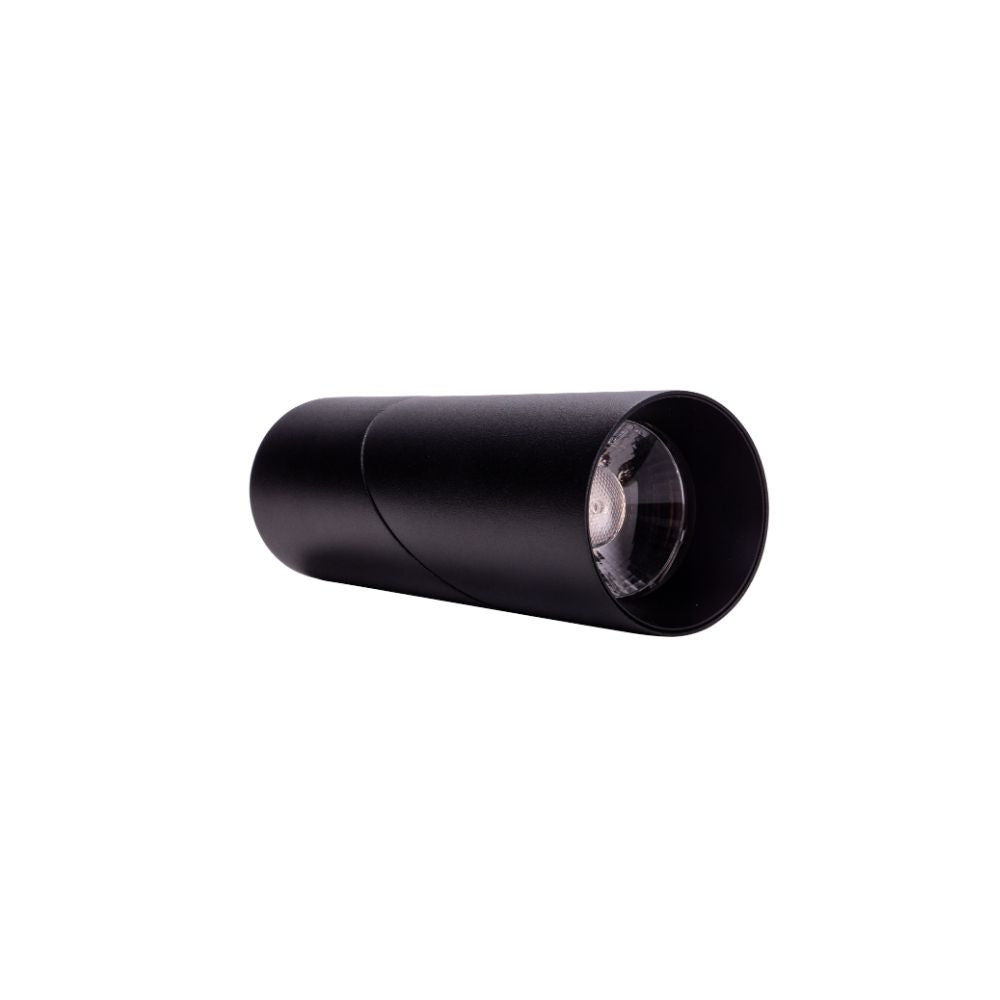

The Archilight Venus Surface Downlight is a surface-mounted interior LED downlight in a black finish. It is designed for ceiling applications where a compact, architectural luminaire is needed without a recessed cut-out. The unit features an adjustable tilt mechanism for directional lighting.
What light color options are available in this Venus Surface Downlight family?
This product family is available in four color temperatures: 2700K, 3000K, 4000K, and 5000K. That gives buyers a choice from warmer light tones to cooler, crisper light output depending on the space and lighting objective. The beam angle is 30 degrees across the listed variants.
How does brightness vary across the different variants?
The brightness for this model is listed at 1071 lumens. This output is achieved with a 9W power rating and a high Colour Render Index (CRI) of ≥90, ensuring accurate color representation alongside efficient light output.
Is the driver included, and is this downlight dimmable?
The parent product data shows the driver is included with this model family. Dimming is listed as optional, so the fitting supports a dimmable configuration where the appropriate dimming setup is selected. Buyers should treat dimming as a product option rather than assuming every project will use the same control method.
What are the key performance specifications for this product family?
The Venus Surface Downlight family is rated at 9W with CRI ≥90 and a 50,000-hour lifetime. The input is listed as 230VAC, and the unit features an IP20 rating suitable for indoor use. Warranty coverage is listed as 5 years.
Is this a good fit for projects that need strong color quality and long service life?
This family is positioned well for interior projects that value color quality, since all listed variants have CRI 90. It also carries a 50,000-hour lifetime and a 5-year warranty, which supports longer-term commercial or specification-oriented use. Those are useful baseline indicators for buyers comparing architectural downlights.
