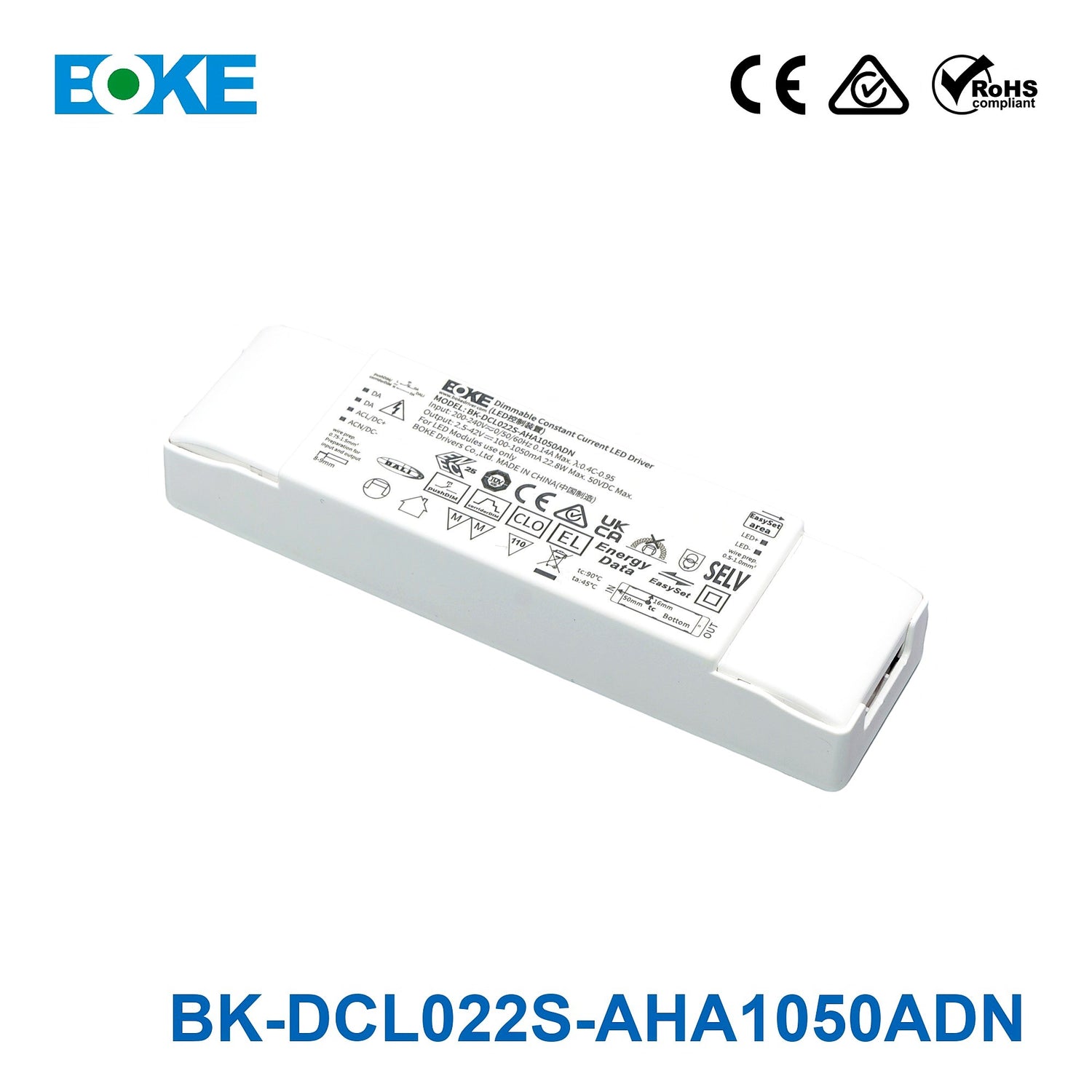

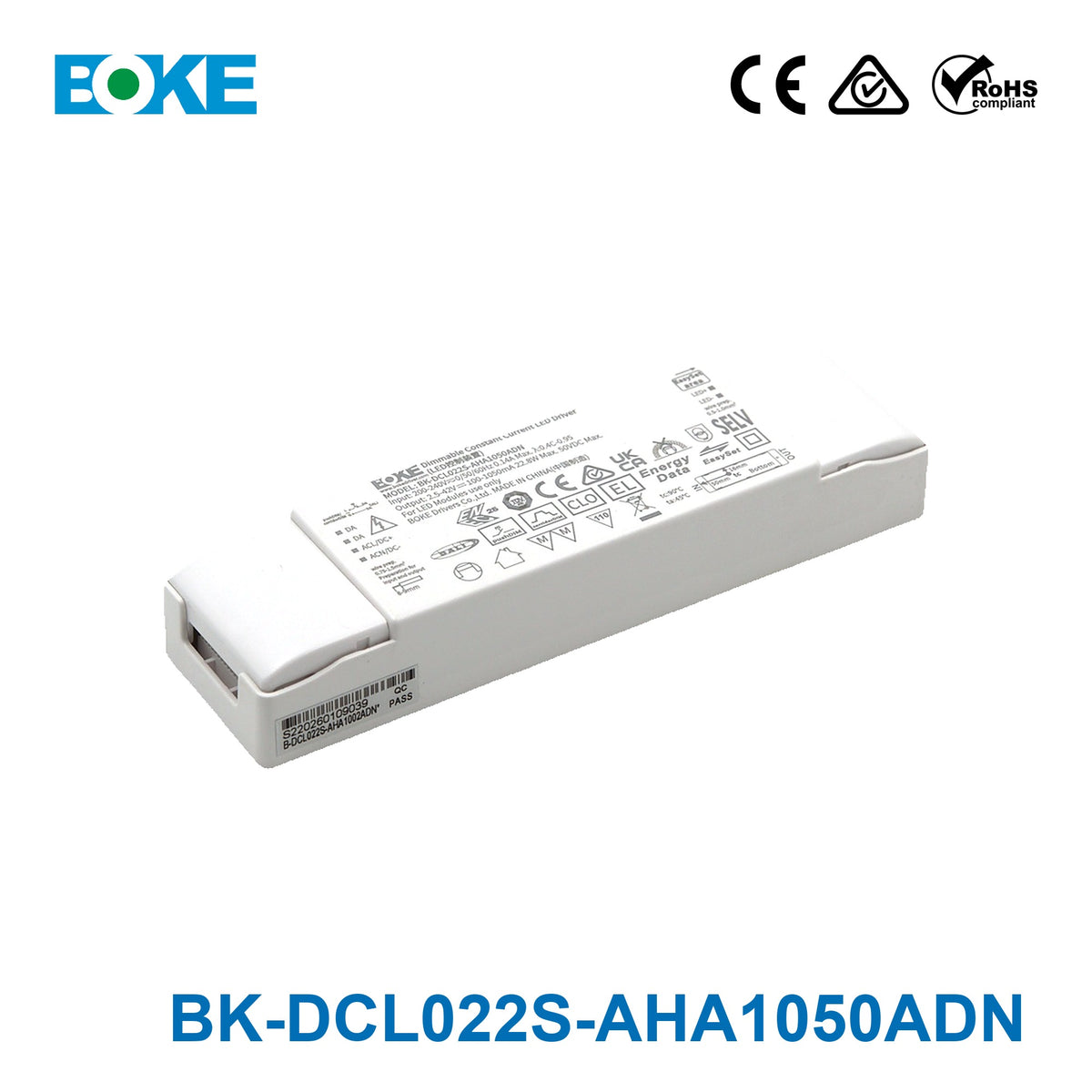

BOKE BK-DCL022S-AHA1050ADN 22W DALI-2 LED Driver

0.1–1.05A programmable outputDALI-2 and push dimflicker-freeextra-low inrush currentNFC setting

SKU BK-DCL022S-AHA1050ADN

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The BOKE BK-DCL022S-AHA1050ADN is a 22W DALI-2 constant current LED driver with NFC programmability. Supports DALI-2, pushDIM, CLO, corridor dimming, emergency lighting, and DALI energy data reporting (Part 251/252/253). Slim design for downlights and spotlights with small mounting holes.

Key Features

✓22W constant current output, 0.1–1.05A programmable, 2.5–42VDC

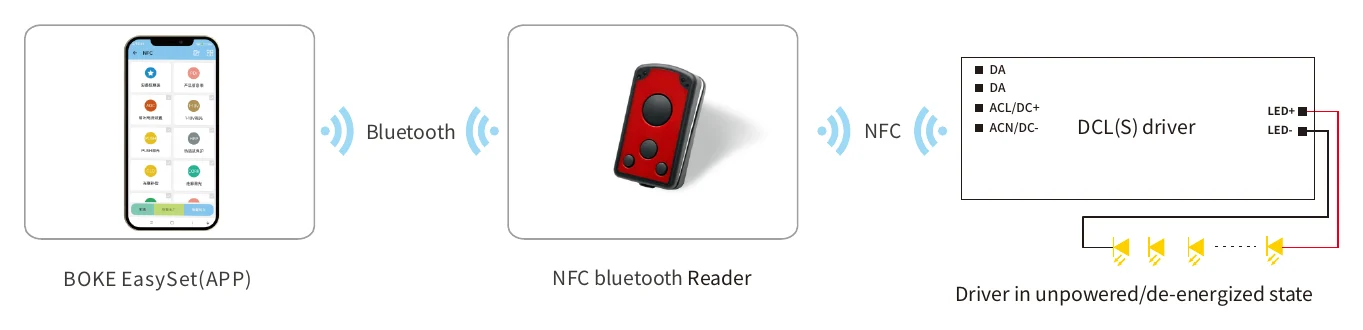

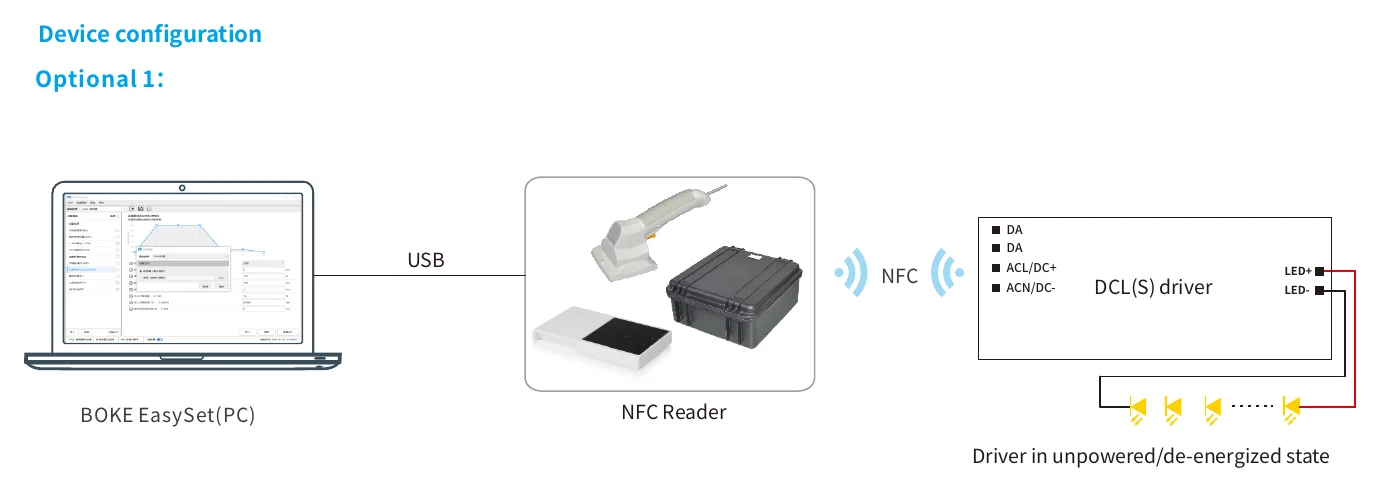

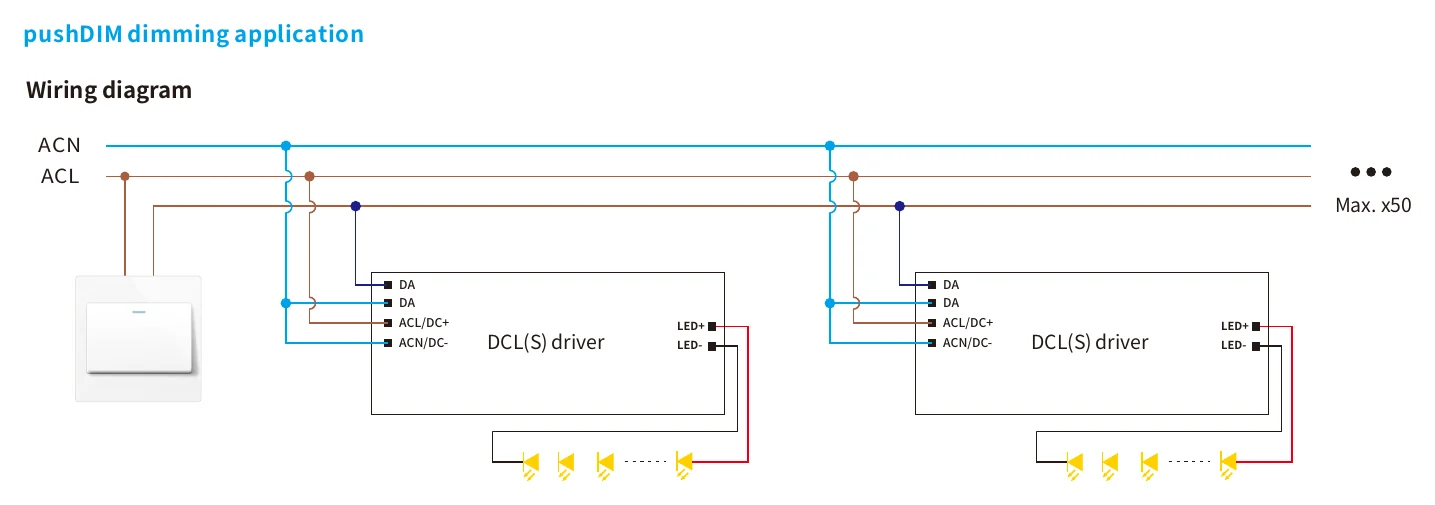

✓DALI-2 + pushDIM dimming, NFC programmable via EasySet
✓Flicker-free output, IEEE 1789 compliant

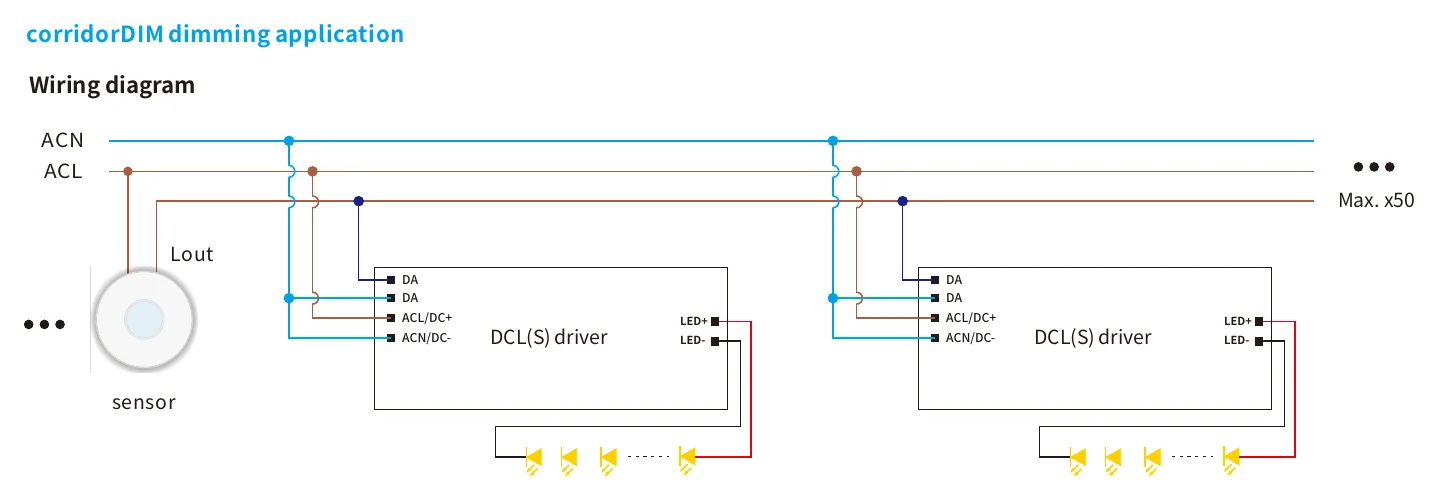

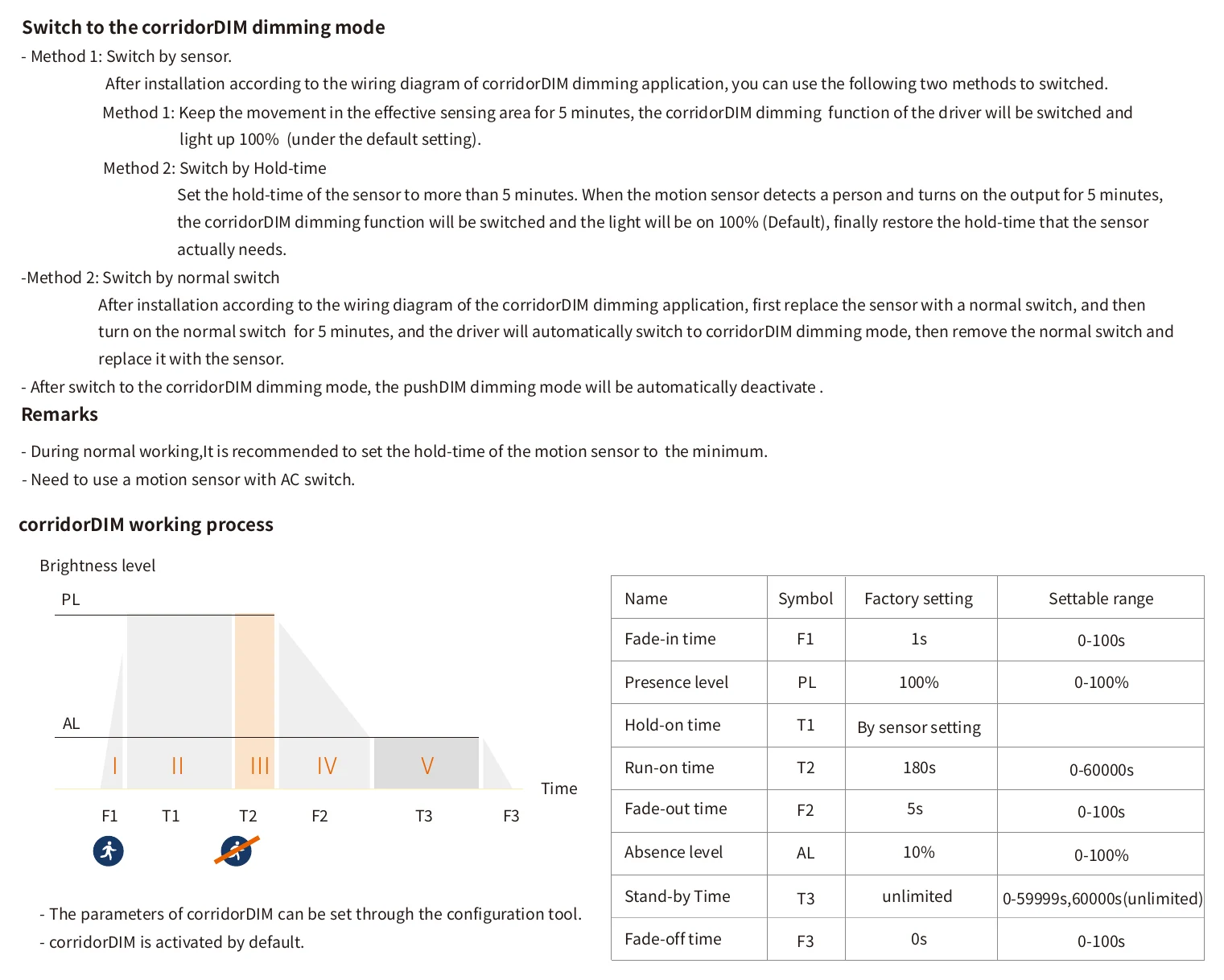

✓CLO, corridor dimming, emergency lighting (EL) support
✓DALI Part 251, 252, 253 compatible
✓CE, ENEC, UKCA, RCM, DALI-2 certified
✓180–264VAC wide input range

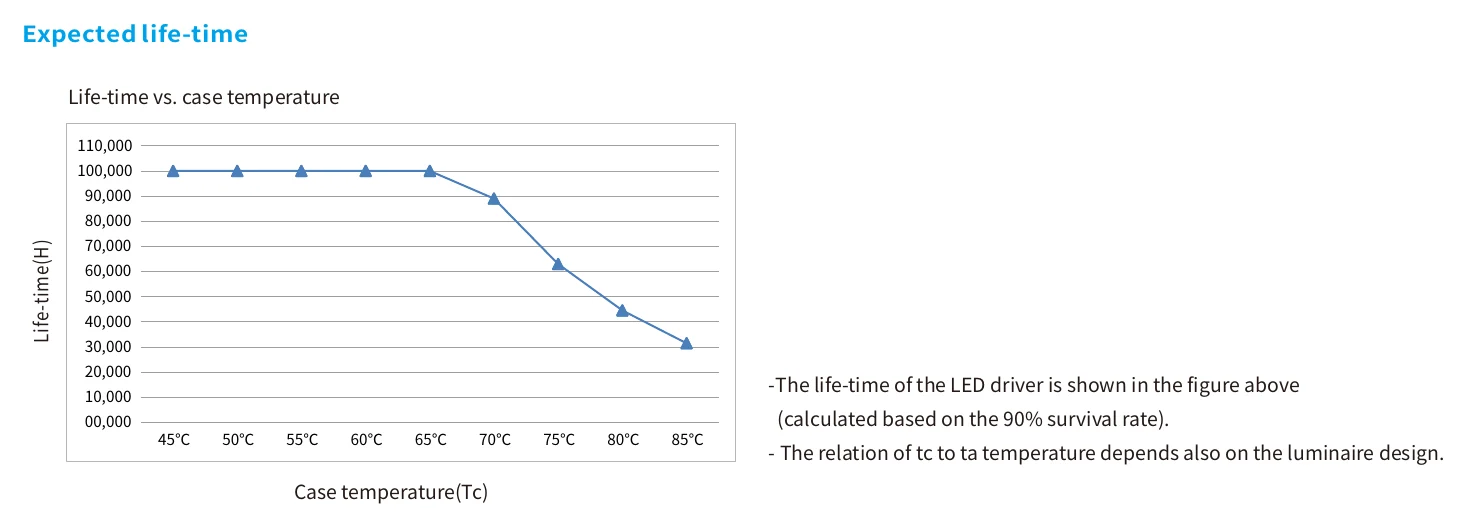

✓5-year guarantee, nominal 100,000-hour lifetime
