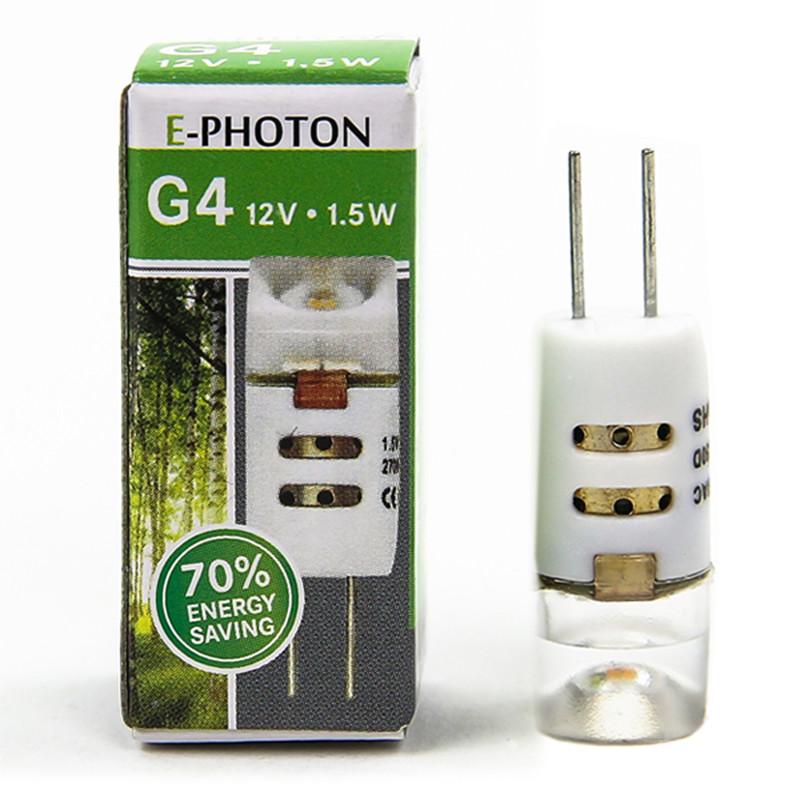

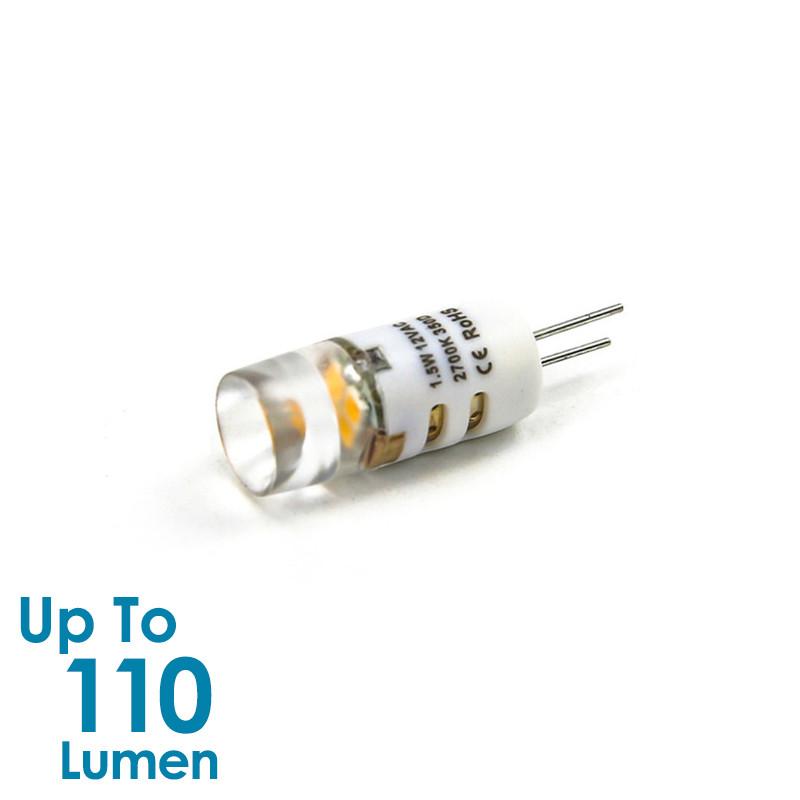

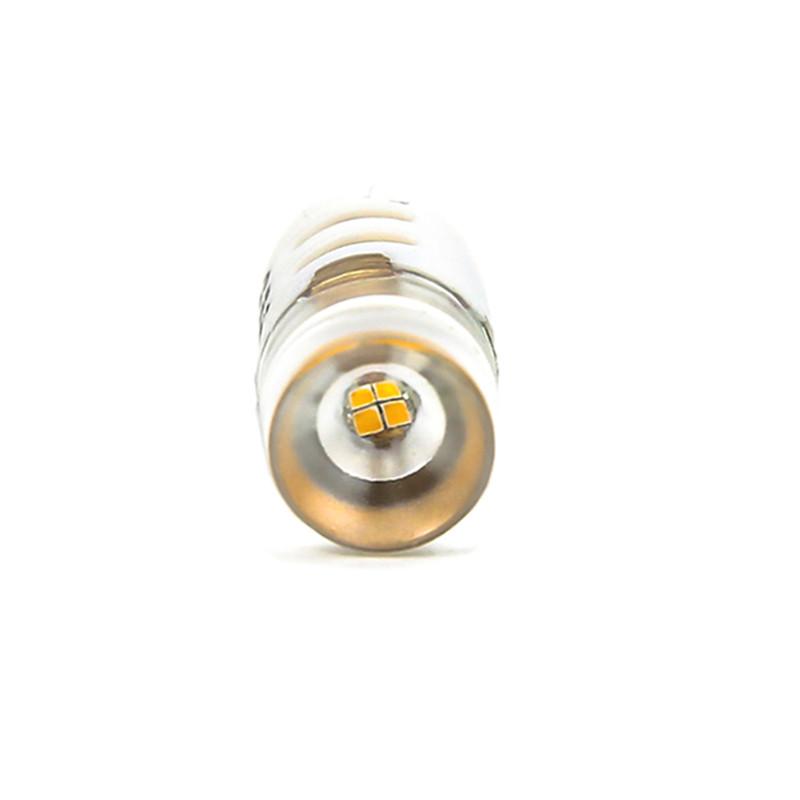

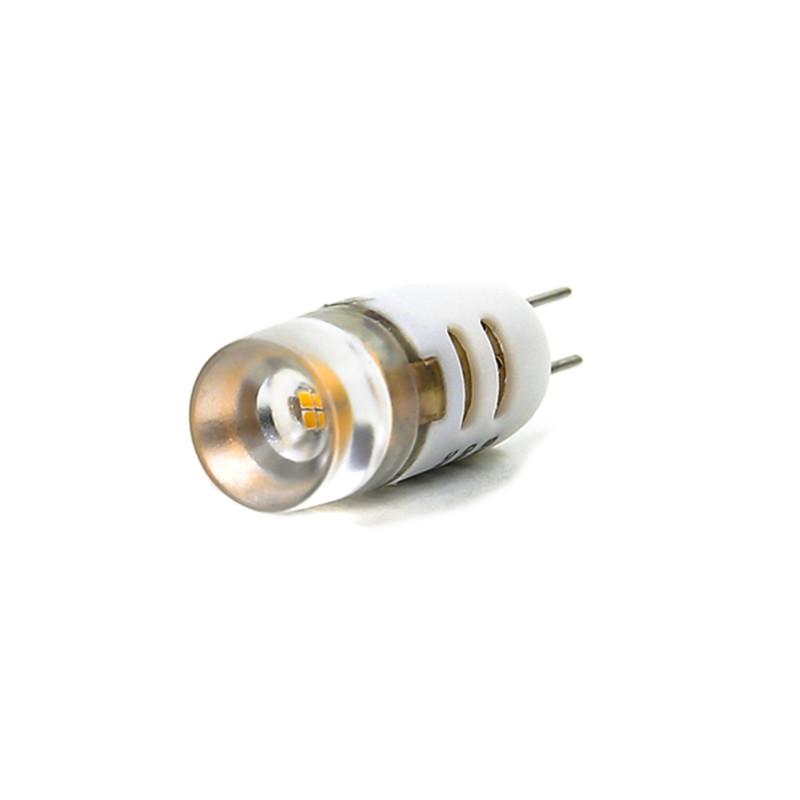

E-Photon LED G4 Capsule, 1.5W, Warm White
Please Login for Pricing
Description
Description
Easy G4 base LED Lamp replacement, equivalent to 10-15W Halogen
Specification:
Input Voltage
12VAC/DC(9-14V)
Power Supply
12VDC Constant Current
12VAC Magnetic/Electronic
Lamp Power
1.5W
Lamp Current
100mA
Available Color
2700-3000K (Warm White)
4000-4500K (Natural White)
Luminous Flux
90Lm - Warm White
100Lm - Natural White
Operating Temperature
65 degrees Celsius
Operating Position
Any
CRI
>80Ra
Beam Angle
350 degrees
Certification
CE/ROHS
Construction
Lens
High Refractive UV Stabilized
Heat Sink
Copper
Housing
PBT
Dimensions
Ø 10.2mm
Height (Incl Pins) - 32mm
Height(excl Pins) - 23mm
Specifications
Specifications
-
BrandE-Photon
-
SeriesE Photon Bulb
-
Power Rating1.5 Watt
-
Standards MetSAA
-
Operating Temperature-10°C~40°C
-
Warranty1 Year
-
Length1.02 cm
-
Width1.02 cm
-
Height3.2 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other E Photon Bulb Series Models
1 other model| Model | Power | Brightness | CCT | Socket | |
|---|---|---|---|---|---|
| E-Photon LED G9 Capsule, 4W | 4W | 100 Lumen | Warm White 3000K | G9 | View |
{
