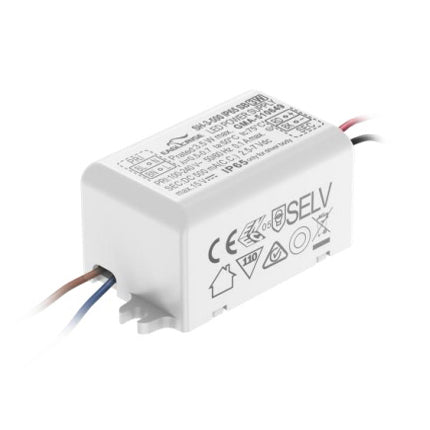

Eaglerise 3W 700MA Constant Current LED driver
Please Login for Pricing
Description
Description
Features:
- Class II&I, SELV, Built-in
- Input Voltage 100-240VAC
- Protections: SCP/OLP/OVP
- Power Factor ≥0.5
- IP65 Ingress protection
- Efficiency ≥68%
- 5 years warranty
Applications:
- LED spot light、Wall light
General Specification
AC input voltage range
100-240VAC
Over Load Protection
103-150% (YES/Auto Resume)
Over-voltage protection
>20VDC | >18VDC | >15VDC | >10VDC (YES/Auto Resume)
Lifetime
＞50000h@Tc=70℃,230VAC
Working temperature
-20℃~+50℃
Safety standards
EN 61347-1; EN61347-2-13; EN62384；EN55015; EN61000-3-2 ; EN61000-3-3；EN 61547
Dimension (LxWxH)
47x23x21mm
Specifications
Specifications
-
BrandEaglerise
-
SeriesEagle Rise SH Series
-
Power Rating3 Watt
-
Output Voltage10 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~240V
-
Standards MetCB,CE,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature50°C~-20°C
-
Warranty5 Year
-
Length4.7 cm
-
Width2.1 cm
-
Height2.3 cm
-
Weight0.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED driver is the Eaglerise EL-SH-3-700?
The EL-SH-3-700 is a 3W constant current LED driver rated at 700mA. It is a non-dimmable model designed for LED applications that require a fixed constant current output.
What kinds of lighting applications is this driver suitable for?
This model is intended for LED spot lights and wall lights, based on the listed manufacturer applications. Its compact built-in form factor also makes it suitable for enclosed lighting products where a small driver is needed.
Is the EL-SH-3-700 suitable for indoor or exposed environments?
This driver has an IP65 ingress protection rating, which indicates protection against dust and water jets. That makes it a stronger choice for demanding environments than basic indoor-only drivers, provided the overall fixture design is appropriate for the application.
What input voltage does this LED driver accept?
The EL-SH-3-700 accepts a universal 100-240VAC input range. This makes it suitable for use across a wide range of standard AC mains supply conditions.
What protection and reliability features does this model include?
This driver includes short circuit protection, overload protection, and over-voltage protection with auto resume. It is also rated for a 5-year warranty and a lifetime of more than 50,000 hours at Tc=70C and 230VAC.
What are the size and operating temperature limits of this driver?
The housing dimensions are 47 x 23 x 21mm, making it a compact option for small lighting products. The specified working temperature range is -20C to +50C.
