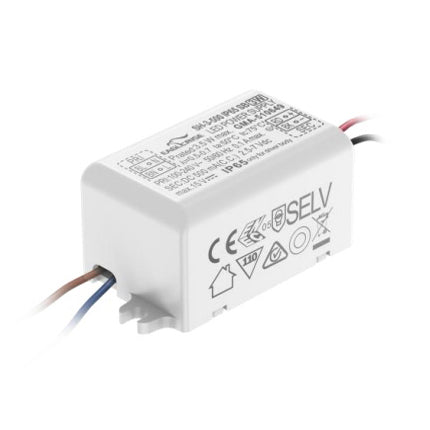

Eaglerise 3W 350MA Constant Current LED driver IP65
Please Login for Pricing
Description
Description
Features:
- Class II&I, SELV, Built-in
- Input Voltage 100-240VAC
- Protections: SCP/OLP/OVP
- Power Factor ≥0.5
- IP65 Ingress protection
- Efficiency ≥68%
- 5 years warranty
Applications:
- LED spot light、Wall light
General Specification
AC input voltage range
100-240VAC
Over Load Protection
103-150% (YES/Auto Resume)
Over-voltage protection
>20VDC | >18VDC | >15VDC | >10VDC (YES/Auto Resume)
Lifetime
＞50000h@Tc=70℃,230VAC
Working temperature
-20℃~+50℃
Safety standards
EN 61347-1; EN61347-2-13; EN62384；EN55015; EN61000-3-2 ; EN61000-3-3；EN 61547
Dimension (LxWxH)
47x23x21mm
Specifications
Specifications
-
BrandEaglerise
-
SeriesEagle Rise SH Series
-
Power Rating3 Watt
-
Output Voltage18 Volt
-
Rated Current0.35 Ampere
-
Input Voltage100V~240V
-
Standards MetCB,CE,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature50°C~-20°C
-
Warranty5 Year
-
Length4.7 cm
-
Width2.1 cm
-
Height2.3 cm
-
Weight0.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED driver is the Eaglerise EL-SH-3-350?
The EL-SH-3-350 is a 3W constant current LED driver rated at 350mA. It is a non-dimmable model designed for LED loads that require a fixed 350mA output current.
What LED applications is this driver suitable for?
This model is listed for LED spot lights and wall lights. Its compact built-in form factor and constant current 350mA output make it suited to small LED lighting products in those categories.
Is the EL-SH-3-350 suitable for damp or dusty environments?
It has an IP65 ingress protection rating, which indicates protection against dust and water jets. That makes it a better fit for applications where stronger enclosure protection is needed than with lower-IP drivers.
What input voltage does this LED driver support?
The EL-SH-3-350 accepts a 100-240VAC input range. That wide input range helps it fit projects that need compatibility across common mains supply voltages.
What output specifications should buyers check before selecting this driver?
The key electrical ratings are 3W power, 350mA rated output current, and 18V output voltage. Buyers should confirm their LED load is matched to a constant current 350mA driver and falls within the product's stated output capability.
What protection features does this model include?
This driver includes short circuit, overload, and over-voltage protection. The specification also states auto resume behavior for overload and over-voltage protection events.
What are the operating life and warranty for the EL-SH-3-350?
The listed lifetime is greater than 50,000 hours at Tc=70C and 230VAC. Eaglerise also specifies a 5-year warranty for this model.
