Vimar

Eikon F Type Female Socket Connector White

ConnectorWhite
SKU VM-20318.B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

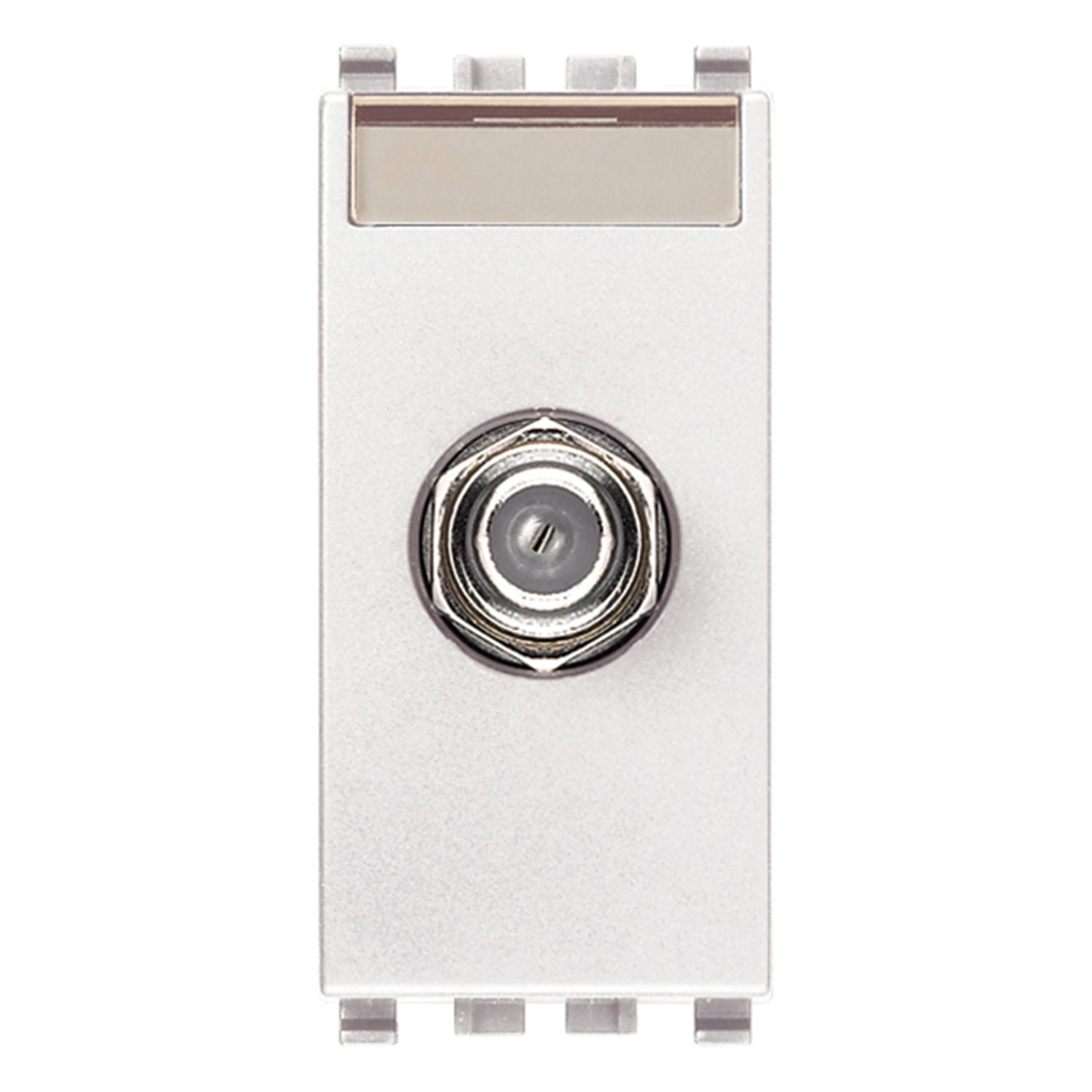

VM-20318.B is Vimar EIKON 20318.B, F type female socket connector white.

Coaxial socket outlet with F type female connector, white. For frequencies up to 2400 MHz. In/out connection with F type male connector (01654)

Specifications

VM-20318.BSpecifications from the official datasheet

Technical data

Product type
Antenna socket box
Model
End socket
Number of outlets
1
Suitable for remote power supply
Yes
Type of fastening
Snap mounting (engagement)
Colour
White
RAL-number (similar)
9016
Material
Plastic
Device width
22.3 mm
Device height
49 mm
Device depth
30.5 mm

Packaging

EAN
8007352313552
Packed size (cm)
4.1 Γ— 2.8 Γ— 5.3
Packed weight
14.73 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), RoHS UAE, WEEE Directive

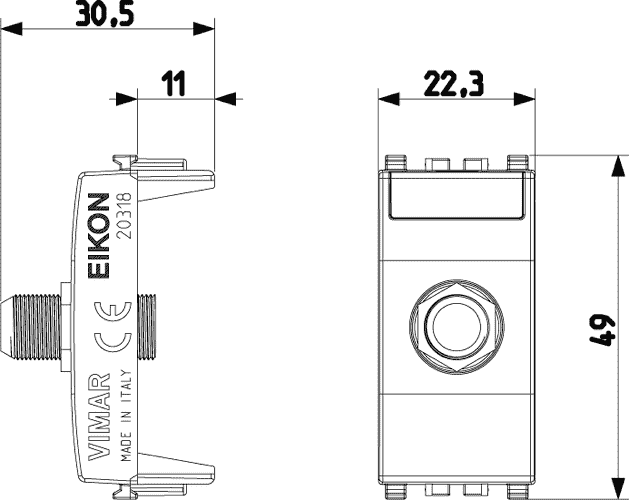

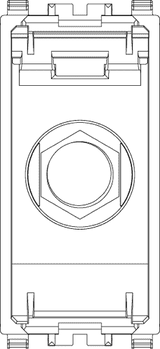

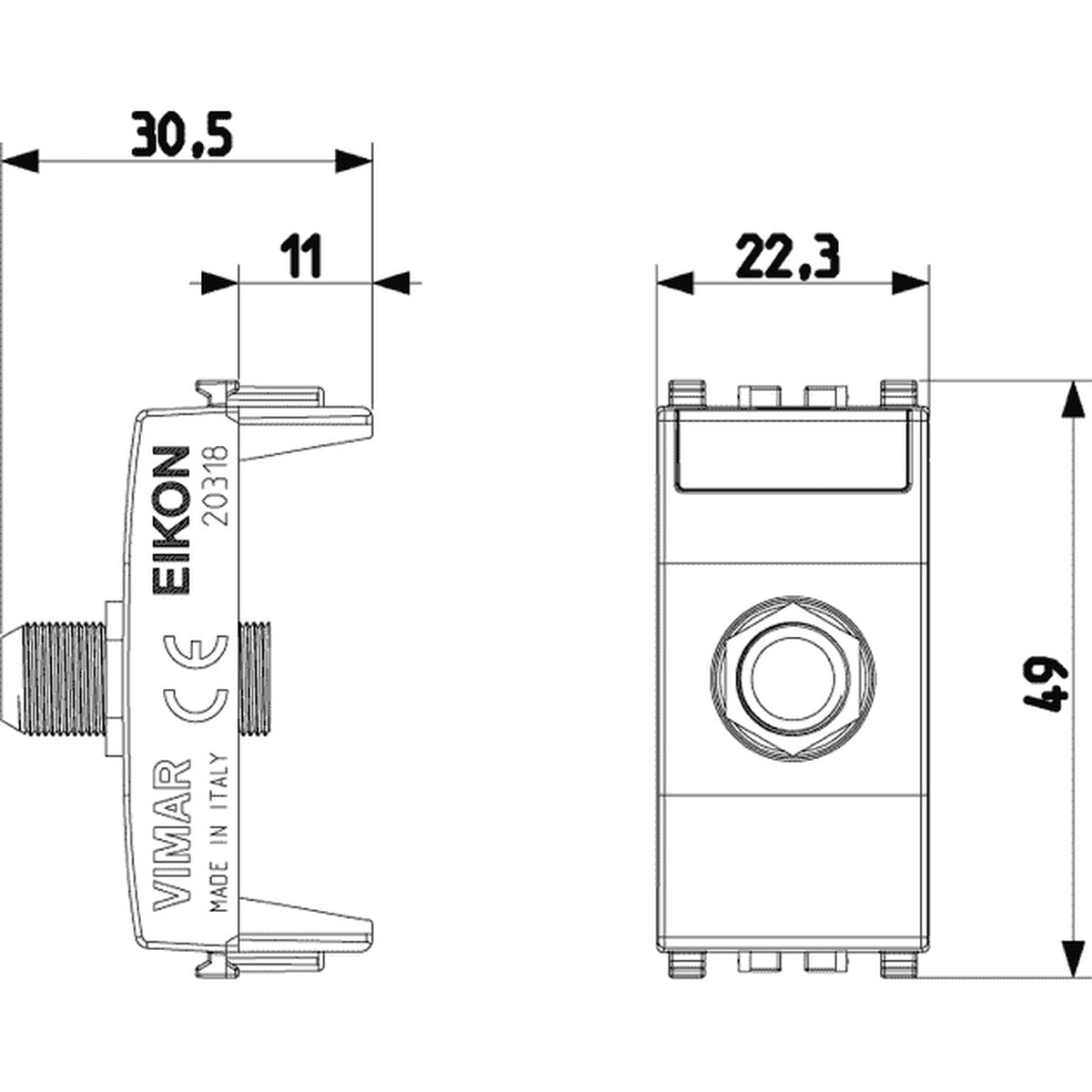

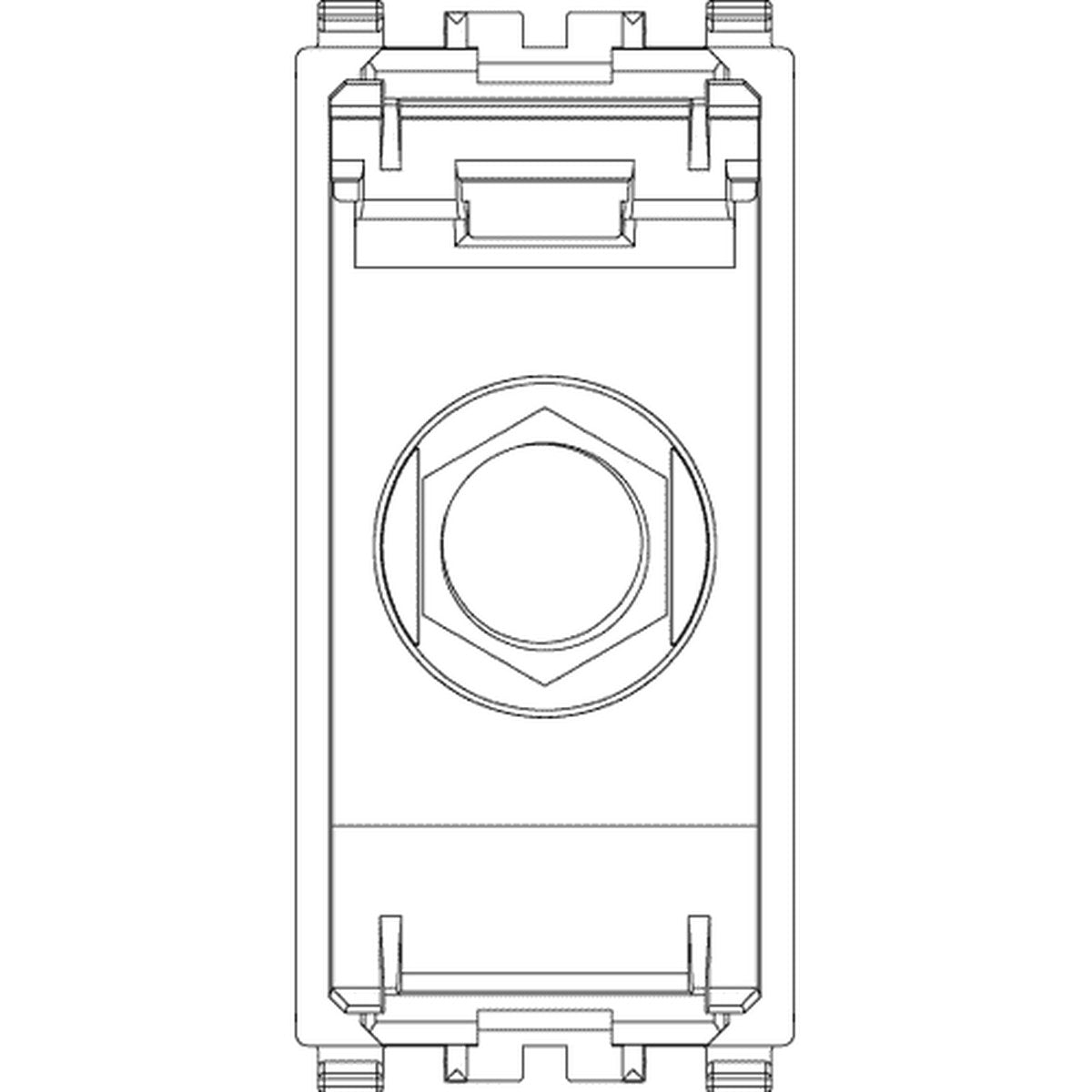

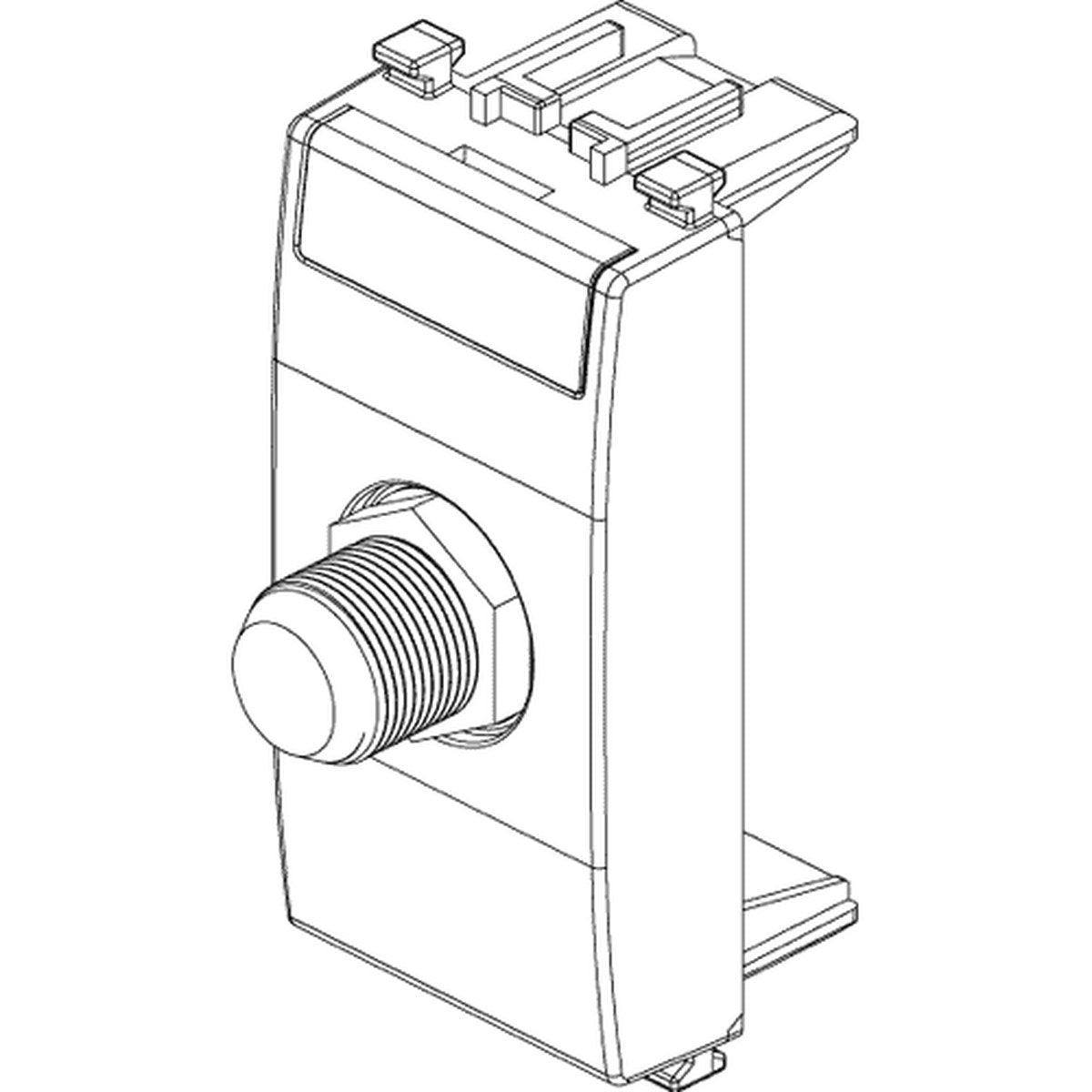

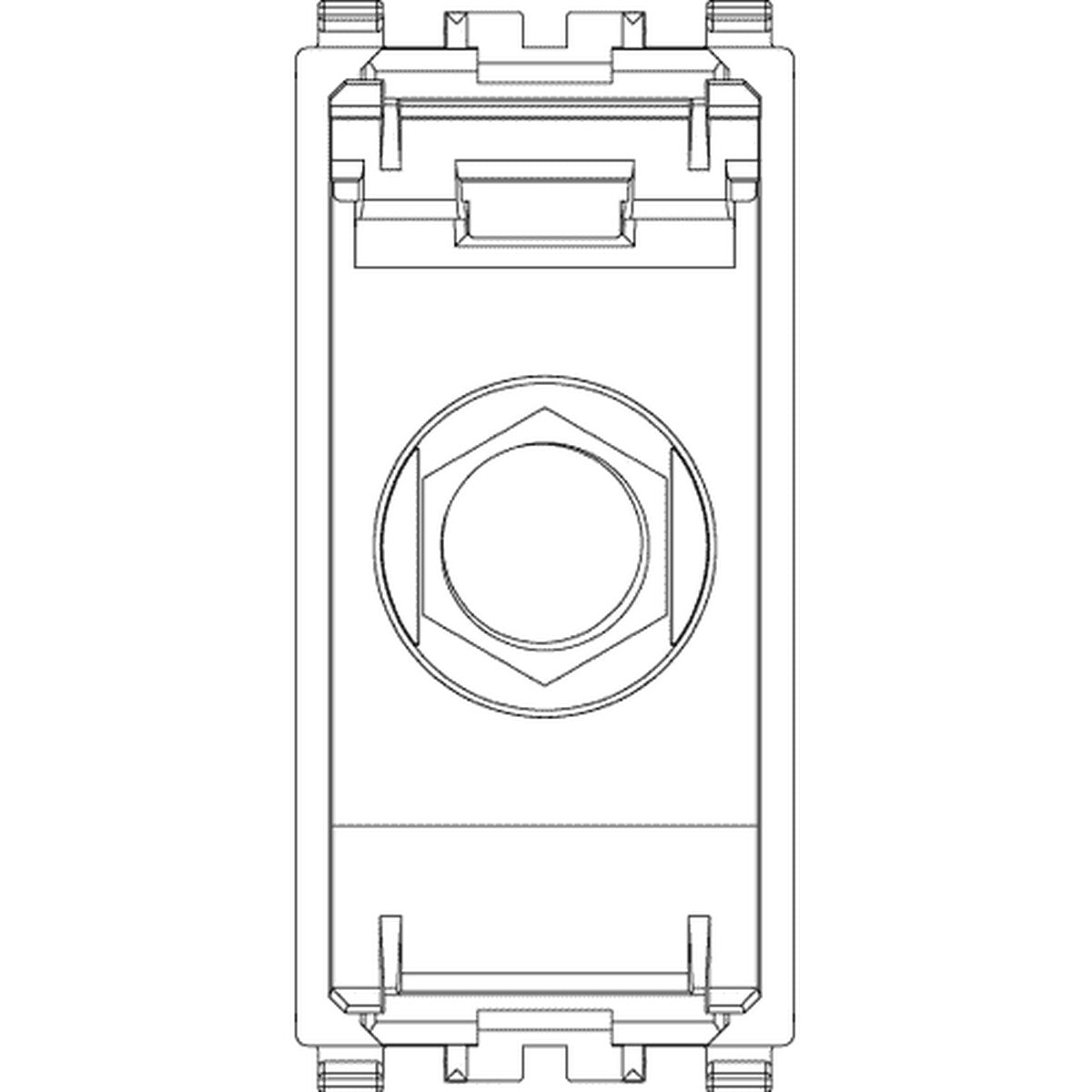

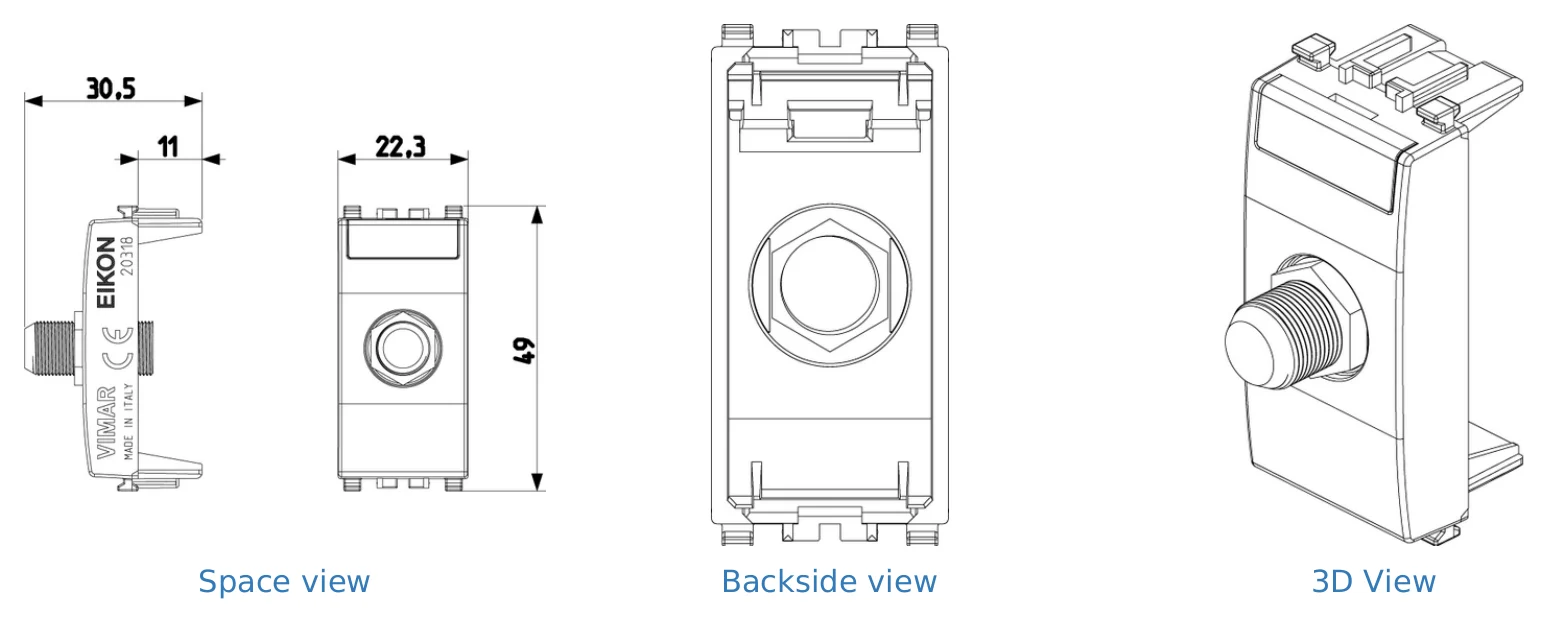

Technical drawings

VM-20318.B Drawings
Drawings

Downloads

FAQ

What is the VM-20318.B used for?

The VM-20318.B is an Eikon ExΓ© F Type female socket connector intended for data/AV socket applications. It is suited to projects using Vimar Eikon ExΓ© switch and socket modules where a white finish is required.

Is this socket connector part of the Vimar Eikon ExΓ© range?

Yes. This product is categorized under Vimar Eikon ExΓ© modules and Eikon ExΓ© data/AV accessories. It is designed for use within that product family and visual system.

What colour and finish is this model?

SKU VM-20318.B is supplied in white. Its minimal Eikon ExΓ© styling is intended to match projects using white Vimar switch and socket components.

What operating temperature range is specified for this product?

This model is specified for temperatures from -20 Β°C to 50 Β°C. That range helps buyers confirm whether it fits the environmental conditions of the intended indoor electrical accessory application.

What warranty period and weight does the VM-20318.B have?

The VM-20318.B has a listed warranty period of 3 years. Its listed weight is 0.1677 kg, which may be useful for procurement, inventory, and shipping records.
