Vimar

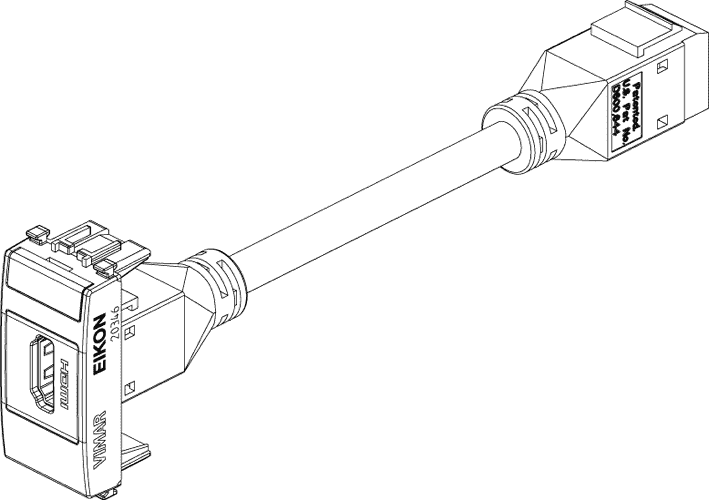

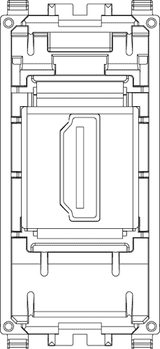

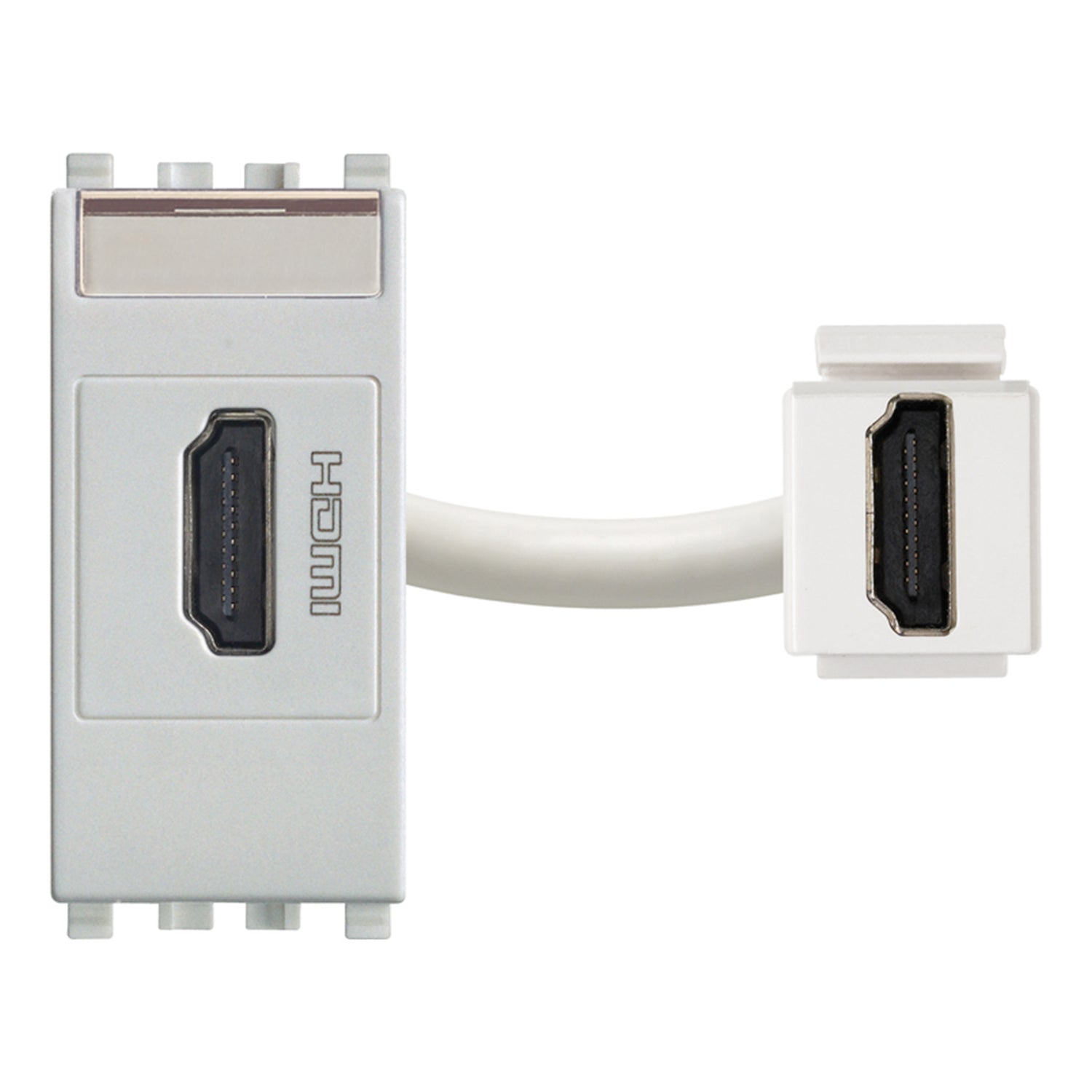

Eikon HDMI Outlet Socket Connector Silver

ConnectorSilver
SKU VM-20346.N
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-20346.N is Vimar EIKON 20346.N, HDMI 2.1b socket connector Next.

Socket outlet with HDMI 2.1b connector, Keystone fixing, Next

Specifications

VM-20346.NSpecifications from the official datasheet

Technical data

Product type
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
HDMI
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
22.3 mm
Device height
49 mm
Device depth
46.9 mm

Packaging

EAN
8007352420465
Packed size (cm)
14.2 Γ— 6.7 Γ— 5.9
Packed weight
76.13 g

Certifications

Certifications
CE marking (EU), RoHS UAE, WEEE Directive

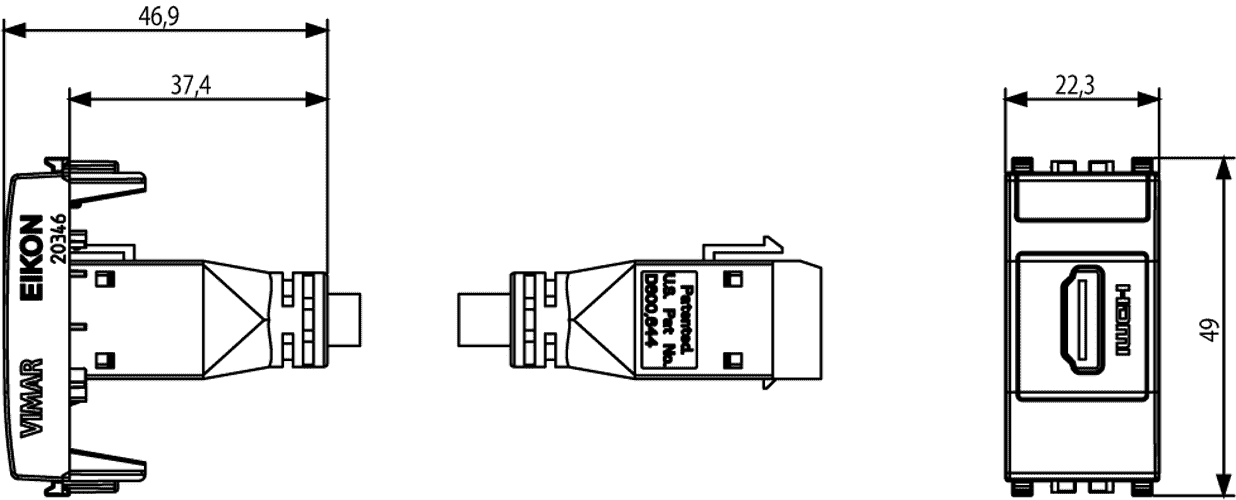

Technical drawings

VM-20346.N Drawings
Drawings

Downloads

FAQ

What is the VM-20346.N used for?

The VM-20346.N is an Eikon HDMI outlet socket connector intended for data and AV product pages in the Eikon Next range. It is suited to projects that need a coordinated HDMI outlet accessory with a silver finish.

Which switch series is this HDMI outlet socket part of?

This model is listed under the Eikon Next switch series categories. It is also categorized for Eikon Next data and AV applications, making it relevant for buyers specifying accessories within that product family.

What finish does the VM-20346.N have?

The VM-20346.N has a silver finish. Its design is part of the Eikon range, which emphasizes minimal shapes, squared corners, and refined visual detailing.

What operating temperature range is specified for this product?

This product is specified for temperatures from -20 Β°C to 50 Β°C. Buyers should compare that range with the expected conditions of the project environment.

What are the warranty period and weight for this model?

The VM-20346.N has a listed warranty period of 3 years. Its specified weight is 0.0770 kg, which may be useful for procurement, shipping, or product comparison records.
