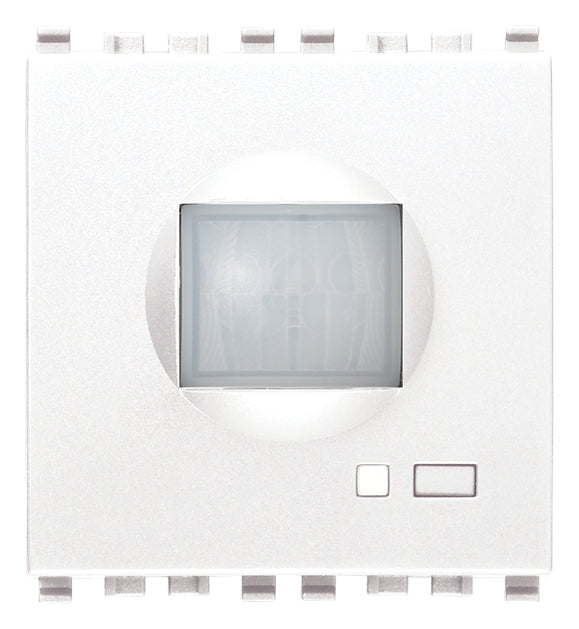

Eikon Passive Infrared Motion Detector White

2MMotion DetectorWhite
SKU VM-20485.B
Log in to see price Trade pricing & online ordering for account holders

Request a quote for one or many products — we'll reply with pricing and availability.

Available to order
|

Overview

VM-20485.B is Vimar EIKON 20485.B, IR motion detector white.

Passive infrared motion detector, white - 2 modules

Specifications

VM-20485.BSpecifications from the official datasheet

Technical data

Product type
Movement sensor for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Radio frequency bidirectional
No
Model
Movement sensor
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
With bus connection
Yes
Substation input
No
Creep-under protection
No
Operation mode switch
No
Animal zone
No
Staircase light controller
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Switch-off delay self-learning
No
DALI-2 certified
No
Optimum mounting height
1.2 m
Max. reach frontally
10 m
Detection angle vertical
0 - 36
Detection angle horizontal
0 - 112
Number of channels
1
Min. switch-on time
10 s
Max. duty cycle
250 min
Width
44.8 mm
Height
49 mm
Depth
43.5 mm
Built-in width
44.8 mm
Built-in depth
26.5 mm
Built-in length
49 mm
Min. depth of built-in installation box
30 mm

Packaging

EAN
8007352313286
Packed size (cm)
11.2 × 9.6 × 9.8
Packed weight
116.27 g

Certifications

Certifications
CE marking (EU), WEEE Directive, UK PSTI compliance

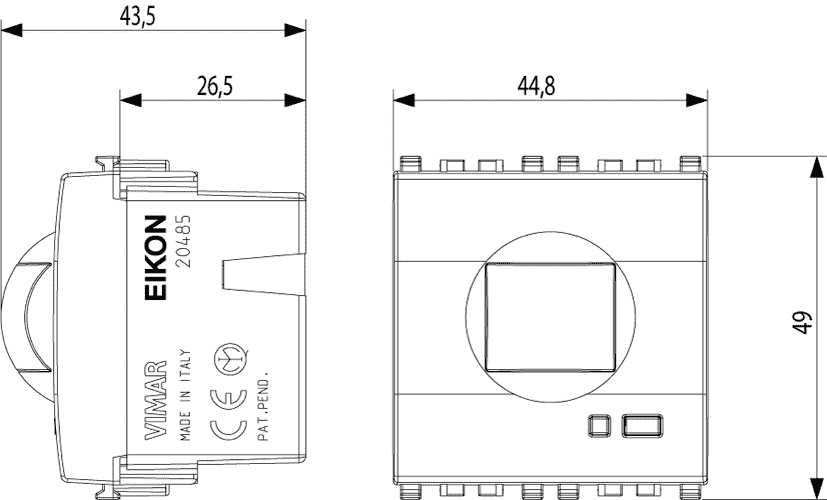

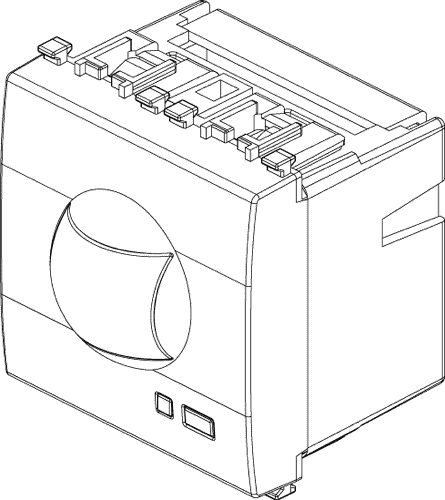

Technical drawings

VM-20485.B Drawings
Drawings

Downloads

FAQ

What is the VM-20485.B used for?

The VM-20485.B is a passive infrared motion detector for the Vimar Eikon Exe range. It is intended for projects where motion detection is needed in a clean white module that matches Eikon Exe styling.

Is this motion detector part of the Vimar Eikon Exe series?

Yes. This model is listed for the Vimar Eikon Exe range and is categorized as an Eikon Exe module. Its white finish is designed to coordinate with Eikon Exe switch and cover plate aesthetics.

What finish is the VM-20485.B?

The VM-20485.B comes in a white finish. This makes it suitable for projects using white Eikon Exe devices or cover plates.

What temperature range is this motion detector rated for?

This model is specified for temperatures from -20 °C to 50 °C. That range helps buyers confirm whether the device fits the environmental conditions of the intended location.

How much does the VM-20485.B weigh?

The listed weight for the VM-20485.B is 0.1189 kg. This is useful for procurement, shipping estimates, and product comparison records.

What warranty period is listed for this product?

The VM-20485.B has a listed warranty period of 3 years. Buyers should keep the product SKU and purchase documentation for warranty reference.
