Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

ENVO EdgeFlare LED Module Sidelit - Single LED

12V2.5WIP65

SKU EV-SLEF01LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Configure — 3 variants

EV-SLEF01LBY-CW

LED Colour

3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

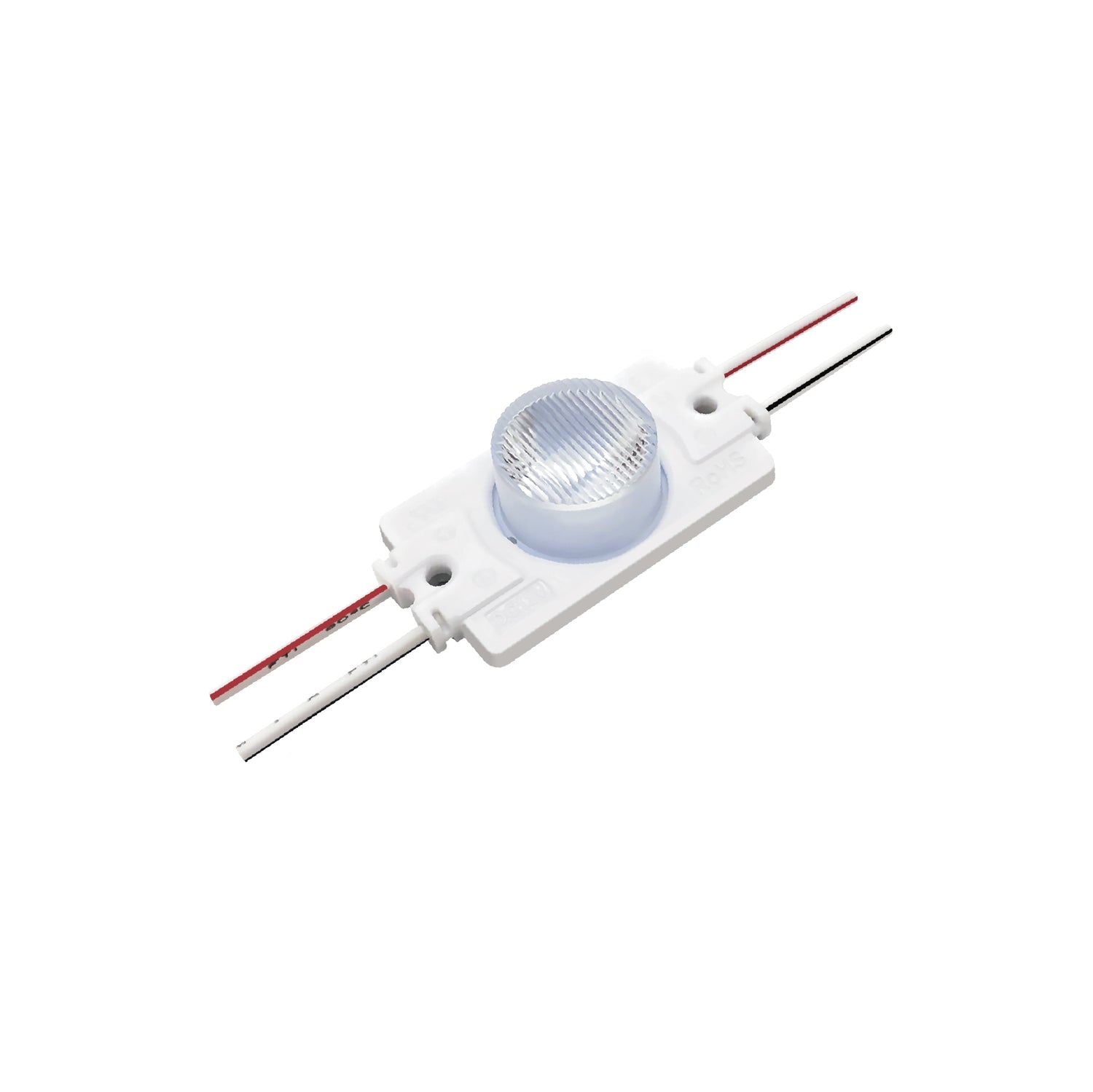

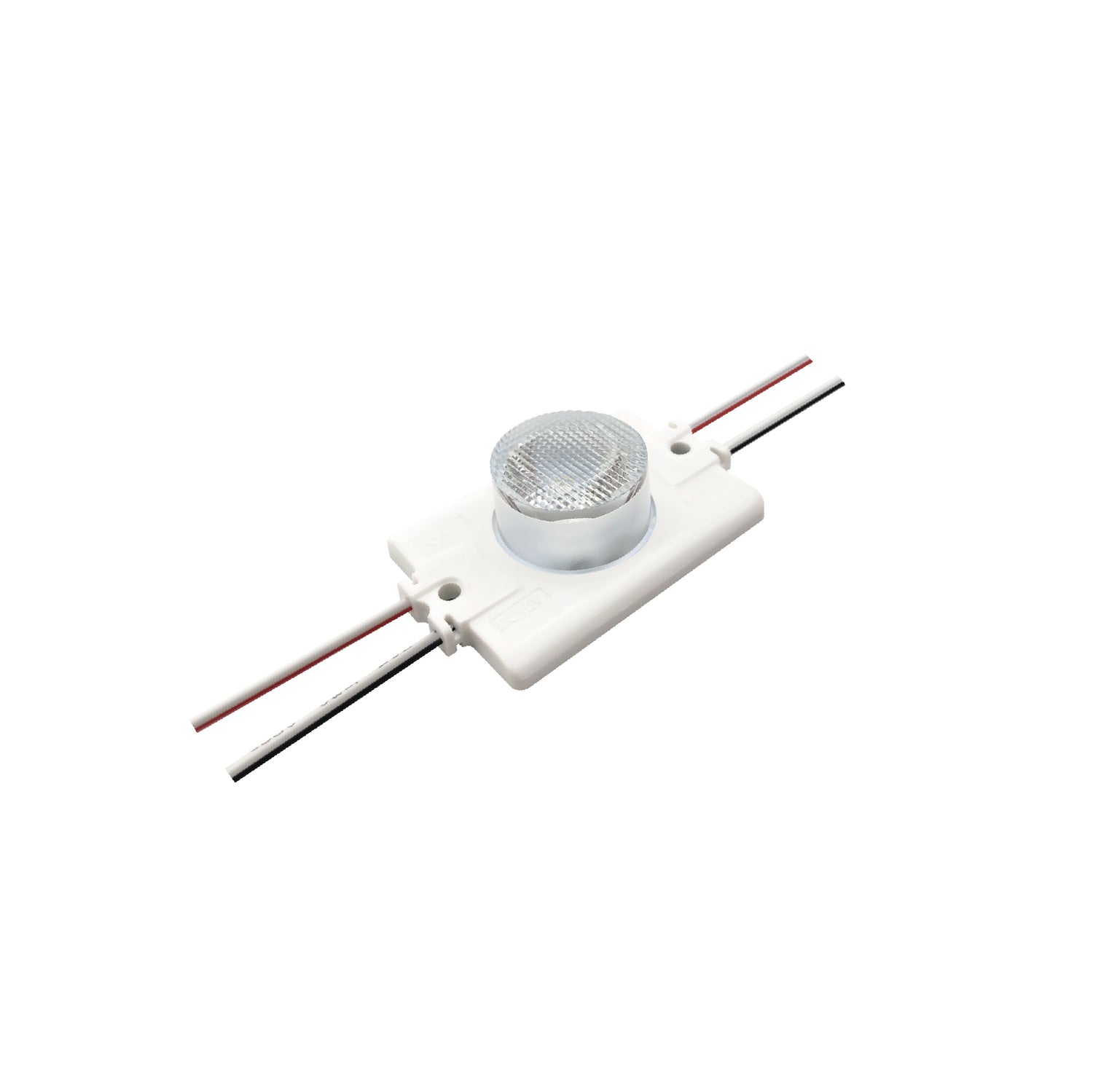

The EV-SLEF01LBY is an ENVO LED module (12VDC, 2.5W, operating temperature: -25~+60°C).

Key Features

✓ Input voltage: 12VDC
✓ Power: 2.5W
✓ Rated current: 0.21A
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ CRI: 75
✓ Beam angle: 15°
✓ Dimmable
✓ Ingress protection: IP65
✓ Operating temperature: -25~+60°C
✓ 5 year warranty

Frequently Asked Questions

What is the ENVO EdgeFlare LED Module Sidelit - Single LED designed for?

This LED module is designed for double-sided light boxes in commercial and public environments. The product description specifically positions it for applications such as airports, metros, banks, buildings, and shopping malls where bright, even sidelighting is needed.

What light box depth is this LED module suitable for?

This module is intended for double-sided light boxes with a depth of 10-20 cm. ENVO states it can provide effective light coverage up to 2 meters when used in those signage applications.

What are the main performance specifications of this LED module family?

Across this family, each module is rated at 2.5 W and 250 lm with a 15x45 degree beam angle and CRI 75. The modules are dimmable, run on 12V input, and are specified for a 50,000-hour lifetime with a 5-year warranty.

How do the variants in this parent family differ?

The main difference between the listed child variants is color temperature. The family includes 3000K warm white, 4000K neutral white, and 7000K cool white options, while the beam angle, brightness, power rating, CRI, lifetime, dimming capability, and warranty remain the same.

What optic lens does this module use, and why does it matter?

This family uses an elliptical 15x45 degree optic lens. That lens shape helps direct light more precisely across signage surfaces, which is especially useful for sidelighting applications where controlled spread and display visibility matter.

Is this LED module family intended for long-term commercial use?

Yes. The family is specified with a 50,000-hour lifetime, 5-year warranty, and a constant current system for stable performance, which supports long-term use in demanding commercial display environments.

What certifications are listed for the ENVO EdgeFlare LED Module family?

The product description lists CE, RoHS, UL, TUV, BIS, CB, and LM-80 certifications. These certifications indicate the family is positioned to meet recognized quality, safety, and environmental standards.
