What is the Envo SC-10-12 designed for?

The Envo SC-10-12 is a 10W constant-voltage power supply for 12V LED lighting and moving sign applications. It is intended for indoor, dry-location use where compact size and phase-cut dimming compatibility are needed. This model is positioned for low-power 12V loads rather than higher-wattage installations.

Is the Envo SC-10-12 compatible with TRIAC dimmers?

Yes. This model is specified to work with both leading-edge and trailing-edge TRIAC dimmers. The product description also states strong compatibility and flicker-free dimming for phase-cut control.

What are the main electrical ratings of the SC-10-12?

This power supply is rated at 10W output with a 12V constant-voltage output and 0.83A rated current. Its AC input range is 180-240VAC. The unit also includes built-in active PFC and efficiency of up to 82%.

Can the Envo SC-10-12 be used outdoors or in wet areas?

No. The SC-10-12 has an IP20 design and is described as suitable for indoor installation in dry locations. It should be selected for protected indoor environments, not exposed outdoor or wet-area applications.

Why would I choose the SC-10-12 over a higher-power 12V driver?

The SC-10-12 is suited to lower-power 12V applications where only up to 10W output is required. Choosing a model in this rating can make sense for smaller LED loads while still providing TRIAC dimming support, active PFC, and standard protection features. For larger 12V loads, a higher-wattage model in the same category would be more appropriate.

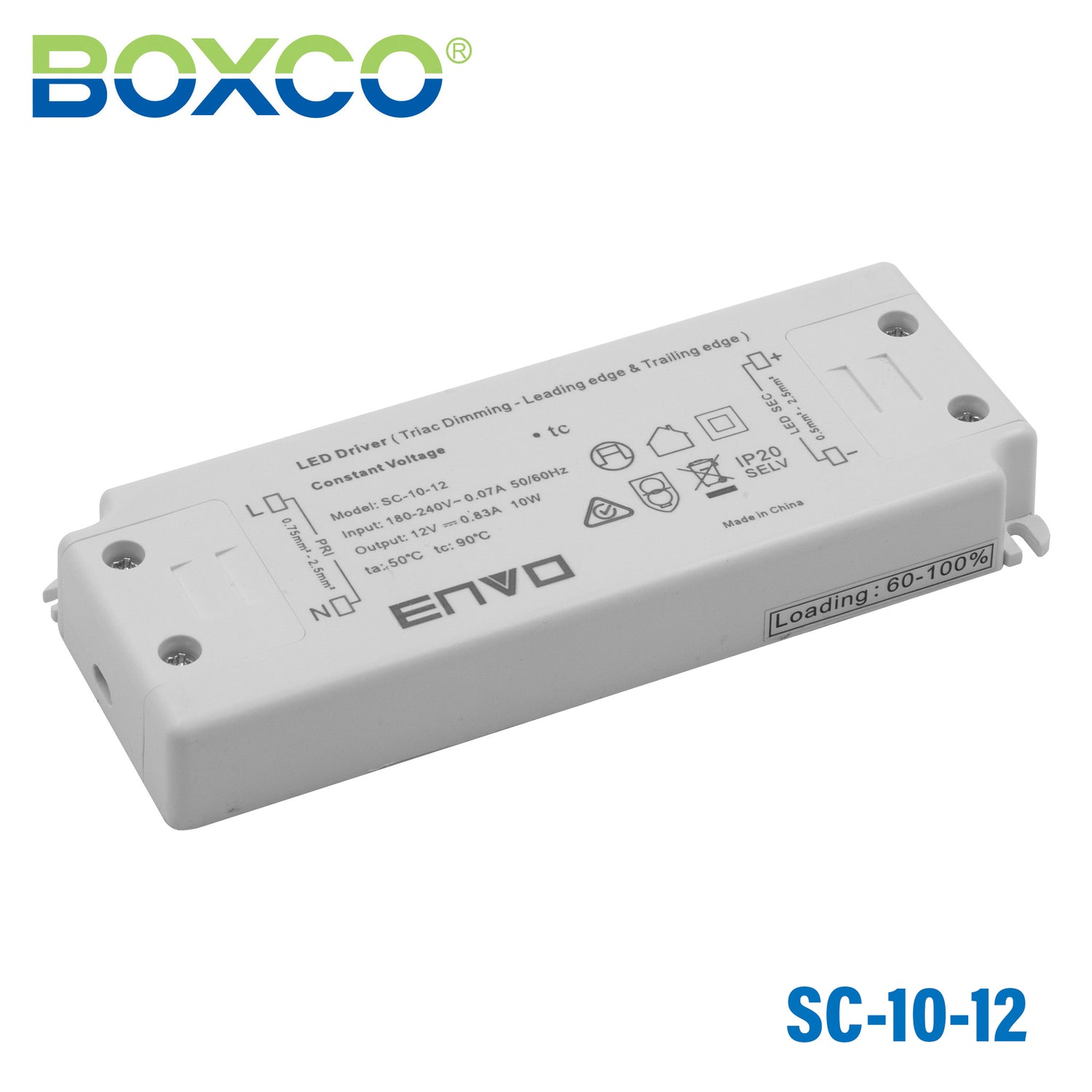

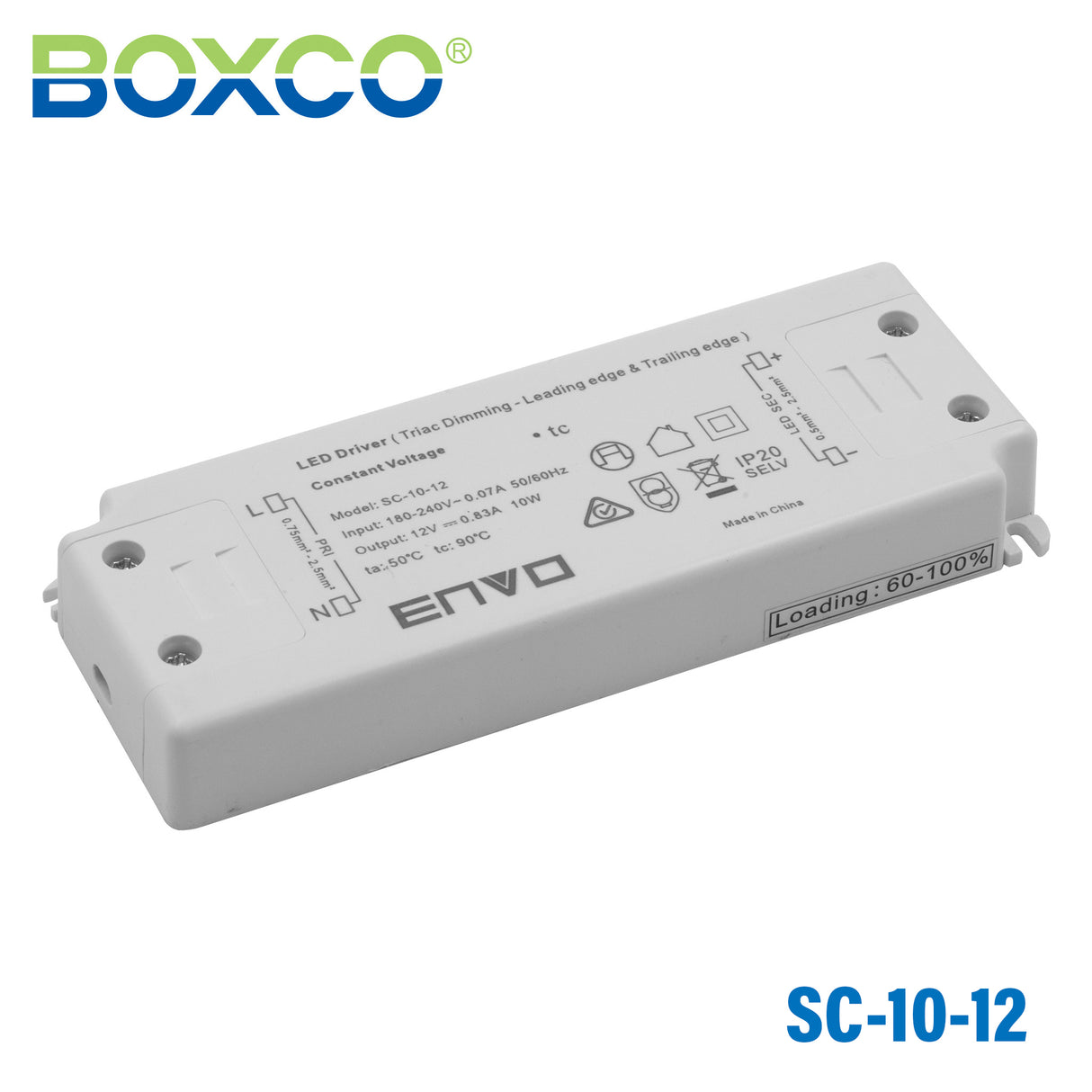

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Envo

Envo SC-10-12 Power Supply 10W 12V - Triac dimmable 830mA

triac dimmable

SKU:

SC-10-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Output constant voltage
Range AC input/ :180-240VAC
Built-in active PFC function
High efficiency :up to 82%
Protections:short circuit/over loading/over current
Full protection plastic housing easy installation
IP20 design for indoor installation
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility
flicker-free dimming
Suitable for LED lighting and moving sign applications
Suitable for dry locations

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Envo SC-10-24 Power Supply 10W 24V - Triac dimmable 420mA	10W	24V	0.42A	Indoor	View
