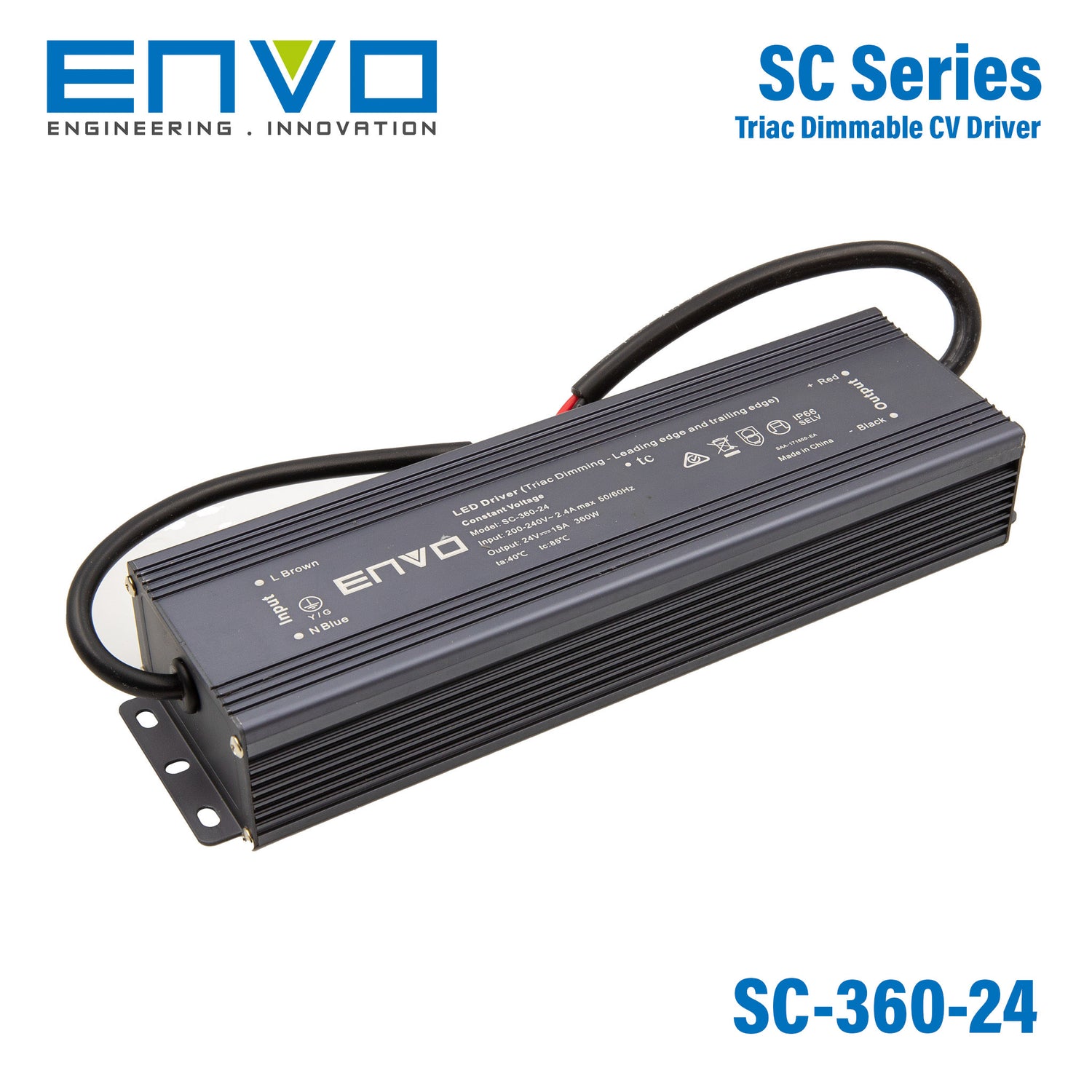

Envo SC-360-24 Power Supply 360W 24V - Triac dimmable 15A
Please Login for Pricing
Description
Description
- Output constant voltage
- Range AC input: 200-240VA
- Built-in active PFC function
- Efficiency :up to 89%
- Protections:short circuit/over loading/over temperature
- Full protection aluminum housing easy installation
- IP66 design for outdoor installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility
- flicker-free dimming
- Suitable for LED lighting and moving sign applications
Specifications
Specifications
-
BrandEnvo
-
SeriesSC Envo Series
-
Power Rating360 Watt
-
Output Voltage24 Volt
-
Rated Current15 Ampere
-
Input Voltage200V~240V
-
Standards MetCE,RCM,SAA,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length27.6 cm
-
Width7.8 cm
-
Height4.7 cm
-
Weight1.67 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of output does the Envo SC-360-24 provide?
The Envo SC-360-24 is a constant-voltage power supply with a 24V DC output. It is rated for 360W maximum power and 15A rated current, which makes it suitable for 24V lighting loads that need a higher-capacity supply.
Is the SC-360-24 dimmable?
Yes. This model is designed for AC phase-cut dimming and works with both leading-edge and trailing-edge TRIAC dimmers. The product description also states strong compatibility and flicker-free dimming performance.
What kinds of applications is the SC-360-24 intended for?
This model is described as suitable for LED lighting and moving sign applications. Its 24V constant-voltage output and TRIAC dimming support make it a fit for commercial or architectural 24V LED systems where mains-side dimming is required.
Can the Envo SC-360-24 be used outdoors or in exposed environments?
It has an IP66 design, so it is intended for outdoor installation and better resistance to dust and water ingress than indoor-only units. It is also specified for operation from -40°C to 60°C, which supports use in demanding ambient conditions.
What input range does the SC-360-24 support?
The listed AC input range for this model is 200-240V AC. That makes it appropriate for regions and projects using that mains range, including many commercial and trade applications in New Zealand.
How does the SC-360-24 differ from a non-dimmable 24V power supply?
The main difference is that this model supports leading-edge and trailing-edge TRIAC dimming, while a standard non-dimmable 24V supply would only provide fixed output. It is also built for higher-demand use with 360W capacity, active PFC, and an IP66 aluminum housing.
What protection features are included in the Envo SC-360-24?
The product description lists short-circuit, overloading, and over-temperature protection. Those protections are important for commercial LED power applications where reliability and fault tolerance matter.
What warranty is offered for the SC-360-24?
This model has a 5-year warranty period. For trade buyers, that is a useful indicator that the unit is intended for longer-service lighting and signage applications rather than short-life consumer use.
