What type of power supply is the Envo SC-45-12?

The Envo SC-45-12 is a constant voltage LED power supply with a 12V output. It is rated at 45W and delivers up to 3.75A for compatible 12V lighting and sign applications.

Is the Envo SC-45-12 dimmable?

Yes, this model is TRIAC dimmable and supports AC phase-cut dimming. It is designed to work with both leading edge and trailing edge TRIAC dimmers and is described as offering flicker-free dimming.

What applications is the Envo SC-45-12 suitable for?

This model is intended for LED lighting and moving sign applications. Its 12V constant voltage output makes it suitable for systems that require that output type and rating.

What input power range does the Envo SC-45-12 support?

The Envo SC-45-12 supports universal AC input with ranges of 90-130VAC or 180-240VAC. This gives it flexibility for use across different mains supply environments where those voltage ranges apply.

Can the Envo SC-45-12 be used in demanding temperature conditions?

This power supply is rated for operation from -40°C to 60°C. That wide operating range makes it a practical option for environments that experience both low and elevated ambient temperatures.

What protection and durability features does the Envo SC-45-12 include?

The Envo SC-45-12 includes protection for short circuit, over loading, and over current conditions. It also uses a full plastic housing and is backed by a 5-year warranty.

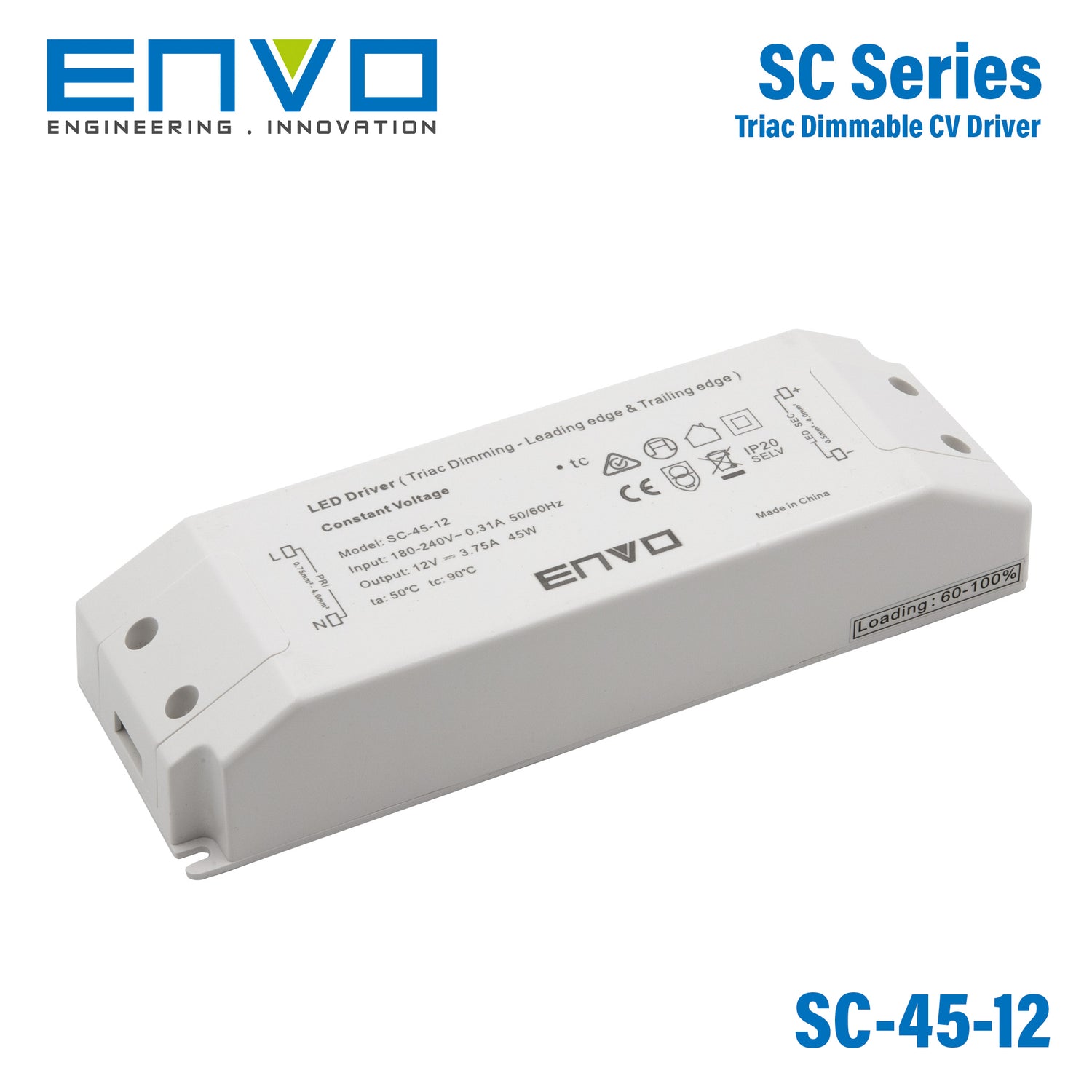

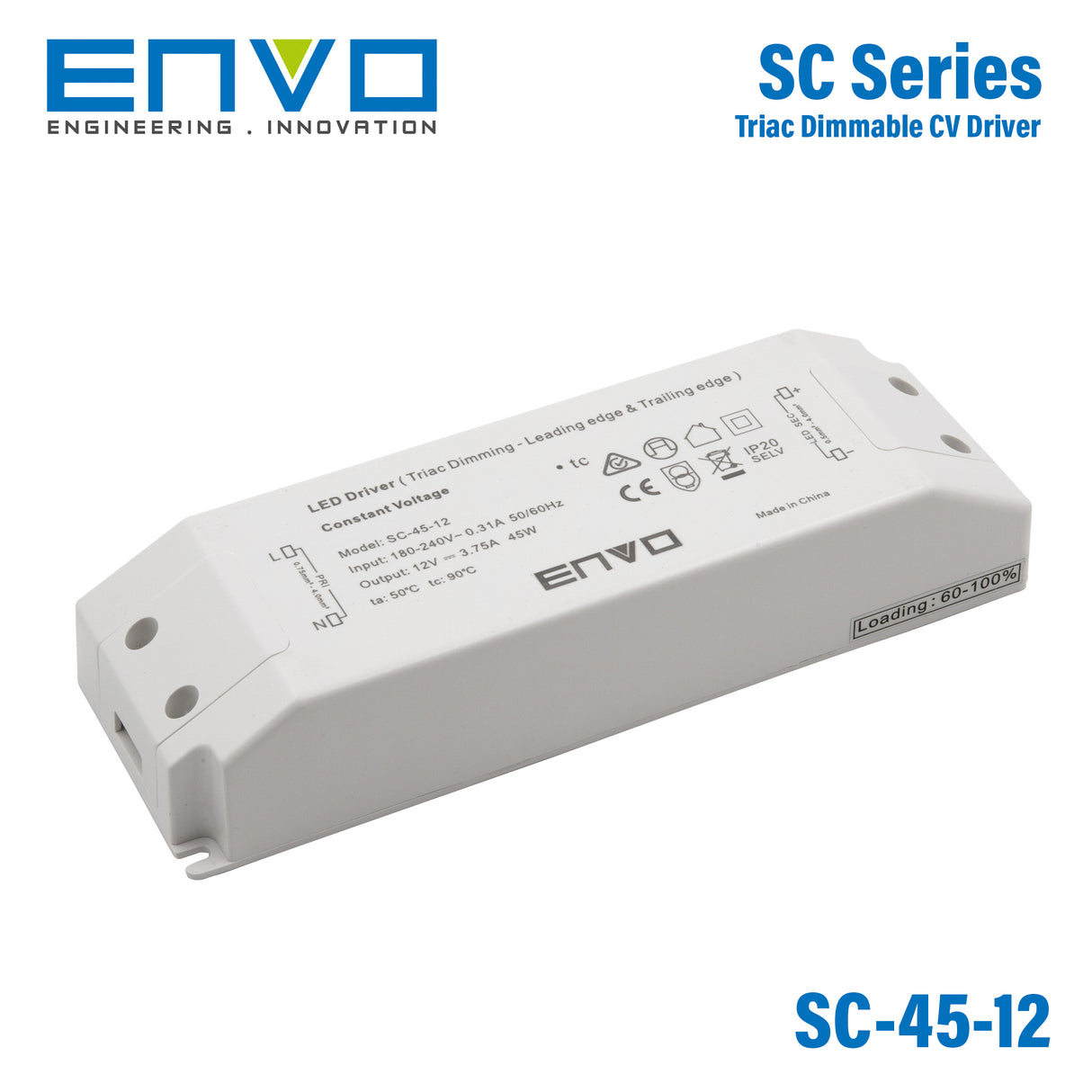

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Envo

Envo SC-45-12 Power Supply 45W 12V - Triac dimmable 3.75A

triac dimmable

SKU:

SC-45-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Output constant voltage
Universal AC input/ : 90-130VAC or 180~240VAC
Built-in active PFC function
High efficiency :up to 98%
Protections:short circuit/over loading/over current
Full protection plastic housing
Easy installation
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility
flicker-free dimming
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
