Envo SC-45-24PWM Power Supply 45W 24V - Dimmable LED Driver

Overview

SC-45-24PWM is the 24V output model of this series: rated current 0 -1.87A, rated power 45W, typical efficiency 85%.

Features

Output constant voltage
Universal AC input:100-265VAC
Built-in active PFC function
High efficiency up to 86%
Protections:Short circuit/Over current/Over loading
Cooling by free air convection
Fully isolated plastic case with terminals IP20
Class 2 power unit
Three in one dimming function(0/1-10Vdc or PWM signal or resistance)
Dimming range: 0-100%
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Three years warranty

Specifications

SC-45-24PWMSpecifications from the official datasheetDownload datasheet PDF

Output

DC Voltage: 24V
Voltage Tolerance: ±0.5V
Rated current: 0-1.87A
Rated power: 45W

Input

Voltage Range: 100～265VAC
Frequency Range: 47～63HZ
Power Factor: PF≥0.95/120VAC, PF≥0.90/230VAC, PF≥0.90/265VAC (Full loading)
Efficiency（Typ.）: 85%
AC Current（Max.）: 0.49A
Leakage current: ＜0.5mA

Protection

Short Circuit: Hiccup mode, recovers automatically after fault condition is removed
Over Loading: ≤120%
Over Current: ≤1.2*Iout

Environment

Working TEMP.: -40～+60℃
Working Humidity: 20～90%RH non-condensing
Storage TEMP.,Humidity: -40～+80℃，10～95%RH
TEMP.coefficient: ±0.03%/℃（0～50℃）
Vibration: 10～500Hz, 2G, 12min./1 cycle, period for 72min. each along X,Y,Z axes

Safety&EMC

Safety standards: EN61347-1 EN61347-2-13
Withstand voltage: I/P-O/P:3.75KVAC
Isolation resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70%RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 (≥60%load)
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry Level Criteria A

Others

Net.Weight: 0.55Kg
Size: 180*60*35mm（L*W*H）
Packing: 355*215*215mm, 20PCS

Test conditions and notes3

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature.
2. Tolerance:includes set up tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Technical drawings

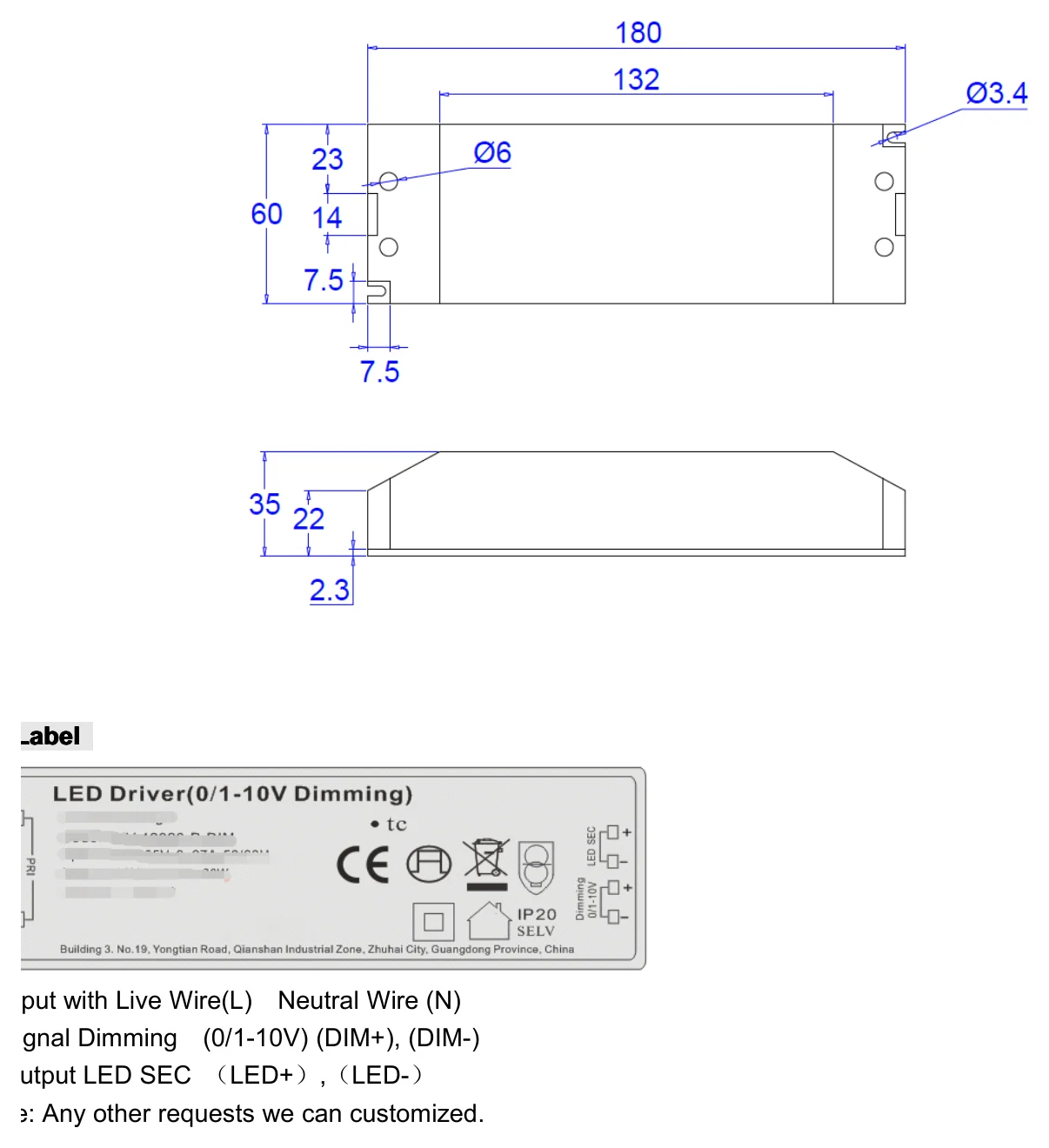

SC-45-24PWM 45W 0-10V dimmable driver Mechanical Specification — 45W 0-10V dimmable driver Mechanical Specification

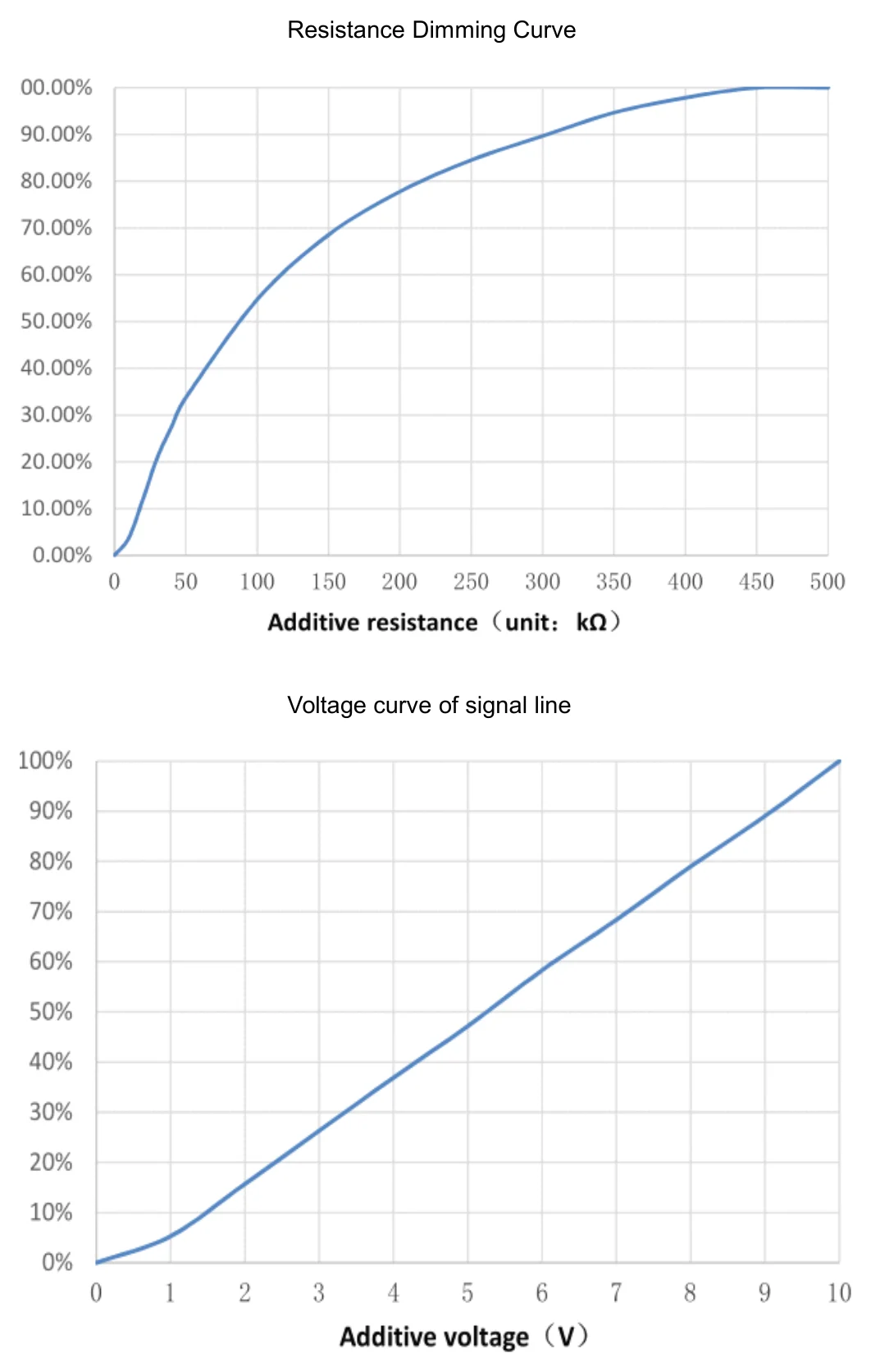

SC-45-24PWM Dimming Curve — Dimming Curve

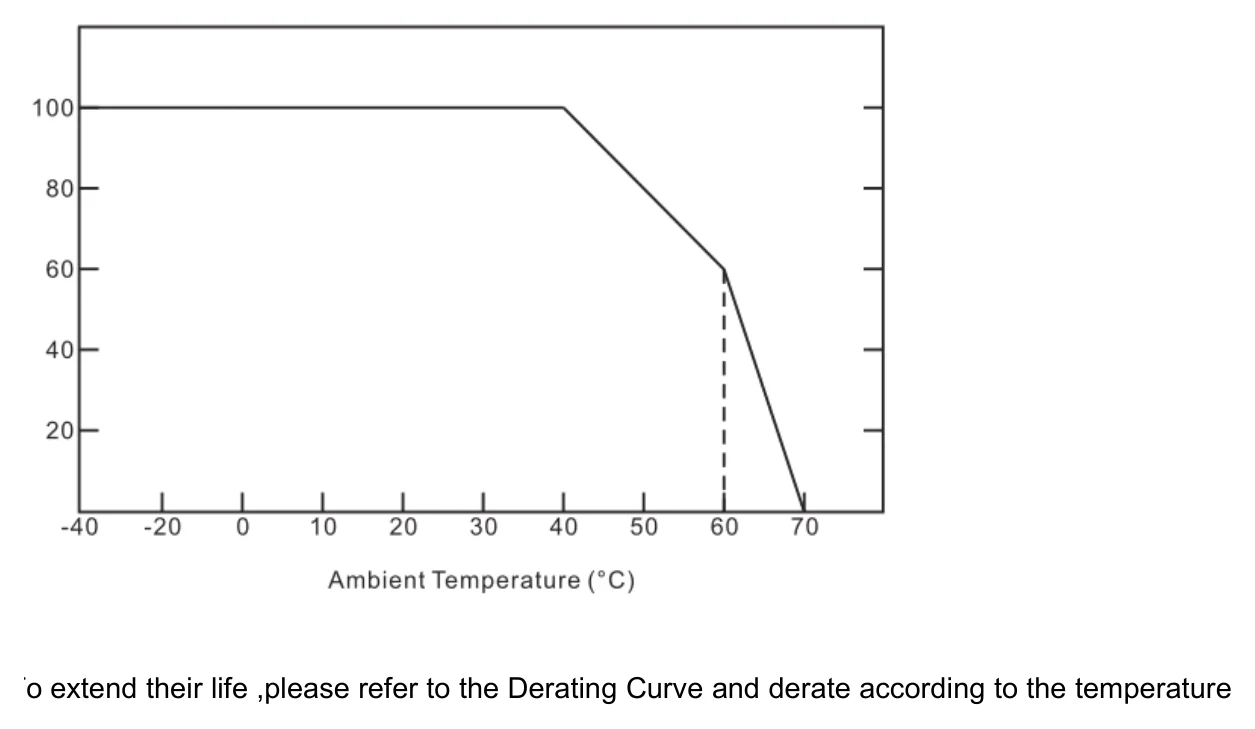

SC-45-24PWM Derating Curve — Derating Curve

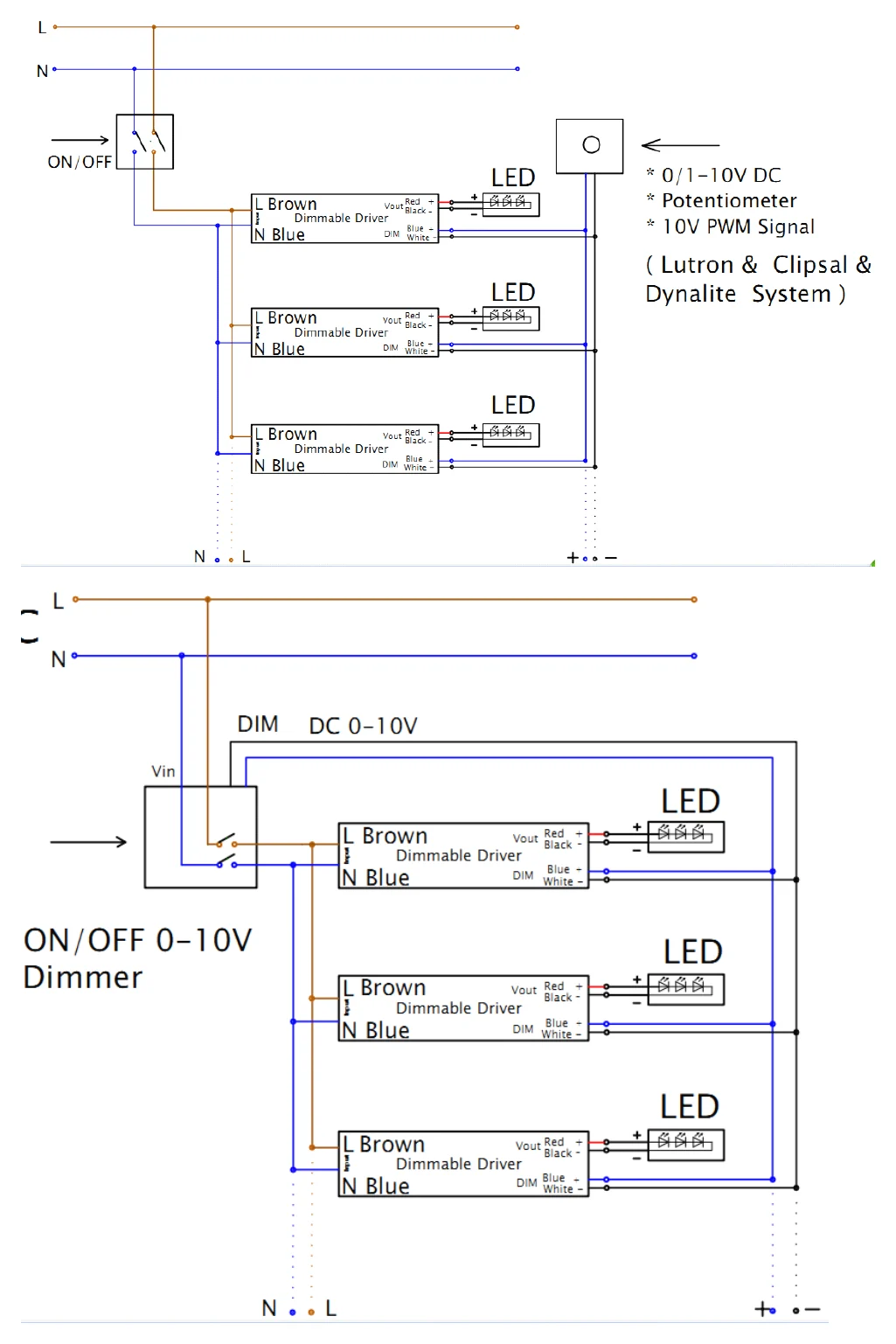

SC-45-24PWM Connect Drawing — Connect Drawing

Downloads

Datasheet1

SC-45-24PWM datasheetsc_45_12_24pwm.pdf PDF Download

FAQ

What type of power supply is the Envo SC-45-24PWM?

The Envo SC-45-24PWM is a 45W constant voltage LED power supply with a 24V DC output. It is designed for applications that need stable 24V output and three-in-one dimming capability (0/1-10V, PWM, or resistance).

What dimming methods does the SC-45-24PWM support?

This model is described as PWM dimmable and also lists three-in-one dimming support: 0/1-10V DC, PWM signal, or resistance dimming. That makes it suitable for projects that require flexible low-voltage dimming control methods.

What applications is the Envo SC-45-24PWM suitable for?

The product description states that it is suitable for LED lighting and moving sign applications. Its 24V constant voltage output makes it relevant for systems built around 24V LED equipment.

What input voltage range does the SC-45-24PWM accept?

This power supply accepts a universal AC input range of 100-265VAC. That broad range helps it fit projects where mains supply can vary across regions or sites.

Can the SC-45-24PWM be used in demanding temperature conditions?

The listed operating temperature range is -40°C to 60°C. That gives this model a relatively wide environmental range for commercial LED power applications.

What protection features are included in the Envo SC-45-24PWM?

The product description lists short circuit, over current, and over loading protection. These built-in protections help support reliability in LED lighting power applications.

How much output current does the SC-45-24PWM provide at 24V?

This model is rated for 1.87A output current at 24V DC, with a total power rating of 45W. That places it in the compact constant-voltage category for moderate-power 24V LED loads.
