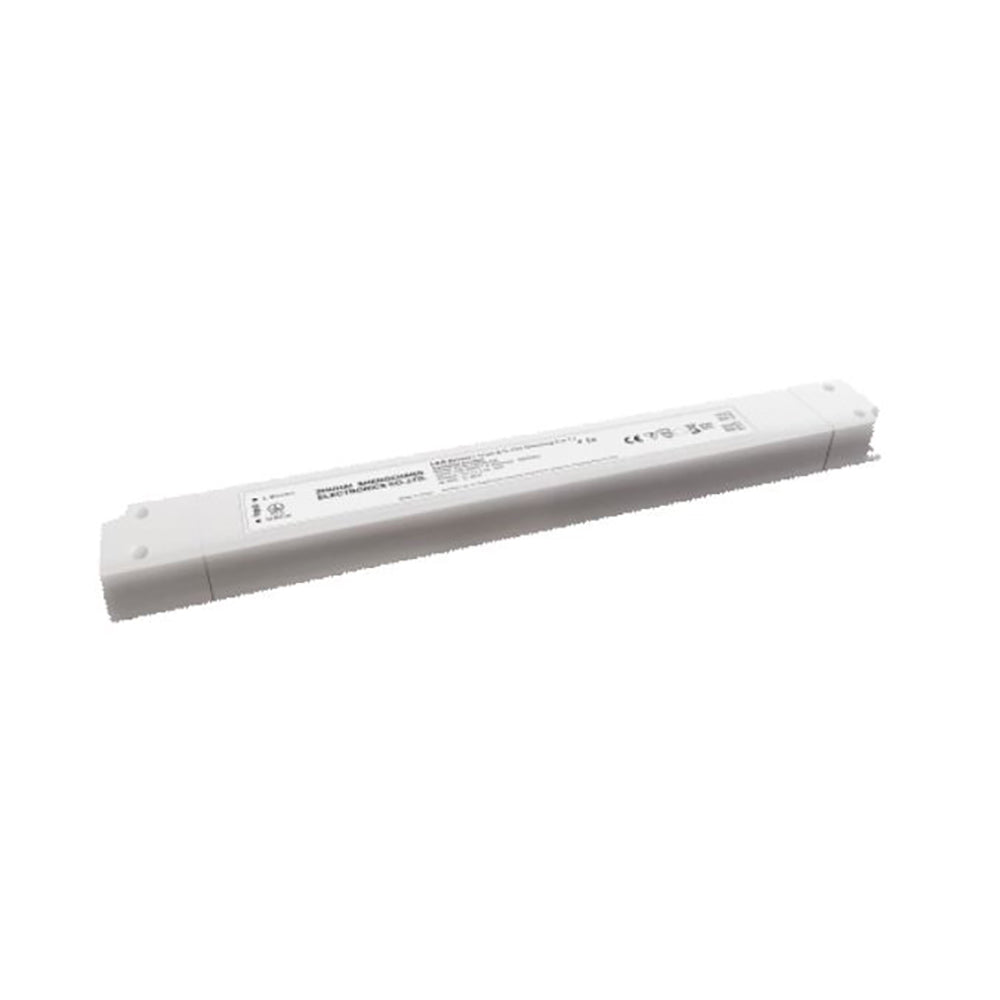

Envo Slim SC-100S-24 Power Supply 100W 24V - Triac dimmable 4.17A
Please Login for Pricing
Description
Description
- Output constant voltage
- Range: 200-240VAC
- Built-in active PFC function Power Factor: up to 0 96
- Efficiency up to 85%
- Dimming range: 0-100%
- Load: 10-100%
- Protection:short circuit/over loading/ Over temperature
- PWM output
- does not change the color index
- Full protection plastic case
- IP20 for indoor installation
- Flicker-free
- Compatible with leading edge and trailing edge TRIAC dimmers
- Cooling by free air convection
- Suitable for LED lighting and moving sign applications
Specifications
Specifications
-
BrandEnvo
-
SeriesSC Envo Series
-
Power Rating100 Watt
-
Output Voltage24 Volt
-
Rated Current4.17 Ampere
-
Input Voltage200V~240V
-
Standards MetCE,RCM,SAA,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length30 cm
-
Width3 cm
-
Height1.85 cm
-
Weight0.3 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED power supply is the Envo Slim SC-100S-24?
The Envo Slim SC-100S-24 is a constant-voltage LED power supply with a 24V DC output. It is rated for 100W and delivers up to 4.17A, making it suitable for 24V lighting loads that need a slim, TRIAC-dimmable driver.
Is the SC-100S-24 TRIAC dimmable?
Yes. This model supports AC phase-cut dimming and is compatible with both leading-edge and trailing-edge TRIAC dimmers. It also offers a 0-100% dimming range with PWM output and is described as flicker-free.
What applications is this 24V 100W power supply designed for?
The SC-100S-24 is intended for LED lighting and moving sign applications. Its constant-voltage 24V output and phase-cut dimming support make it a fit for commercial and architectural LED projects that require dimming performance in a slim form factor.
Can this power supply be used indoors or outdoors?
This model is rated IP20, so it is intended for indoor installation. The plastic case provides basic enclosure protection, but the IP20 rating does not indicate suitability for exposed outdoor or wet-area use.
What input voltage range does the Envo Slim SC-100S-24 support?
The listed input range for this model is 200-240VAC. That makes it appropriate for applications using that mains voltage range, while delivering a regulated 24V constant-voltage output on the secondary side.
What protection features are included in the SC-100S-24?
This power supply includes protection for short circuit, overloading, and over-temperature conditions. It also uses a full plastic case and cooling by free air convection to support reliable operation in its intended indoor environment.
What operating temperature range is this model rated for?
The SC-100S-24 is rated for operation from -40°C to 60°C. That wide range helps it suit demanding indoor environments, provided the overall application stays within the product's stated specifications and IP20 use case.
