Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

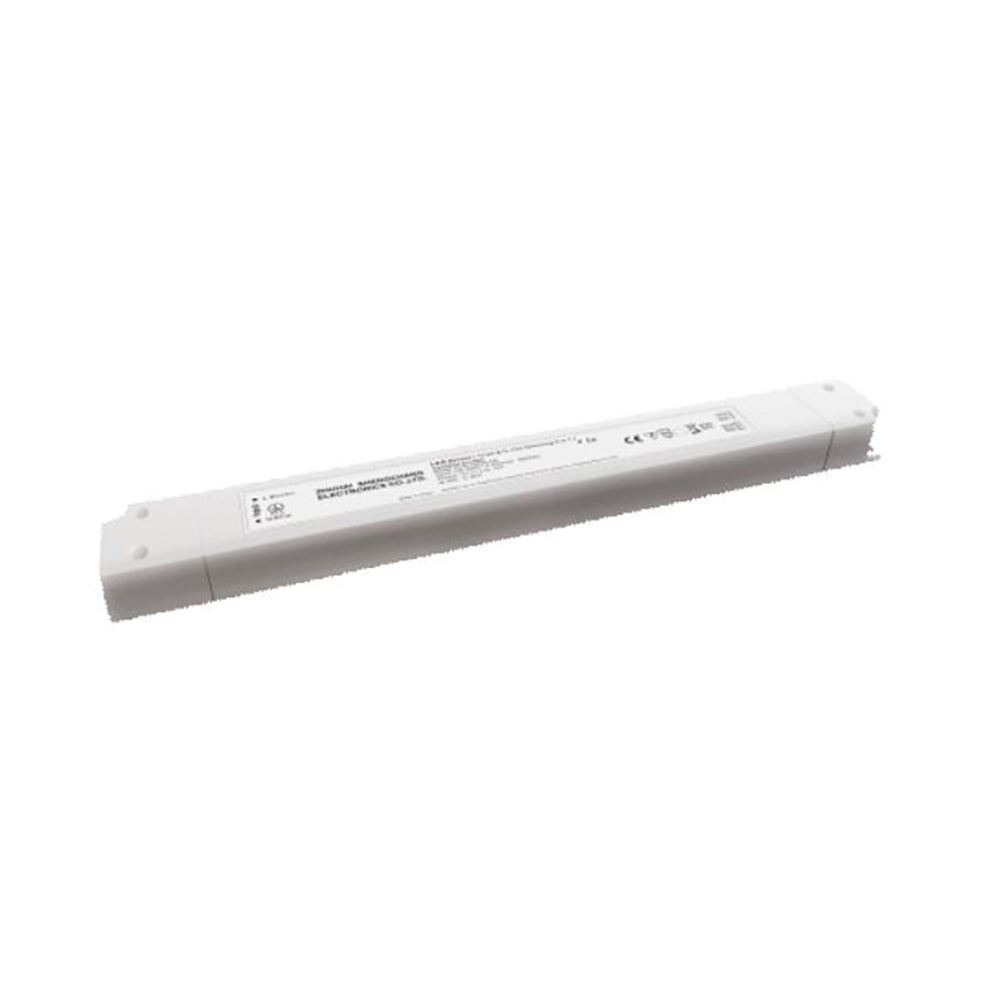

Envo Slim SC-60S-12 Power Supply 60W 24V - Triac dimmable 8.33A
Log in to see price- Output constant voltage
- Range: 200-240VAC
- Built-in active PFC function Power Factor: up to 0 96
- Efficiency up to 88%
- Dimming range: 0-100%
- Load: 10-100%
- Protection:short circuit/over loading/ Over temperature
- PWM output
- does not change the color index
- Full protection plastic case
- IP20 for indoor installation
- Flicker-free
- Compatible with leading edge and trailing edge TRIAC dimmers
- Cooling by free air convection
- Suitable for LED lighting and moving sign applications
-
BrandEnvo
-
SeriesSC Envo Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current8.33 Ampere
-
Input Voltage200V~240V
-
Standards MetCE,RCM,SAA,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length30 cm
-
Width3 cm
-
Height1.85 cm
-
Weight0.4 kg
::specification::
Frequently Asked Questions
What type of LED applications is the Envo Slim SC-60S-12 best suited for?
This model is intended for constant-voltage LED lighting applications that need a compact 60W indoor power supply. It is also described as suitable for moving sign applications, making it a fit for commercial and display lighting where TRIAC dimming is required.
Is the SC-60S-12 a constant-voltage or constant-current power supply?
The SC-60S-12 is a constant-voltage power supply. The provided specifications list a 12V output with a rated current of 8.33A and a 60W power rating.
Is this power supply dimmable, and what dimming method does it support?
Yes, this model is TRIAC dimmable and uses AC phase-cut dimming control. The description says it is compatible with both leading-edge and trailing-edge TRIAC dimmers, with a dimming range of 0-100%.
Can this power supply be used indoors or outdoors?
This model is rated IP20, so it is intended for indoor installation. Its plastic case and free-air convection cooling make it suitable for protected interior environments rather than exposed outdoor locations.
What input voltage range does the Envo Slim SC-60S-12 accept?
The specified input range for this model is 200-240VAC. That makes it appropriate for regions and projects using that mains voltage range, including many commercial and residential installations.
What are the main performance specifications of the SC-60S-12?
This unit is rated for 60W output, 12V constant voltage, and 8.33A rated current. The description also states efficiency up to 88%, active PFC with power factor up to 0.96, and support for 10-100% load operation.
Does this model support demanding temperature conditions?
The listed operating temperature range is -40°C to 60°C, which gives it a broad working range for indoor commercial or industrial-style environments. Buyers should still ensure the surrounding installation area stays within that specified temperature window.
Is the output for this model 12V or 24V?
Based on the structured product specifications provided, this model is specified as 12V output. The same data lists 12V, 8.33A, and 60W together, which aligns as the stated electrical rating for this unit.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SC-60S Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Envo Slim SC-60S-24 Power Supply 60W 24V - Triac dimmable 2.5A | 60W | 24V | 2.5A | Indoor | View |
