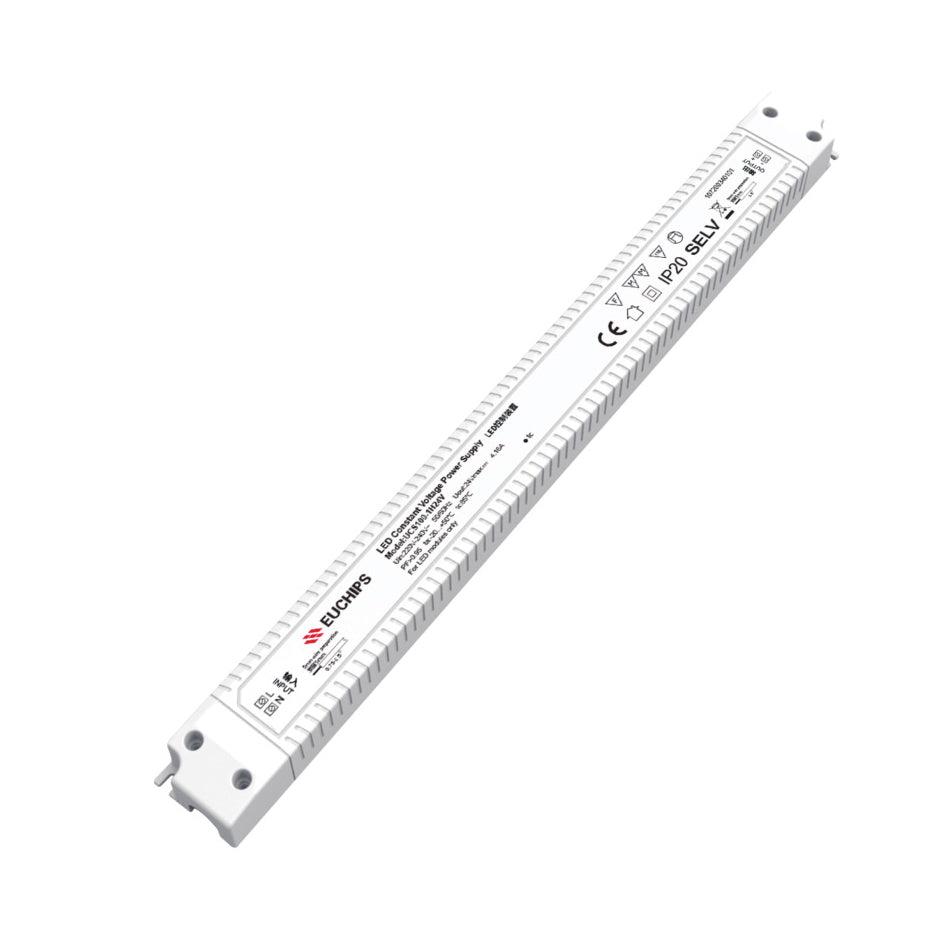

Euchips EU-UCS-100W-24V 100W 24VDC Non-dimmable Constant Voltage LE...
Please Login for Pricing
Description
Description
Features
1. A channel constant voltage output Max
2. Applicable to indoor LED lights
3. Small size, high efficiency, high reliability and long life time
4. -25℃~+50℃, working temp
5. Protections: overload, overvoltage, short circuit self-recovery protection
6. Compliance with CE and ROHS
7. 100% Full load aging test
8. The warranty period is 5 years
Specifications
Specifications
-
BrandEuchips
-
SeriesEuchips UCS-100W Series
-
Power Rating100 Watt
-
Output Voltage24 Volt
-
Rated Current4.16 Ampere
-
Input Voltage220V~240V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length31.2 cm
-
Width3 cm
-
Height1.8 cm
-
Weight0.17 kg
