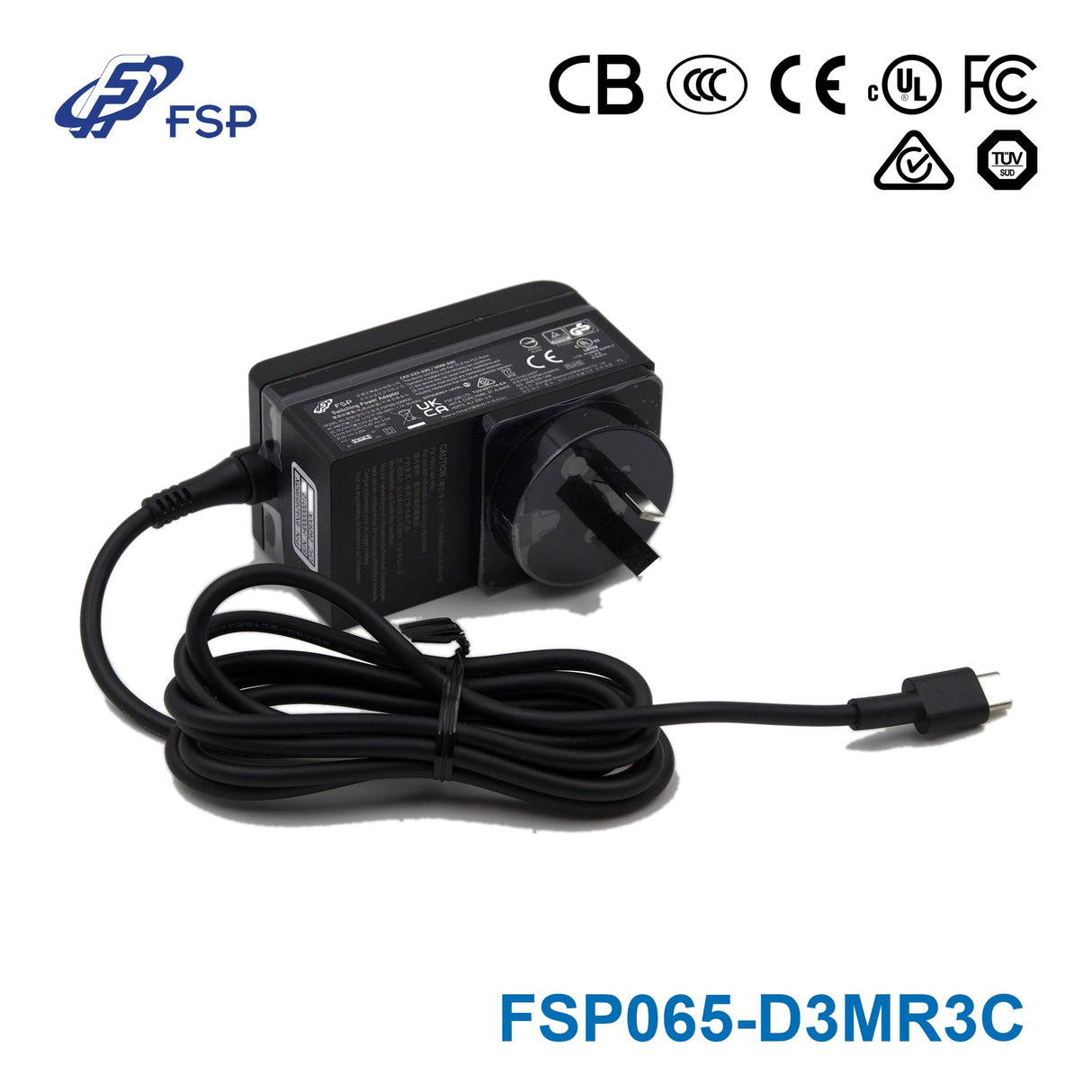

FSP065-D3MR3C 65W USB-C PD Wall Adapter

PD 3.0 standard outputsType-C output5/9/12/15/20V output
SKU FSP065-D3MR3C
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

FSP065-D3MR3C is the 5/9/12/15/20V output model of this series.

This product is an 65 watts AC to DC PD adapter intended for use in systems with Type-C input, such as laptop application. This adapter operates at 90 to 264 VAC input voltage with PD 3.0 standard outputs from 5V to 20V. The unit meets CIS-PR32 EN55032 CLASS B, and FCC PART 15B Class B emission limits, and is designed for ITE application.

Features

  • Meet USB PD R3.0
  • Certified IEC 62368-1
  • Meet LPS
  • Meet Energy Efficiency DOE Level VI & VII (Draft)
  • Meet Code of Conduct Version 5 Tier 2
  • Over Current Protection
  • Over Voltage Protection
  • Short Circuit Protection
  • Over Temperature Protection

Specifications

FSP065-D3MR3CSpecifications from the official datasheetDownload datasheet PDF

INPUT SPECIFICATIONS

Input voltage:
90-264 VAC
Input frequency:
47-63 Hz
Input current:
100Vac, 240Vac / full load ≤ 1.7A
No load power consumption:
115Vac, 230Vac ≤ 0.1W
Touch current:
264Vac / 50Hz ≤ 0.25mA rms

OUTPUT SPECIFICATIONS

Output voltage/current:
See rating chart
Max. output power:
65W
Protection: Over voltage:
The adapter will shut down caused by internal fault. That will be return to normal state by AC reset. See chart.
Over current:
The power will shutdown without damage.
Over Temperature:
The power supply will enter into shut down while the abnormal thermal rise occurs.

ENVIRONMENTAL SPECITICATIONS

Operating temperature:
0~70°C (> 40°C derating )
Storage temperature:
-20~+60°C
Operating humidity:
0~90% RH non-condensing
Storage humidity:
0~90% RH non-condensing

GENERAL SPECIFICATIONS

Efficiency:
See the chart at next page
Hold-up time
≥ 6ms at 100 or 240Vac with max. load
Operating altitude:
5,000 meters
Inrush current:
No damage, I²T Shall be less than 29% of the rating of adapter critical component
MTBF:
≥ 100,000Hrs with 115Vac / Max. load at 40°
EMC Performance EN55032:
Class B conducted, class B radiated
FCC:
Class B conducted, class B radiated
VCCI:
Class B conducted, class B radiated
EN61000-3-3:
Line flicker
EN61000-4-2:
ESD, ±15 KV air & ±8 KV contact
EN61000-4-3:
Radiated immunity, 3 V/m
EN61000-4-4:
Fast transient / burst, ±1 KV
EN61000-4-5:
Surge, ±1 KV diff., ±4 KV (Optional).
EN61000-4-6:
Conducted immunity, 3 Vrms
EN61000-4-8:
Magnetic field immunity, 1A/m
EN61000-4-11:
Voltage dip immunity, 30% reduction for 500 ms, >95% reduction for 10 ms, and 100% reduction for 5000 ms

OUTPUT VOLTAGE / CURRENT RATING CHART

Model
FSP065-D3MR3C
Output Voltage
5/9/12/15/20V
Output Current
3/3/3/3/3.25A
AC Plug
AU
Efficiency: DoE L6 & CoC V5 T2 115V
SPR Mode 5V: 81.39% 9V: 86.62% 12V: 87.40% 15V: 87.73% 20V: 87.54%
Efficiency: DoE L6 & CoC V5 T2 230V
SPR Mode 5V: 81.84% 9V: 87.30% 12V: 88.30% 15V: 88.85% 20V: 89.16%
Over Voltage Protection
5V: 8.0V Max. 9V: 14.0V Max. 12V: 18.0V Max. 15V: 22.0V Max. 20V: 27.0V Max.

Certifications & ratings

Certification marks
UL, TÜV, GS, CE, FCC, CCC

Technical drawings

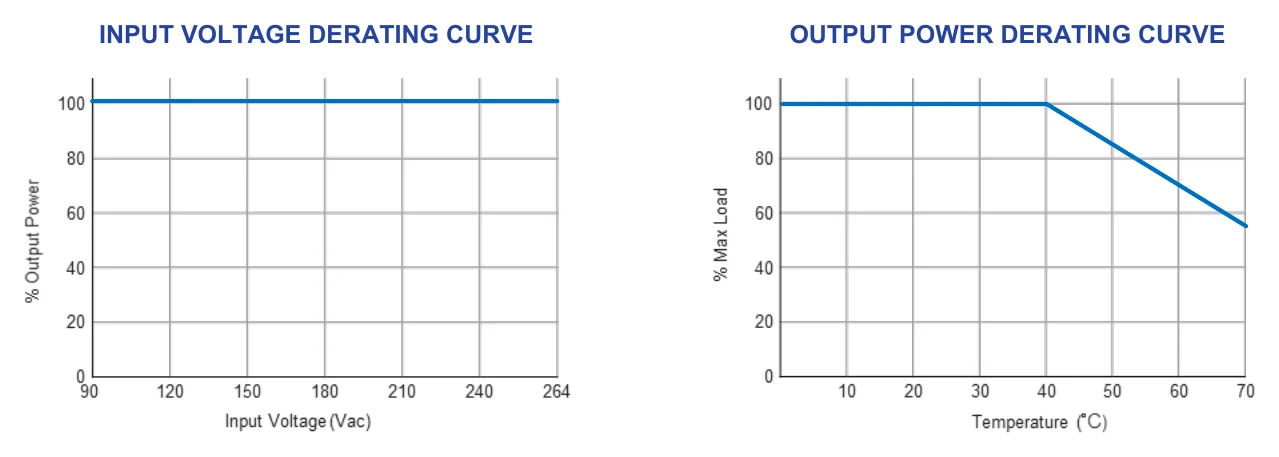

FSP065-D3MR3C INPUT VOLTAGE DERATING CURVE
INPUT VOLTAGE DERATING CURVE

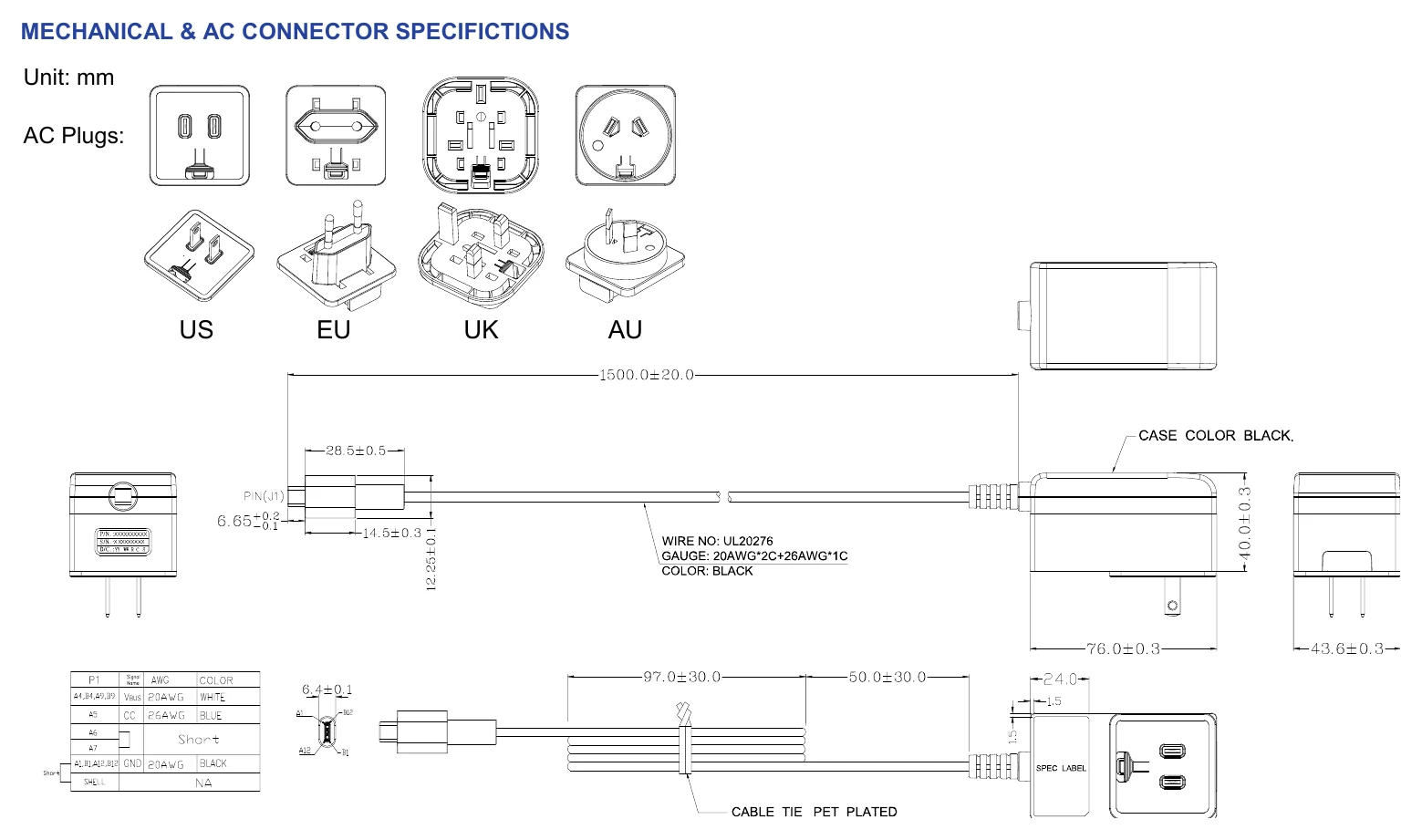

FSP065-D3MR3C MECHANICAL & AC CONNECTOR SPECIFICTIONS
MECHANICAL & AC CONNECTOR SPECIFICTIONS

Downloads

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
