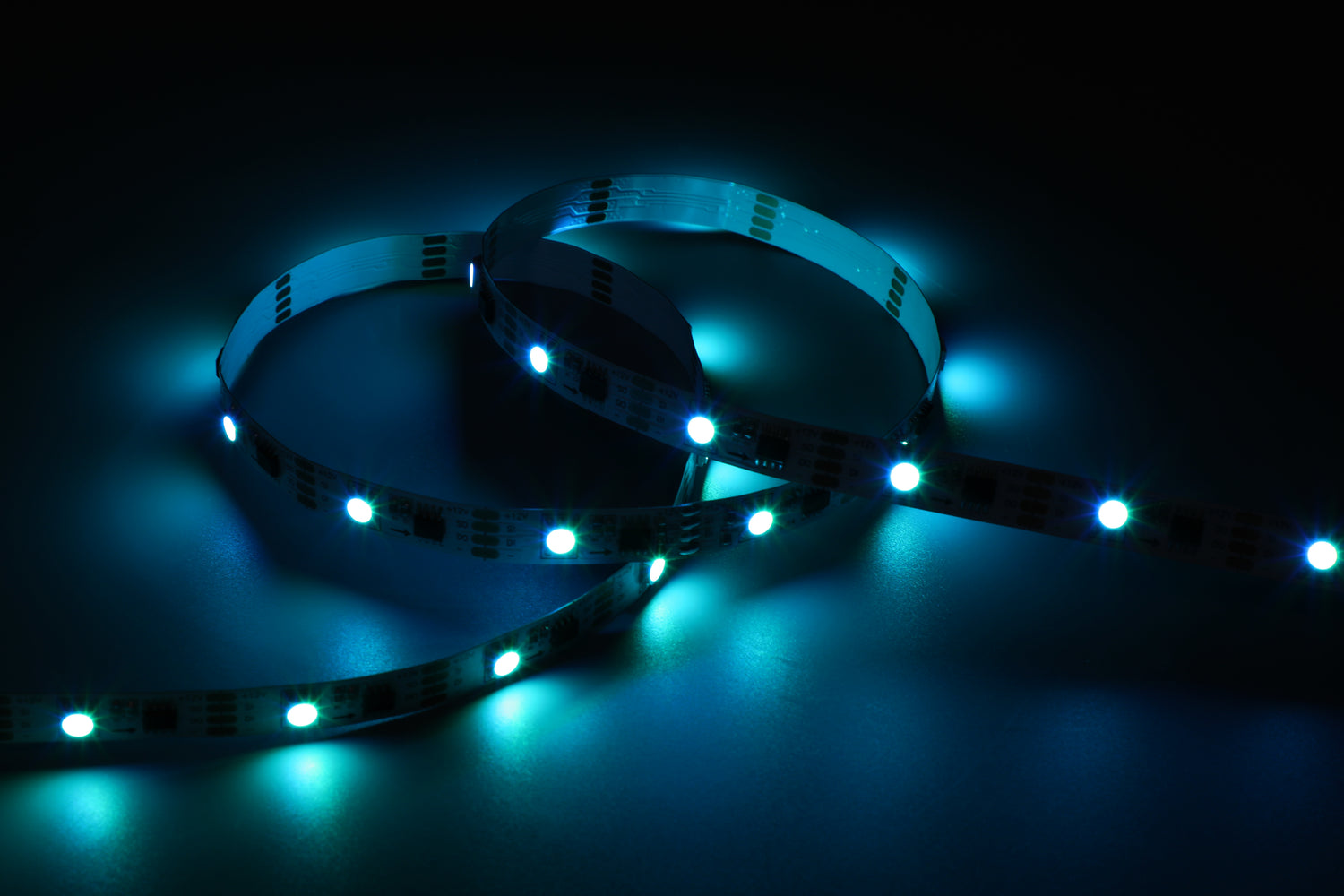

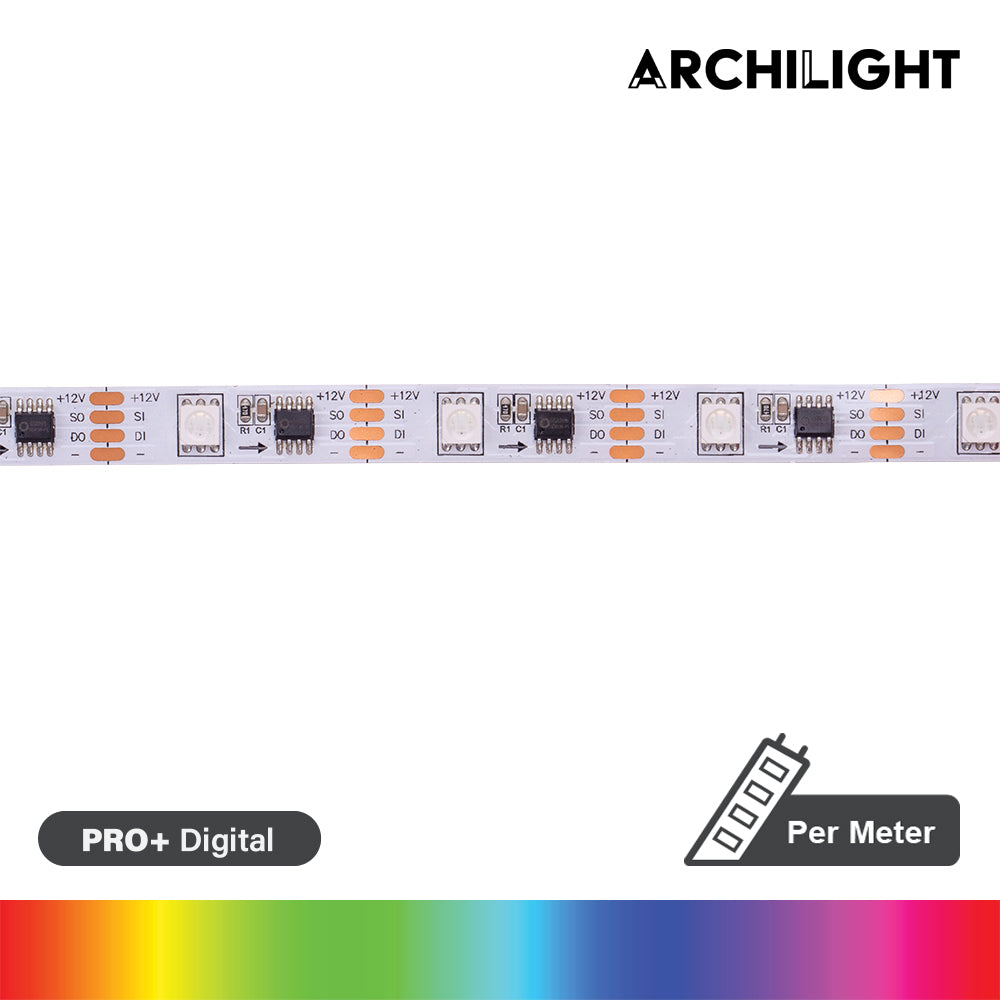

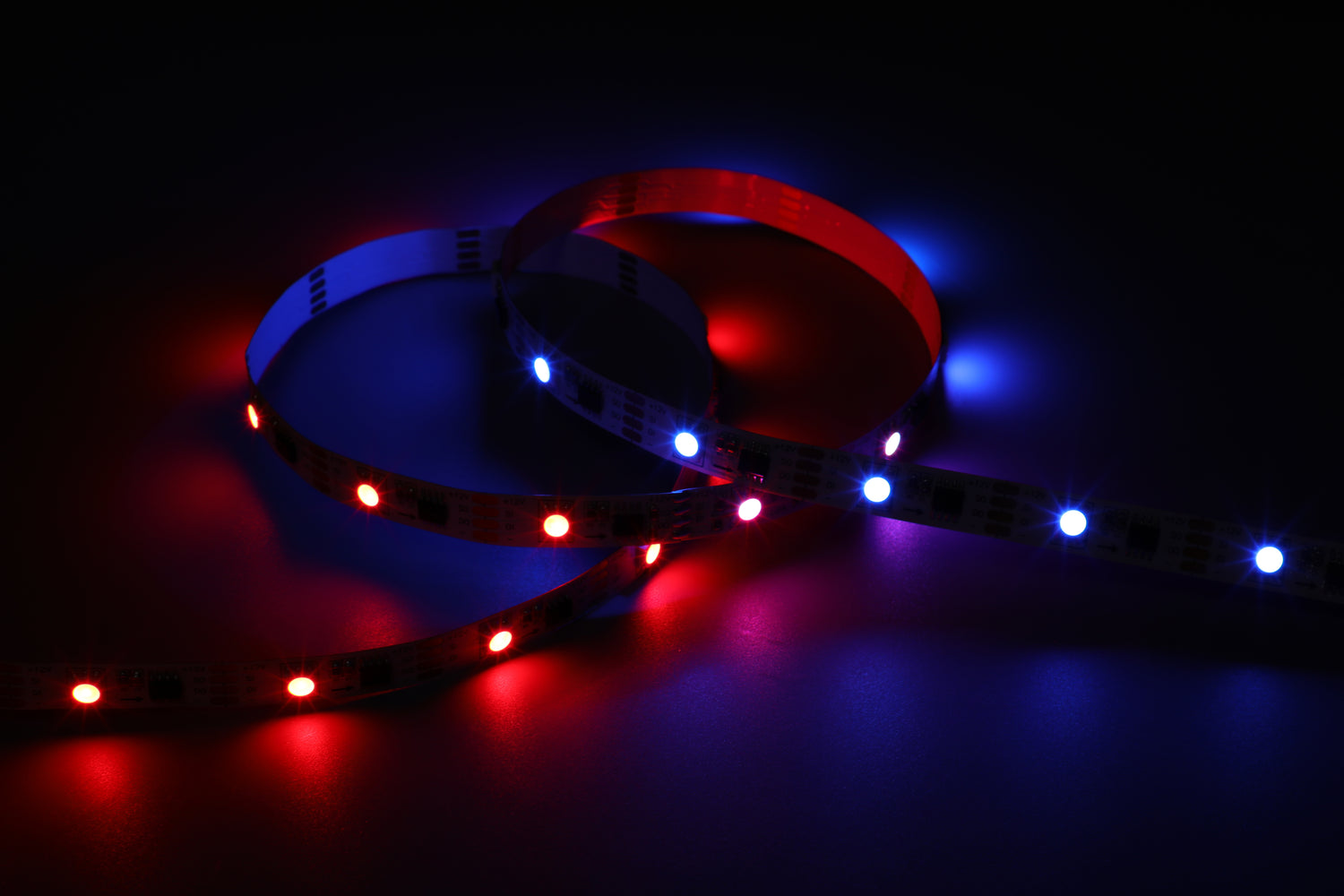

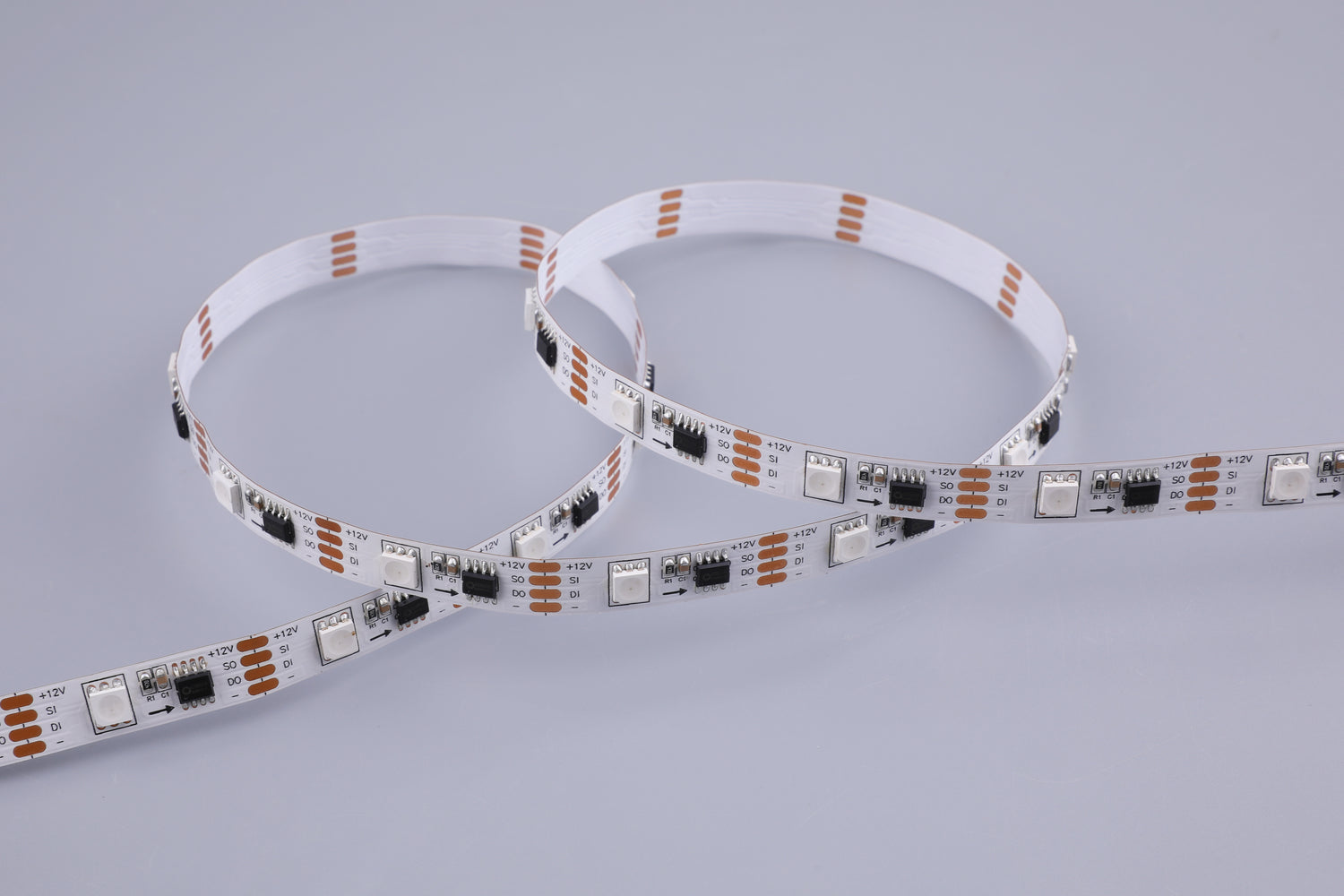

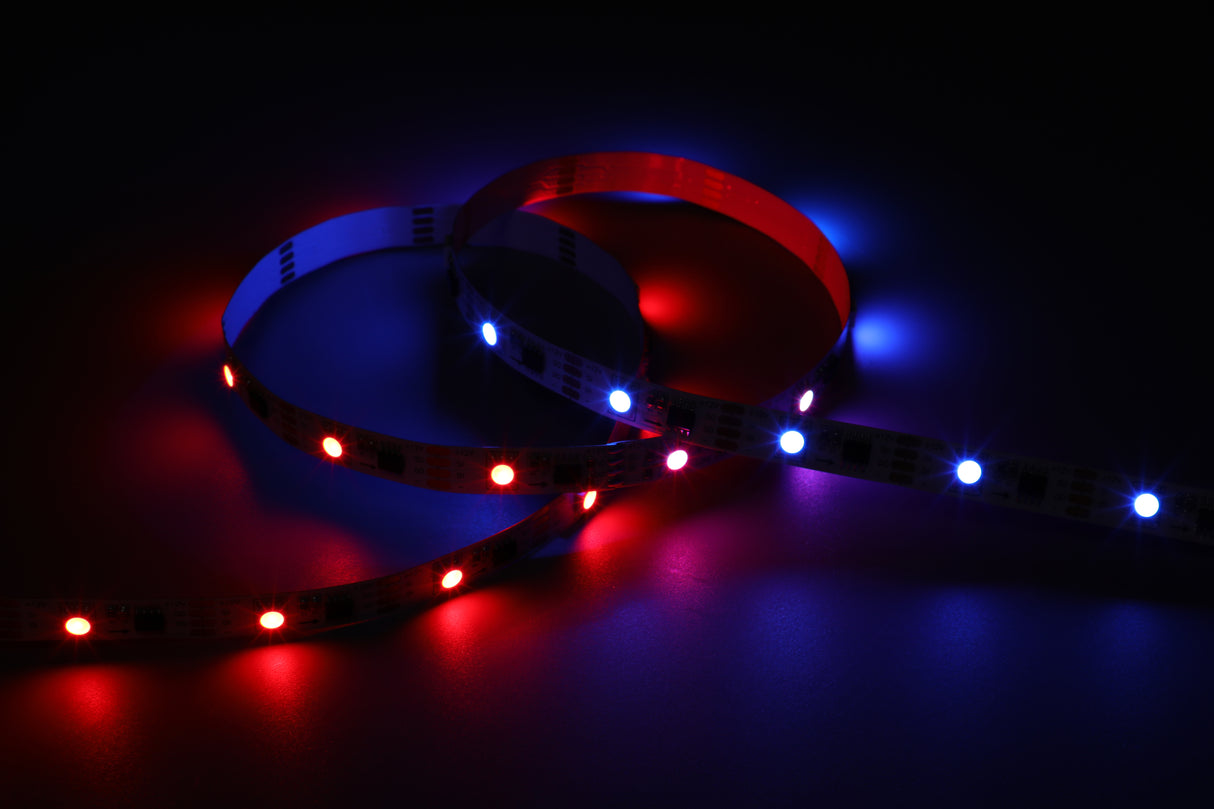

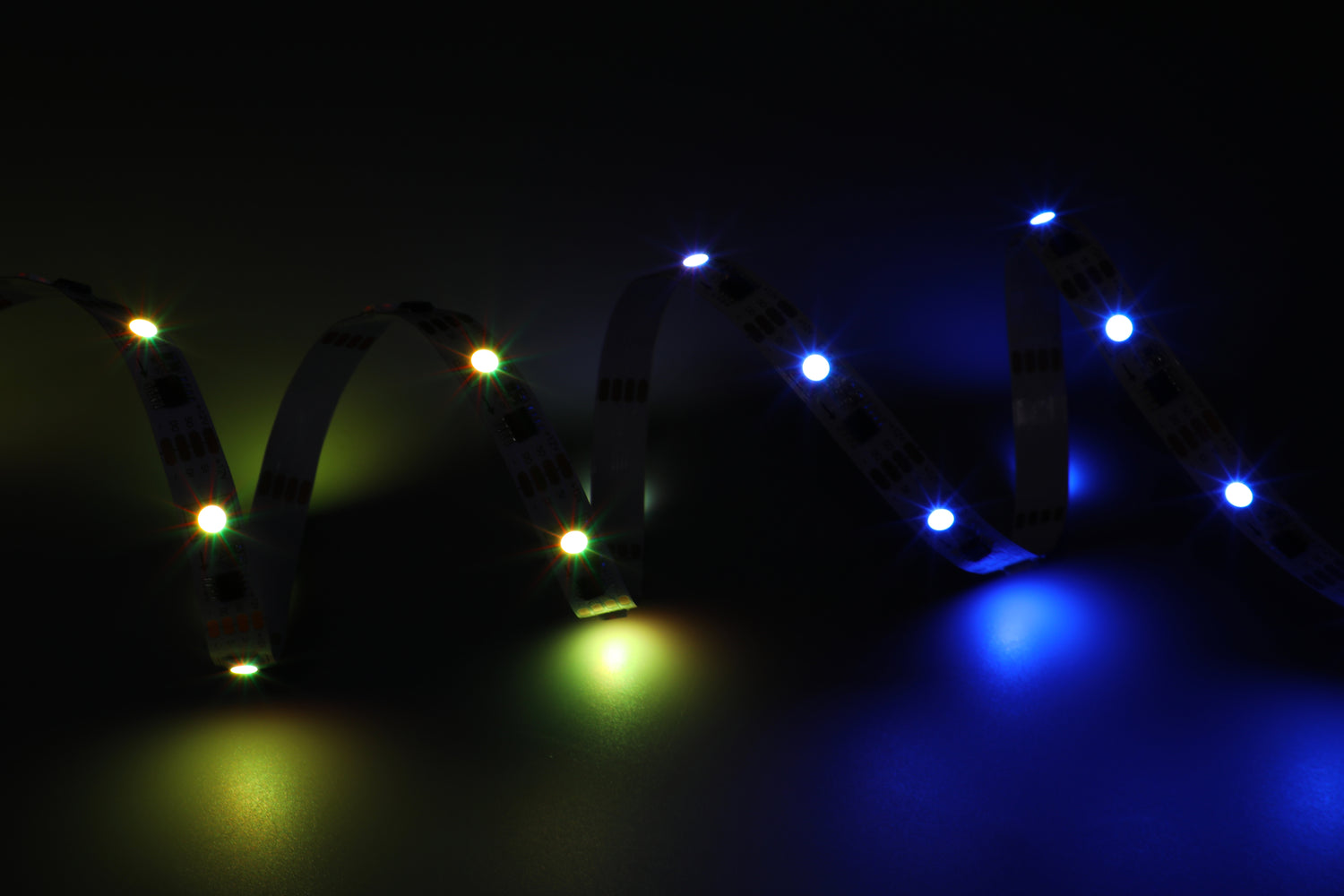

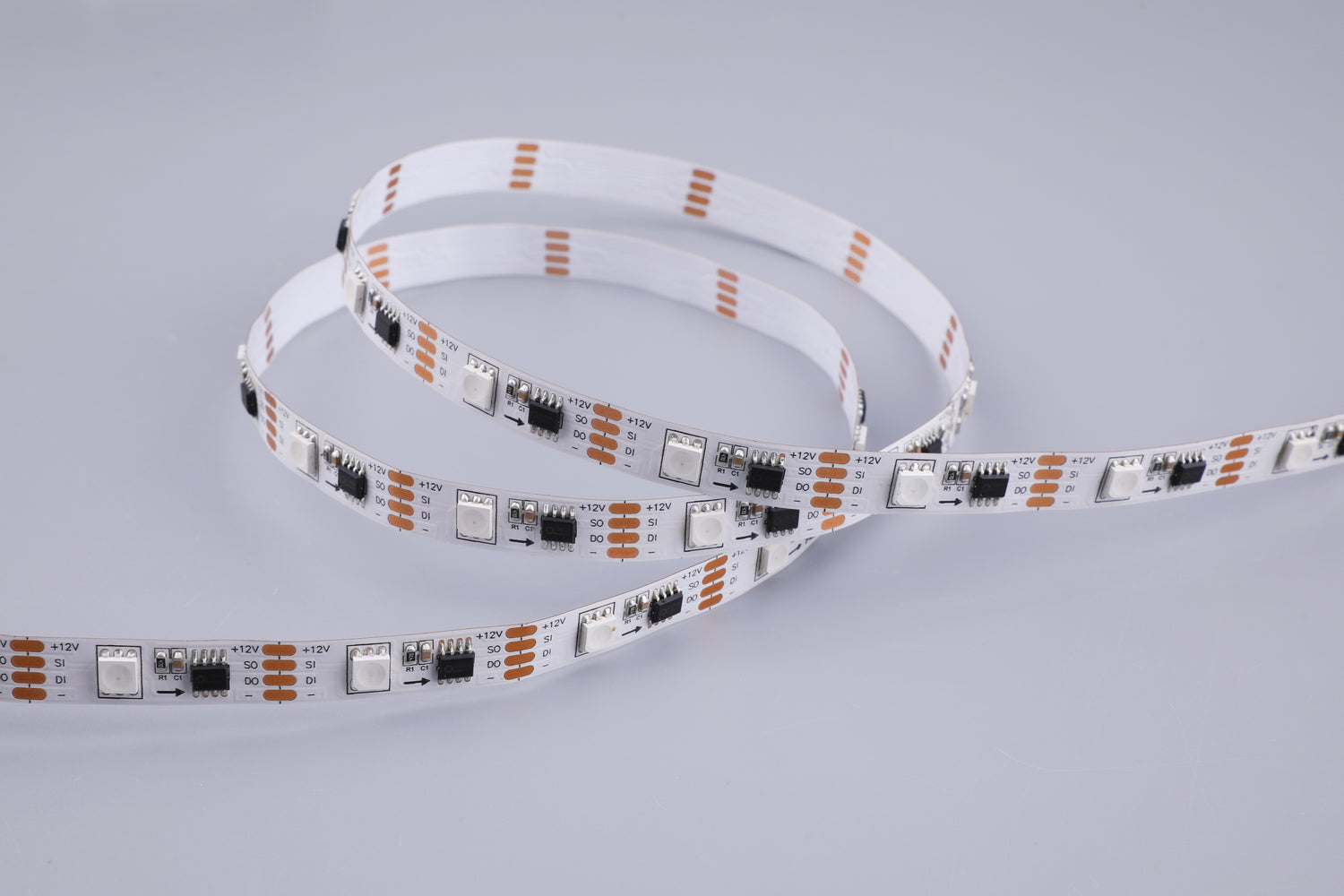

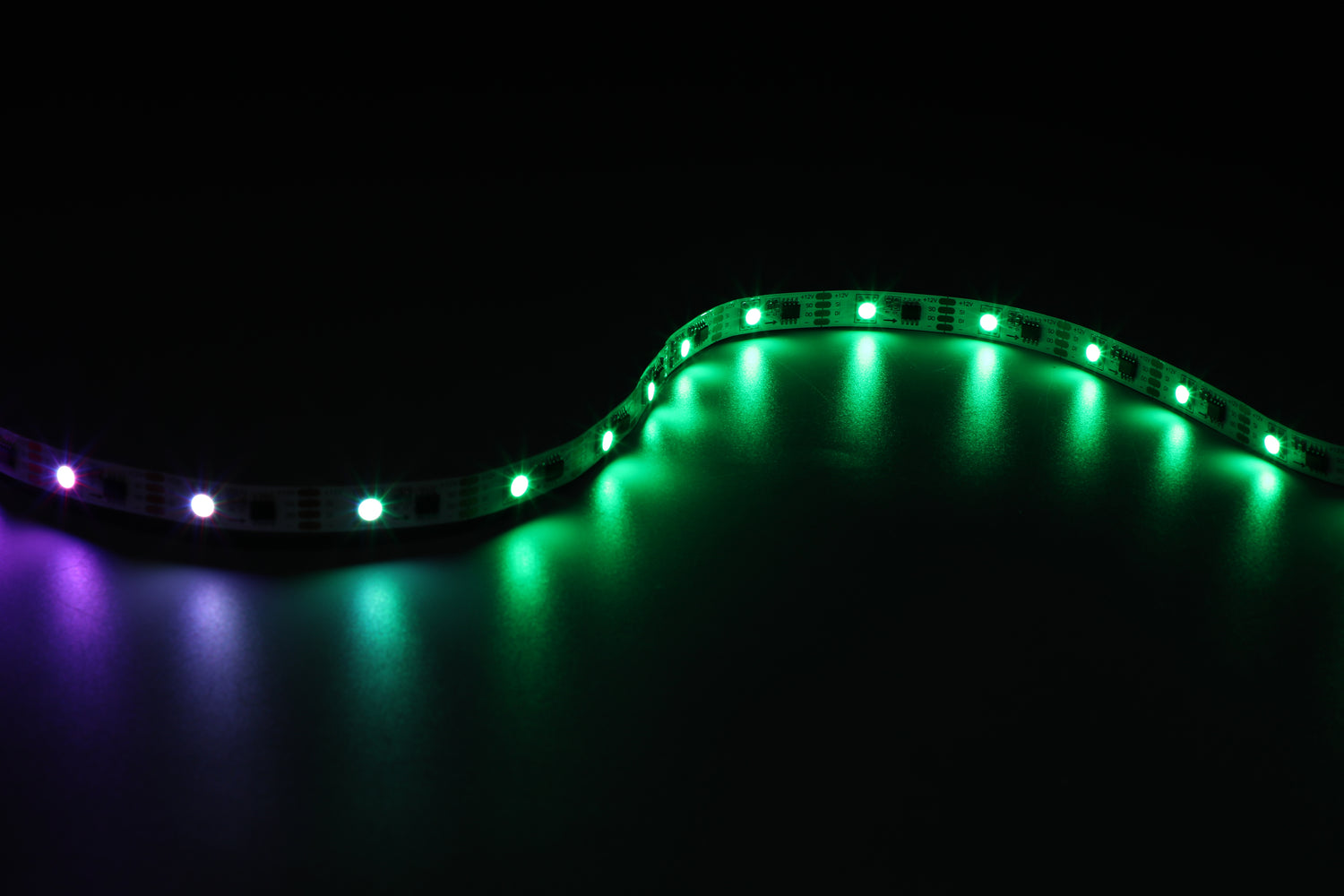

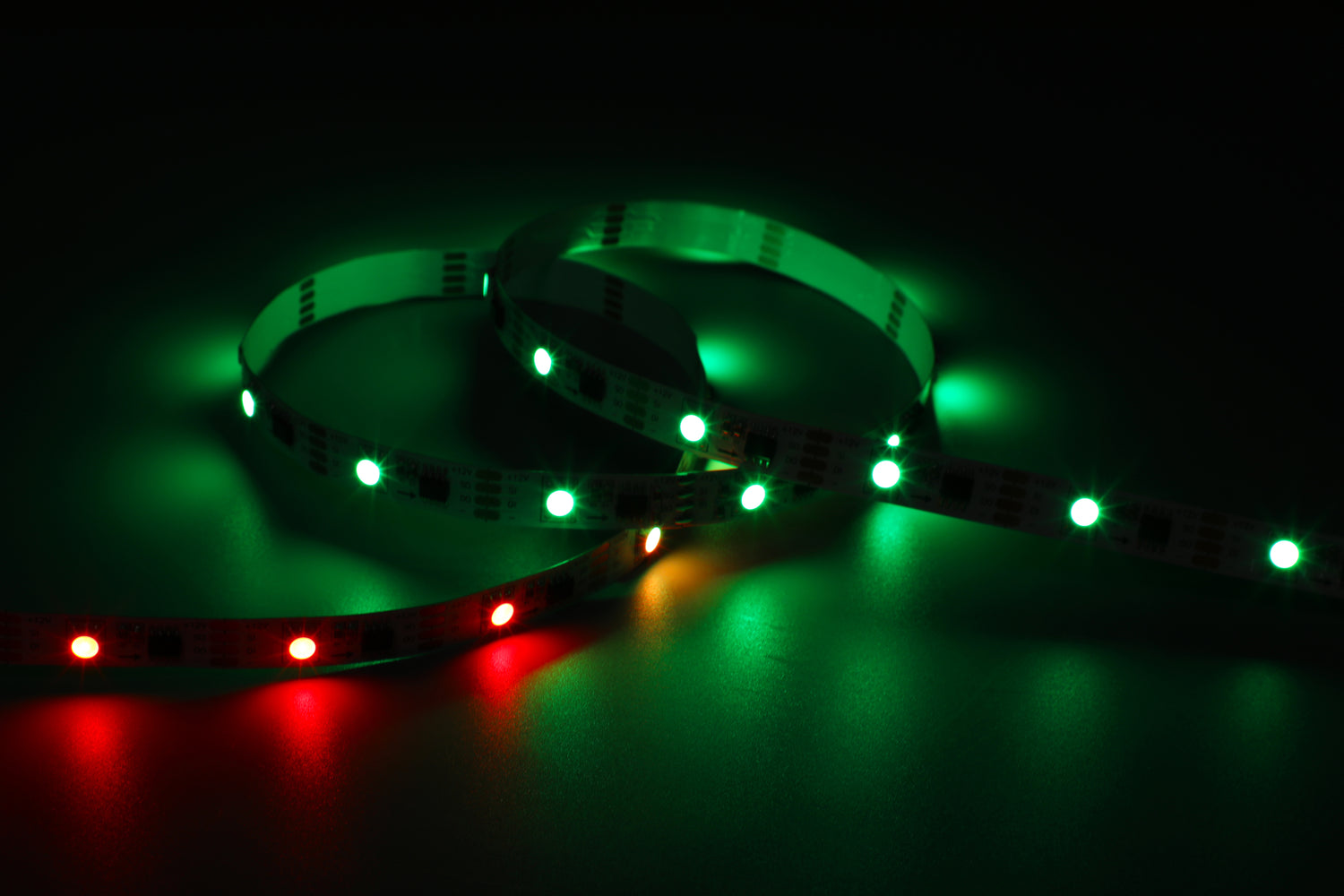

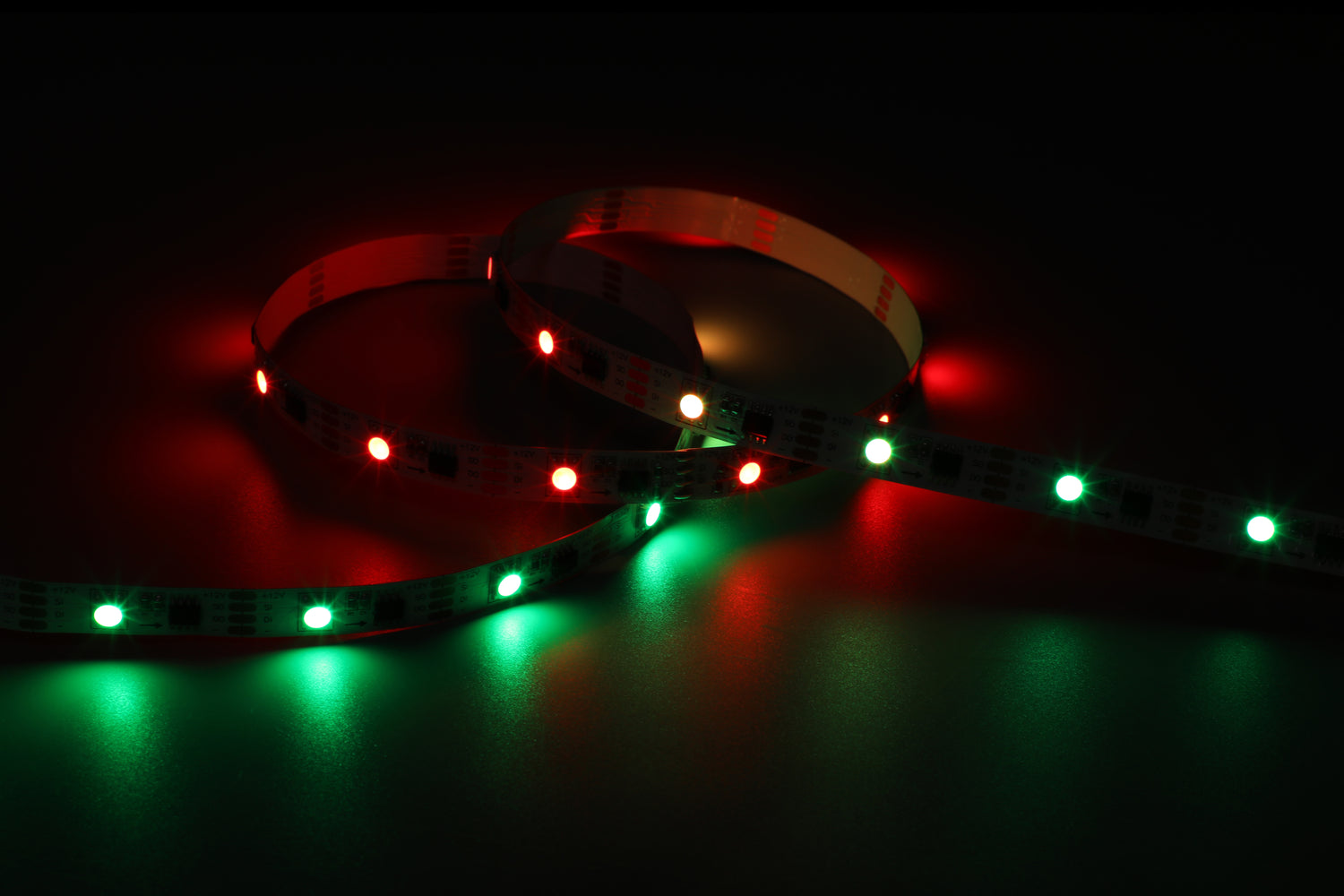

LED Strip ProPlus-ONE SPI Digital One LED Pixel Programmable
Notify me when it's back in stock
Overview
Features
- Plus Series using top quality material such as Epistar/San’an chip, Intermatix phosphor powder, ShinEtsu & Dow Corning glue, Heraeus 99.99% pure golden wire, pure copper & fresh plastic stand etc. as standard configuration.
- Pixel controllable per single LED by SPI signal with IC GS8208, by failure of any one LED, the data will be passed to the next LED.
- Support offline color changing models in 6 categories and 32 kinds with built-in programs, when there is no external SPI signal.
- Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.
Specifications
Specification
- Dimension (L*W*H)
- 5000*10*2mm [197*0.4*0.08in.]
- IP Rating
- IP20 [dry]
- Lumen Flux (all) ±10%
- 170lm/M [52lm/ft.]
- Lumen Flux (red) ±10%
- 45lm/M [14lm/ft.]
- Lumen Flux (green) ±10%
- 100lm/M [30lm/ft.]
- Lumen Flux (blue) ±10%
- 25lm/M [7.5lm/ft.]
General Specification
- Standard Length
- Power: 5M[16.4ft.] (power fed on one side); Data: depends on pixel controller usage
- Min. Unit & LED QTY
- 33.3mm [1.31in.] & 1 LED
- LED Type
- SMD5050 RGB
- LED QTY
- 30LED/M [9LED/ft.]
- PCB Type
- 2oz white FPC, OSP (Plus)
- Operating Ambient
- Ta: -20~45℃
- Warranty
- 3 years (Plus)
- Lifespan
- 36kh (L70@Tc≤ 65℃, Tc is temperature of LED pin)
Photoelectric Specification
- Power±10%
- 6W/M [1.83W/ft.] (All colors and single color have the same power)
- Input Voltage & Current
- 12VDC & 0.5A/M[0.15A/ft.]
- LED Current
- R:15mA, G:15mA, B:15mA
- LED CCT & Wavelength
- R:620~630nm, G:515~525nm, B:465~475nm
- Beam Angle
- 120°
- Dimming / Toning Method

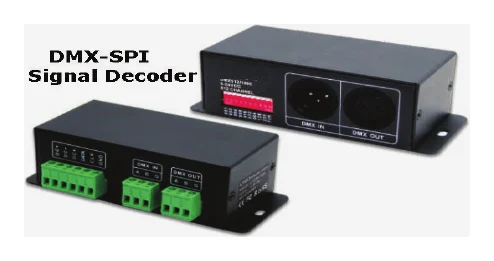

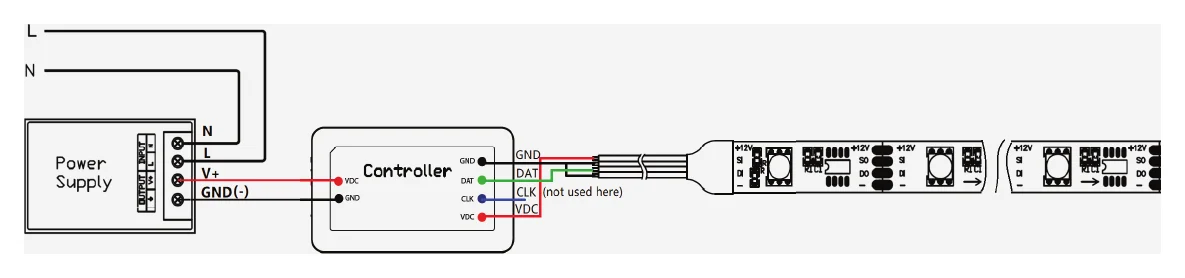

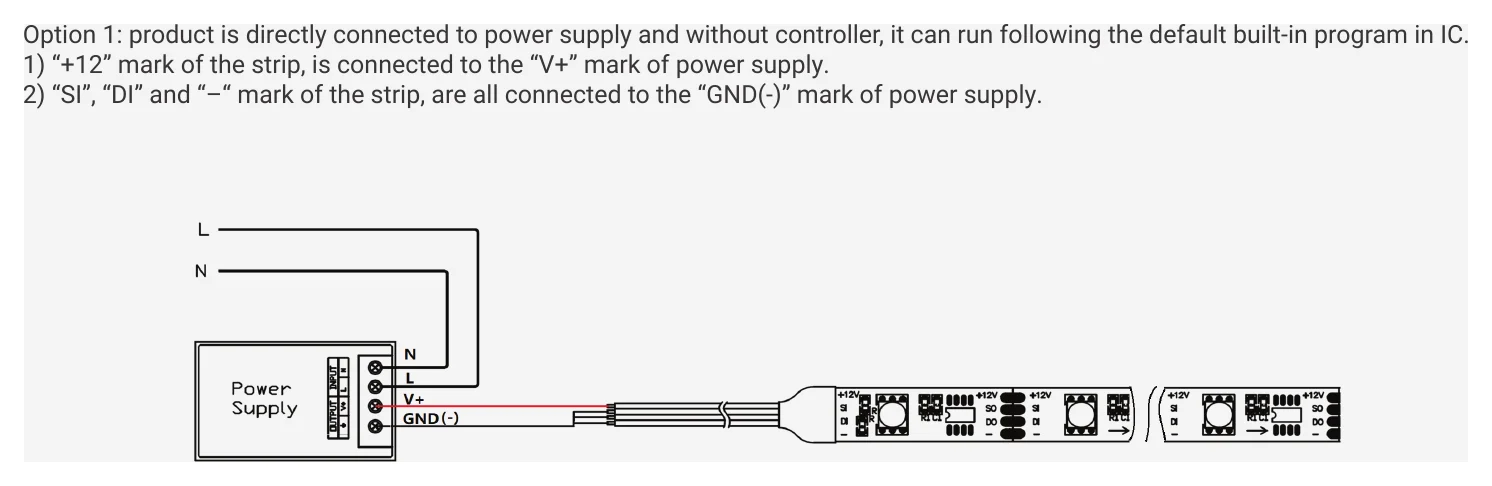

- PWM (Option 1: product is directly connected to power supply and without controller, it can run following the built-in program in IC by default. Option 2: product is connected to and being controlled by SPI controller or DMX-SPI decoder.)
Certifications & ratings
- Certification marks
- CE, CB, RoHS
Test conditions and notes3
- 1: Applying with extra heat sink is not necessary with self-cooling capacity.
- 2: 3M 300LSE yellow adhesive tape attached on backside, is standard configuration of Plus Series.
- 3: Transparent reel and silvery ESD bag, are standard configuration of Plus Series.
Technical drawings
Downloads
FAQ
What type of LED strip is the ProPlus-ONE SPI Digital One LED Pixel Programmable model?
This is a digital SPI LED strip designed for individually addressable pixel control. It uses SMD5050 RGB LEDs, so each LED pixel can be controlled for dynamic color-changing effects rather than operating as a single uniform strip.
What applications is this LED strip best suited for?
This strip is intended for decorative and architectural lighting where programmable effects are important. Typical applications include backlighting, indirect lighting, shelves, cabinets, signage, hotels, gardens, bridges, corridors, ceilings, stairs, floors, coves, theaters, and lifts.
What are the main performance specifications of this LED strip family?
The strip operates on 12VDC and has a power rating of about 6W per meter. It provides approximately 170 lumens per meter and uses 30 LEDs per meter, making it suitable for accent and programmable decorative lighting rather than high-output general illumination.
Does this LED strip include a driver?
No, the driver is not included with this product family. Buyers should account for a compatible external power solution when planning a project, especially for commercial or specification-based applications.
What makes this strip different from a standard non-digital LED strip?
The key difference is SPI pixel control, which allows each LED to be addressed individually for animated and highly customized lighting effects. Standard analog strips typically light the whole strip or section uniformly, while this model supports more detailed programmable patterns.
Is this LED strip built for demanding commercial environments?
The product description emphasizes premium construction materials such as Epistar/San’an chips, Intermatix phosphor powder, Heraeus 99.99% pure golden wire, and ShinEtsu or Dow Corning glue. It is positioned as a durable option for professional decorative and architectural lighting applications.
What are the physical dimensions and environmental operating range?
The strip is 10 mm wide and 2 mm high, which helps when evaluating fit in compact linear lighting applications. Its stated operating ambient temperature range is -20 to 45°C, making it suitable for a range of indoor and selected protected architectural environments.
What warranty is offered for this LED strip family?
The product data lists a 3-year warranty period for this product family. That makes it a strong fit for buyers who need reliable product support for professional lighting projects.
