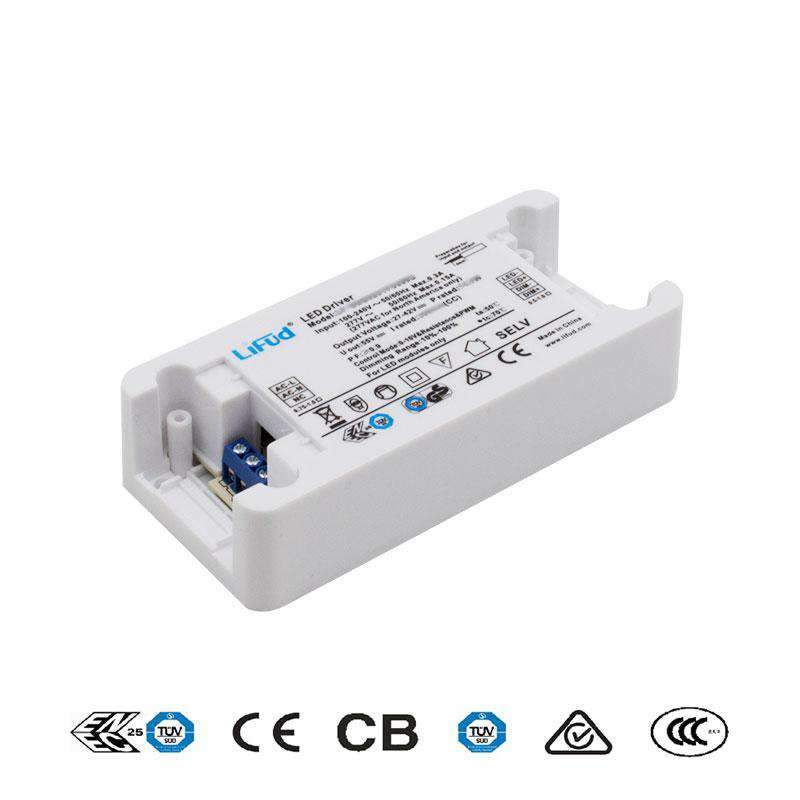

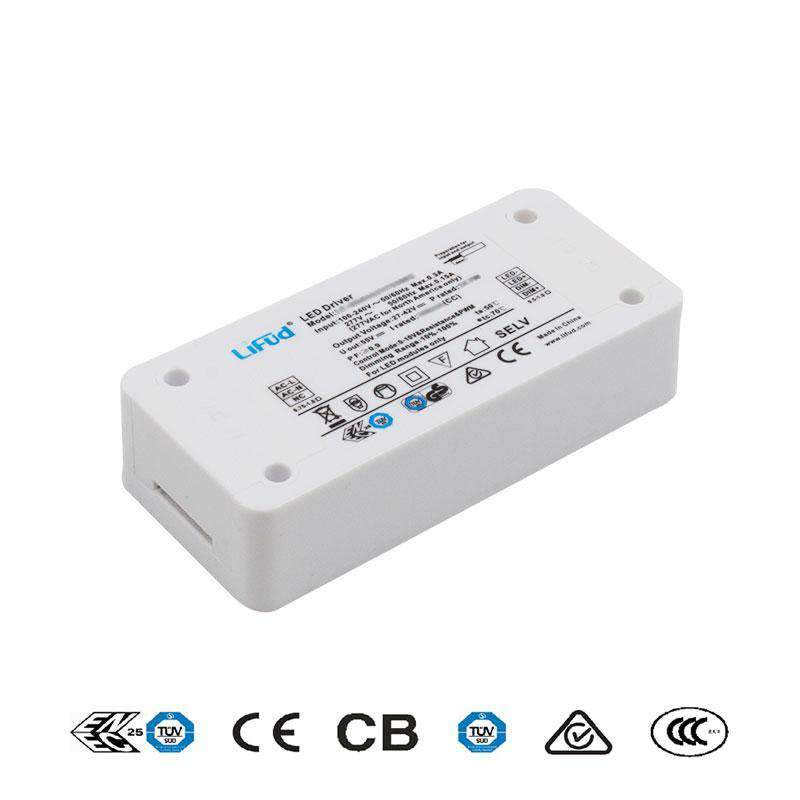

Lifud LF-GDE023YF-500 LED Driver 1.134--30W 500mA - Dimmable
Please Login for Pricing
Description
Description
Features
- Isolated LED driver designed for class II LED luminaires;
- Input voltage AC100-277V for global market
- max input voltage range AC90-305V;
- Output power 9-23W
- DC voltage range 27-42V;
- Active PFC
- high PF (PF>0.95@AC230V)
- high efficiency (up to 86%)
- low THD (≤20%);
- Meet the ERP and DLC standards after being installed inside finished LED lights;
- Surge protection: 1KV;
- 0-10V
- PWM and Rx dimmable version
- dimming range 10%~100%;
- Connecting with Lifud ZigBee convertor
- it can realize ZigBee smart wireless control function;
- Nominal lifetime above 50
- 000 hours
- 5 years warranty;
- Applied for panel lights
- down lights
- tube lights applications.
Specifications
Specifications
-
BrandLifud
-
SeriesGDE Series
-
Power Rating21 Watt
-
Output Voltage42 Volt
-
Rated Current0.5 Ampere
-
Input Voltage100V~240V
-
Standards MetCB,CE,ENEC,RCM,SAA,TUV
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty5 Year
-
Length12.5 cm
-
Width5.7 cm
-
Height3 cm
-
Weight0.13 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED application is the Lifud LF-GDE023YF-500 designed for?
The LF-GDE023YF-500 is an isolated LED driver intended for Class II LED luminaires. Based on the product details, it is suited to applications such as panel lights, downlights, and tube lights. That makes it a fit for commercial and professional LED fixture builds where a constant current driver is required.
What are the main electrical specifications of this LED driver?
This model provides a rated output current of 500 mA with a DC output voltage range of 27-42 V. Its listed output power range is 9-23 W, and the product record shows a 21 W power rating. It also accepts a wide AC input range for global use, with AC100-277V nominal input and AC90-305V maximum input range.
Does the Lifud LF-GDE023YF-500 support dimming?
Yes, this driver supports 0-10V and PWM dimming. The stated dimming range is 10% to 100%, which makes it suitable for applications needing adjustable light output. This is one of the main differentiators of this model compared with non-dimmable constant current drivers.
What operating environment is this driver rated for?
The specified ambient temperature range is -30°C to 50°C. That gives it a broad operating window for many indoor commercial lighting environments, provided the overall fixture is designed for those conditions. Buyers should also note the product's stated 1KV surge protection and nominal lifetime above 50,000 hours.
Is this LED driver suitable for projects that require strong efficiency and power quality performance?
This model is designed with active PFC and lists a power factor above 0.95 at AC230V. It also specifies efficiency up to 86% and THD of 20% or less. Those characteristics make it relevant for buyers evaluating driver performance for professional LED lighting products.
Is the LF-GDE023YF-500 compatible with smart lighting control systems?
The product details state that when used with a Lifud ZigBee convertor, it can support ZigBee smart wireless control functionality. It also supports 0-10V and PWM dimming control methods. Compatibility with any broader control system depends on the complete fixture and control architecture used in the project.
