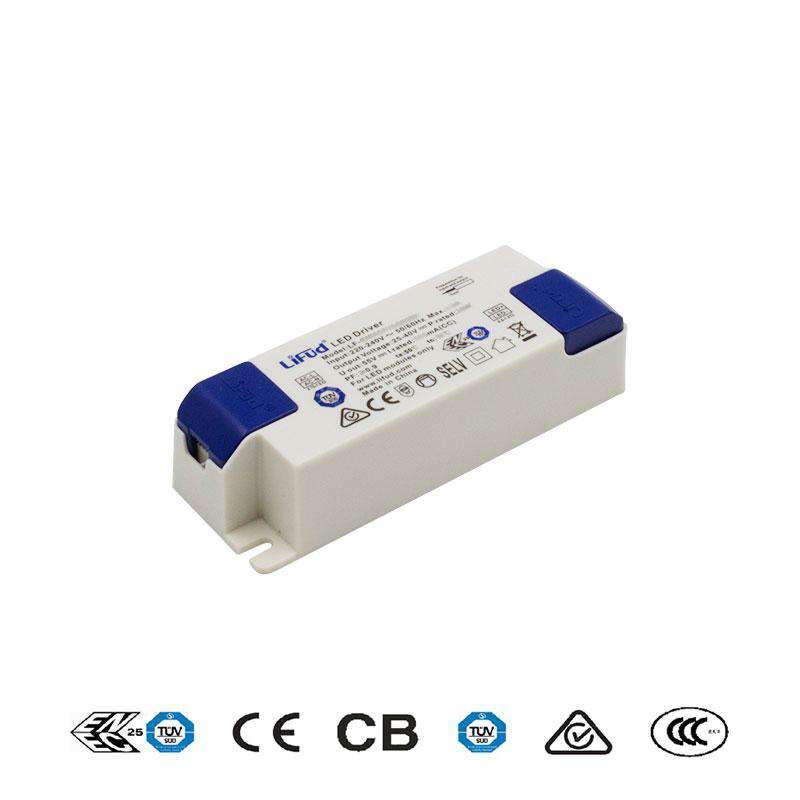

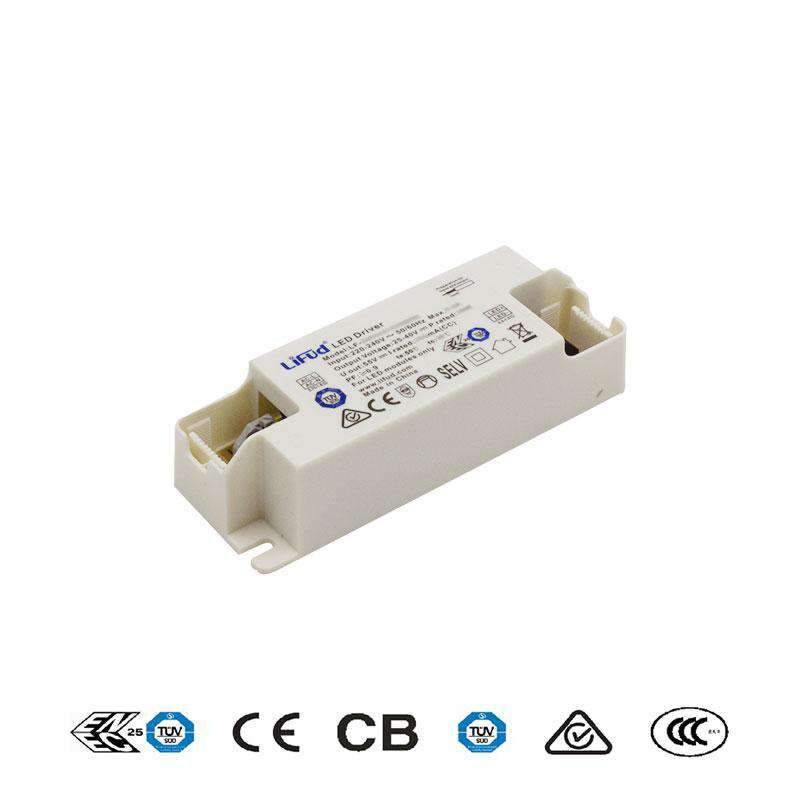

Lifud LF-GIF022YA-500 LED Driver 12.5-20W 500mA - Flicker Free


|

Description

Features

  • Isolated LED driver for class II LED luminaire.
  • Rated input voltage AC220-240V and the max input voltage range AC200-264V;
  • Output power 10~20W
  • DC voltage range 25-40V;
  • Active PFC
  • high PF (PF>0.90@AC220V)
  • efficiency (85%)
  • low THD (≤18%);
  • Meet the ERP standards after being installed inside finished LED lights;
  • Surge protection: L-N: 1KV; L/N-GND: 2KV.
  • Flicker-free plastic case version (flicker coefficient ≤ 0.5%);
  • Nominal lifetime above 50
  • 000 hours
  • 5 years warranty;
  • Applied for LED panel lights
  • down lights for AC220-240V regional markets.

Specifications

  • Brand
    Lifud
  • Series
    GIF Series
  • Power Rating
    20 Watt
  • Output Voltage
    40 Volt
  • Rated Current
    0.5 Ampere
  • Input Voltage
    220V~240V
  • Standards Met
    CB,CE,ENEC,RCM,TUV
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~50°C
  • Warranty
    5 Year
  • Length
    11.5 cm
  • Width
    4.1 cm
  • Height
    2.8 cm
  • Weight
    0.07 kg
