Over 15 years experience of providing support of MEAN WELL Power Supplies

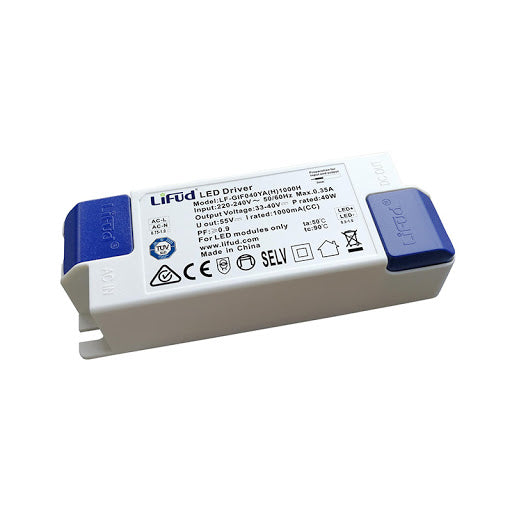

Lifud LF-GIF040YA(H)-1000 LED Driver 33-40W 1000mA - Flicker Free
Please Login for Pricing
Description
Description
Features
- Isolated LED driver for class II LED luminaire.
- Rated input voltage AC220-240V;
- Output power 20~42W
- DC voltage range 25-33V & 33-40V;
- Active PFC
- high PF (PF>0.95@AC220V)
- high efficiency (up to 90%)
- low THD (≤20%);
- Meet the ERP standards after being installed inside finished LED lights;
- Surge protection: L-N: 1KV; L/N-GND: 2KV.
- Flicker-free plastic case version (flicker coefficient ≤ 0.5%);
- Nominal lifetime above 50
- 000 hours
- 5 years warranty;
- Applied for LED panel lights
- down lights for AC220-240V regional markets.
Specifications
Specifications
-
BrandLifud
-
SeriesGIF Series
-
Power Rating40 Watt
-
Output Voltage40 Volt
-
Rated Current1 Ampere
-
Input Voltage220V~240V
-
Standards MetCB,CE,ENEC,RCM,TUV
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty5 Year
-
Length11.5 cm
-
Width4.1 cm
-
Height2.8 cm
-
Weight0.1 kg
