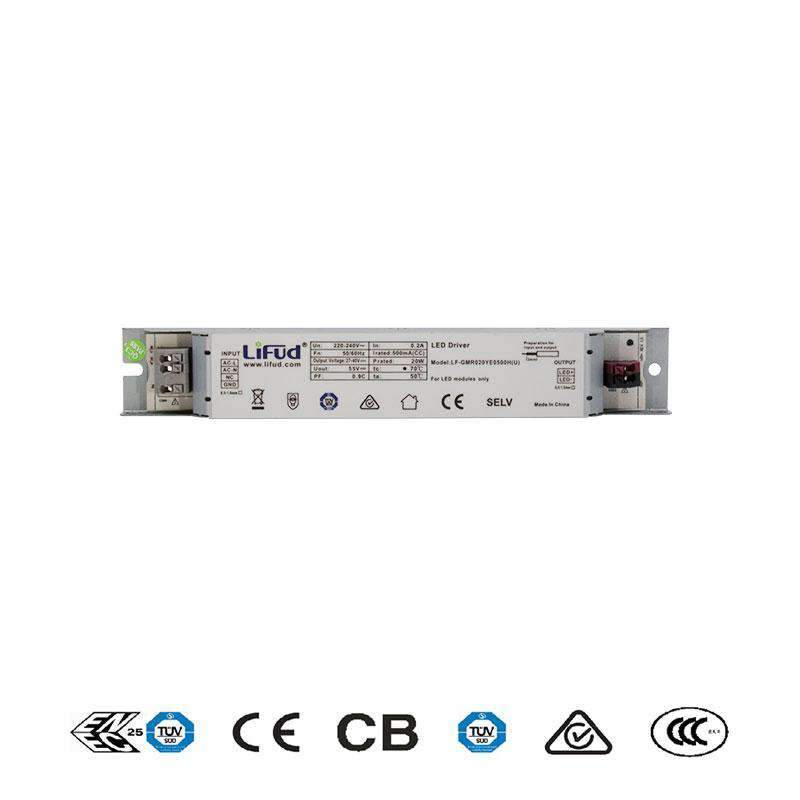

Lifud LF-GMR020YE-500 LED Driver 13.5-20W 500mA - Flicker Free
Please Login for Pricing
Description
Description
Features
- Isolated LED driver designed for class I LED luminaires;
- Input voltage AC220-240V for regional market including Europe
- South East Asia
- China
- etc.
- and the max input voltage range AC180-264V;
- Output power 8-20W
- DC voltage range 27-40V/35-55V;
- Active PFC
- high PF (PF>0.92@AC230V)
- high efficiency (up to 87%)
- low THD (≤20%);
- Meet the ERP standards after being installed inside finished LED lights;
- Surge protection: L-N: 2KV; L/N-GND: 4KV.
- Linear metal case non-dimmable version;
- Nominal lifetime above 50
- 000 hours
- 5 years warranty;
- Applied for LED tri-proof lights and other types of linear lights.
Specifications
Specifications
-
BrandLifud
-
SeriesGMR Series
-
Power Rating20 Watt
-
Output Voltage40 Volt
-
Rated Current0.5 Ampere
-
Input Voltage220V~240V
-
Standards MetCB,CE,RCM,TUV
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty5 Year
-
Length19.5 cm
-
Width3 cm
-
Height2.1 cm
-
Weight0.11 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED lighting is the Lifud LF-GMR020YE-500 designed for?
This model is designed for class I LED luminaires and is specifically suited to LED tri-proof lights and other linear light fittings. It is a constant-current, non-dimmable driver intended for applications that need a 500mA output within its rated operating range.
Is the LF-GMR020YE-500 a dimmable LED driver?
No. The LF-GMR020YE-500 is a non-dimmable LED driver, so it is intended for fixed-output lighting applications rather than systems that require dimming control. If your project needs dimming, this is not the right model to specify.
What are the key electrical specs of the Lifud LF-GMR020YE-500?
This driver is rated at 500mA constant current with a 13.5-20W operating range. It is built for AC220-240V input for regional mains supply, with a maximum input range of AC180-264V, and the listed output voltage is 40V.
Is this LED driver suitable for flicker-free lighting projects?
Yes. The product name identifies the LF-GMR020YE-500 as a flicker-free LED driver, which makes it a suitable option where stable light output is important. That can be relevant for commercial and professional indoor lighting applications using compatible linear or tri-proof fixtures.
What operating environment can the LF-GMR020YE-500 handle?
This model has a rated ambient operating range of -30°C to 50°C. That makes it suitable for a wide range of indoor and protected commercial lighting environments, provided the fixture design stays within the driver's rated thermal limits.
What protection and reliability features does this Lifud driver offer?
The LF-GMR020YE-500 includes surge protection rated at 2kV line-to-neutral and 4kV line-or-neutral to ground. Lifud also specifies a nominal lifetime above 50,000 hours and a 5-year warranty for this model.
