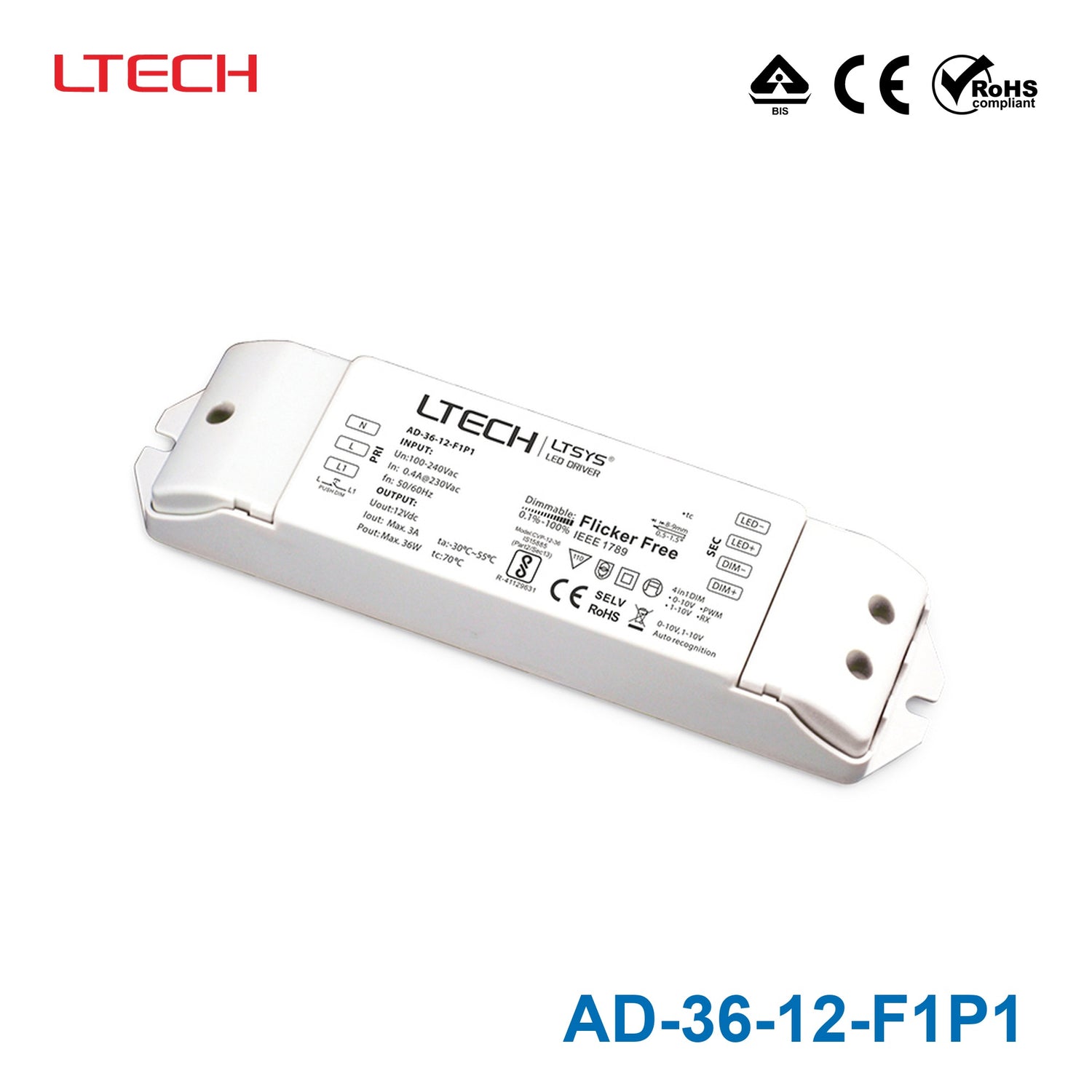

LTECH AD-36-12-F1P1 36W 12Vdc CV LED Driver - 0/1-10Vdimmable 3A
Log in to see priceOverview
AD-36-12-F1P1 is the 12Vdc output model of this series: typical efficiency 85%.
Features
- Dimming interface: 0-10V(1-10V/10V PWM/RX), Push DIM
- Built-in SCM, dimming curve and smoothing time of power on can be customized.
- Automatic recognition of 0-10V, 1-10V input signal.
- 0~100% flicker-free, achieve the level of exemption assessment.
- Dimming range from 0-100%, LED start at 0.1% possible.
- Short circuit / Over-heat / Over load protection, recover automatically.
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor Ⅰ/Ⅱ/Ⅲ type lamps application.
Specifications
OUTPUT
- Output Voltage
- 12Vdc
- Output Voltage Range
- 12Vdc ±0.5Vdc
- Output Current
- Max. 3A
- Output Power
- Max. 36W
- Output Power Range
- 0~36W
- Strobe Level
- High frequency exemption level.
- Dimming Range
- 0~100%, dimming depth: Max. 0.1%
- Overload Power Limitation
- ≥102%
- Ripple & Noise
- ≤200mV
- PWM Frequency
- ≤3600Hz
INPUT
- Dimming Interface
- 0-10V (1-10V/10V PWM/RX), Push DIM
- Input Voltage
- 100-240Vac
- Frequency
- 50/60Hz
- Input Current
- 115Vac≤0.8A, 230Vac≤0.4A
- Efficiency(typ.)
- 85%
- Inrush Current(typ.)
- Cold start 20A at 230Vac
- Anti Surge
- L-N:1KV
- Leakage Current
- <0.5mA/230Vac
ENVIRONMENT
- Working Temperature
- ta: -30°C ~ 55°C tc: 70°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temp., Humidity
- -40°C ~ 80°C, 10~95%RH
- Temp. Coefficient
- ±0.03%/°C (0-50°C)
- Vibration
- 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION
- Over-heat Protection
- Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.
- Over Load Protection
- Shut down the output when current load≥102%, auto recovers.
- Short Circuit Protection
- Shut down automatically if short circuit occurs, auto recovers.
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Isolation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- Safety Standards
- IEC/EN61347-1, IEC/EN61347-2-13
- Strobe Test Standard
- IEEE 1789
OTHERS
- Dimension
- 175×44×30mm(L×W×H)
- Packing
- 178×48×33mm(L×W×H)
- Weight(G.W.)
- 190g±10g
Certifications & ratings
- Dimming Depth
- 0.1%
- Marked features
- 0-10V PUSH DIM
Technical drawings
Downloads
FAQ
What type of LED applications is the LTECH AD-36-12-F1P1 designed for?
This model is a constant-voltage 12Vdc LED driver intended for indoor lighting applications. It is suited to installations that need a 12V power supply with 0-10V or 1-10V dimming capability and a 36W output rating.
What are the main electrical ratings of the LTECH AD-36-12-F1P1?
The AD-36-12-F1P1 is rated for 36W output at 12Vdc with a rated current of 3.0A. These published ratings make it a constant-voltage driver for compatible 12V LED loads within that output capacity.
Does this LED driver support both 0-10V and 1-10V dimming?
Yes. The product data lists support for both 0-10V and 1-10V dimming control, and the description states automatic recognition of 0-10V and 1-10V input signals. It also specifies a dimming range of 0 to 100% with flicker-free performance.
How is this model different from a non-dimmable 12V LED driver?
The key difference is dimming capability: this model is built for 0-10V and 1-10V controlled dimming rather than simple fixed-output operation. It is intended for projects where light level control is required while still delivering a 12V constant-voltage output.
Is the LTECH AD-36-12-F1P1 suitable for harsh temperature conditions?
This driver is rated for operation from -30°C to 55°C. That gives it a relatively broad operating temperature range for indoor lighting environments, but it should still be used within those stated limits.
What protection features are included in this LED driver?
The product description lists short circuit, over-heat, and overload protection, with automatic recovery. It is also described as a Class 2 power supply with a full protective plastic housing and compliance with Safety Extra Low Voltage standards.
What warranty is offered for the LTECH AD-36-12-F1P1?
The stated warranty period for this model is 5 years. For B2B buyers, that can be useful when evaluating lifecycle expectations and replacement planning for lighting projects.
