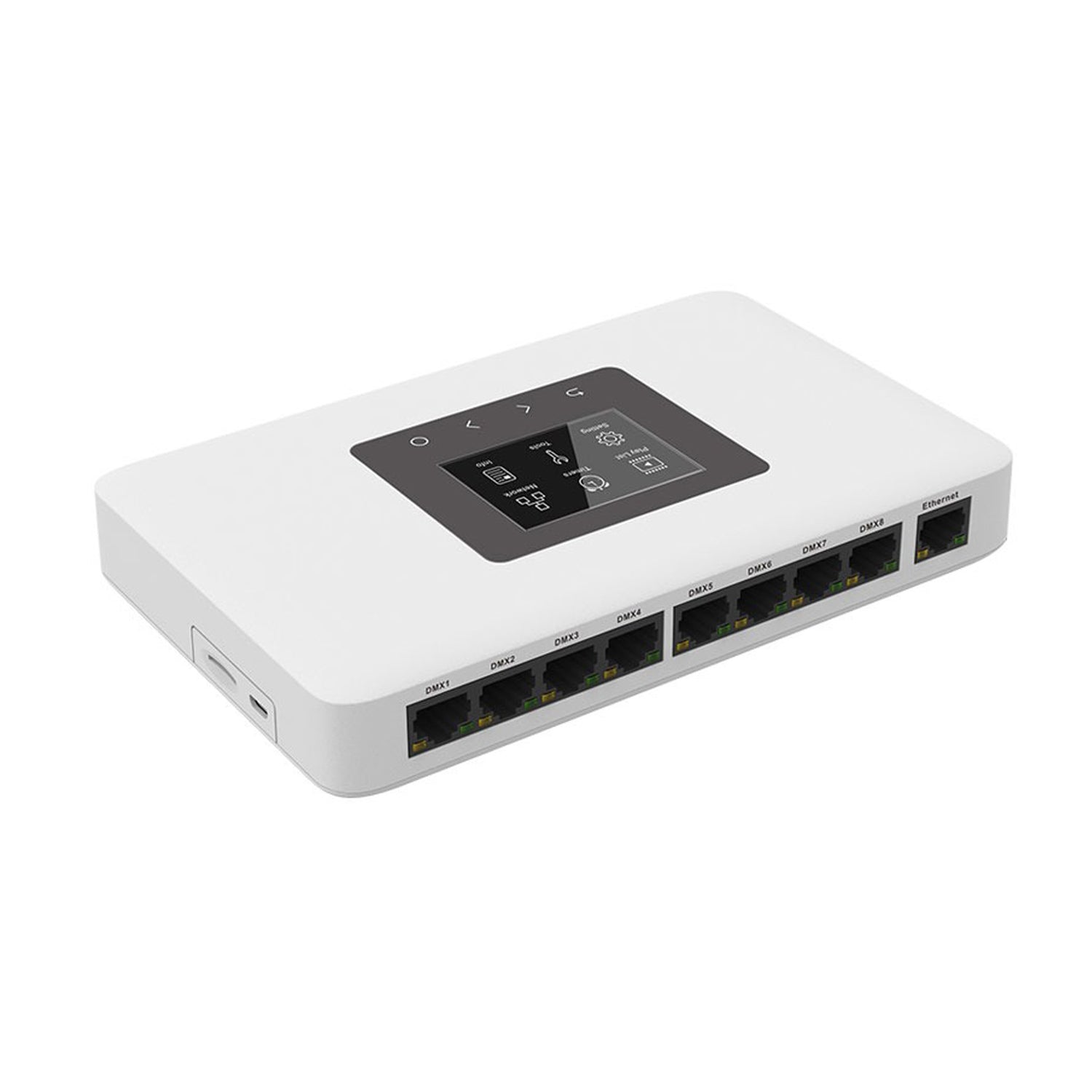

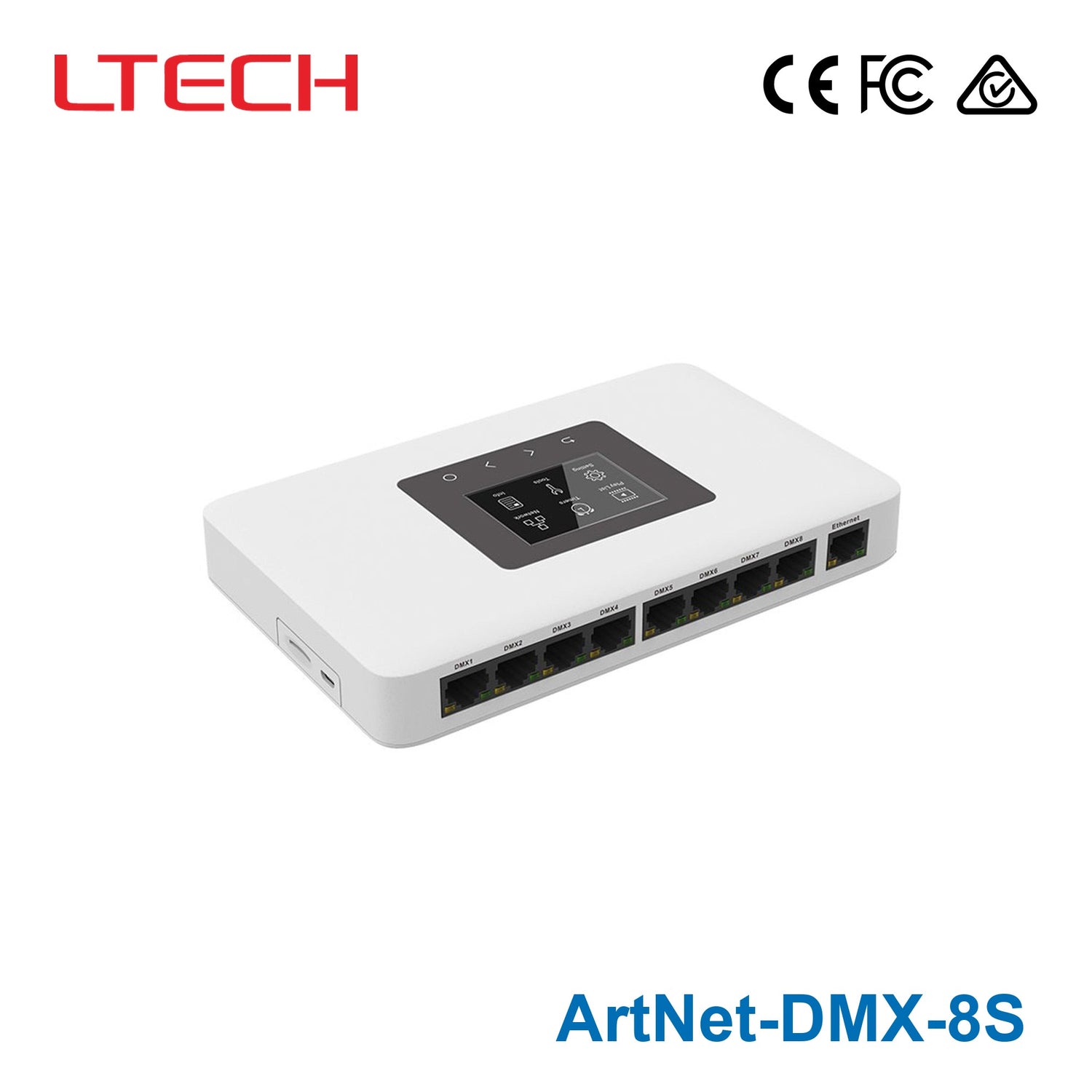

Ltech Artnet-DMX-8S Signal Converter - Ethernet to DMX

SKU ArtNet-DMX-8S
Log in to see price Trade pricing & online ordering for account holders
Available to order
|

Overview

Features

  • Ethernet Control System based on the Artnet protocol.
  • Convert the Artnet network data package into DMX512 data.
  • Adopting high-speed ARM processor, stable and reliable.
  • Supports RJ45 network interface and DMX512 with RJ45 output interface.
  • With TFT 2.4" LCD screen and 4 touch keys, very easy for setting operation.
  • Update firmware via SD card or network.
  • Support program record.
  • Support offline playback.
  • Compatible with the light software based on Artnet Protocol.

Specifications

ArtNet-DMX-8SSpecifications from the official datasheetDownload datasheet PDF

Technical Specs

Power input
5Vdc, 1A
Screen size
2.4", TFT 320 * 240
Input signal
Ethernet
Isolation ethernet port
Total isolation
Output signal
8 universe
Isolation power input
Total isolation
Network protocol
Artnet Input / DMX output
Working temperature
-30℃~55℃
SD card capability
8G (support Max.16G)
Dimension
L185×W115×H29mm
DMX output connection
RJ45
Package size
L192×W164×H36mm
Network connection
RJ45
Weight (G.W)
400g

Certifications & ratings

Certification marks
CE, FCC, RoHS

Technical drawings

ArtNet-DMX-8S Wiring Diagram
Wiring Diagram
ArtNet-DMX-8S Main Component Description
Main Component Description
ArtNet-DMX-8S Connect ArtNet-DMX-8S to the Computer
Connect ArtNet-DMX-8S to the Computer
ArtNet-DMX-8S ArtNet-DMX-8S  002.177.101.116
ArtNet-DMX-8S 002.177.101.116
ArtNet-DMX-8S Playlist
Playlist
ArtNet-DMX-8S Recording Function
Recording Function
ArtNet-DMX-8S Network
Network
ArtNet-DMX-8S IP Setting
IP Setting
ArtNet-DMX-8S Network
Network
ArtNet-DMX-8S Information
Information

Typical applications

  • Widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX512 data.
  • Suitable for TV station recorded scene, stage performances, entertainment and so on.

Downloads

FAQ

What does the Ltech Artnet-DMX-8S Signal Converter do?

The Ltech Artnet-DMX-8S is designed to convert Art-Net network data into DMX512 data for lighting control systems. It is intended for applications that need Ethernet-based control with DMX output, including LED dot matrix projects and stage lighting networks.

What types of projects is the ArtNet-DMX-8S best suited for?

This model is well suited for commercial and professional lighting environments that need to handle large amounts of DMX512 data. Typical use cases mentioned for this converter include TV station recorded scenes, stage performances, entertainment venues, and LED dot matrix control systems.

Is the ArtNet-DMX-8S compatible with Art-Net lighting software?

Yes, the ArtNet-DMX-8S is compatible with lighting software based on the Art-Net protocol. That makes it a practical option for systems that already use Art-Net as part of their networked lighting control workflow.

Can the Ltech ArtNet-DMX-8S operate without staying online to a control system?

Yes, this converter supports program record and offline playback. That gives it added flexibility for installations or shows where playback from a recorded program is needed without relying on constant live network control.

What interface and on-device controls does the ArtNet-DMX-8S include?

This model supports an RJ45 network interface and DMX512 with RJ45 output interface. It also includes a 2.4-inch TFT LCD screen and 4 touch keys, which are intended to make local setting adjustments more convenient.

Is the ArtNet-DMX-8S suitable for demanding operating environments?

The listed operating temperature range is -30 degrees C to 55 degrees C, which supports use in a wide range of indoor or controlled commercial environments.

How is the ArtNet-DMX-8S maintained over time?

The unit supports firmware updates by SD card or over the network. It supports SD cards up to 16GB, which is a meaningful consideration for buyers sourcing controllers for long-term commercial use.
