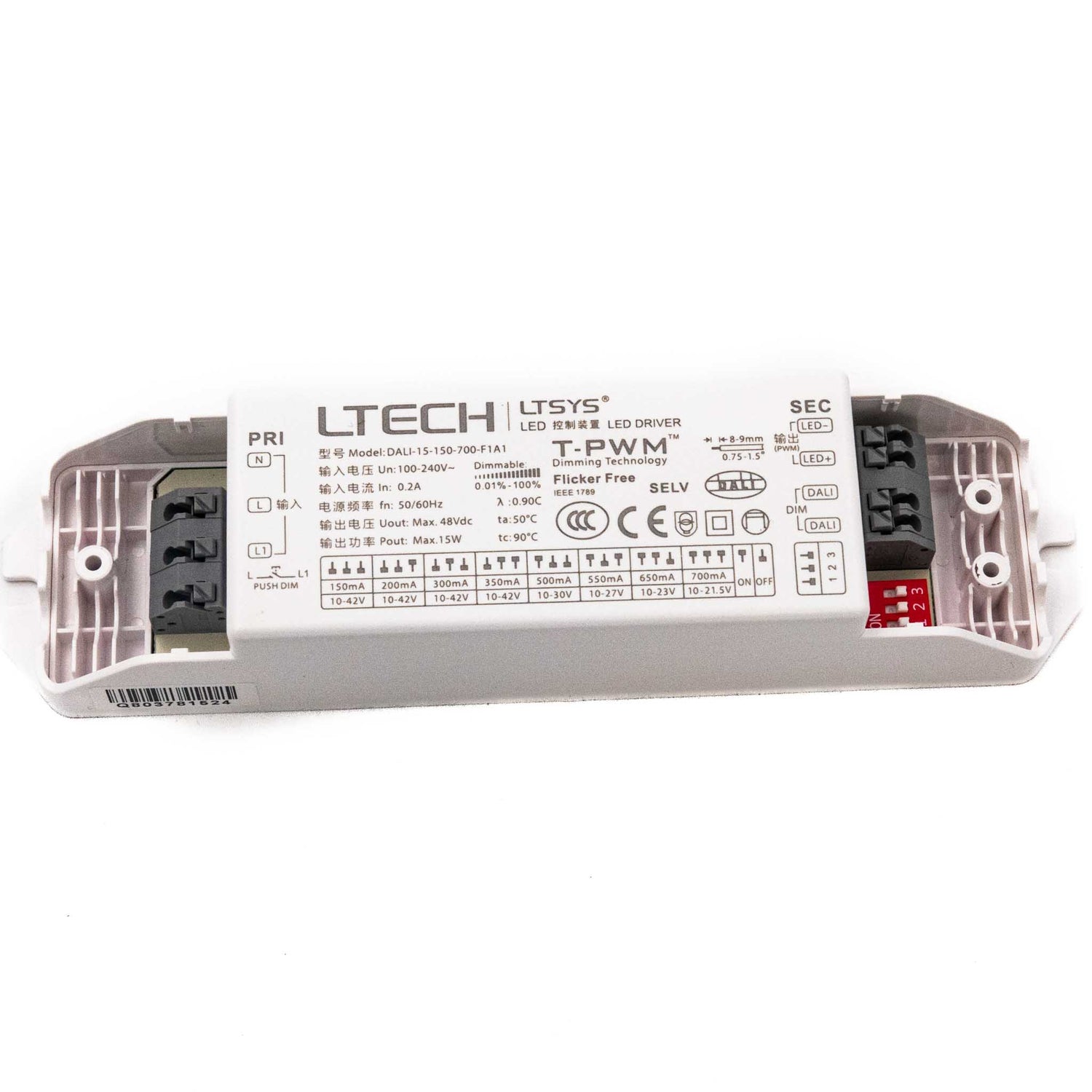

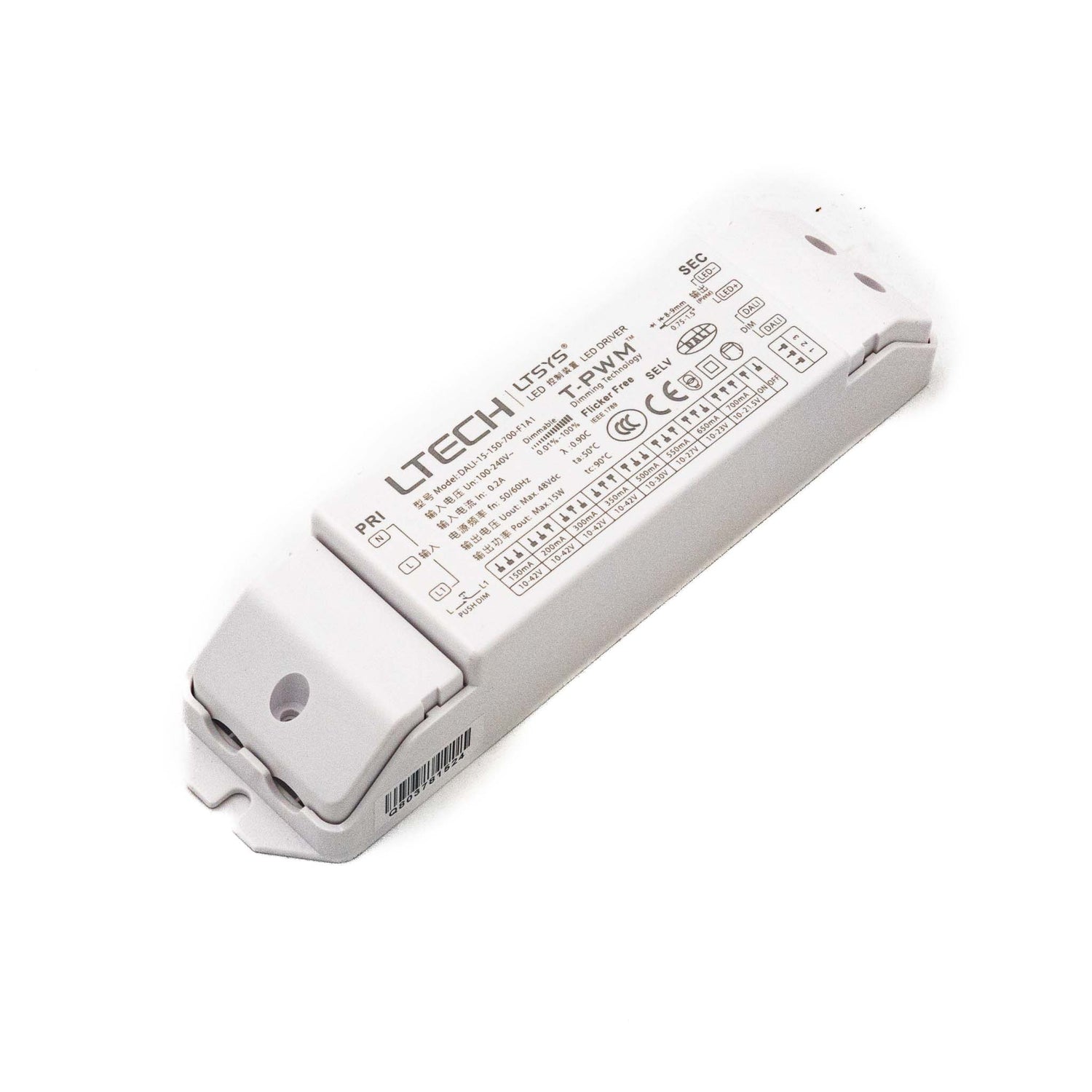

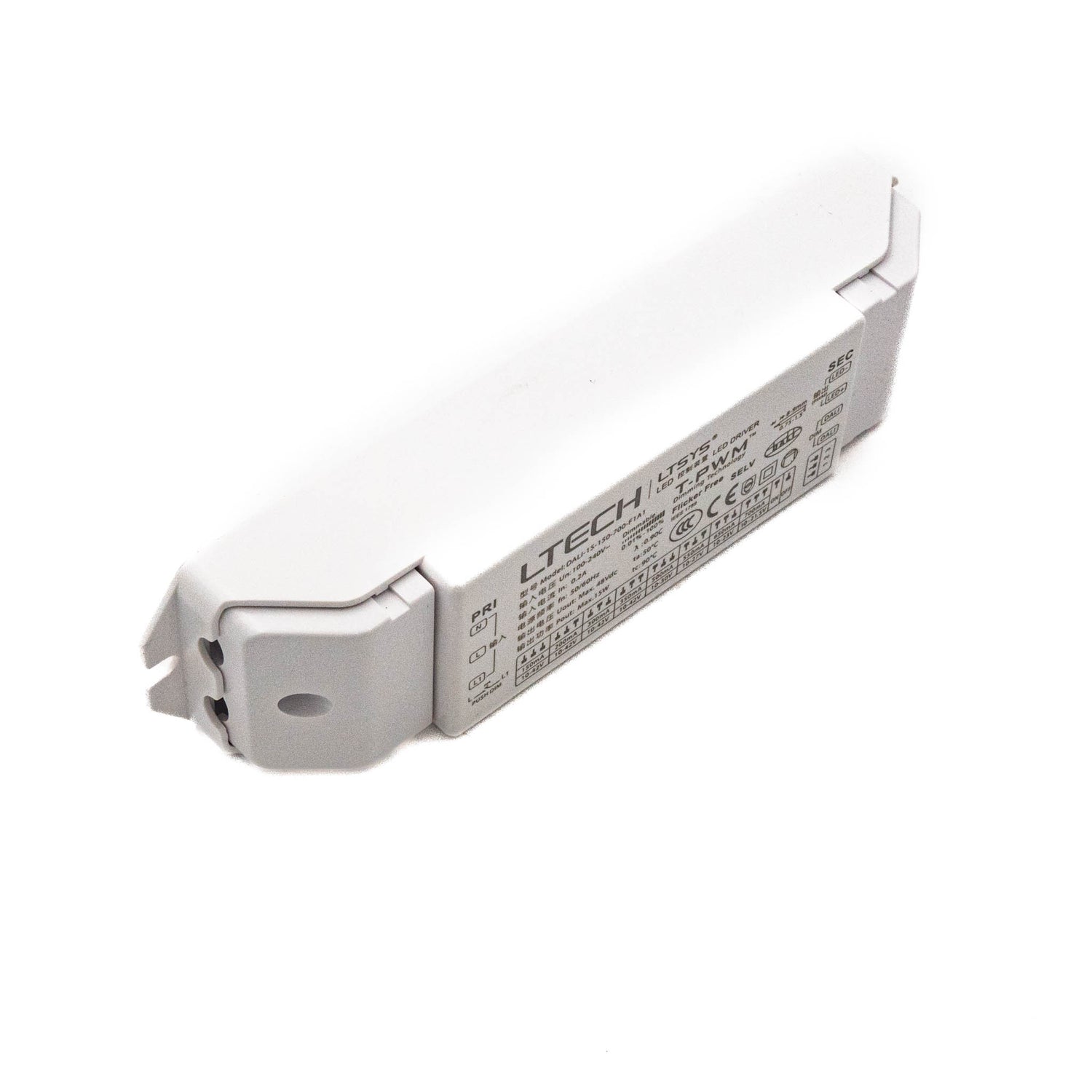

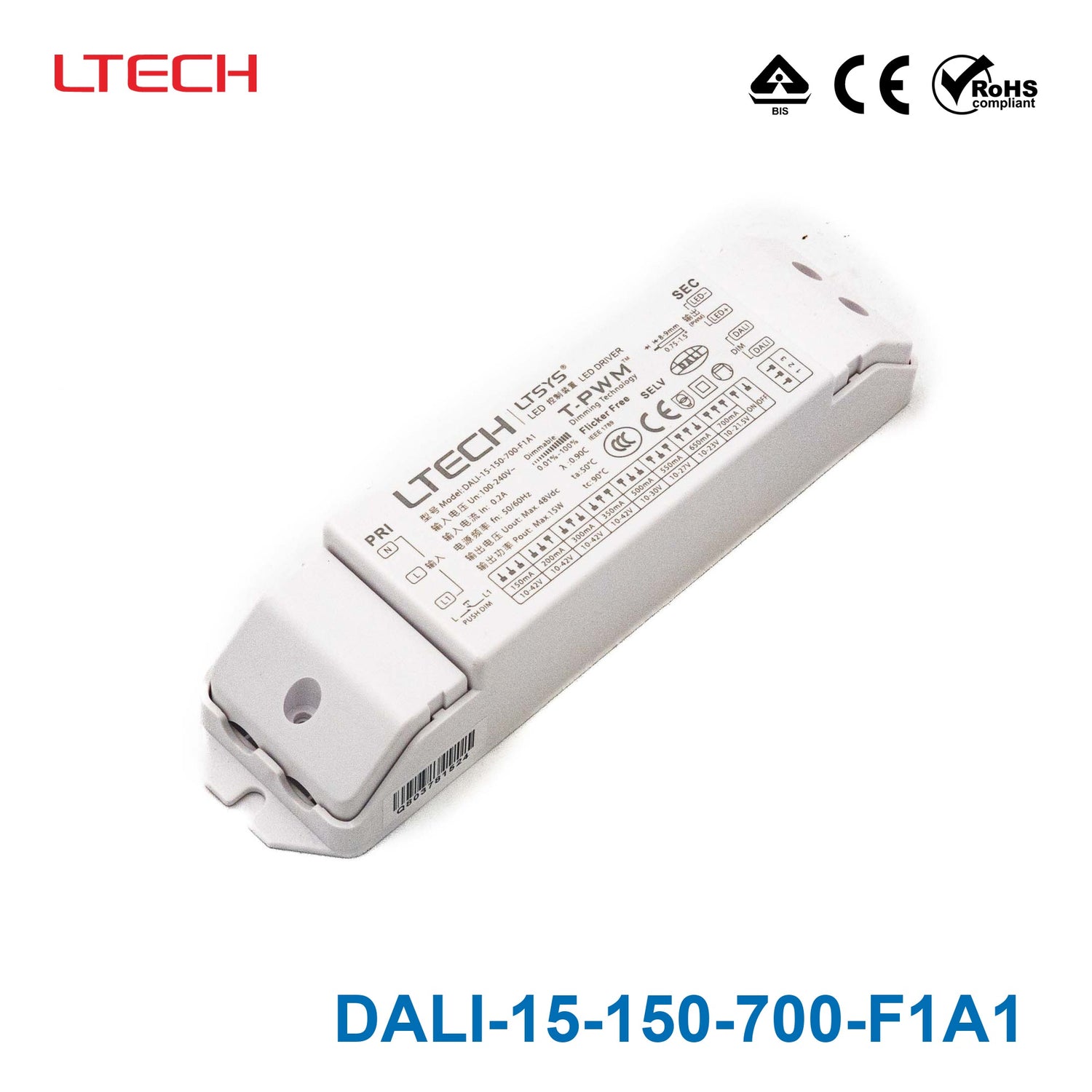

Ltech DALI-15-150-700-F1A1 15W 150mA ~ 700mA Dali LED Driver - Sele...
Log in to see priceOverview
DALI-15-150-700-F1A1 is the 10-42Vdc output model of this series.
Features
- Dimming interface: DALI, Push Dim.
- T-PWM™ digital dimming.
- Dimming range: 0~100%, LED start at 0.01% possible.
- Support lamp current state and fault feedback function.
- DALI dimming curve: liner curve or logarithmic curve.
- 0-100% flicker-free (IEEE 1789 standard).
- Innovative thermal management technology, intelligent power life protection.
- Multiple current & wide voltage, suitable for different power LED.
- Over-heat / Over load / Short circuit protection, recover automatically.
- DALI bus standard: IEC62386-101,102, 207.
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Specifications
OUTPUT
- Output Voltage
- 10-42Vdc
- Max Output Voltage
- 48Vdc
- Output Current
- 150-700mA
- Output Power Range
- 1.5W~15W
- Fluctuation Depth
- Almost flicker-free / High frequency exemption assessment level.
- Dimming Range:
- 0~100%, dimming depth: 0.01%
- LF current ripple(<120Hz)
- <2%
- Current Accuracy
- ±5%
- Ripple & Noise
- ≤2V
- PWM Frequency
- ≤3600Hz
INPUT

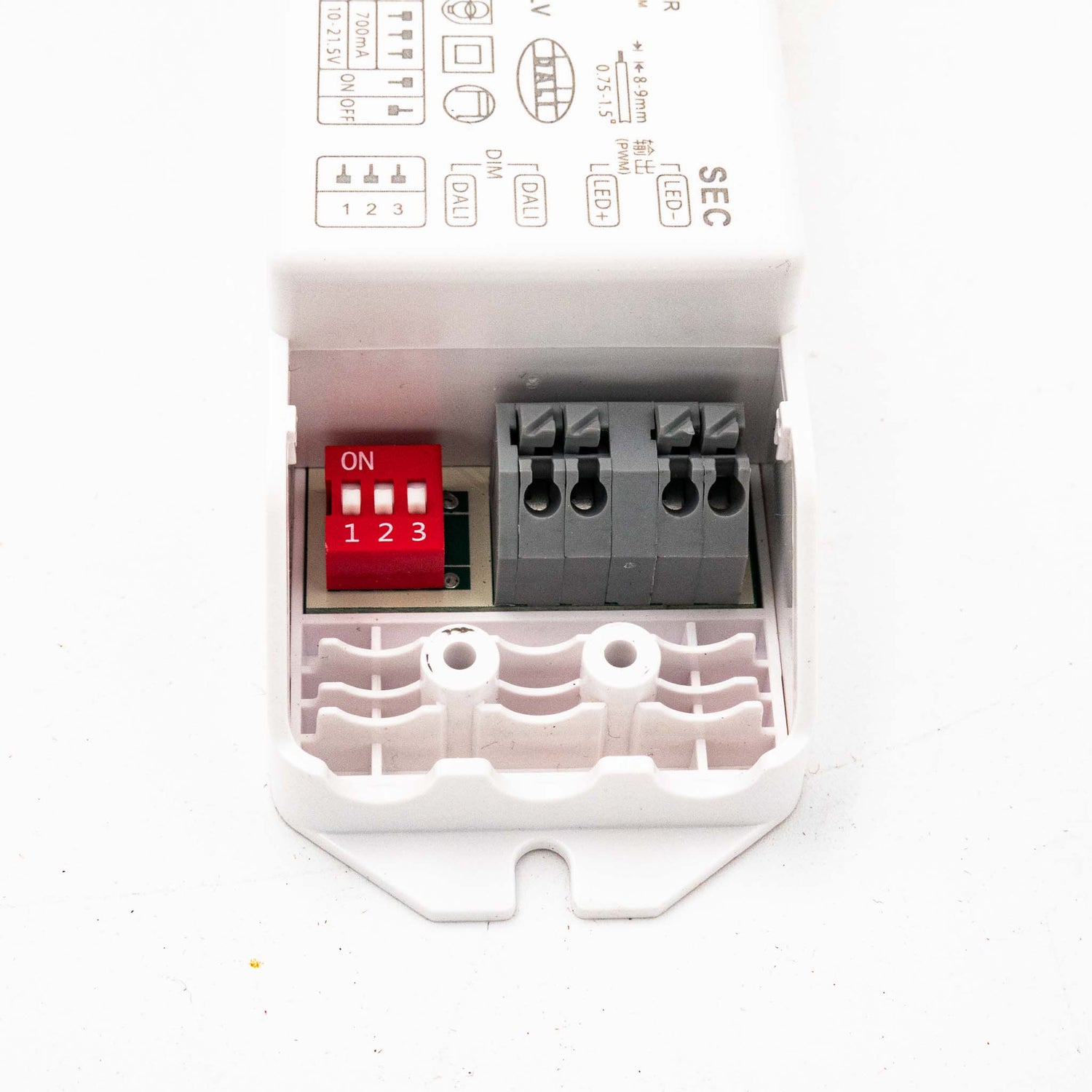

- Dimming Interface
- DALI, Push Dim

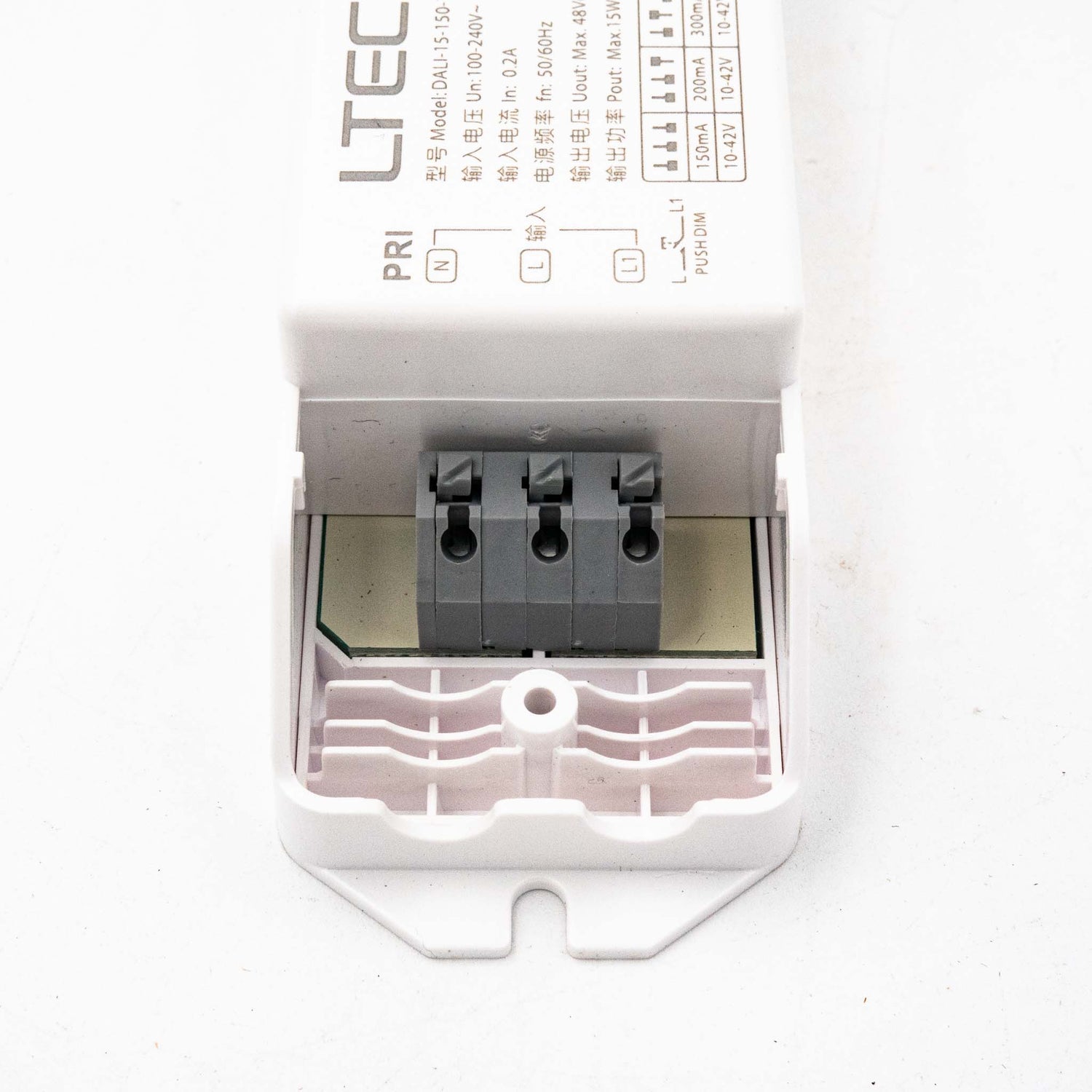

- Input Voltage Range
- 100-240Vac, 127-250Vdc (Push Dim is unsupported for DC input)
- Frequency
- 0/50/60Hz
- Input Current
- 115Vac≤0.2A, 230Vac≤0.1A
- Power Factor
- 115Vac>0.98，230Vac>0.9
- THD
- 230Vac@THD≤15% (full load)
- Efficiency
- >82%
- Inrush Current(typ.)
- Cold start 3.6A at 230Vac (twidth=45μs measured at 50% Ipeak)
- Control surge capability
- L-N: 1kV
- Leakage Current
- <0.5mA/230Vac
ENVIRONMENT
- Working Temperature
- ta: -20°C ~ 50°C tc: 80°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temp., Humidity
- -40°C ~ 80°C, 10~95%RH
- Temp. Coefficient
- ±0.03%/°C (0-50°C)
- Vibration
- 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION
- Over-heat Protection
- Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.
- Over Load Protection
- Shut down the output when current load≥102%, auto recovers.
- Short Circuit Protection
- Shut down automatically if short circuit occurs, auto recovers.
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Isolation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- Safety Standards
- IEC/EN61347-1, IEC/EN61347-2-13
- EMC Emission
- EN55015, EN61000-3-2 Class C, IEC61000-3-3
- EMC Immunity
- EN61000-4-2,3,4,5,6,8,11 EN61547
- Strobe Test Standard
- IEEE 1789
OTHERS
- Dimension
- 167×41×32mm(L×W×H)
- Packing
- 168×43×35mm(L×W×H)
- Weight(G.W.)
- 165g±10g
Certifications & ratings
- Marked features
- Class 2, Multiple Current
Technical drawings
Downloads
FAQ
What type of LED driver is the Ltech DALI-15-150-700-F1A1?
The DALI-15-150-700-F1A1 is a 15W constant-current LED driver with DALI dimming control. It is designed for applications that need selectable output current within a single model rather than a fixed-current driver.
What output current range does this LED driver support?
This model supports selectable output current from 150mA up to 700mA. That makes it useful when matching different constant-current LED fittings while staying within the product's stated operating range.
Is this driver suitable for DALI dimming systems?
Yes, this model is built for DALI dimming and also supports Push Dim. It is designed for DALI-based lighting control projects, ensuring compatibility with standard DALI systems.
How smooth is the dimming performance on this model?
The product is specified with a 0 to 100% dimming range and a dimming depth of 0.01%. It is assessed as almost flicker-free under high frequency exemption, which helps on projects where very low dimming levels are important for visual comfort.
What environments is the DALI-15-150-700-F1A1 rated for?
This driver is rated for ambient temperatures from -20°C to 50°C. The description also states it is suitable for internal lights application, so it is intended for indoor use cases rather than exposed outdoor installation.
What protections are included in this LED driver?
The DALI-15-150-700-F1A1 includes overload, over-heat, and short-circuit protection with automatic recovery. These features are relevant for long-term reliability in commercial lighting applications.
