Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

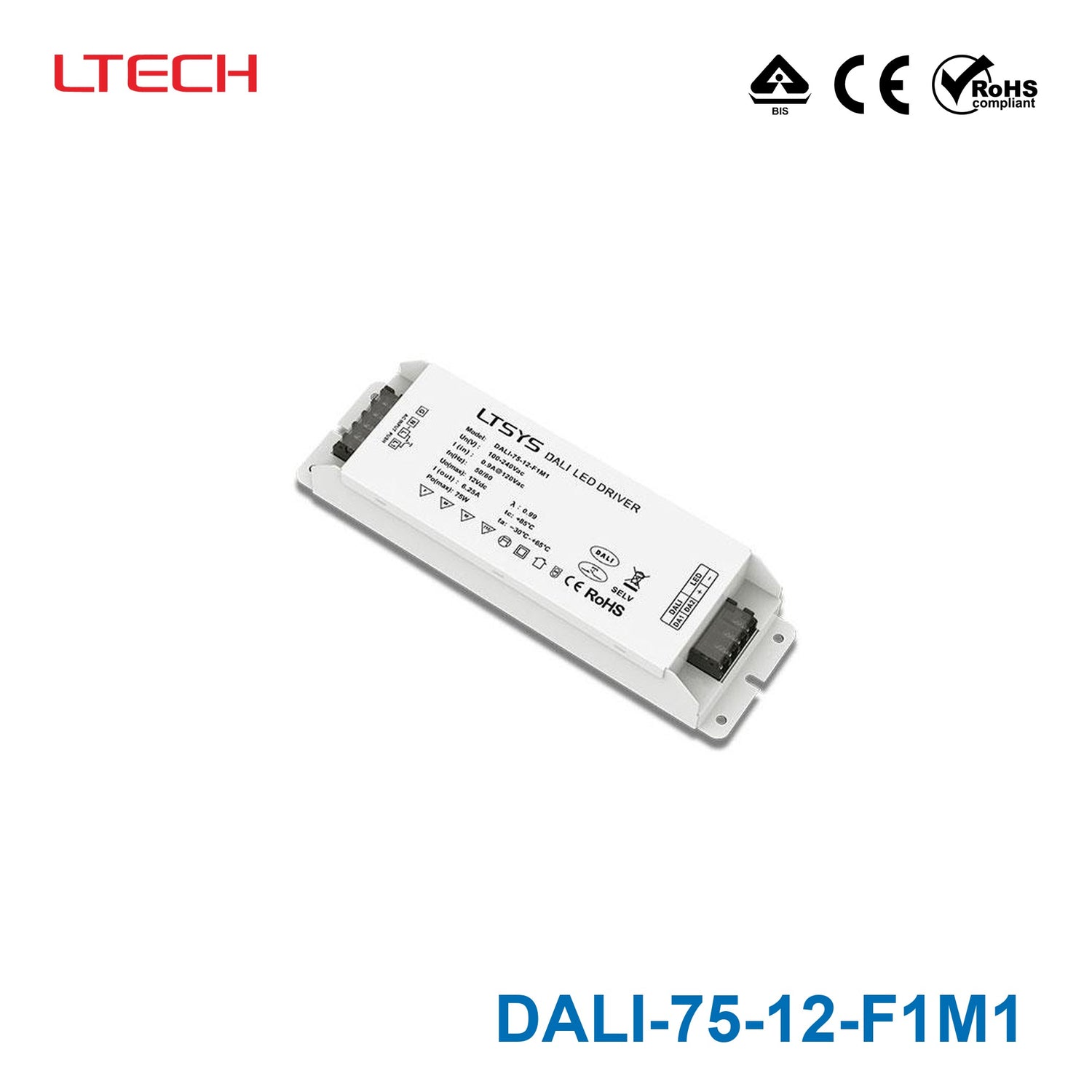

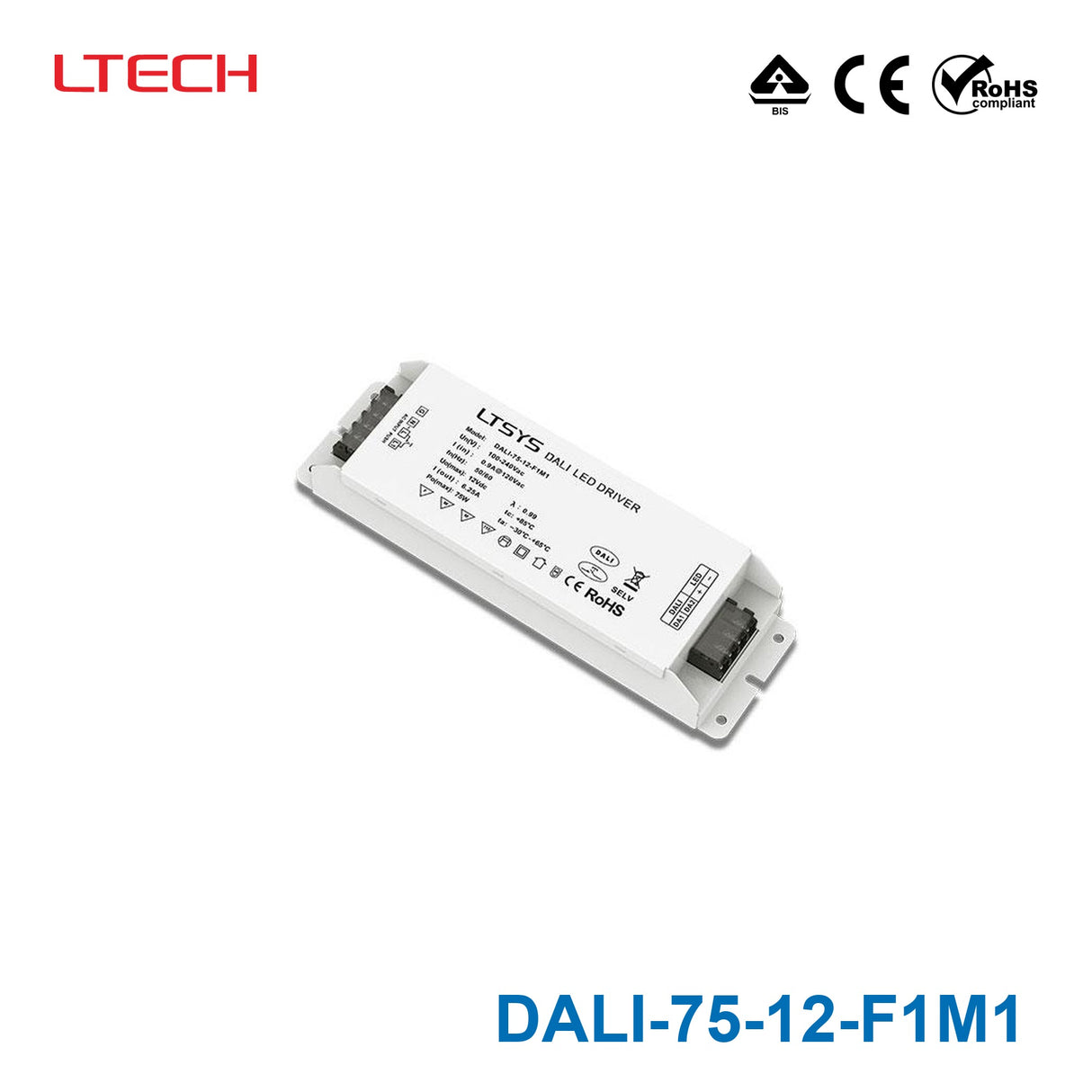

Ltech DALI-75-12-F1M1 75W 12VDC CV DALI LED Driver

Q: What type of lighting is the Ltech DALI-75-12-F1M1 designed for?

This model is a 75W 12VDC constant-voltage LED driver intended for indoor lighting applications that use DALI dimming and color temperature adjustment. It is built for tunable white systems where two independently SELV output channels are needed to control brightness and CCT together.

Q: Is the DALI-75-12-F1M1 suitable for tunable white lighting control?

Yes. This driver supports DALI DT8 and is described as a DIM and color temperature adjusting driver with a 2700-6500K adjustment range. Its two independent constant-voltage output channels make it appropriate for tunable white LED lighting systems built around 12VDC operation.

Q: What are the main electrical specifications of the Ltech DALI-75-12-F1M1?

The DALI-75-12-F1M1 is rated for 75W output at 12VDC with a rated current of 6.25A. It uses DALI dimming control, has standby power loss below 0.5W, and comes in a full protective plastic housing.

Q: How low can this DALI LED driver dim?

This model supports a 0-100% dimming range and states that LED startup at 0.1% is possible. It is also described as flicker-free across the 0-100% dimming range, which is useful where smooth low-level light control matters.

Q: What makes this model different from a standard single-channel 12V LED driver?

Unlike a basic 12V constant-voltage driver that only provides power and dimming, this model adds DALI DT8 support plus color temperature adjustment. Its two independent SELV output channels are a key differentiator for tunable white applications rather than simple single-output dimming.

Q: What operating conditions is the DALI-75-12-F1M1 rated for?

This driver is rated for operation from -30°C to 60°C and is described as suitable for indoor I/II/III type lamp applications. It also includes over-heat, overload, and short-circuit protection with automatic recovery.

SKU:

DALI-75-12-F1M1

Please for Pricing

Notify me when it's back in stock

Description

Dimming interface: DALI
Push DIM/CCT
DALI DT8
DIM and color temperature adjusting driver.
Dimming range from 0-100%
LED start at 0.1%possible.
2 independently SELV constant voltage output channels.
Color temperature adjusting range: 2700-6500K
0~100% flicker-free
achieve the level of exemption assessment.
Over-heat / Over load / Short circuit protection
recover automatically.
Standby Power Loss < 0.5W
Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor I/II/III type lamps application.

Specifications

Brand

Ltech
Series

Ltech DALI Series
Power Rating

75 Watt
Output Voltage

12 Volt
Rated Current

6.25 Ampere
Input Voltage

100V~240V
Standards Met

BIS,CE,ROHS
Operation Mode

Constant Voltage
Operating Temperature

-30°C~60°C
Warranty

5 Year
Length

20.4 cm
Width

6.2 cm
Height

3.4 cm
Weight

0.49 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of lighting is the Ltech DALI-75-12-F1M1 designed for?

This model is a 75W 12VDC constant-voltage LED driver intended for indoor lighting applications that use DALI dimming and color temperature adjustment. It is built for tunable white systems where two independently SELV output channels are needed to control brightness and CCT together.

Is the DALI-75-12-F1M1 suitable for tunable white lighting control?

Yes. This driver supports DALI DT8 and is described as a DIM and color temperature adjusting driver with a 2700-6500K adjustment range. Its two independent constant-voltage output channels make it appropriate for tunable white LED lighting systems built around 12VDC operation.

What are the main electrical specifications of the Ltech DALI-75-12-F1M1?

The DALI-75-12-F1M1 is rated for 75W output at 12VDC with a rated current of 6.25A. It uses DALI dimming control, has standby power loss below 0.5W, and comes in a full protective plastic housing.

How low can this DALI LED driver dim?

This model supports a 0-100% dimming range and states that LED startup at 0.1% is possible. It is also described as flicker-free across the 0-100% dimming range, which is useful where smooth low-level light control matters.

What makes this model different from a standard single-channel 12V LED driver?

Unlike a basic 12V constant-voltage driver that only provides power and dimming, this model adds DALI DT8 support plus color temperature adjustment. Its two independent SELV output channels are a key differentiator for tunable white applications rather than simple single-output dimming.

What operating conditions is the DALI-75-12-F1M1 rated for?

This driver is rated for operation from -30°C to 60°C and is described as suitable for indoor I/II/III type lamp applications. It also includes over-heat, overload, and short-circuit protection with automatic recovery.
