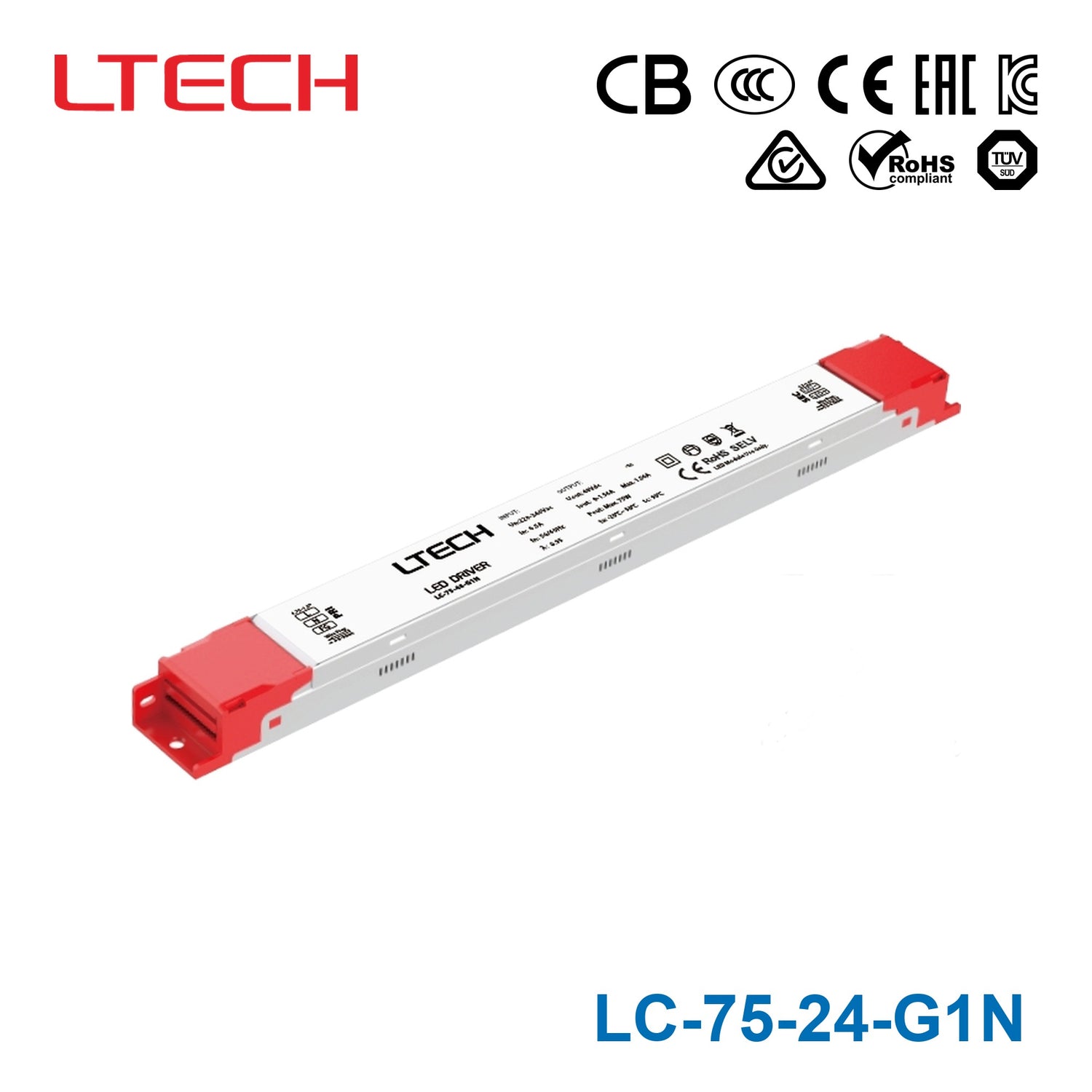

Ltech LC-75-24-G1N 75W 24VDC CV LED Driver 3.125A
Log in to see priceOverview
LC-75-24-G1N is the 24Vdc (Max) output model of this series: typical efficiency 89%.
Features
- Independent external LED driver.
- The clamshell design and screwless type for strain-relief.
- High performance, high efficiency, low THD.
- Energy-efficient driver: Efficiency 89%, PF>0.95, THD<15%.
- Innovative thermal management technology intelligently protects the power life.
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- Isolated LED driver, suitable for indoor light applications of Ⅰ/Ⅱ/Ⅲtype.
- 5-year warranty.
Specifications
LC-75-24-G1NSpecifications from the official datasheetDownload datasheet PDF
OUTPUT
- Output Voltage
- 24Vdc (Max)
- Output Voltage Range
- 24Vdc ± 0.5Vdc
- Output Current
- Max 3.125A
- Output Power
- Max. 75W
- Output Power Range
- 0-75W
- Overload Power Limitation
- ≥102%
INPUT
- Input Voltage
- 220-240Vac
- Frequency
- 50/60Hz
- Input Current
- 0.5A/200Vac; 0.45A/230Vac; 0.4A/264Vac
- Power Factor
- PF>0.95/230Vac (at full load)
- THD
- 200Vac@THD＜22%, 230Vac@THD＜15%, 264Vac@THD＜15%
- Efficiency (typ.)
- 89%
- Standby Power Consumption
- <0.5W
- Inrush Current
- 45A/230Vac (Cold start, twidth=400us under 50% Ipeak)
- Anti Surge
- L-N: 1KV
- Leakage Current
- Max. 0.7mA
ENVIRONMENT
- Working Temperature
- ta: -20~50°C, tc: 90°C
- Working Humidity
- 20-95%RH; non-condensing
- Storage Temperature,Humidity
- -40~80°C, 10-95%RH
- Temperature Coefficient
- ±0.03%/°C (-20~50°C)
- Vibration
- 10~500Hz, 2G, 12min/cycle, 72min for X, Y and Z axes
PROTECTION
- Overheat Protection
- Auto shutdown when PCB temp ≥110°C
- Overvoltage Protection
- Auto shutdown when non-load voltage ≥28V, auto recover
- Overload Protection
- Auto shutdown when current load ≥102%, auto recover
- Short Circuit Protection
- Hiccup mode on short circuit, auto recover
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Isolation Resistance
- 100MΩ/500VDC/25°C/70%RH
- Safety Standards CCC
-
Parameter Standard China GB19510.1, GB19510.14 - Safety Standards TUV
-
Parameter Standard Germany EN61347-1, EN61347-2-13, EN62493 - Safety Standards CB
-
Parameter Standard CB member states IEC61347-1, IEC61347-2-13 - Safety Standards CE
-
Parameter Standard European Union EN61347-1, EN61347-2-13, EN62384 - Safety Standards KC
-
Parameter Standard Korea KC61347-1, KC61347-2-13 - Safety Standards EAC
-
Parameter Standard Russia IEC61347-1, IEC61347-2-13 - Safety Standards UKCA
-
Parameter Standard Britain BS EN 61347-2-13:2014+A1:2017 BS EN 61347-1:2015+A1:2021 - Safety Standards ENEC
-
Parameter Standard Europe EN61347-1, EN61347-2-13, EN62384 - EMC Emission CCC
-
Parameter Standard China GB/T17743, GB17625.1 - EMC Emission CE
-
Parameter Standard European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547 - EMC Emission KC
-
Parameter Standard Korea KSC 9815, KSC 9547 - EMC Emission EAC
-
Parameter Standard Russia IEC62493, IEC61547, EH55015 - EMC Emission UKCA
-
Parameter Standard Britain BS EN IEC 55015:2019/A11:2020, BS EN 61547:2009, BS EN IEC 61000-3-2:2019, BS EN 61000-3-3:2013/A1:2019 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547
ErP
- Power Consumption Standby power consumption
- No standby mode
- Power Consumption Networked standby
- ≤0.5W
- Power Consumption No-load power consumption
- Without no-load mode
- Flicker/Stroboscopic Effect IEEE 1789
- Meet IEEE 1789 standard / High frequency exemption level
- Flicker/Stroboscopic Effect CIE SVM
- Pst LM≤1.0, SVM≤0.4
- DF Phase factor
- DF≥0.9
OTHERS
- Life Time
- 50000 hours
- Warranty
- 5 years
Technical drawings
Typical applications
- Indoor office lighting, decorative lighting, commercial lighting.
Downloads
Datasheet1
