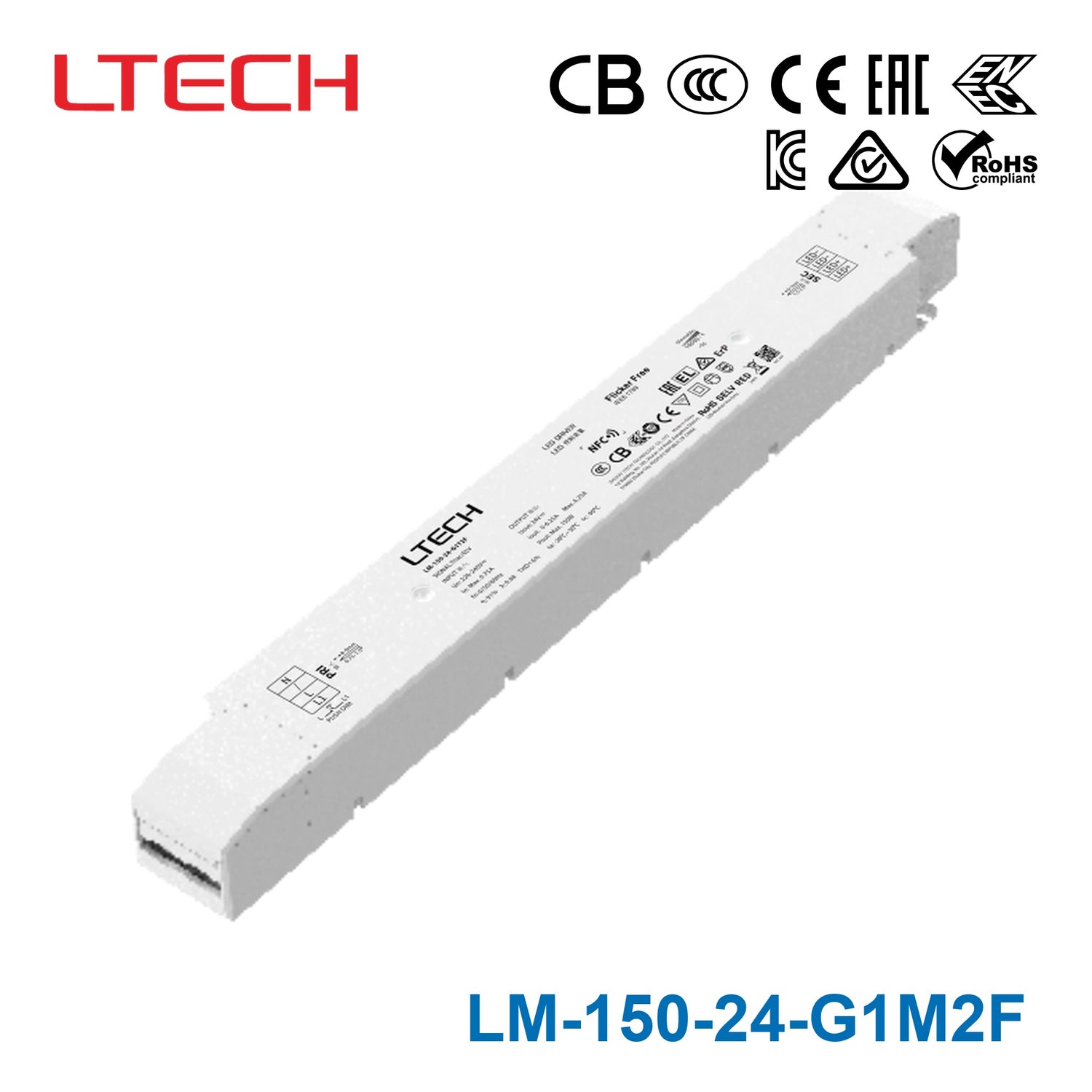

Ltech LM-150-24-G1M2F 150W 24VDC CV DMX512 LED Driver 6.25A
Log in to see priceOverview
LM-150-24-G1M2F is the 24V ⎓ output model of this series: typical efficiency 93%.
Features
- The housing is made of V0 flame-retardant PC material, sourced from SAMSUNG/COVESTRO.
- The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
- DMX address, dimming curve, and brightness range can be set via NFC using the mobile app.
- Support the RDM remote Device Management Protocol.
- Provides two-channel independent SELV outputs.
- Supports DMX512/RDM, Push DIM and corridor light DIM.
- Constant power design ensures consistent brightness across color temperature adjustments.Supports deep dimming from 0–100%, with a minimum dimming level of 0.01%.
- It is equipped with a soft-start gradually brightening function, making the visual experience more comfortable for the human eye.
- High-efficiency driver with 93% efficiency, power factor > 0.98, and THD < 6%.
- In compliance with the EU ERP Energy Efficiency Directive, with network standby power consumption below 0.5W.
- Innovative thermal management technology intelligently protects the life of the LED driver.
- Includes protections against overheating, overload, short circuit, and open circuit.
- Suitable for ClassⅠ/Ⅱ/Ⅲindoor light fixtures.
- Designed for a service life exceeding 100,000 hours under normal operating conditions.
- 5-year warranty (Rubycon capacitor).
Specifications
Features
- Output Type
- Constant Voltage
- Dimming Interface
- DMX512/RDM, Push DIM
- Output Feature
- Isolation
- Protection Grade
- IP20
- Insulation Grade
- Class II (Suitable for class I /II/III light fixtures)
OUTPUT
- Output Voltage
- 24V ⎓
- Output Voltage Range
- 24V ± 0.5V ⎓
- Output Current
- Max. 6.25A
- Output Power
- Max. 150W
- Output Power Range
- 0~150W
- Strobe Level
- High frequency exemption level
- Dimming Range
- 0~100%, down to 0.01%
- Overload Power Limitation
- ≥102%
- Ripple
- Switch ripple≤200mV, noise≤500mV
- PWM Frequency
- 300-22000Hz
INPUT
- AC Voltage Range
- 220-240V~
- DC Voltage Range
- 220-240V⎓ (EMI needs to be evaluated after the luminaire is installed)
- Frequency
- 50/60Hz
- Input Current
- Max. 0.75A/230V~
- Power Factor
- PF>0.98/230V~ (at full load)
- THD
- THD<6%@ 230V~ (at full load)
- Efficiency (Typ.)
- 93%
- Standby Power Loss
- ＜0.5W
- Inrush Current
- 45.6A (twidth=500us, tested under 50% Ipeak)/230V~
- Anti Surge
- L-N: 2KV
- Leakage Current
- Max. 0.5mA
ENVIRONMENT
- Working Temperature
- ta: -20 ~ 50°C tc: 85°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature/Humidity
- -40 ~ 80°C, 10~95%RH
- Temperature Coefficient
- ±0.03%/°C(0-50°C)
- Vibration
- 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- Shut down the output when rated power≥102%, auto recovers
- Overheat Protection
- Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
- Overvoltage Protection
- Shut down the output when no-load voltage≥28V, and recover automatically
SAFETY & EMC
- Withstand Voltage
- I/P-O/P：3750V~
- Insulation Resistance
- I/P-O/P：100MΩ/500VDC/25°C/70%RH
- SafetyStandards
-
Parameter Standard Test Level CCC China GB19510.1，GB19510.14，GB19510.213 TUV Germany EN61347-1，EN61347-2-13，EN62493 CB CB MEMBER STATES IEC61347-1，IEC61347-2-13 CE European Union EN61347-1，EN61347-2-13，EN62384 KC Korea KC61347-1，KC61347-2-13 EAC Russia IEC61347-1，IEC61347-2-13 RCM Australia AS 61347-1，AS 61347-2-13 ENEC Europe EN61347-1，EN61347-2-13，EN62384 BIS India EN61347-1，EN61347-2-13，EN62384 - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743，GB17625.1 CE European Union EN55015，EN61000-3-2，EN61000-3-3，EN61547 KC Korea KN15，KN61547 EAC Russia IEC62493，IEC61547，EH55015 RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547
ErP
- Power Consumption
- Networked standby ＜0.5W(After shutdown by command)
- No-load power consumption
- No no-load mode
- IEEE1789
- Meet IEEE 1789 standard/High frequency exemption level
- Flicker/Stroboscopic Effect
- CIE SVM PstLM≤1.0，SVM≤0.4
- DF
- Phase factor DF≥0.9
OTHERS
- Weight(N.W.)
- 430g±10g
- Dimensions
- 352×43×30mm(L×W×H)
Certifications & ratings
- RDM
- DMX
- Flicker-Free
- IEEE 1789
- Marked features
- NFC
Technical drawings
![LM-150-24-G1M2F Efficiency[%]](https://wellforces-akeneo-pim.s3.ap-southeast-2.amazonaws.com/catalog/1b/7f/1b7f970e95c79e601d56070d0dd7c7873579a9865338d8945bfc3a4b061d4632.webp)
Downloads
Datasheet1
FAQ
What is this LED driver used for?
It is a 150W constant voltage LED driver designed for Class I, II, and III light fixtures, suitable for indoor applications requiring DMX512/RDM or Push DIM control.
What are the output specifications?
The output is 24V DC with a maximum current of 6.25A and a maximum power of 150W. The output voltage range is 24V ± 0.5V.
What is the input voltage range?
The input voltage range is 220-240V AC at 50/60Hz. It also supports 220-240V DC input, though EMI must be evaluated after luminaire installation.
How does the dimming work?
It supports DMX512/RDM and Push DIM interfaces. The dimming range is 0-100%, down to 0.01%, with a PWM frequency of 300-22000Hz.
What protections are included?
It includes overload protection (shuts down at ≥102% rated power), overheat protection (adjusts or turns off at ≥110°C PCB temp), short circuit protection (hiccup mode), and overvoltage protection (shuts down at ≥28V no-load).
What are the operating conditions?
The working temperature is -20 to 50°C (ambient) with a case temperature up to 85°C. Humidity should be 20-95% RH, non-condensing. It has an IP20 rating, making it suitable for indoor use only.
What are the dimensions and weight?
The dimensions are 352 x 43 x 30 mm (L x W x H) and the net weight is 430g ± 10g.
