Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

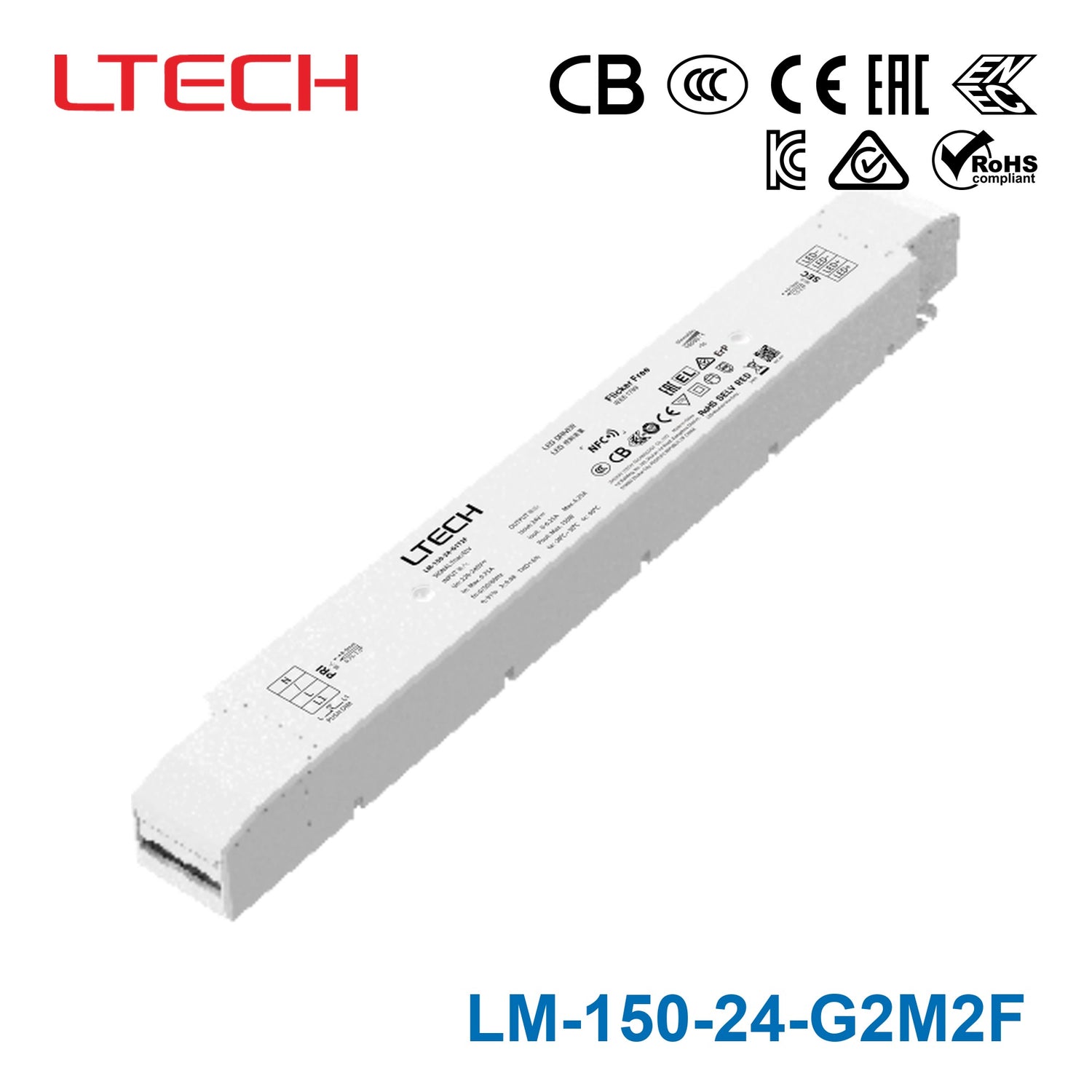

Ltech LM-150-24-G2M2F 150W 24VDC CV DMX512 LED Driver 6.25A

DMX512/RDM Push DIM150W

SKU LM-150-24-G2M2F

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

LM-150-24-G2M2F is the 24V ⎓ output model of this series: typical efficiency 93%.

The housing is made of V0 flame-retardant PC material, sourced from SAMSUNG/COVESTRO. The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.

Features

DMX address, dimming curve, and brightness range can be set via NFC using the mobile app.
Support the RDM remote Device Management Protocol.
Provides two-channel independent SELV outputs.
Supports DMX512/RDM, Push DIM/CCT and corridor light DIM/CCT.
Constant power design ensures consistent brightness across color temperature adjustments.Supports deep dimming from 0–100%, with a minimum dimming level of 0.01%.
It is equipped with a soft-start gradually brightening function, making the visual experience more comfortable for the human eye.
High-efficiency driver with 93% efficiency, power factor > 0.98, and THD < 6%.
In compliance with the EU ERP Energy Efficiency Directive, with network standby power consumption below 0.5W.
Innovative thermal management technology intelligently protects the life of the LED driver.
Includes protections against overheating, overload, short circuit, and open circuit.
Suitable for ClassⅠ/Ⅱ/Ⅲindoor light fixtures.
Designed for a service life exceeding 100,000 hours under normal operating conditions.
5-year warranty (Rubycon capacitor).

Specifications

LM-150-24-G2M2FSpecifications from the official datasheetDownload datasheet PDF

Features

Output Type: Constant Voltage
Dimming Interface: DMX512/RDM, Push DIM/CCT
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I /II/III light fixtures)

OUTPUT

Output Voltage: 24V ⎓
Output Voltage Range: 24V ± 0.5V ⎓
Output Current: Max. 6.25A
Output Power: Max. 150W
Output Power Range: 0~150W
Strobe Level: High frequency exemption level
Dimming Range: 0~100%, down to 0.01%
Overload Power Limitation: ≥102%
Ripple: Switch ripple≤200mV, noise≤500mV
PWM Frequency: 300-22000Hz

INPUT

AC Voltage Range: 220-240V ~
DC Voltage Range: 220-240V ⎓ (EMI needs to be evaluated after the luminaire is installed)
Frequency: 50/60Hz
Input Current: Max. 0.75A/230V~
Power Factor: PF>0.98/230V~ (at full load)
THD: THD<6%@ 230V~ (at full load)
Efficiency (Typ.): 93%
Standby Power Loss: <0.5W
Inrush Current: 45.6A (twidth=500us, tested under 50% Ipeak) / 230V~
Anti Surge: L-N: 2KV
Leakage Current: Max. 0.5mA

ENVIRONMENT

Working Temperature: ta: -20 ~ 50°C tc: 85°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C, 10~95%RH
Temperature Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Shut down the output when rated power≥102%, auto recovers
Overheat Protection: Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically
Overvoltage Protection: Shut down the output when no-load voltage≥28V, and recover automatically
Withstand Voltage: I/P-O/P：3750V~
Insulation Resistance: I/P-O/P：100MΩ/500VDC/25°C/70%RH

SAFETY & EMC

SafetyStandards: Parameter Standard Test Level

CCC China GB19510.1，GB19510.14，GB19510.213
TUV Germany EN61347-1，EN61347-2-13，EN62493
CB CB MEMBER STATES IEC61347-1，IEC61347-2-13
CE European Union EN61347-1，EN61347-2-13，EN62384
KC Korea KC61347-1，KC61347-2-13
EAC Russia IEC61347-1，IEC61347-2-13
RCM Australia AS 61347-1，AS 61347-2-13
ENEC Europe EN61347-1，EN61347-2-13，EN62384
BIS India EN61347-1，EN61347-2-13，EN62384
EMC Emission: Parameter Standard Test Level

CCC China GB/T17743，GB17625.1
CE European Union EN55015，EN61000-3-2，EN61000-3-3，EN61547
KC Korea KN15，KN61547
EAC Russia IEC62493，IEC61547，EH55015
RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547

Parameter	Standard	Test Level
CCC	China	GB19510.1，GB19510.14，GB19510.213
TUV	Germany	EN61347-1，EN61347-2-13，EN62493
CB	CB MEMBER STATES	IEC61347-1，IEC61347-2-13
CE	European Union	EN61347-1，EN61347-2-13，EN62384
KC	Korea	KC61347-1，KC61347-2-13
EAC	Russia	IEC61347-1，IEC61347-2-13
RCM	Australia	AS 61347-1，AS 61347-2-13
ENEC	Europe	EN61347-1，EN61347-2-13，EN62384
BIS	India	EN61347-1，EN61347-2-13，EN62384

Parameter	Standard	Test Level
CCC	China	GB/T17743，GB17625.1
CE	European Union	EN55015，EN61000-3-2，EN61000-3-3，EN61547
KC	Korea	KN15，KN61547
EAC	Russia	IEC62493，IEC61547，EH55015
RCM	Australia	EN55015，EN61000-3-2，EN61000-3-3，EN61547

ErP

Power Consumption: Parameter Standard

Networked standby <0.5W(After shutdown by command)
No-load power consumption No no-load mode
Flicker/Stroboscopic Effect: Parameter Standard

IEEE1789 Meet IEEE 1789 standard/High frequency exemption level
CIE SVM PstLM≤1.0，SVM≤0.4
DF: Parameter Standard

Phase factor DF≥0.9

Parameter	Standard
Networked standby	<0.5W(After shutdown by command)
No-load power consumption	No no-load mode

Parameter	Standard
IEEE1789	Meet IEEE 1789 standard/High frequency exemption level
CIE SVM	PstLM≤1.0，SVM≤0.4

Parameter	Standard
Phase factor	DF≥0.9

OTHERS

Weight(N.W.): 430g±10g
Dimensions: 352×43×30mm(L×W×H)

Certifications & ratings

Flicker-Free: IEEE 1789
Marked features: NFC

Technical drawings

LM-150-24-G2M2F Product Size — Product Size

LM-150-24-G2M2F Wiring Diagram — Wiring Diagram

LM-150-24-G2M2F Push DIM/CCT Connection — Push DIM/CCT Connection

LM-150-24-G2M2F Push DIM/CCT Connection (2) — Push DIM/CCT Connection (2)

LM-150-24-G2M2F Push DIM/CCT — Push DIM/CCT

LM-150-24-G2M2F Corridor Dimming Application — Corridor Dimming Application

LM-150-24-G2M2F Corridor Dimming Working Process — Corridor Dimming Working Process

LM-150-24-G2M2F *The above parameters are set through the NFC lighting APP. — *The above parameters are set through the NFC lighting APP.

LM-150-24-G2M2F Use with RDM Editor — Use with RDM Editor

LM-150-24-G2M2F LTECH RDM Programmer APP interface introduction — LTECH RDM Programmer APP interface introduction

LM-150-24-G2M2F Tension plate — Tension plate

LM-150-24-G2M2F Installation Precautions — Installation Precautions

LM-150-24-G2M2F Use the NFC Lighting APP — Use the NFC Lighting APP

LM-150-24-G2M2F 1.Read the LED driver — 1.Read the LED driver

LM-150-24-G2M2F 2. Edit parameters — 2. Edit parameters

LM-150-24-G2M2F Relationship Diagrams — Relationship Diagrams

Downloads

Datasheet1

LM-150-24-G2M2F datasheetLM_150_24_G2M2F.pdf PDF Download

FAQ

What is this LED driver used for?

It is a constant voltage LED driver suitable for Class I, II, and III light fixtures, providing 24V DC output for indoor lighting applications.

What are the output power and current ratings?

The driver provides a maximum output power of 150W at 24V DC, with a maximum output current of 6.25A.

How can I control the dimming?

It supports DMX512/RDM and Push DIM/CCT interfaces, allowing dimming from 0% to 100%, down to 0.01%.

What is the input voltage range?

The input voltage range is 220-240V AC at 50/60Hz. It also supports 220-240V DC input, though EMI must be evaluated after luminaire installation.

What protection features are included?

It includes overload, overheat, short circuit, and overvoltage protection. All protections recover automatically after the fault condition is removed.

What is the IP rating and operating temperature?

The unit has an IP20 rating, making it suitable for indoor use only. The working ambient temperature range is -20°C to 50°C.

What are the physical dimensions?

The dimensions are 352mm x 43mm x 30mm (L x W x H), and the net weight is approximately 430g.
