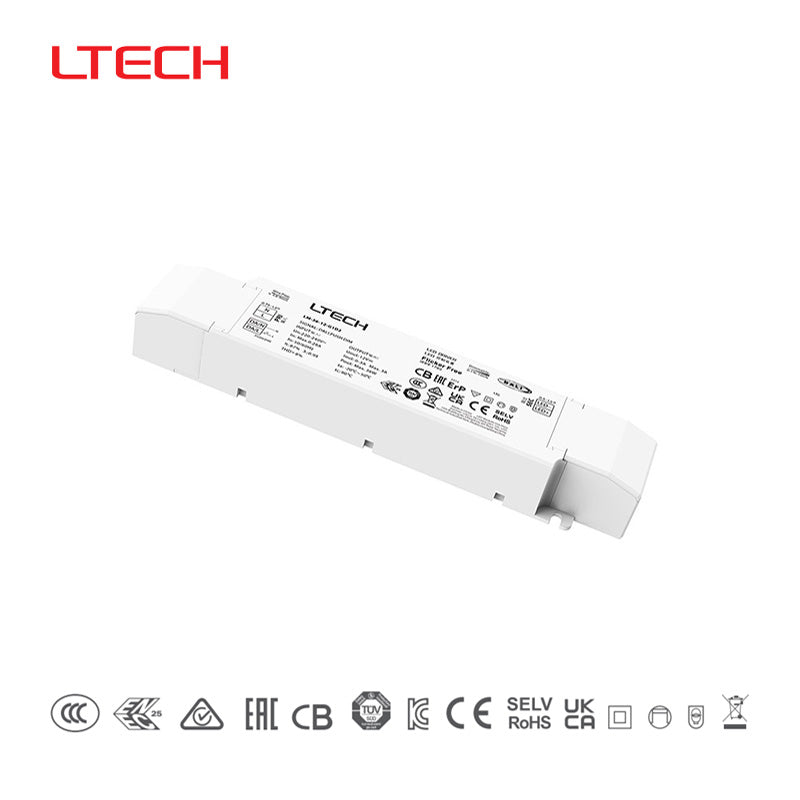

Ltech LM-36-12-G1D2 CV DALI2 Dimmable Driver 36W 12V
Please Login for Pricing
Description
Description
LED Intelligent Driver
| • Small size and lightweight. Adopt SAMSUNG/COVESTRO V0 flame-resistant polycarbonate protective housings |
| • The design of the dismountable end cap allows you to adjust the length of housing depending on your needs |
| • Dimming interfaces: DALI-2, Push DIM |
| • Dimming range: 0~100%, dimming down to 0.1% |
| • Flicker-free with high-frequency exemption level in 0~100% dimming process |
| • High-performance drivers: Efficiency 88%, PF>0.95. THD<8% |
| • Comply with the EU's ErP Directive, standby power consumption<0.5W |
| • The secure and reliable design for signal isolation |
| • Innovative thermal management technology intelligently protects the lifetime of the driver |
| • Over-heat / Over voltage / Overload / Short circuit protection, recover automatically |
| • DALI bus standard IEC62386-101, 102,207 |
| • Suitable for lamp applications of indoor I/II/III types |
| • up to 50000-hour lifetime |
| • 5 years warranty (Rubycon Capacitor) |
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating36 Watt
-
Output Voltage12 Volt
-
Rated Current1.5 Ampere
-
Input Voltage200V~240V
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length21 cm
-
Width4.3 cm
-
Height3 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED applications is the Ltech LM-36-12-G1D2 designed for?
The LM-36-12-G1D2 is a constant voltage 12V LED driver intended for indoor lighting applications. It is suited to projects that need a compact 36W dimmable driver with professional control options such as DALI-2 or Push DIM.
What are the main electrical specifications of this driver?
This model is rated for 36W output at 12V with a rated current of 1.5A. It is a constant voltage driver, which makes it appropriate for 12V lighting products that require a stable 12V output.
Does this driver support dimming, and what control types does it use?
Yes, the LM-36-12-G1D2 supports both DALI-2 and Push DIM control. It offers 0 to 100% dimming and can dim down to 0.1%, making it a strong option for applications that need smooth low-end dimming performance.
How does this model perform in demanding lighting environments?
This driver is designed for stable dimming performance with flicker-free operation across the 0 to 100% dimming range. It also includes thermal management and automatic protection for over-heat, over-voltage, overload, and short circuit conditions.
What operating environment is this driver rated for?
The LM-36-12-G1D2 is rated for ambient temperatures from -20°C to 50°C. It is described as suitable for indoor lamp applications of Class I, II, and III types.
What makes this driver a good choice compared with basic non-dimmable power supplies?
Compared with a basic 12V power supply, this model adds DALI-2 and Push DIM support, deep dimming to 0.1%, and flicker-free performance. It also provides high efficiency at 88%, power factor above 0.95, THD below 8%, and standby power consumption below 0.5W.
What warranty and service life can buyers expect from this model?
Ltech specifies a 5-year warranty for this driver. The product description also states a lifetime of up to 50,000 hours, which is useful for commercial buyers evaluating long-term maintenance expectations.
Other LM-36 Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Ltech LM-36-24-G1D2 CV DALI2 Dimmable Driver | 36W | 24V | 1.5A | Indoor | View |
