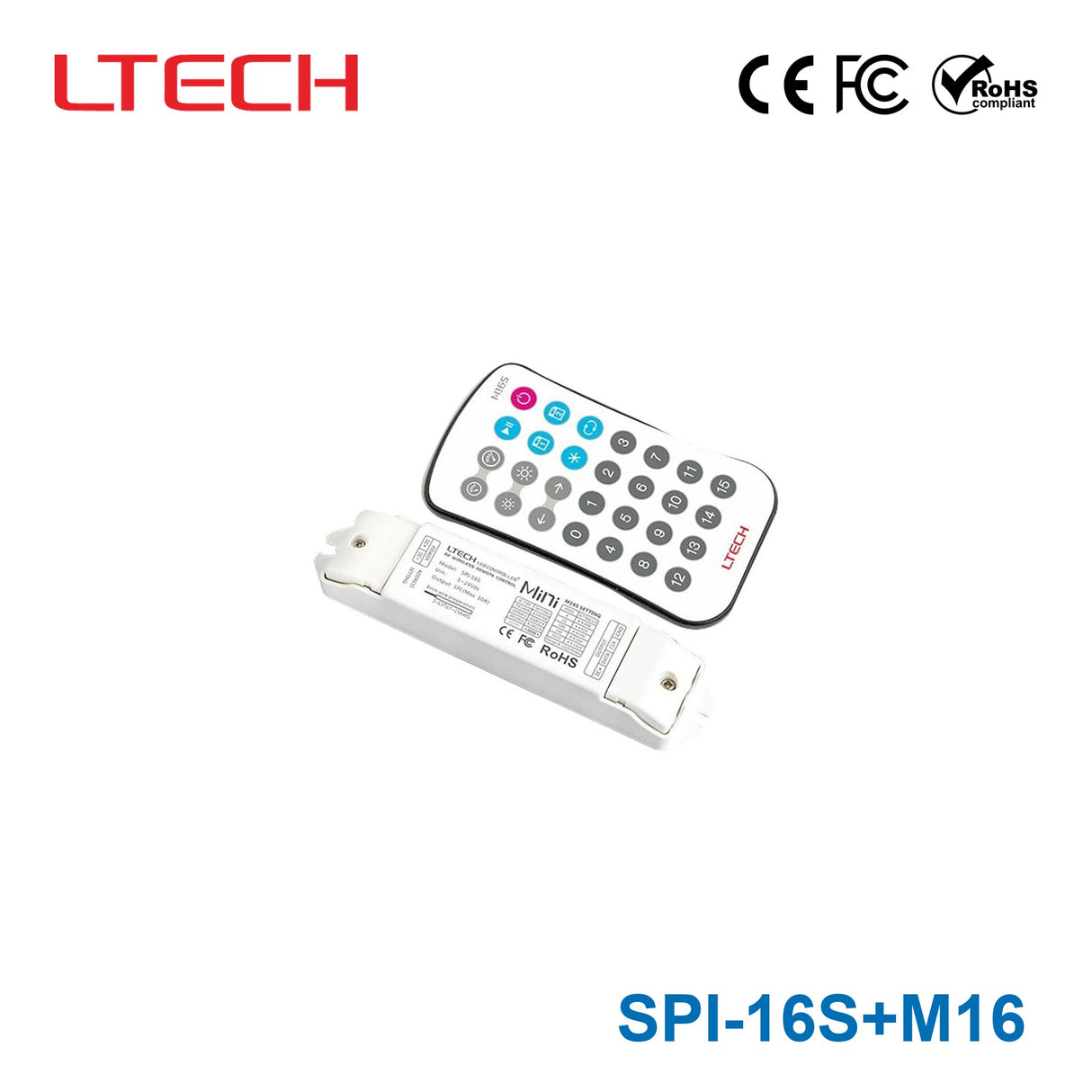

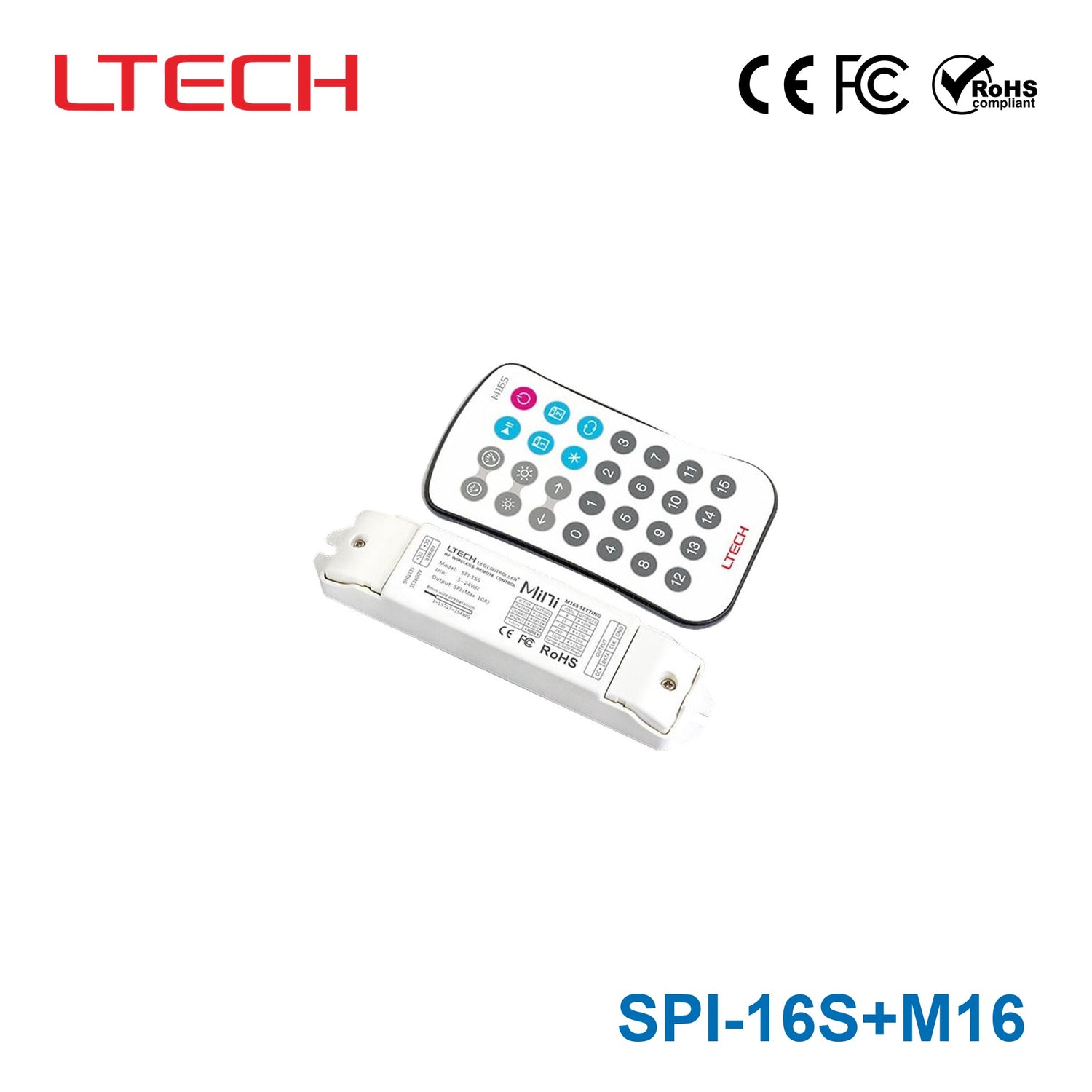

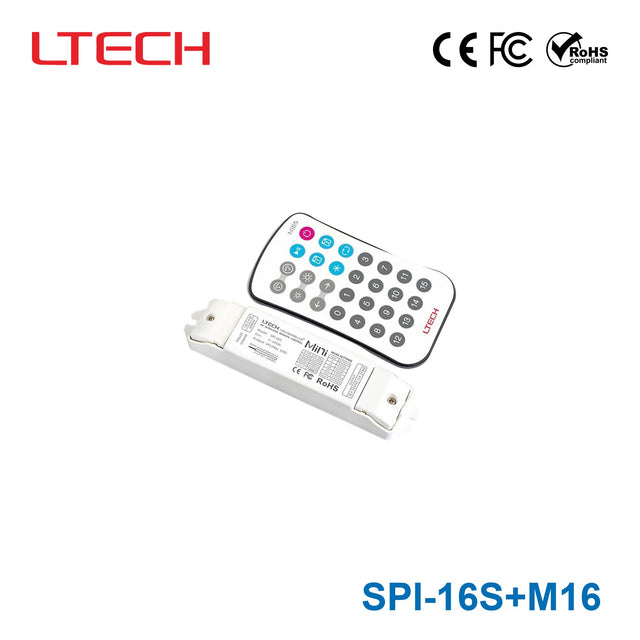

Ltech Mini LED fantastic controller SPI-16S+M16S
Log in to see priceOverview
SPI-16S is a Mini LED pixel controller, equipped with RF remote M16S, almost able to control all IC-driven LED lights. Compact and powerful, various built-in changing effects and customized scene modes can bring you fantastic color! By RF remote control M16S, you can select from a variety of dynamic lighting effects, set controlled pixels quantity, adjust the changing speed and brightness, change the lighting moving direction, adjust RGB sequence, select the IC type, store and play customized scene etc.
Specifications
SPI-16S Controller:
- Power Input
- 5~24Vdc
- Output
- SPI
- Wireless Signal
- RF 2.4GHz
- Working Temperature
- -30°C~55°C
- Pixel Range
- 8~1020px
- Dimensions
- L135×W30×H20(mm)
- Weight(N.W.):
- 52g
- Compatible driving IC
- any kinds, can be customized also.
M16S Remote:
- Working Voltage
- 3V (battery CR2032)
- Wireless Signal
- RF 2.4GHz
- Changing Mode
- 16 kinds
- Working Temperature
- -30°C~55°C
- Dimensions
- L104×W58×H9(mm)
- Weight(N.W.):
- 42g
Package
- Package size
- L132×W198×H22(mm)
- Total weight(G.W.):
- 145g
Certifications & ratings
- Certification marks
- FCC, CE, RoHS, ISO9001:2008
Test conditions and notes1
- ★ Connect power supply to pixel LEDs separately, in case of overvoltage, overcurrent to the receiver. Receiver only supply a signal to the LEDs.
Technical drawings
Downloads
Datasheet1
FAQ
What is the SPI-16S+M16 kit used for?
It is a wireless LED controller kit that includes the SPI-16S controller and an M16S remote. It allows you to control addressable LED strips via RF 2.4GHz wireless signal.
What voltage does the controller require?
The SPI-16S controller operates on a DC input range of 5V to 24V.
Which LED driver ICs are supported?
The controller is compatible with any kind of driving IC and can also be customized for specific requirements.
How many pixels can the controller drive?
The SPI-16S controller supports a pixel range from 8 to 1020 pixels.
How does the remote control work?
The M16S remote uses a CR2032 battery (3V) and communicates via RF 2.4GHz. It offers 16 different changing modes for your LED effects.
What is the operating temperature range?
Both the controller and the remote are rated for a working temperature range of -30°C to 55°C.
Does the product have safety certifications?
Yes, the product carries FCC, CE, RoHS, and ISO9001:2008 certification marks.
