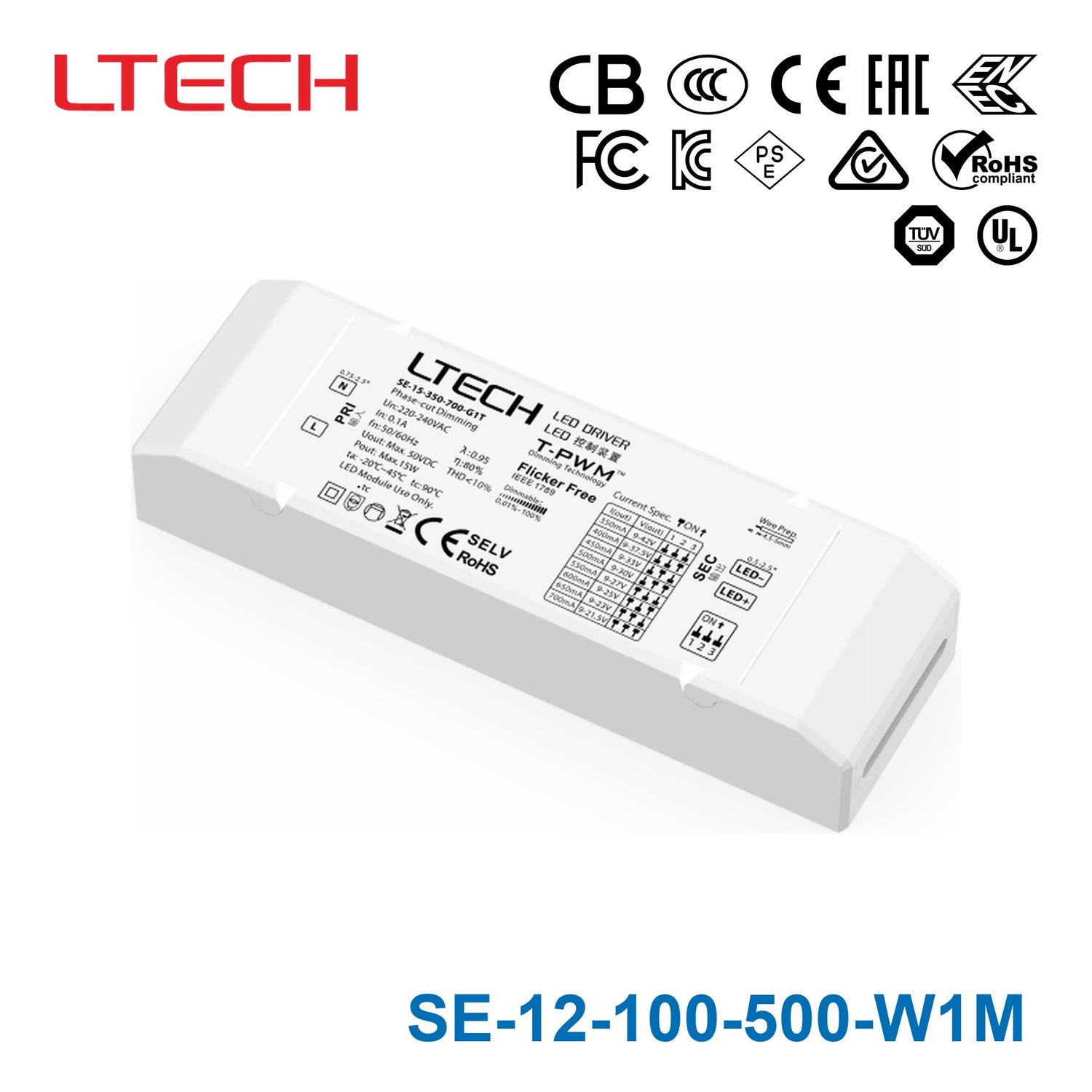

Ltech SE-12-100-500-W1M 12W 9-42VDC CC DMX512 LED Driver 0.1-0.5A

DMX512 RDM9-42VDC12W

SKU SE-12-100-500-W1M

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SE-12-100-500-W1M is the 9-42Vdc output model of this series: typical efficiency 84%@300mA(at full load), 82%@500mA(at full load).

Intelligent LED Driver (Constant Current)

Features

Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
Ultra small, thin and lightweight, screwless end cap.
Change the output current, DMX address and other parameters via the APP.
Adjustable output current with 1mA step.
Support RDM protocol.
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWM™ super deep dimming technol ogy, 0.01% dimming depth.
The whole dimming process is flicker-free with high frequency exemption level.
Comply with the EU’s ErP Directive, networked standby<0.5W.
When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).

Specifications

SE-12-100-500-W1MSpecifications from the official datasheetDownload datasheet PDF

Features

Output Type: Constant current
Dimming Interface: DMX512/RDM
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage: 9-42Vdc
Maximum output voltage: ≤48Vdc
Output Current Range: 100-500mA
Output Power Range: 0.9W-12W
Dimming Range: 0~100%, down to 0.01%
LF Current Ripple: <3%(Maximum current for non dimming state)
Current Accuracy: ±5%
PWM Frequency: ≤3600Hz

INPUT

DC Voltage Range: 100-240Vdc
AC Voltage Range: 100-240Vac
DC current range: 0.06-0.16A
Input Voltage: 115Vac/230Vac
Frequency: 0/50/60Hz
Input Current: ≤0.18A/115Vac, ≤0.08A/230Vac
Power Factor: PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
THD: THD≤10%/230Vac, at full load
Efficiency (Typ.): 84%@300mA(at full load), 82%@500mA(at full load)
Inrush Current: Cold start 15A(Test twidth=102us tested under 50% Ipeak)/230Vac
Anti Surge: L-N: 2KV
Leakage Current: Max. 0.5mA

ENVIRONMENT

Working Temperature: ta: -20 ~ 50°C tc: 80°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C/10~95%RH
Temperature Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Overheat Protection: Intelligently adjust or turn off the current output if the PCB temperature ≥110°C.
Overvoltage Protection: Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically

SAFETY & EMC

Withstand Voltage: I/P-O/P: 3750Vac
Insulation Resistance: I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards: Parameter Standard Test Level

CCC China GB19510.1, GB19510.14
TUV Germany EN61347-1, EN61347-2-13, EN62493
CB CB Member States IEC61347-1, IEC61347-2-13
CE European Union EN61347-1, EN61347-2-13, EN62384
KC Korea KC61347-1, KC61347-2-13
EAC Russia IEC61347-1, IEC61347-2-13
RCM Australia AS 61347-1, AS 61347-2-13
ENEC Europe EN61347-1, EN61347-2-13, EN62384
UKCA Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
CUL Canada CSA C22.2 NO.250.13
UL America UL 8750
EMC Emission: Parameter Standard Test Level

CCC China GB/T17743, GB17625.1
CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC Korea KSC 9815, KSC 9547
EAC Russia IEC62493, IEC61547, EH55015
RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN IEC 61000-3-3, BS EN 61547
CUL Canada ICES-005
UL America FCC PART 15B
EMC Immunity: EN61000-4-2,3,4,5,6,8,11, EN61547

Parameter	Standard	Test Level
CCC	China	GB19510.1, GB19510.14
TUV	Germany	EN61347-1, EN61347-2-13, EN62493
CB	CB Member States	IEC61347-1, IEC61347-2-13
CE	European Union	EN61347-1, EN61347-2-13, EN62384
KC	Korea	KC61347-1, KC61347-2-13
EAC	Russia	IEC61347-1, IEC61347-2-13
RCM	Australia	AS 61347-1, AS 61347-2-13
ENEC	Europe	EN61347-1, EN61347-2-13, EN62384
UKCA	Britain	BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
CUL	Canada	CSA C22.2 NO.250.13
UL	America	UL 8750

Parameter	Standard	Test Level
CCC	China	GB/T17743, GB17625.1
CE	European Union	EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC	Korea	KSC 9815, KSC 9547
EAC	Russia	IEC62493, IEC61547, EH55015
RCM	Australia	EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA	Britain	BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN IEC 61000-3-3, BS EN 61547
CUL	Canada	ICES-005
UL	America	FCC PART 15B

ErP

Power Consumption: Networked standby <0.5W (After shutdown by command) ; No-load power consumption <0.5W (When the lamp is not connected)
Flicker/Stroboscopic Effect: Parameter Standard

IEEE 1789 Meet IEEE 1789 standard/High frequency exemption level
CIE SVM Pst LM≤1.0，SVM≤0.4
DF: Parameter Standard

Phase factor DF≥0.9

Parameter	Standard
IEEE 1789	Meet IEEE 1789 standard/High frequency exemption level
CIE SVM	Pst LM≤1.0，SVM≤0.4

Parameter	Standard
Phase factor	DF≥0.9

OTHERS

Weight(N.W.): 75g±10g
Dimensions: 110×35×20mm(L×W×H)

Certifications & ratings

NFC: Multi current setting

Technical drawings

SE-12-100-500-W1M Product Size — Product Size

SE-12-100-500-W1M Product Size (2) — Product Size (2)

SE-12-100-500-W1M DMX/RDM Connection — DMX/RDM Connection

SE-12-100-500-W1M Protective Housing Application Diagram — Protective Housing Application Diagram

SE-12-100-500-W1M Installation Precautions — Installation Precautions

SE-12-100-500-W1M Installation Precautions (2) — Installation Precautions (2)

SE-12-100-500-W1M Use the NFC Lighting APP — Use the NFC Lighting APP

SE-12-100-500-W1M 1.Read the LED driver — 1.Read the LED driver

SE-12-100-500-W1M 3.Write to the driver — 3.Write to the driver

SE-12-100-500-W1M WiFi-RDM01 — WiFi-RDM01

SE-12-100-500-W1M LTECH RDM editor App interface instruction — LTECH RDM editor App interface instruction

SE-12-100-500-W1M Relationship Diagrams — Relationship Diagrams

SE-12-100-500-W1M Life time VS Housing temperature — Life time VS Housing temperature

SE-12-100-500-W1M Life time VS Housing temperature (2) — Life time VS Housing temperature (2)

SE-12-100-500-W1M Packaging Image — Packaging Image

SE-12-100-500-W1M Packaging Image (2) — Packaging Image (2)

Downloads

Datasheet1

SE-12-100-500-W1M datasheetSE_12_100_500_W1M.pdf PDF Download

FAQ

What is this LED driver used for?

It is a constant current LED driver suitable for Class I, II, and III light fixtures, featuring DMX512/RDM dimming control.

What are the output voltage and current specifications?

The output voltage range is 9-42Vdc (max 48Vdc) with an adjustable output current range of 100-500mA, supporting up to 12W.

What is the input voltage range?

It accepts a universal input of 100-240Vac or 100-240Vdc at 50/60Hz, with a power factor greater than 0.95 at 115Vac.

How does the dimming control work?

It supports DMX512/RDM dimming with a range of 0-100%, capable of dimming down to 0.01% using PWM at frequencies up to 3600Hz.

What protection features are included?

It includes automatic recovery for overload, overvoltage, and short circuit (hiccup mode), plus overheat protection that adjusts or turns off output if the PCB reaches 110°C.

What is the IP rating and operating temperature?

The unit has an IP20 rating for indoor use only, with an operating ambient temperature range of -20°C to 50°C.

What are the dimensions and weight?

The driver measures 110x35x20mm and weighs approximately 75g.
