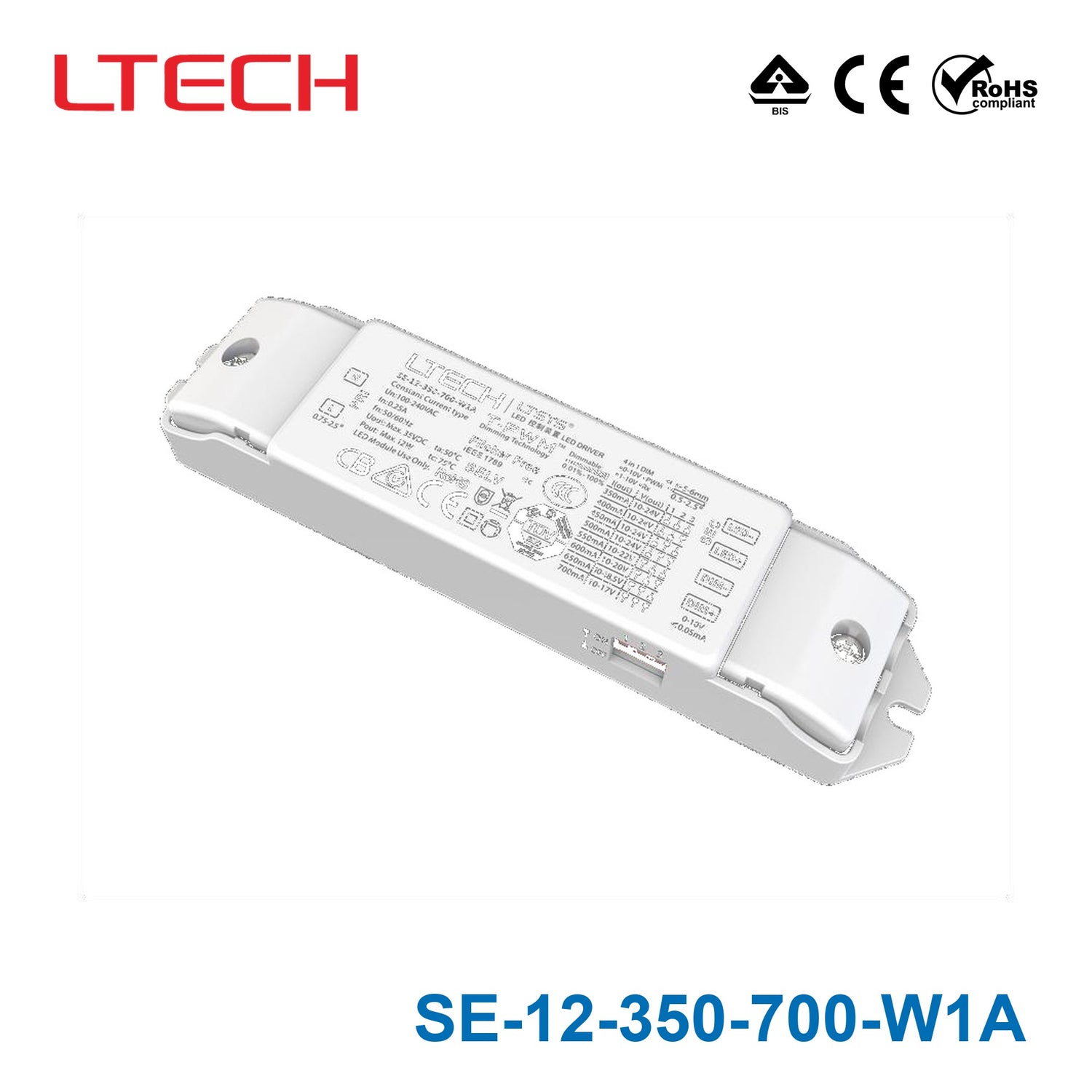

LTECH SE-12-350-700-W1A 12W 350mA~700mA CC 0-10V LED Driver
Please Login for Pricing
Description
Description
Intelligent LED Driver
| Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight. |
| Soft-on and fade-in dimming function enhances your visual comfort. |
| T-PWM dimming technology allows continuous and flicker-free images under high-speed shooting. |
| Dimming from 0~100%, down to 0.01%. |
| Multiple current levels and wide voltage, suitable for different power LEDs. |
| Over voltage, overload, short-circuit protection and automatic recovery. |
| 5-year warranty. |
Specifications
Specifications
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating12 Watt
-
Output Voltage50 Volt
-
Rated Current0.35 Ampere
-
Input Voltage100V~240V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length13.5 cm
-
Width3 cm
-
Height2 cm
-
Weight0.08 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What kind of LED driver is the LTECH SE-12-350-700-W1A?
The LTECH SE-12-350-700-W1A is a 12W constant-current LED driver with 0-10V dimming. It is designed for LED applications that need controlled current output and smooth dimming performance in a compact housing.
What output current range does this model support?
This model supports multiple current levels from 350mA up to 700mA, as reflected in the product name. The product data lists 700mA as the rated current for this specific driver.
Does this LED driver support smooth low-end dimming?
Yes. It supports 0-10V dimming from 0 to 100%, with dimming performance down to 0.01% according to the product description. It also includes soft-on and fade-in dimming behavior for a more gradual lighting transition.
Is this driver a good fit for flicker-sensitive lighting applications?
It is designed with T-PWM dimming technology to provide continuous, flicker-free images under high-speed shooting. That makes it a strong option for applications where visible flicker or camera performance matters.
What protections are built into the SE-12-350-700-W1A?
This model includes over-voltage, overload, and short-circuit protection with automatic recovery. Those protections help support reliability in commercial and professional LED lighting use.
What operating temperature range is this LED driver rated for?
The specified operating temperature range is -20°C to 50°C. This makes it suitable for many indoor and controlled-environment lighting applications within that temperature window.
What are the physical and durability highlights of this model?
The driver uses a V0 flame-resistant polycarbonate housing from Samsung/Covestro and weighs 0.08 kg. Its small, lightweight construction can be useful where compact LED driver form factors are preferred.
What warranty comes with the LTECH SE-12-350-700-W1A?
This model is listed with a 5-year warranty period. That longer warranty can be important for buyers evaluating lifecycle cost and long-term reliability.
