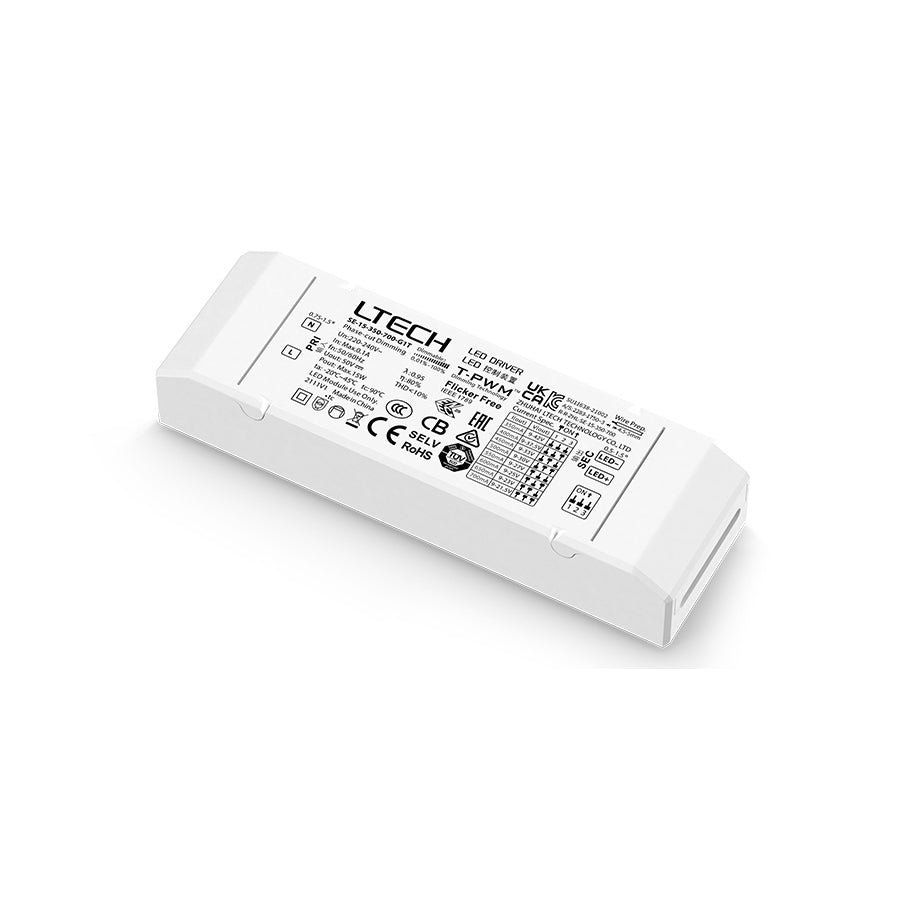

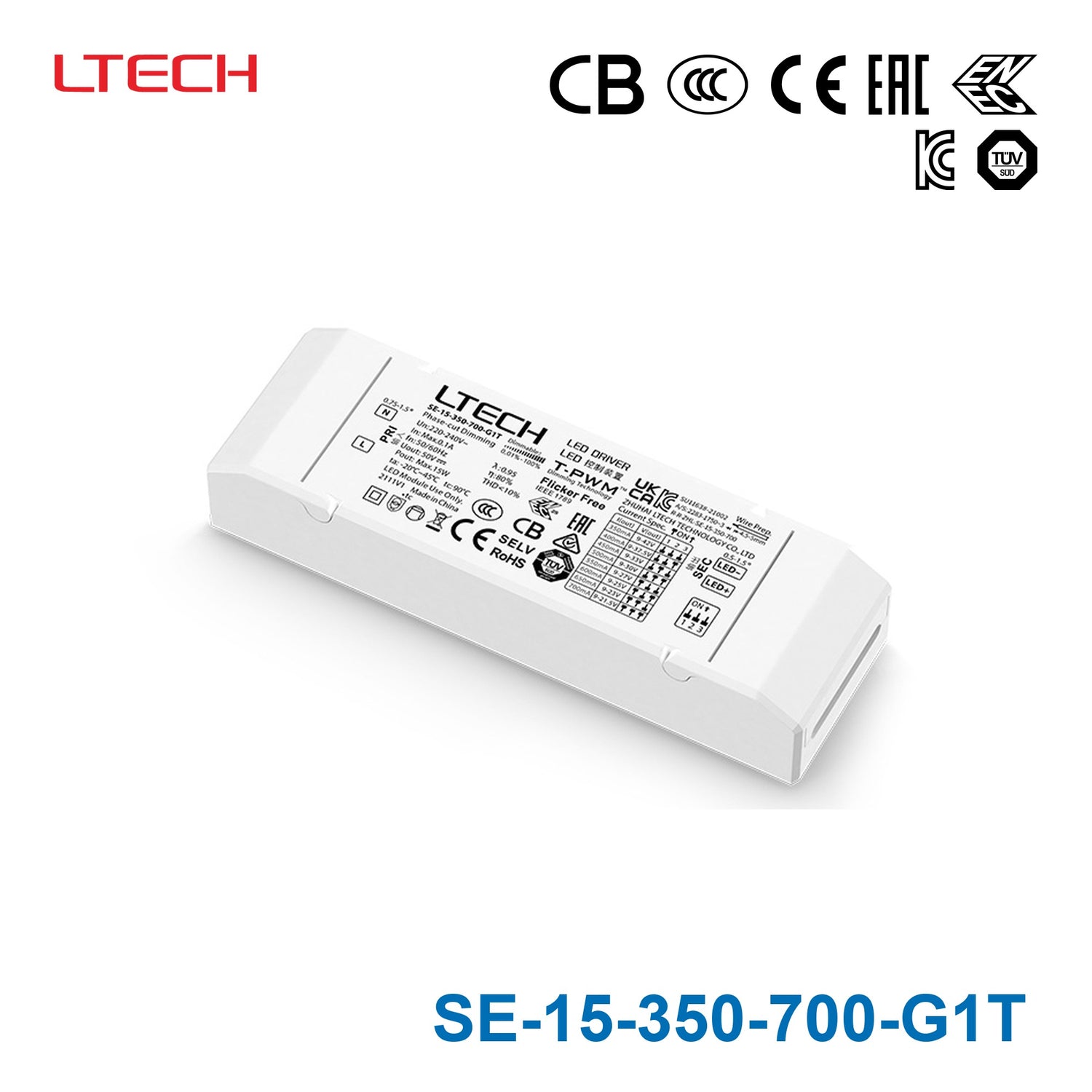

LTECH SE-15-350-700-G1T 15W 350~700mA CC Triac Driver
Log in to see priceOverview
SE-15-350-700-G1T is the 9-42Vdc output model of this series.
Features
- Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight.
- The clamshell design and screwless type for strain-relief, tensile strength of wires complies with the 0.5-1.5mm²wire diameter 60N tensile test, and complies with the tensile test standard GB7000.1-2015/IEC60598-1：2014.
- Soft-on and fade-in dimming function enhances your visual comfort.
- T-PWM™dimming technology allows continuous and flicker-free images under high-speed shooting.
- Dimming from 0~100%, down to 0.01%.
- 0-100% flicker-free dimming with high frequency exemption level.
- Innovative thermal management technology protects the power life intelligently.
- Multi-current & wide voltage, suitable for different power LEDs.
- Class 2 LED driver, full protective plastic housing.
- Comply with Safety Extra Low Voltage standard.
- Overvoltage, overload, short circuit protection and automatic recovery.
- Suitable for indoor light applications ofⅠ/Ⅱ/Ⅲtype.
- Up to 50000-hour life time.
- 5 -year warranty (Rubycon capacitor).
Specifications
OUTPUT
- Output Voltage
- 9-42Vdc
- Max Output Voltage
- ≤50V
- Output Current
- 350-700mA
- Load Power Range
- 3.15W-15W
- Strobe Level
- No visible flicker/High frequency exemption level
- Dimming Range
- 0~100%, down to 0.01%
- LF Current Ripple(<120Hz)
- <3%
- Current Accuracy
- ±5%
- Ripple & Noise
- ≤4V
- PWM Frequency
- 3600Hz
INPUT
- Dimming Interface
- Triac leading edge/ELV trailing edge
- Input Voltage Range
- 220-240Vac
- Frequency
- 50/60Hz
- Input Current
- ≤0.1A/230Vac
- Power Factor
- PF>0.95/230Vac (Full load)
- THD
- THD<10%/230Vac (Full load)
- Efficiency
- >80%@350mA
- Inrush Current (typ.)
- Cold start 10A@230Vac (Test twidth=200 us tested under 50% Ipeak)
- Anti Surge
- L-N: 1kV
- Leakage Current
- <0.5mA/230Vac
ENVIRONMENT
- Working Temperature
- ta: -20 ~ 45°C tc: 90°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature, Humidity
- -40 ~ 80°C, 10 ~ 95%RH
- Temperature Coefficient
- ±0.03%/°C (-20°C ~ 45°C)
- Vibration
- 10-500HZ, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively.
PROTECTION
- Overload Protection
- Shut down the output and recover automatically once it exceeds 1.02-1.35 times of the rated power.
- Overheat Protection
- Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output.
- Short Circuit Protection
- When short circuit occurs, shut down the output and recover automatically.
SAFETY & EMC
- Withstand Voltage
- I/P-O/P:3750Vac
- Insulation Resistance
- I/P-O/P:500VdC/25°C/70%RH≥100MΩ
- Safety Standards
-
Parameter Standard Test Level CCC China GB19510.1，GB19510.14 TUV Germany EN61347-1，EN61347-2-13，EN62493 CE European Union EN61347-1，EN61347-2-13，EN62384 KC Korea KC61347-1，KC61347-2-13 RCM Australia AS61347-1，AS61347-2-13 ENEC Europe EN61347-1，EN61347-2-13，EN62384 CB CB member states IEC61347-1，IEC61347-2-13 EAC Russia IEC61347-1，IEC61347-2-13 - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743，GB17625.1 CE European Union EN55015，EN61000-3-2，EN61000-3-3，EN61547 KC Korea KN15，KN61547 RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547 EAC Russia IEC62493，IEC61547，EH55015 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547
- Strobe Test Standard
- IEEE 1789
OTHERS
- Dimensions
- 111×35×20mm(L×W×H)
- Packing
- 122×36×22mm(L×W×H)
- Weight(G.W.)
- 77.5g±10g
Certifications & ratings
- Marked features
- Triac ELV, Multiple Current
Technical drawings
Downloads
Datasheet1
FAQ
What type of LED load is the LTECH SE-15-350-700-G1T designed for?
This model is a constant-current Triac LED driver intended for LED applications that require a regulated output current rather than constant voltage. It is designed for use with compatible constant-current LED loads within its rated 15W power capacity and up to 50V output.
What are the main electrical ratings of the SE-15-350-700-G1T?
The SE-15-350-700-G1T is rated for 15W output power and a maximum output voltage of 50V. Its output current range is 350mA to 700mA, providing constant current regulation for compatible LED loads.
Does this LED driver support phase-cut dimming?
Yes, this model uses AC phase-cut dimming control and is identified as a Triac LED driver. That makes it suitable for projects where phase-cut dimming compatibility is required at the driver level.
What temperature range is this driver rated for?
The specified operating temperature range is -20°C to 45°C. Buyers should make sure the installed environment stays within that range for normal performance and product longevity.
What makes this model different from a constant-voltage LED driver?
The SE-15-350-700-G1T is a constant-current driver, so it is intended for LED loads that are specified by drive current instead of a fixed output voltage. Unlike a constant-voltage driver, this model regulates current and provides up to 50V output as needed within its rated operating limits.
What build and durability features does this driver include?
The SE-15-350-700-G1T features a compact, lightweight form factor with dimensions of 111×35×20mm. It includes overload, overheat, and short circuit protection, automatically recovering once conditions normalize.
