Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

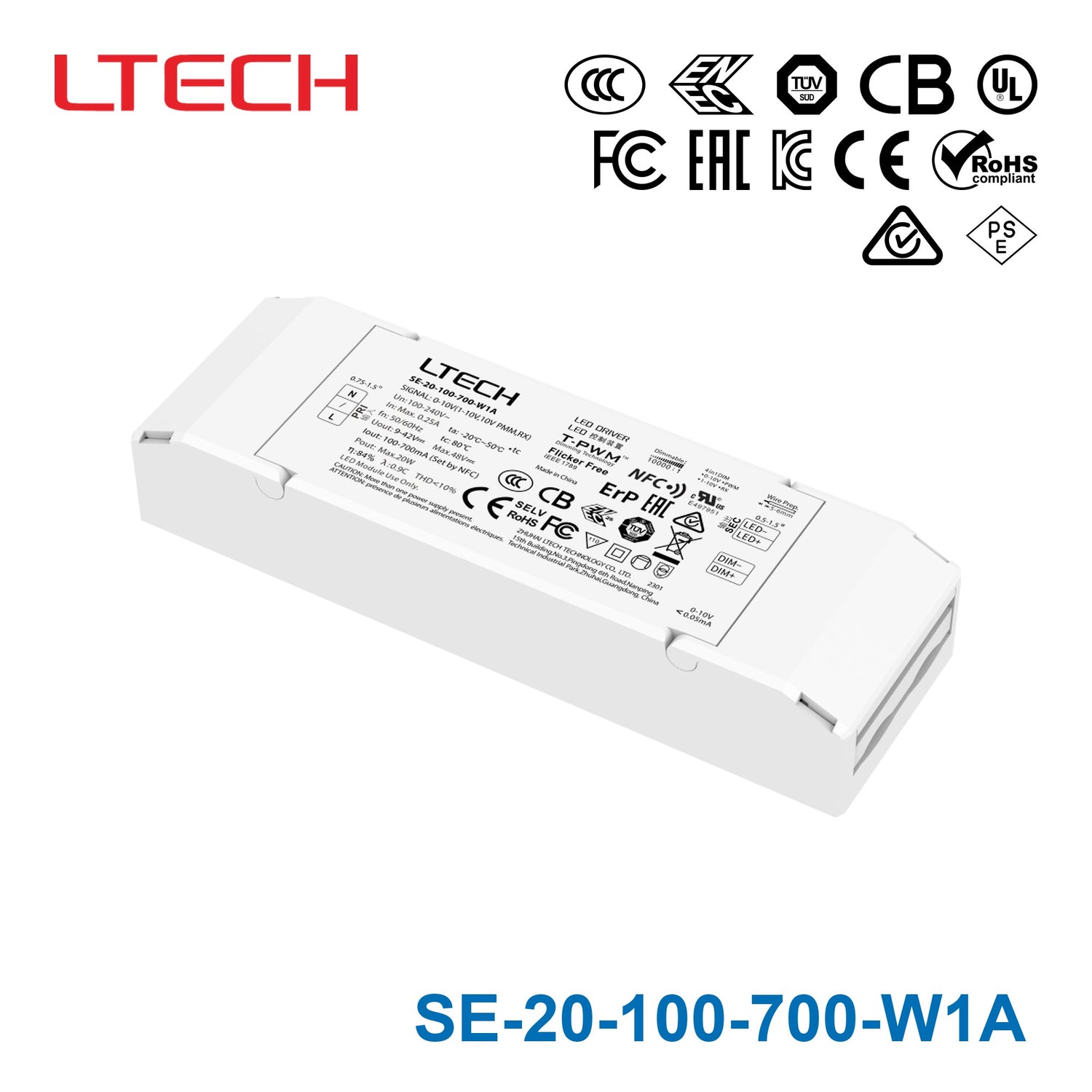

Ltech SE-20-100-700-W1A 20W CC 0-10V Dimmable LED Driver 100-700mA

0-10V1-10V10V PWMNFC current setting100-700mA9-42VDC20W

SKU SE-20-100-700-W1A

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Ltech SE-20-100-700-W1A 20W CC 0-10V Dimmable LED Driver 100-700mA is part of Ltech's professional LED control range, distributed in New Zealand by Wellforces. 4-in-1 dimming: 0-10V, 1-10V, 10V PWM and RX. NFC current setting accurate to 1mA across 100-700mA. Opto-isolated 0-10V input. Output 9-42VDC, max 20W.

Input 100-240V. Operating temperature -20°C to 50°C. Backed by a 5 year warranty.

Key Features

✓4-in-1 dimming: 0-10V, 1-10V, 10V PWM and RX
✓NFC current setting accurate to 1mA across 100-700mA
✓Opto-isolated 0-10V control input
✓T-PWM deep dimming to 0.01% (1:10000)
✓Constant current output 9-42VDC, up to 20W
✓Wide certification set including UL, cUL, ENEC, TUV, CB and RCM
✓5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Ltech SE-20-100-700-W2A 20W 9-42VDC CC 0-10V LED Driver 0.1-0.7A	—	—	—	IP20	View
