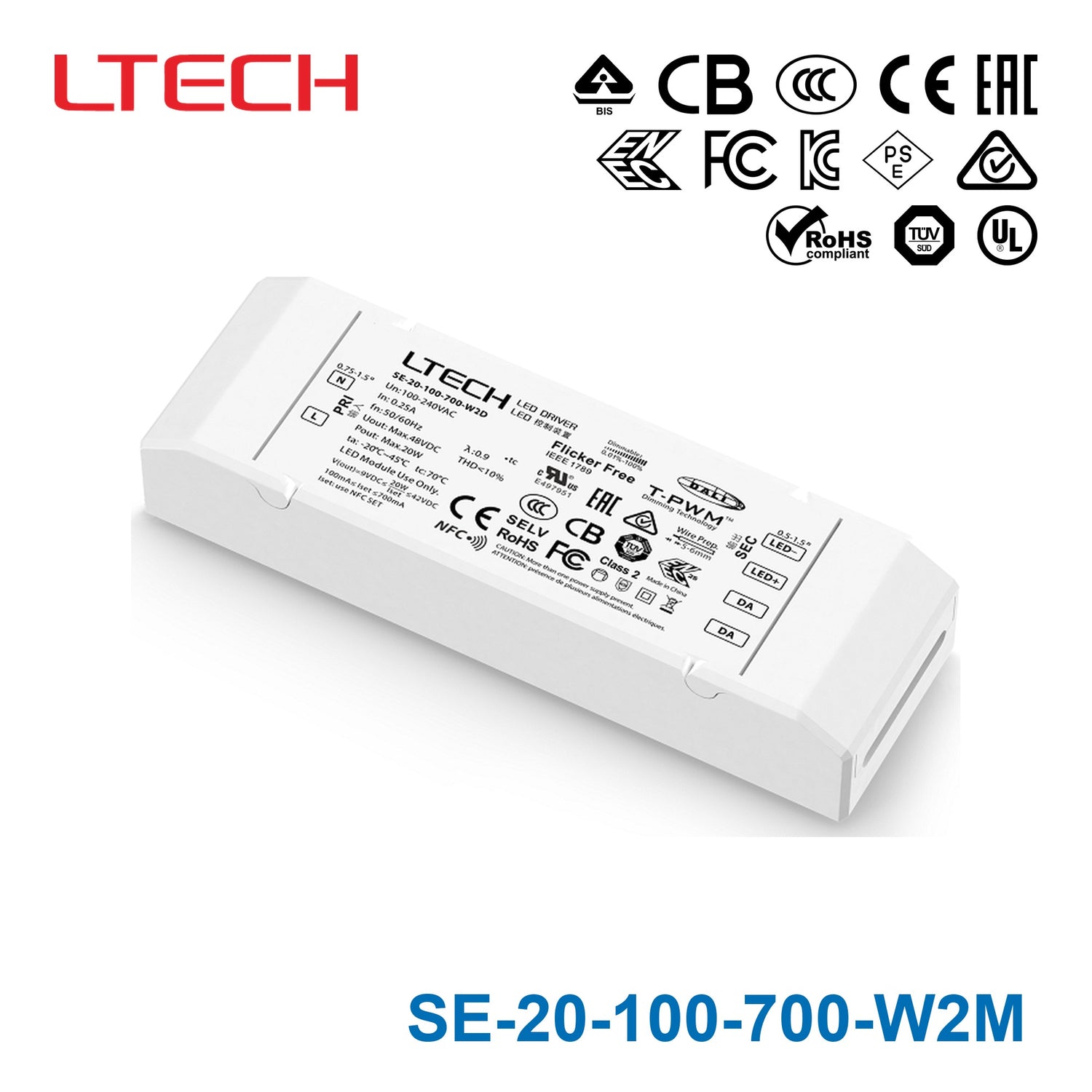

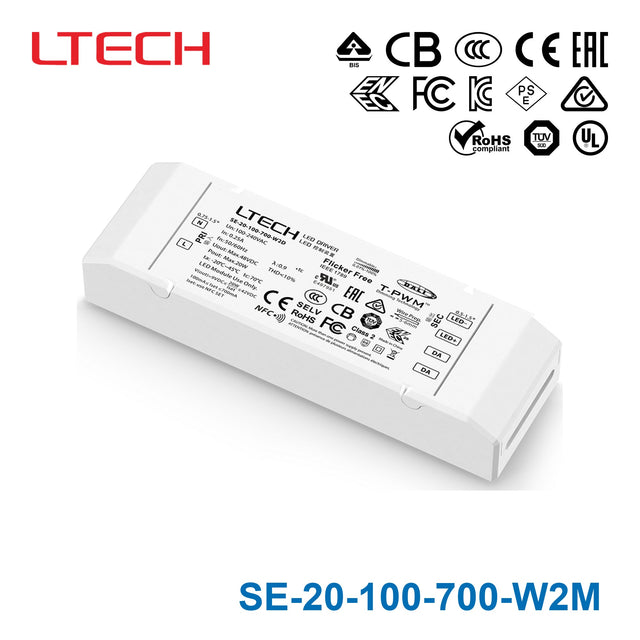

Ltech SE-20-100-700-W2M 20W 9-42VDC CC DMX512 LED Driver 0.1-0.7A
Log in to see priceOverview
SE-20-100-700-W2M is the 9-42Vdc output model of this series: typical efficiency 84%@700mA(at full load),87%@500mA(at full load).
Features
- Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
- Ultra small, thin and lightweight, screwless end cap.
- Change the output current, DMX address and other parameters via the APP.
- Adjustable output current with 1mA step.
- Support RDM protocol.
- Soft-on and fade-in dimming function enhances your visual comfort.
- T-PWM™ super deep dimming technol ogy, 0.01% dimming depth.
- The whole dimming process is flicker-free with high frequency exemption level.
- Comply with the EU’s ErP Directive, networked standby<0.5W.
- When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- Normal service life can reach 100,000 hours.
- 5-year warranty (Rubycon capacitor).
Specifications
SE-20-100-700-W2MSpecifications from the official datasheetDownload datasheet PDF
Features
- Output Type
- Constant current
- Dimming Interface
- DMX512/RDM
- Output Feature
- Isolation
- Protection Grade
- IP20
- Insulation Grade
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT
- Output Voltage
- 9-42Vdc
- Maximum output voltage
- ≤48Vdc
- Output Current Range
- 100-700mA
- Output Power Range
- 0.9W-20W
- Dimming Range
- 0~100%, down to 0.01%
- LF Current Ripple
- <3%(Maximum current for non dimming state)
- Current Accuracy
- ±5%
- PWM Frequency
- ≤3600Hz
INPUT
- DC Voltage Range
- 100-240Vdc
- AC Voltage Range
- 100-240Vac
- DC current range
- 0.09-0.25A
- Input Voltage
- 115Vac/230Vac
- Frequency
- 50/60Hz
- Input Current
- ≤0.25A/115Vac, ≤0.13A/230Vac
- Power Factor
- PF>0.95/115Vac (at full load), PF>0.9/230Vac (at full load)
- THD
- THD≤10%/230Vac, at full load
- Efficiency (Typ.)
- 84%@700mA(at full load),87%@500mA(at full load)
- Inrush Current
- 15A/230Vac (Test twidth=102us tested under 50% Ipeak)
- Anti Surge
- L-N: 2KV
- Leakage Current
- Max. 0.24mA
ENVIRONMENT
- Working Temperature
- ta: -20 ~ 50°C tc: 80°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature/Humidity
- -40 ~ 80°C/10~95%RH
- Temperature Coefficient
- ±0.03%/°C(0-50°C)
- Vibration
- 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
- Overheat Protection
- Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
- Overvoltage Protection
- Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
- Withstand Voltage
- I/P-O/P: 3750Vac
- Insulation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
SAFETY & EMC
- Safety Standards CCC
-
Parameter Standard China GB19510.1, GB19510.14 - Safety Standards TUV
-
Parameter Standard Germany EN61347-1, EN61347-2-13, EN62493 - Safety Standards CB
-
Parameter Standard CB Member States IEC61347-1, IEC61347-2-13 - Safety Standards CE
-
Parameter Standard European Union EN61347-1, EN61347-2-13, EN62384 - Safety Standards KC
-
Parameter Standard Korea KC61347-1, KC61347-2-13 - Safety Standards EAC
-
Parameter Standard Russia IEC61347-1, IEC61347-2-13 - Safety Standards RCM
-
Parameter Standard Australia AS 61347-1, AS 61347-2-13 - Safety Standards ENEC
-
Parameter Standard Europe EN61347-1, EN61347-2-13, EN62384 - Safety Standards UKCA
-
Parameter Standard Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493 - Safety Standards BIS
-
Parameter Standard India IS 15885 (PART 2/SEC 13) - Safety Standards CUL
-
Parameter Standard Canada CSA C22.2 NO.250.13 - Safety Standards UL
-
Parameter Standard America UL 8750 - EMC Emission CCC
-
Parameter Standard China GB/T17743, GB17625.1 - EMC Emission CE
-
Parameter Standard European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547 - EMC Emission KC
-
Parameter Standard Korea KSC 9815, KSC 9547 - EMC Emission EAC
-
Parameter Standard Russia IEC62493, IEC61547, EH55015 - EMC Emission RCM
-
Parameter Standard Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547 - EMC Emission UKCA
-
Parameter Standard Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN IEC 61000-3-3, BS EN 61547 - EMC Emission CUL
-
Parameter Standard Canada ICES-005 - EMC Emission UL
-
Parameter Standard America FCC PART 15B - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547
ErP
- Power Consumption Networked standby
- <0.5W (After shutdown by command)
- Power Consumption No-load power consumption
- <0.5W (When the lamp is not connected)
- Flicker/Stroboscopic Effect IEEE 1789
- Meet IEEE 1789 standard/High frequency exemption level
- Flicker/Stroboscopic Effect CIE SVM
- Pst LM≤1.0，SVM≤0.4
- DF Phase factor
- DF≥0.9
OTHERS
- Weight(N.W.)
- 105g±10g
- Dimensions
- 127×40×23mm(L×W×H)
Technical drawings
Downloads
Datasheet1
FAQ
What is this LED driver used for?
It is a constant current LED driver suitable for Class I, II, and III light fixtures, with an output range of 9-42Vdc and 100-700mA.
How do I control the brightness?
It supports DMX512/RDM dimming with a range of 0-100%, down to 0.01%, and a PWM frequency of ≤3600Hz.
What is the input voltage range?
The input accepts 100-240Vac or 100-240Vdc at 50/60Hz, with a power factor >0.95 at 115Vac and >0.9 at 230Vac.
What safety protections are included?
It includes overload, overheat, overvoltage, and short circuit protection, with automatic recovery for most faults.
What are the operating conditions?
It operates in ambient temperatures from -20 to 50°C and humidity from 20 to 95% RH, non-condensing.
What are the dimensions and weight?
The unit measures 127×40×23mm (L×W×H) and weighs 105g ±10g.
Is this driver suitable for outdoor use?
No, it has an IP20 protection grade, making it suitable for indoor use only.
