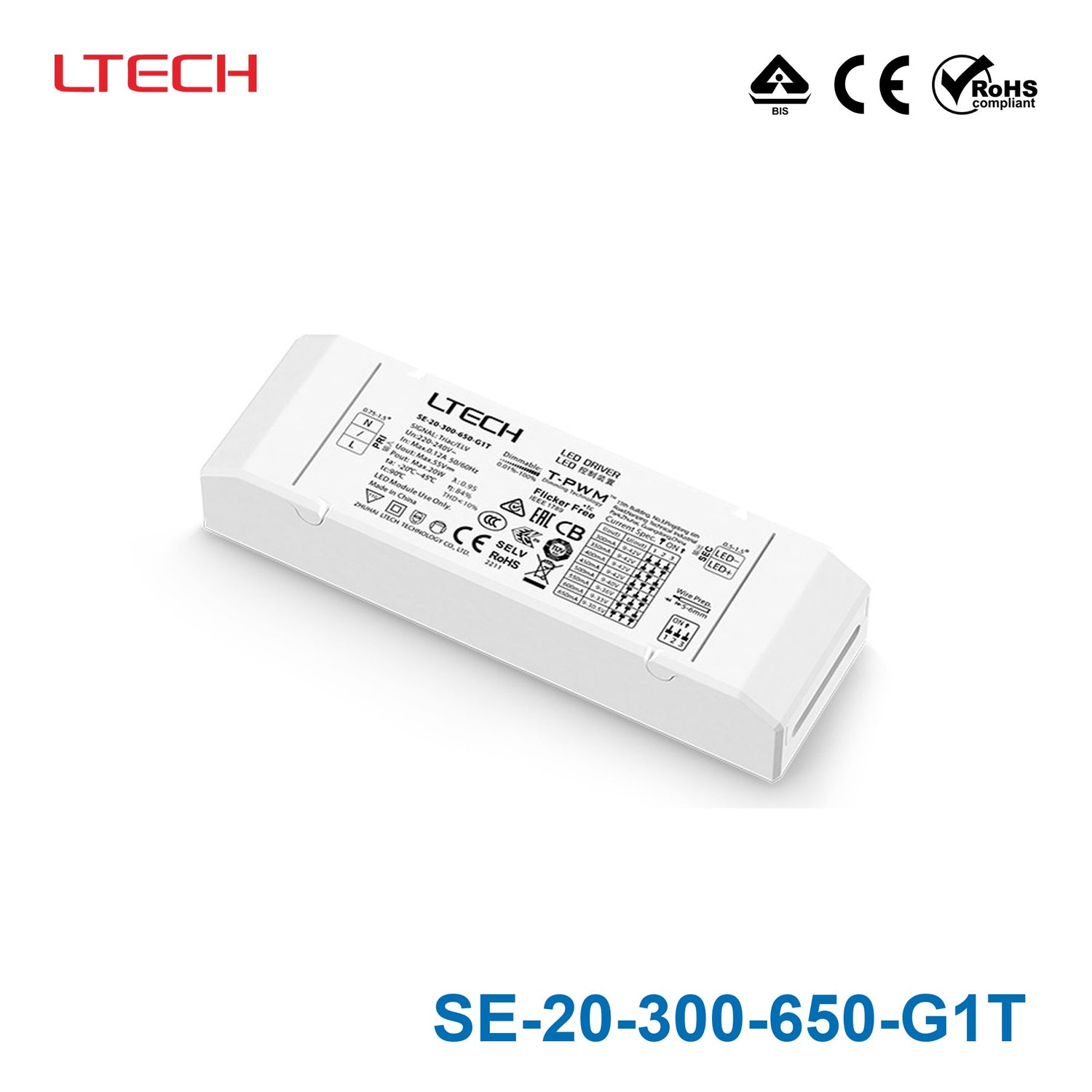

LTECH SE-20-300-650-G1T 12W 350mA ~ 650mA CC Triac LED Driver
Please Login for Pricing
Description
Description
Intelligent LED Driver
| The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO. |
| Small size and light weight. The clamshell design and screwless type for strain-relief. |
| Support Leading edge(Triac), Trailing edge(ELV). |
| With soft-on and fade-in dimming function, enhancing your visualcomfort. |
| T-PWM™ dimming technology allows continuous and flicker-freeimages under high-speed photography. |
| Dimming from 0~100%, down to 0.01%. |
| The whole dimming process is flicker-free with high frequency exemption level. |
| Multiple current levels and wide voltage range. Suitable for differentpower of LEDs. |
| Class 2 LED driver, Safety Extra Low Voltage (SELV). |
| Innovative thermal management technology intelligently protects thelife of the LED driver. |
| Overheat, overload, short circuit protection and automatic recovery. |
| Suitable for indoor light applications of I/II/III type. |
| Up to 50000-hour lifetime. |
| 5-year warranty (Rubycon capacitor) |
Specifications
Specifications
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating20 Watt
-
Output Voltage55 Volt
-
Rated Current0.3 Ampere
-
Input Voltage220V~240V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-20°C~45°C
-
Warranty5 Year
-
Length12.7 cm
-
Width4 cm
-
Height2.3 cm
-
Weight0.11 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED application is the LTECH SE-20-300-650-G1T designed for?
This model is a constant-current Triac LED driver intended for LED fixtures that need phase-cut dimming rather than a fixed-voltage power supply. It is best suited to applications where the fixture specification calls for a constant-current driver in the 350mA to 650mA range. Buyers should match it to the LED load's required current range and voltage requirement.
Is the SE-20-300-650-G1T compatible with both leading-edge and trailing-edge dimming systems?
Yes. The product description states support for both leading-edge (Triac) and trailing-edge (ELV) dimming control. That makes it a fit for projects where the dimming method is AC phase-cut rather than 0-10V or DALI.
What output range should I check before choosing this LED driver?
This model is listed with a maximum output voltage of 55V and a constant-current operating range shown in the product name as 350mA to 650mA. It is intended for LED loads that are specified for constant-current operation within that range. It should not be treated as a general-purpose fixed-voltage LED power supply.
How does this model compare with a non-dimmable constant-current LED driver?
The main difference is dimming capability. The SE-20-300-650-G1T is built for AC phase-cut dimming and also includes soft-on, fade-in, and T-PWM dimming features aimed at smoother low-level dimming and reduced flicker in high-speed photography conditions. A non-dimmable driver would not provide those control features.
What operating environment is this driver rated for?
The specified operating temperature range is -20°C to 45°C. It also carries a 5-year warranty and uses a V0 flame-retardant PC housing. Those details make it more suitable for commercial buyers who need a compact driver with defined environmental and durability parameters.
Why would a buyer choose this LTECH model for dimming-sensitive LED projects?
This driver stands out for phase-cut dimming support plus features such as soft-on, fade-in, and T-PWM dimming technology. The product description specifically highlights continuous dimming from 0 to 100%, down to 0.01%, and flicker-free performance under high-speed photography conditions. That makes it relevant for projects where dimming quality matters as much as basic power delivery.
