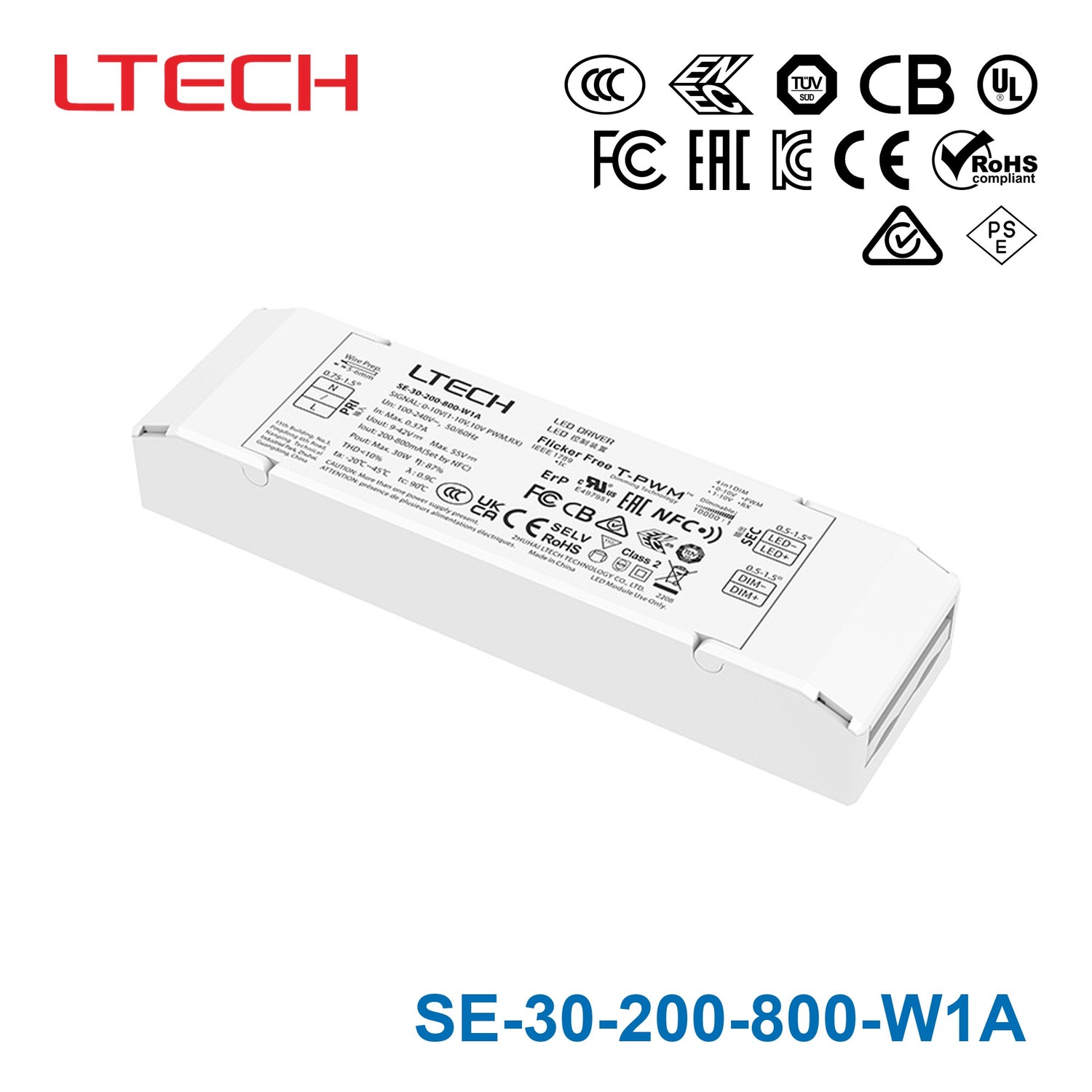

Ltech SE-30-200-800-W1A 30W CC 0-10V Dimmable LED Driver 200-800mA

0-10V1-10V10V PWMNFC current setting200-800mA9-42VDC30W

SKU SE-30-200-800-W1A

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Ltech SE-30-200-800-W1A 30W CC 0-10V Dimmable LED Driver 200-800mA is part of Ltech's professional LED control range, distributed in New Zealand by Wellforces. 4-in-1 dimming: 0-10V, 1-10V, 10V PWM and RX. NFC current setting accurate to 1mA across 200-800mA. Opto-isolated 0-10V input. Output 9-42VDC, max 30W.

Input 100-240V. Operating temperature -20°C to 50°C. Backed by a 5 year warranty.

Key Features

✓4-in-1 dimming: 0-10V, 1-10V, 10V PWM and RX
✓NFC current setting accurate to 1mA across 200-800mA
✓Opto-isolated 0-10V control input
✓T-PWM deep dimming to 0.01% (1:10000)
✓Constant current output 9-42VDC, up to 30W
✓Wide certification set including UL, cUL, ENEC, TUV, CB and RCM
✓5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Ltech SE-30-200-800-W2A 30W 9-42VDC CC 0-10V LED Driver 0.2-0.8A	—	—	—	IP20	View
