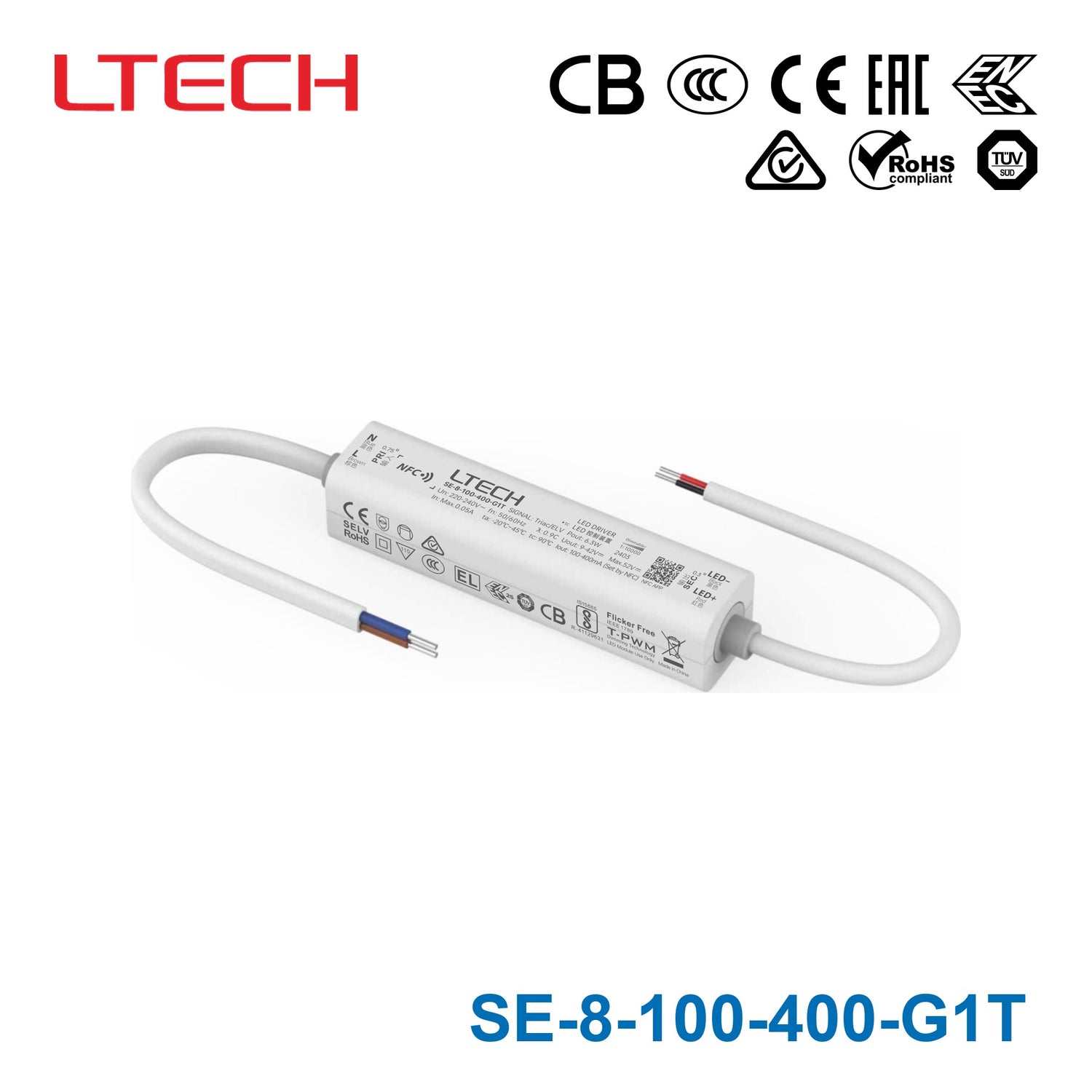

Ltech SE-8-100-400-G1T 6.3W 9-42VDC CC Triac LED Driver 0.1-0.4A
Log in to see priceOverview
SE-8-100-400-G1T is the 9-42Vdc output model of this series.
Features
- Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
- Ultra small, thin and lightweight, screwless end cap design.
- The output current, minimum brightness value, power-on fading time can be changed through the mobile NFC APP, realize the driver data interaction function.
- Leading edge (Triac), trailing edge (ELV) phase control dimming.
- Adjustable output current with 1mA step.
- Soft-on and fade-in dimming function enhances your visual comfort.
- T-PWM super deep dimming technology, 0.1% dimming depth
- The whole dimming process is flicker-free with high frequency exemption level.
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- Normal service life can reach 100,000 hours.
- 5-year warranty (Rubycon capacitor).
Specifications
FEATURES
- Output Type
- Constant current
- Dimming Interface
- Triac/ELV
- Output Feature
- Isolation
- IP Rating
- IP50
- Insulation Glass
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT
- Output Voltage
- 9-42Vdc
- Max. Output Voltage(No-load)
- ≤52Vdc
- Output Current Range
- 100-400mA
- Output Power Range
- 0.8-6.3W
- Dimming Range
- 0~100%，down to 0.1%
- LF Current Ripple
- ＜3% (Maximum current for non dimming state)
- Current Accuracy
- ±5%
- PWM Frequency
- ≤3600Hz
INPUT
- AC Voltage Range
- 220-240Vac
- DC Voltage Range
- 220-240Vdc(EMI evaluation required after luminaire integration)
- Input Voltage
- 230Vac
- Frequency
- 50/60Hz
- Input Current
- ≤0.045A/230Vac
- Power Factor
- PF＞0.9/230Vac (at full load)
- Efficiency (Typ.)
- ＞72%
- Inrush Current
- 10A (twidth=300us, tested under 50% Ipeak) / 230Vac
- Anti Surge
- L-N:1KV
- Leakage Current
- Max.0.5mA
ENVIRONMENT
- Operating Temperature
- ta:-20°C~45°C tc:90°C
- Working Humidity
- 20~95%RH，non-condensing
- Storage Temperature/Humidity
- -40~80°C/10~95%RH
- Temperature Coefficient
- ±0.03%/°C(-20°C~45°C)
- Vibration
- 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
- Overheat Protection
- Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
- Overvoltage Protection
- Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
- Withstand Voltage
- I/P-O/P: 3750Vac
- Insulation Resistance
- I/P-O/P: 100MΩ/500VDC/25℃/70%RH
SAFETY & EMC
- Safety Certifications
-
Parameter Standard Test Level CCC China GB19510.1，GB19510.14，GB19510.213 TUV Germany EN61347-1，EN61347-2-13，EN62493 CB CB Member States IEC61347-1，IEC61347-2-13 CE European Union EN61347-1，EN61347-2-13，EN62384 EAC Russia IEC61347-1，IEC61347-2-13 RCM Australia AS 61347-1，AS 61347-2-13 ENEC Europe EN61347-1，EN61347-2-13，EN62384 KC Korea KC61347-1，KC61347-2-13 - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743，GB17625.1 CE European Union ENIEC55015，ENIEC61000-3-2，EN61000-3-3 EAC Russia IEC62493，IEC61547，EH55015 RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547 KC Korea KSC 9815, KSC 9547 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11,EN61547
ErP
- Power Consumption
-
Parameter Standard Networked standby Standby power consumption without network connection (when the thyristor signal is 0, the power consumption is 0) No-load power consumption No no-load mode - Flicker/Stroboscopic Effect
-
Parameter Standard Test Level IEEE1789 Meet IEEE 1789 standard/High frequency exemption level CIE SVM PstLM≤1.0，SVM≤0.4 DF Phase factor DF≥0.9
OTHERS
- Weight(N.W.)
- 50g±5g
- Dimensions
- 84x20x20mm(LxWxH)
- Package size
- 115x36x26mm(LxWxH)
Technical drawings
Downloads
Datasheet1
FAQ
What is this LED driver used for?
It is a constant current LED driver suitable for Class I, II, and III light fixtures, providing isolated output for indoor lighting applications.
What are the input and output specifications?
It operates on 220-240Vac (50/60Hz) and provides a constant current output of 100-400mA at 9-42Vdc, with a maximum power of 6.3W.
Does it support dimming?
Yes, it supports Triac/ELV dimming with a range of 0-100%, allowing dimming down to 0.1%.
What protection features are included?
It includes automatic recovery for overload, overvoltage, and short circuit conditions, as well as overheat protection that activates if the PCB temperature reaches 110°C.
What is the operating temperature range?
The ambient operating temperature is -20°C to 45°C, with a maximum case temperature (tc) of 90°C.
What are the dimensions and weight?
The unit measures 84x20x20mm (LxWxH) and weighs approximately 50g.
Which EMC standards does it meet?
It complies with EMC immunity standards EN61000-4-2,3,4,5,6,8,11 and EN61547.
