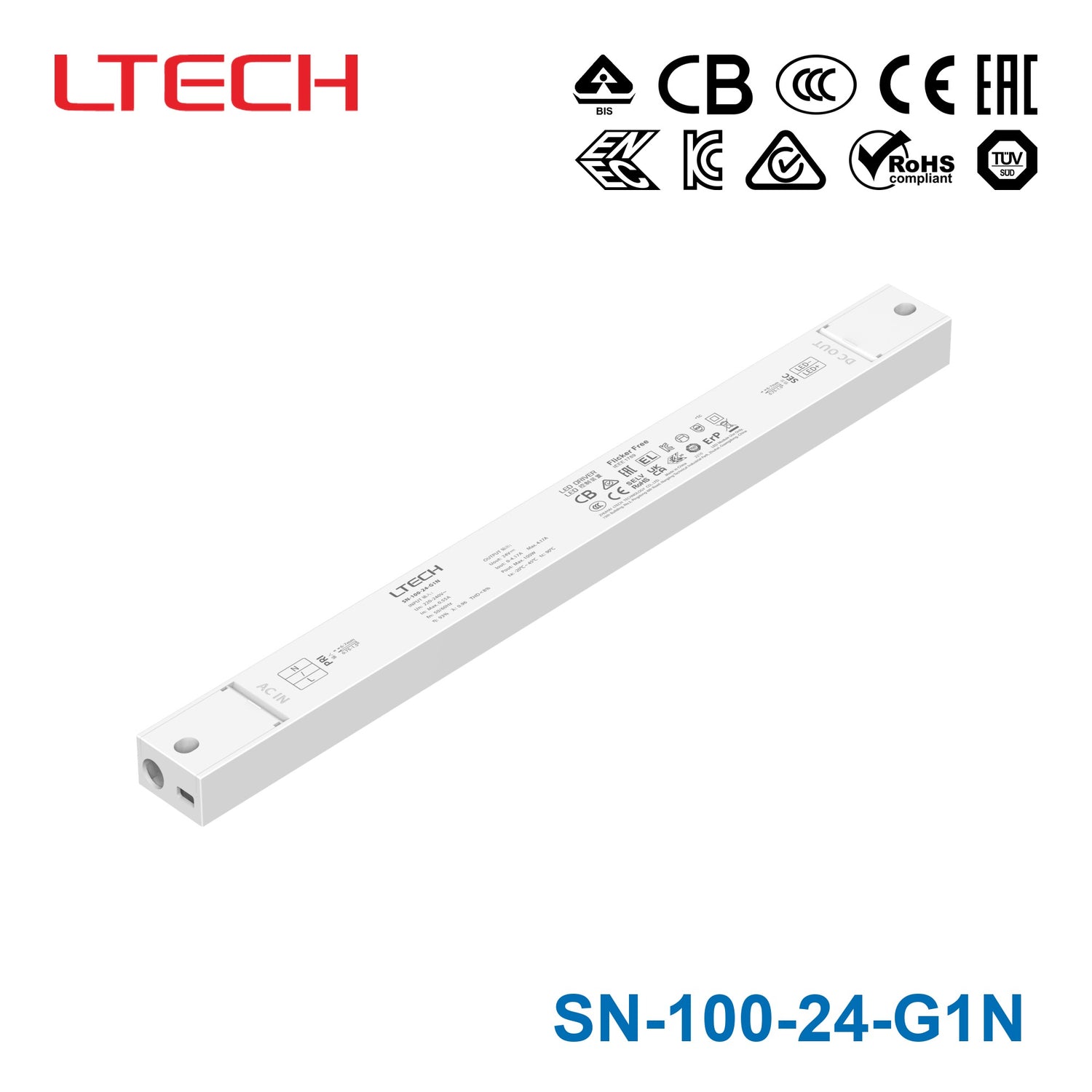

Ltech SN-100-24-G1N 100W 24VDC CV LED Driver 4.17A

100W

SKU SN-100-24-G1N

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SN-100-24-G1N is the 24Vdc output model of this series: typical efficiency 93%.

Features

Ultra-thin, ultra-small. Housing is made from V0 flame retardant PC materials;.
Clamshell style case and wire clamping structure for convenient wire connection.
Overheat, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
Indoor office lighting, decorative lighting and commercial lighting.
5-year warranty (Rubycon capacitor).

Specifications

SN-100-24-G1NSpecifications from the official datasheetDownload datasheet PDF

Features

Output Type: Constant Voltage
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage: 24Vdc
Output Voltage Range: 24Vdc±0.5Vdc
Output Current: Max. 4.17A
Output Power: Max. 100W
Output Power Range: 0-100W
Overload Power Limitation: ≥102%
Ripple & Noise: Ripple≤500mV, Noise≤500mV

INPUT

DC Voltage Range: 220-240Vdc
Input Voltage: 220-240Vac
Frequency: 0/50/60Hz
Input Current: Max. 0.5A/230Vac
Power Factor: PF>0.96 (at full load)
THD: THD<10% (at full load)
Maximum input power: Max. 110W
Efficiency (Typ.): 93%
Inrush Current: 40A (230Vac, cold start, twidth=338us, tested under 50% Ipeak)
Anti Surge: L-N: 2KV
Leakage Current: Max. 0.5mA

ENVIRONMENT

Working Temperature: ta: -20 ~ 45°C tc: 90°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C/10~95%RH
Temperature Coefficient: ±0.03%/°C(0-45°C)
Vibration: 10-500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Shut down the output when current load≥102%, auto recovers.
Overheat Protection: Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers
Overvoltage protection: Shut down the output when non-load voltage ≥30V, re-power on to recover after fault condition is removed
Short Circuit Protection: Shut down automatically if short circuit occurs, auto recovers.

SAFETY & EMC

Withstand Voltage: I/P-O/P: 3750Vac
Insulation Resistance: 100MΩ/500VDC/25°C/70%RH
Safety Standards: Parameter Standard Test Level

CCC China GB19510.1, GB19510.14
TUV Germany EN61347-1, EN61347-2-13, EN62493
CB CB Member States IEC61347-1, IEC61347-2-13
CE European Union EN61347-1, EN61347-2-13, EN62384
KC Korea KC61347-1, KC61347-2-13
EAC Russia IEC61347-1, IEC61347-2-13
RCM Australia AS 61347-1, AS 61347-2-13
ENEC Europe EN61347-1, EN61347-2-13, EN62384
UKCA Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
BIS India IS 15885 (PART 2/SEC 13)
EMC Emission: Parameter Standard Test Level

CCC China GB/T17743, GB17625.1
CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC Korea KN15, KN61547
EAC Russia IEC62493, IEC61547, EH55015
RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
EMC Immunity: EN61000-4-2,3,4,5,6,8,11, EN61547

Parameter	Standard	Test Level
CCC	China	GB19510.1, GB19510.14
TUV	Germany	EN61347-1, EN61347-2-13, EN62493
CB	CB Member States	IEC61347-1, IEC61347-2-13
CE	European Union	EN61347-1, EN61347-2-13, EN62384
KC	Korea	KC61347-1, KC61347-2-13
EAC	Russia	IEC61347-1, IEC61347-2-13
RCM	Australia	AS 61347-1, AS 61347-2-13
ENEC	Europe	EN61347-1, EN61347-2-13, EN62384
UKCA	Britain	BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
BIS	India	IS 15885 (PART 2/SEC 13)

Parameter	Standard	Test Level
CCC	China	GB/T17743, GB17625.1
CE	European Union	EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC	Korea	KN15, KN61547
EAC	Russia	IEC62493, IEC61547, EH55015
RCM	Australia	EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA	Britain	BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547

ErP

Power Consumption: No-load power consumption <0.5W (When the lamp is not connected)
Flicker/Stroboscopic Effect: Parameter Standard

IEEE 1789 Meet IEEE 1789 standard/High frequency exemption level
CIE SVM Pst LM≤1.0，SVM≤0.4
DF: Parameter Standard

Phase factor DF≥0.9

Parameter	Standard
IEEE 1789	Meet IEEE 1789 standard/High frequency exemption level
CIE SVM	Pst LM≤1.0，SVM≤0.4

Parameter	Standard
Phase factor	DF≥0.9

OTHERS

Weight(N.W.): 211g±10g
Dimensions: 350×30×18mm(L×W×H)
Life time: 120,000 hours (at 30°C housing temperature)

Technical drawings

SN-100-24-G1N Product Size — Product Size

SN-100-24-G1N Product Size (2) — Product Size (2)

SN-100-24-G1N Wiring Diagram — Wiring Diagram

SN-100-24-G1N Application Diagram of Protective Cover — Application Diagram of Protective Cover

SN-100-24-G1N Installation Precautions — Installation Precautions

SN-100-24-G1N Relationship Diagrams — Relationship Diagrams

SN-100-24-G1N Lifetime[hours] — Lifetime[hours]

SN-100-24-G1N LED Driver (constant Voltage) — LED Driver (constant Voltage)

Downloads

Datasheet1

SN-100-24-G1N datasheetSN_100_24_G1N.pdf PDF Download

FAQ

What is this LED driver used for?

It is a constant voltage LED driver suitable for Class I, II, and III light fixtures.

What are the output specifications?

It provides a 24V DC output with a maximum current of 4.17A and a maximum power of 100W.

What is the input voltage range?

The input voltage range is 220-240V AC at 50/60Hz.

What protection features are included?

It includes overload, overheat, overvoltage, and short circuit protection, all with automatic recovery.

What is the operating temperature range?

The ambient operating temperature range is -20°C to 45°C.

What is the IP rating?

The unit has an IP20 protection grade, making it suitable for indoor use only.

What are the physical dimensions?

The dimensions are 350mm x 30mm x 18mm (L x W x H).
