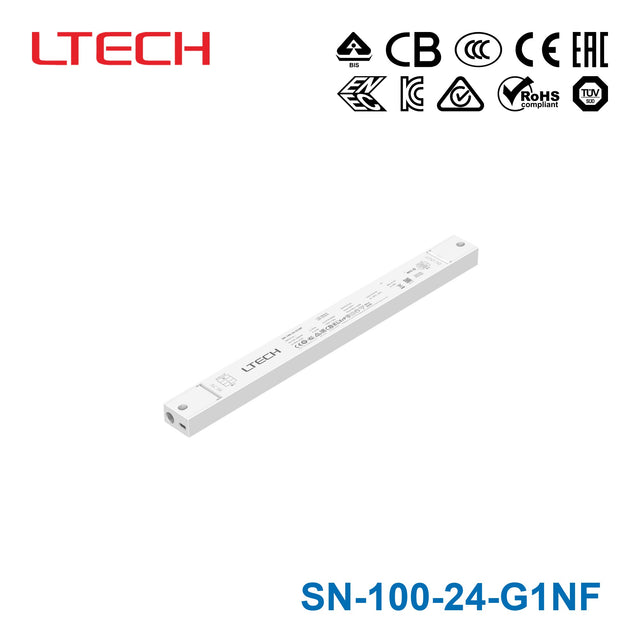

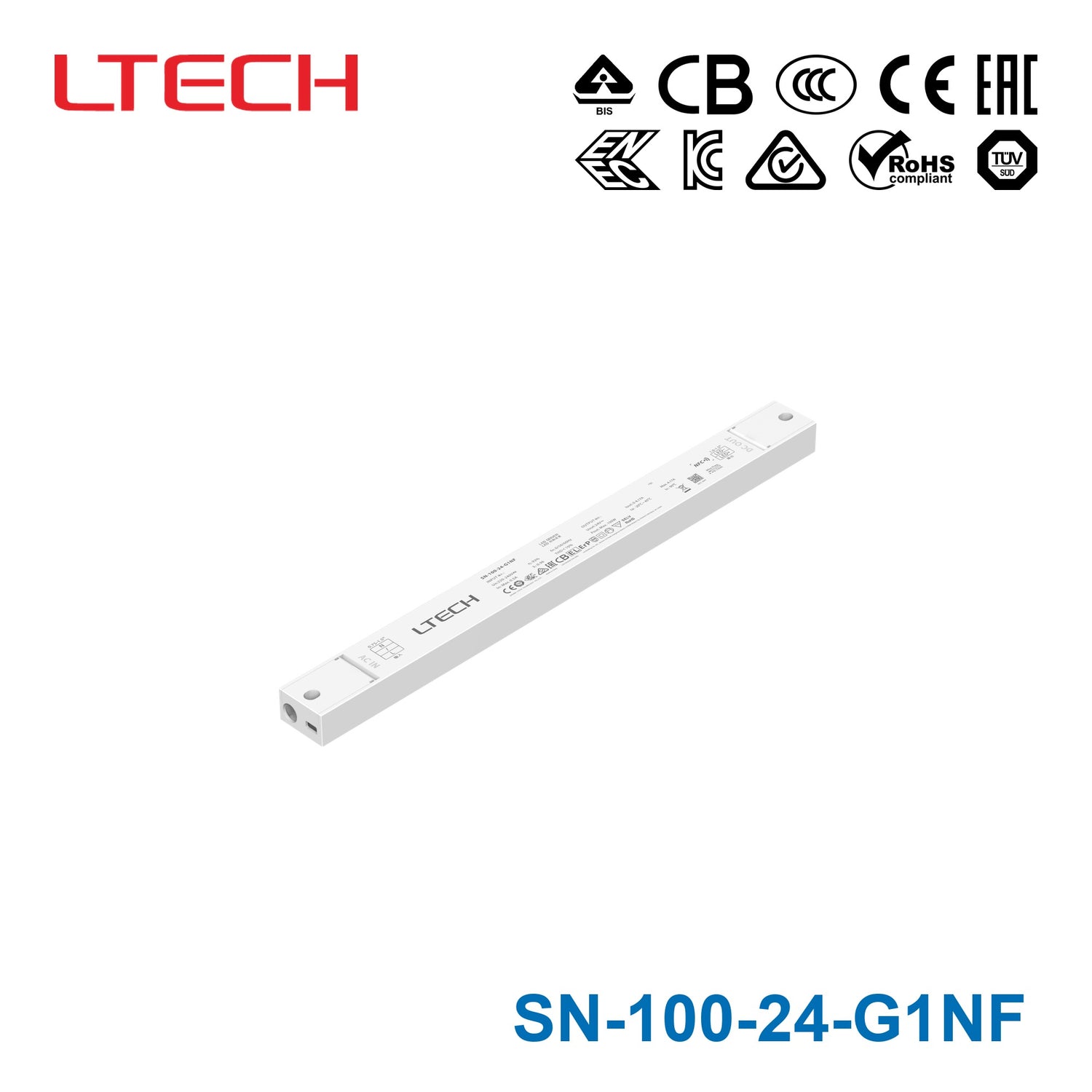

Ltech SN-100-24-G1NF 100W 24VDC CV LED Driver 4.7A
Log in to see priceOverview
SN-100-24-G1NF is the 24Vdc output model of this series: typical efficiency 93%.
LED Driver (Constant Voltage)
Features
- Ultra-thin, ultra-small. Housing is made from V0 flame retardant PC materials.
- Clamshell style case and wire clamping structure for convenient wire connection
- Change max.brightness, power-on fading time, PWM frequency and other parameters thorough a NFC-enabled phone and driver data can be synced between drivers and the APP.
- With soft-on and fade-in dimming function, enhancing your visual comfort.
- Innovative thermal management technology intelligently protects the life of the LED driver.
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- Suitable for indoor lights such as LED strips and magnetic track lights.
- 5-year warranty (Rubycon capacitor).
Specifications
Features
- Output Type
- Constant Voltage
- Output Feature
- Isolation
- Protection Grade
- IP20
- Insulation Grade
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT
- Output Voltage
- 24Vdc
- Output Voltage Range
- 24Vdc±0.5Vdc
- Output Current
- Max. 4.17A
- Output Power
- Max. 100W
- Output Power Range
- 0-100W
- Overload Power Limitation
- ≥102%
- Ripple & Noise
- Ripple≤500mV, Noise≤500mV
- PWM frequency
- NFC set up 300-22000Hz
INPUT
- DC Voltage Range
- 220-240Vdc
- Input Voltage
- 220-240Vac
- Frequency
- 0/50/60Hz
- Input Current
- Max. 0.5A/230Vac
- Power Factor
- PF>0.96 (at full load)
- THD
- THD<10% (at full load)
- Maximum input power
- Max. 110W
- Efficiency (Typ.)
- 93%
- Inrush Current
- 40A (twidth=338us, tested under 50% Ipeak) / 230Vac
- Anti Surge
- L-N: 2KV
- Leakage Current
- Max. 0.5mA
ENVIRONMENT
- Working Temperature
- ta: -20 ~ 45°C, tc: 90°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature/Humidity
- -40 ~ 80°C / 10~95%RH
- Temperature Coefficient
- ±0.03%/°C(0-45°C)
- Vibration
- 10~500Hz, 2G, 12min/cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- Shut down the output when current load≥102%, auto recovers.
- Overheat Protection
- Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers
- Overvoltage protection
- Shut down the output when non-load voltage ≥30V, re-power on to recover after fault condition is removed
- Short Circuit Protection
- Shut down automatically if short circuit occurs, auto recovers.
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Insulation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- Safety Standards
-
Parameter Standard Test Level CCC China GB19510.1, GB19510.14 TUV Germany EN61347-1, EN61347-2-13, EN62493 CB CB Member States IEC61347-1, IEC61347-2-13 CE European Union EN61347-1, EN61347-2-13, EN62384 KC Korea KC61347-1, KC61347-2-13 EAC Russia IEC61347-1, IEC61347-2-13 RCM Australia AS 61347-1, AS 61347-2-13 ENEC Europe EN61347-1, EN61347-2-13, EN62384 BIS India IS 15885 (PART 2/SEC 13) - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743, GB17625.1 CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547 KC Korea KN15, KN61547 EAC Russia IEC62493, IEC61547, EH55015 RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547
ErP
- Power Consumption Standby power consumption
- <0.5W (When it is powered on after a command)
- Power Consumption No-load power consumption
- <0.5W (When the lamp is not connected)
- Flicker/Stroboscopic Effect IEEE 1789
- Meet IEEE 1789 standard / High frequency exemption level
- Flicker/Stroboscopic Effect CIE SVM
- Pst LM≤1.0, SVM≤0.4
- DF Phase factor
- DF≥0.9
OTHERS
- Weight(N.W.)
- 211g±10g
- Dimensions
- 350×30×18mm(L×W×H)
Technical drawings
![SN-100-24-G1NF Lifetime[hours]](https://wellforces-akeneo-pim.s3.ap-southeast-2.amazonaws.com/catalog/08/b2/08b2169098661273e451fa7cd97505bd89afa630b44f3757f50a847ecbd442c0.webp)
Downloads
Datasheet1
FAQ
What is this LED driver used for?
It is a constant voltage LED driver designed for indoor lighting fixtures, such as LED panels, strips, and signage. It provides 24V DC output with isolation and is suitable for Class I, II, and III light fixtures.
What are the output voltage and current specifications?
The output voltage is 24V DC with a range of 24V ±0.5V. The maximum output current is 4.17A, delivering up to 100W of power.
What is the input voltage range and power factor?
The input voltage range is 220-240V AC at 50/60Hz. It features a high power factor of >0.96 at full load and low total harmonic distortion (<10%).
Does this driver support dimming?
Yes, it supports PWM dimming with a frequency range of 300-22000Hz. It also meets IEEE 1789 standards for flicker and stroboscopic effects.
What protection features are included?
It includes automatic recovery for overload (≥102%), short circuit, and overheat (PCB ≥110°C). Overvoltage protection shuts down the output if voltage exceeds 30V, requiring a re-power to recover.
What is the operating temperature and IP rating?
The operating ambient temperature is -20°C to 45°C. The unit has an IP20 rating, making it suitable for indoor use only in dry locations.
What are the physical dimensions and weight?
The driver measures 350mm x 30mm x 18mm (L x W x H) and weighs approximately 211g.
