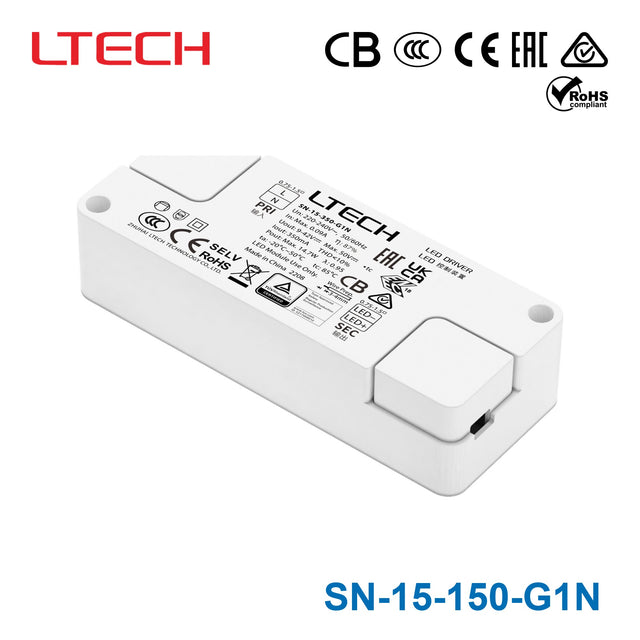

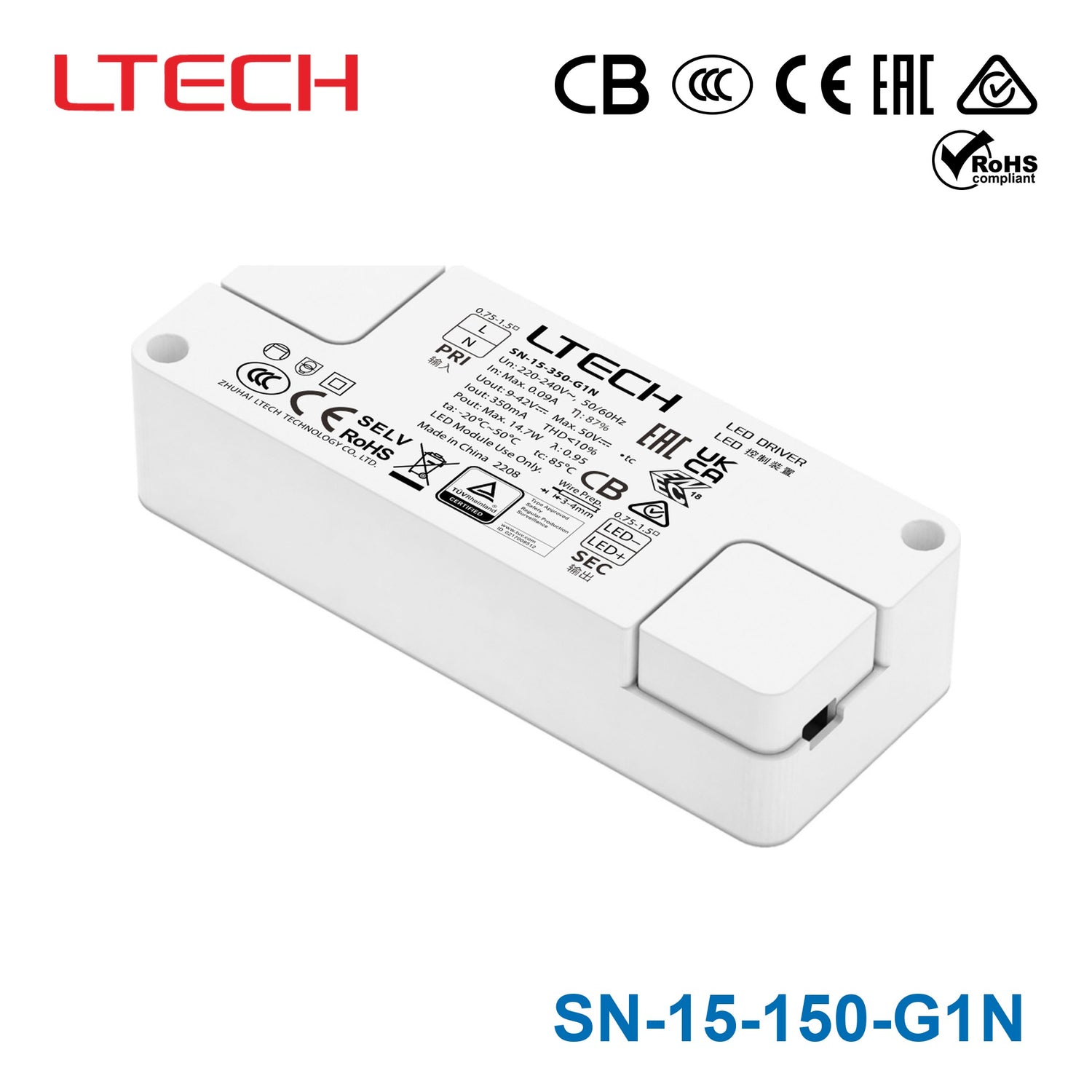

Ltech SN-15-150-G1N 14.7W 9-42VDC CC LED Driver 0.35A
Log in to see priceOverview
SN-15-150-G1N is the 9-42Vdc output model of this series.
Features
- The housing is made from V0 flame retardant PC materials.
- Ultra-small, thin and light screwless end cap.
- High performance, high efficiency, low THD.
- Innovative thermal management technology intelligently protects the life of the LED driver.
- Overheat, overvoltage, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- 5-year warranty.
Specifications
SN-15-150-G1NSpecifications from the official datasheetDownload datasheet PDF
Features
- Output Type
- Constant Current
- Output Feature
- Isolation
- Protection Grade
- IP20
- Insulation Grade
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT
- Output Voltage
- 9-42Vdc
- Maximum output voltage
- ≤50Vdc
- Output Current
- 150mA
- Output Power Range
- 1.35W-6.3W
- Current Accuracy
- ±5%
- PWM Frequency
- Non dimming
INPUT
- DC Voltage Range
- 200-280Vdc
- Input Voltage
- 220-240Vac
- Frequency
- 50/60Hz
- Input Current
- ≤0.045A
- Power Factor
- PF>0.9 at full load
- THD
- THD<15% at full load
- Efficiency (Typ.)
- ≥84% at full load
- Inrush Current
- 3A (twidth=30us, tested under 50% Ipeak) at 230Vac
- Anti Surge
- L-N: 1KV
- Leakage Current
- Max. 0.5mA
ENVIRONMENT
- Working Temperature
- ta: -20 ~ 50°C tc: 85°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature/Humidity
- -40 ~ 80°C/10~95%RH
- Temperature Coefficient
- ±0.03%/°C(0-50°C)
- Vibration
- 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- When the output load is ≥ 43.5V, the output current and output power decrease gradually and can be recovered automatically.
- Overheat Protection
- Intelligently adjust or turn off the current output if the PCB temperature ≥130°C; automatically recover
- Short Circuit Protection
- When short circuit occurs, shut down the output and recover automatically
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Insulation Resistance
- I/P-O/P: 1 Insulation Resistance 00MΩ/500VDC/25°C/70%RH
- Safety Standards
-
Parameter Standard Test Level CCC China GB19510.1, GB19510.14 TUV Germany EN61347-1, EN61347-2-13, EN62493 CB CB Member States IEC61347-1, IEC61347-2-13 CE European Union EN61347-1, EN61347-2-13, EN62384 KC Korea KC61347-1, KC61347-2-13 EAC Russia IEC61347-1, IEC61347-2-13 RCM Australia AS 61347-1, AS 61347-2-13 ENEC Europe EN61347-1, EN61347-2-13, EN62384 UKCA Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493 BIS India IS 15885 (PART 2/SEC 13) - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743, GB17625.1 CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547 KC Korea KN15, KN61547 EAC Russia IEC62493, IEC61547, EH55015 RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547 UKCA Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547
ErP
- Power Consumption Standby power consumption
- No standby mode
- Power Consumption Networked standby
- No networked standby mode
- Power Consumption No-load power consumption
- ≤0.3W
- Flicker/Stroboscopic Effect IEEE 1789
- Meet IEEE 1789 standard/High frequency exemption level
- Flicker/Stroboscopic Effect CIE SVM
- Pst LM≤1.0，SVM≤0.4
- DF Phase factor
- DF≥0.9
OTHERS
- Weight(N.W.)
- 55g±10g
- Dimensions
- 88×38×22mm(L×W×H)
Technical drawings
Typical applications
- Indoor office lighting, decorative lighting and commercial lighting.
