Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

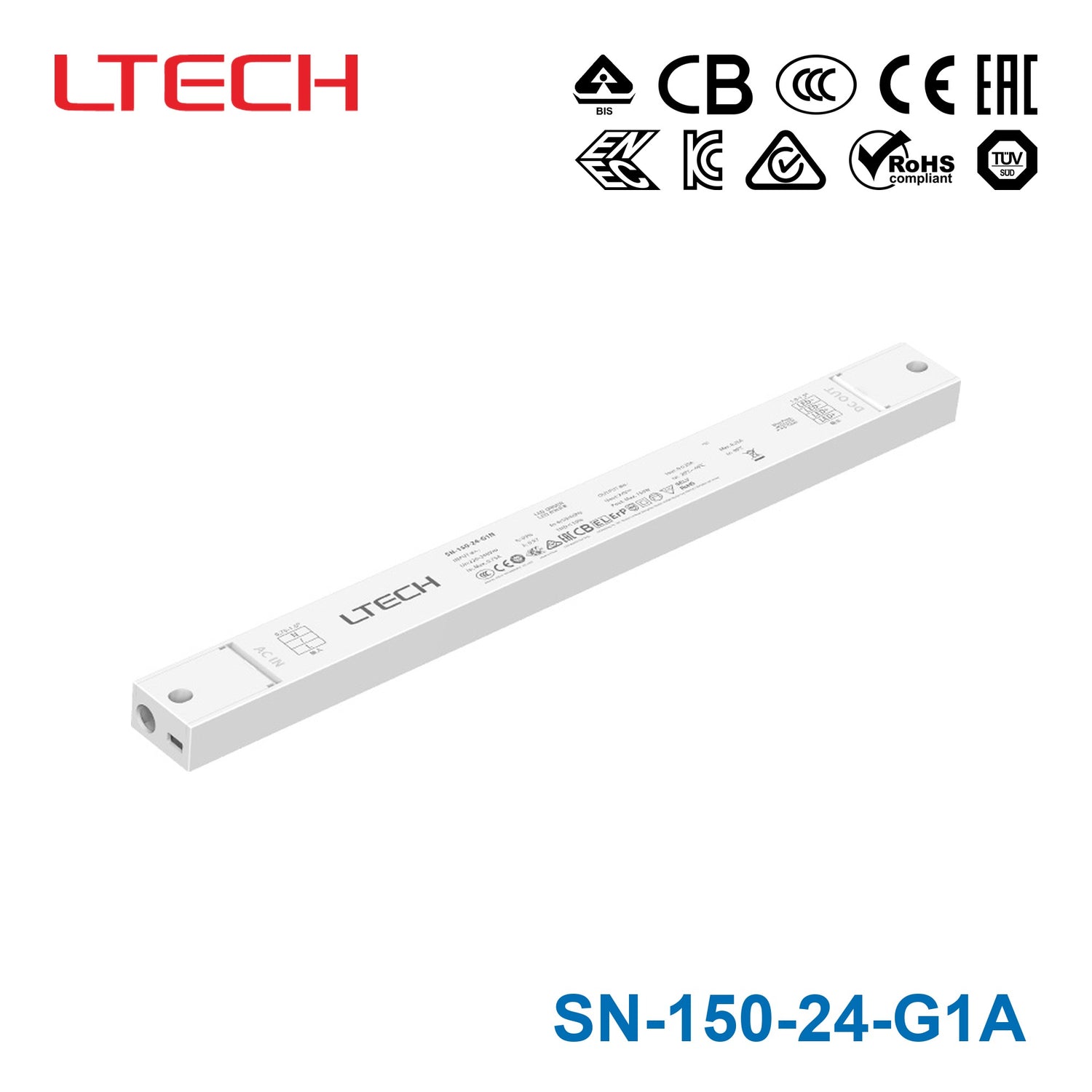

Ltech SN-150-24-G1A 150W 24VDC CV 0-10V LED Driver 6.25A

4-in-1 0-10V/1-10V 10V PWM/RX150W

SKU SN-150-24-G1A

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Ltech SN-150-24-G1A 150W 24VDC CV 0-10V LED Driver 6.25A is part of Ltech's professional LED control range, distributed in New Zealand by Wellforces.

Input 220-240V. Backed by a 5 year warranty.

Key Features

✓Dimming interface: 4合1 0-10V/1-10V 10V PWM/RX
✓Dimming depth 1：10000 （0.01%）
✓Flicker performance to IEEE 1789 high-frequency exemption level
✓Output 24V DC
✓Output current 6.25A
✓Rated power up to 150W
✓Efficiency 93%
✓Power factor >0.97/230Vac (满载)
✓Certified: BIS, CB, CCC, CE, EAC, ENEC, KC, RCM, RoHS, TUV

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Ltech SN-150-24-G2A 150W 24VDC CV 0-10V LED Driver 6.25A	—	—	—	IP20	View
