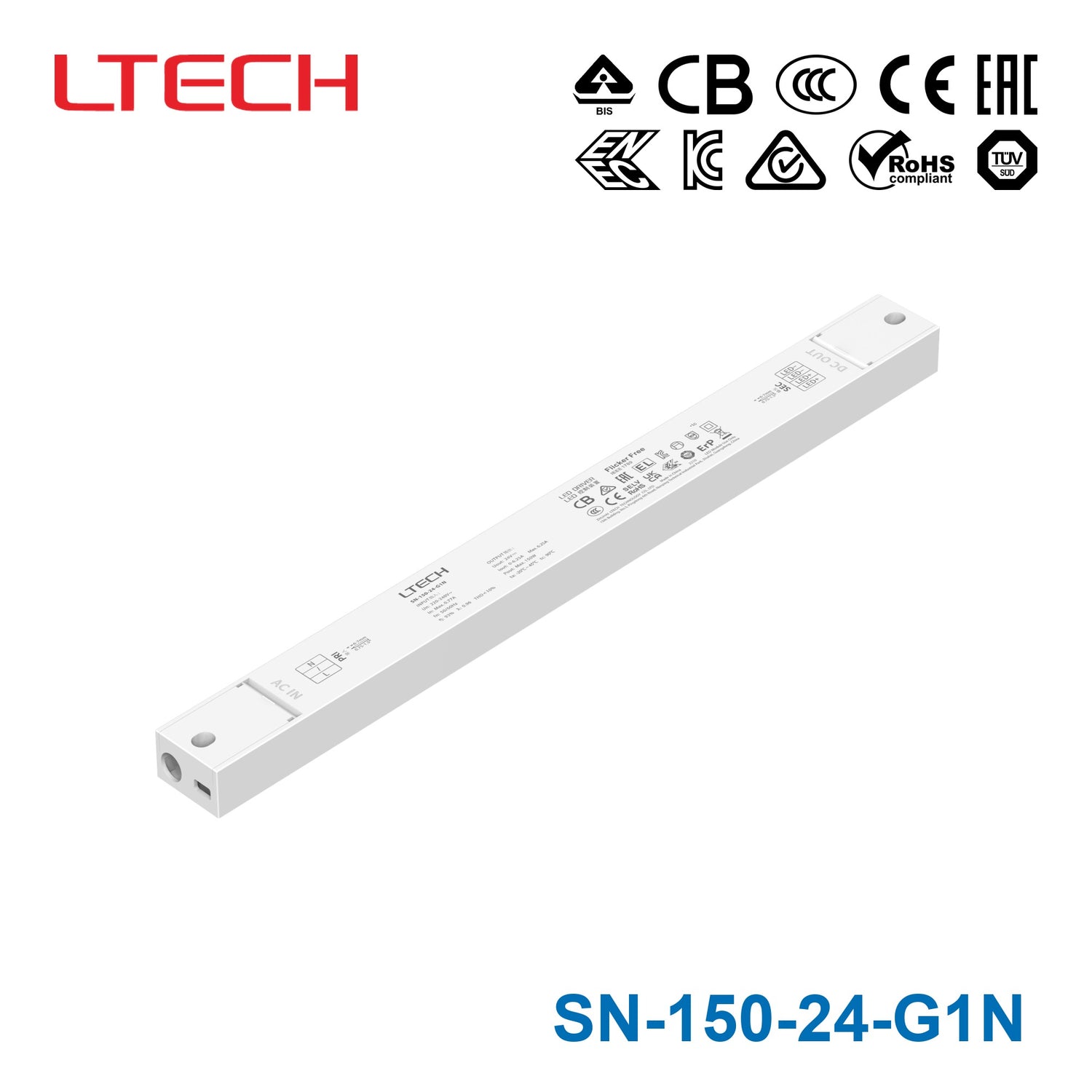

Ltech SN-150-24-G1N 150W 24VDC CV LED Driver 6.25A

150W

SKU SN-150-24-G1N

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SN-150-24-G1N is the 24Vdc output model of this series: typical efficiency 93%.

LED Driver (constant Voltage)

Features

Ultra-thin, ultra-small. Housing is made from V0 flame retardant PC materials.
Clamshell style case and wire clamping structure for convenient wire connection.
Innovative thermal management technology intelligently protects the life of the LED driver.
Overheat, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
5-year warranty (Rubycon capacitor).

Specifications

SN-150-24-G1NSpecifications from the official datasheetDownload datasheet PDF

Features

Output Type: Constant Voltage
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage: 24Vdc
Output Voltage Range: 24Vdc±0.5Vdc
Output Current: Max. 6.25A
Output Power: Max. 150W
Output Power Range: 0-150W
Dimming Range: 0~100%, down to 0.1%
Overload Power Limitation: ≥102%
Ripple & Noise: Ripple≤900mV, Noise≤900mV

INPUT

DC Voltage Range: 220-240Vdc
Input Voltage: 220-240Vac
Frequency: 0/50/60Hz
Input Current: Max. 0.75A/230Vac
Power Factor: PF>0.97 (at full load)
THD: THD<10% (at full load)
Maximum input power: Max. 162W
Efficiency (Typ.): 93%
Inrush Current: 45A (twidth=350us, tested under 50% Ipeak) / 230Vac
Anti Surge: L-N: 2KV
Leakage Current: Max. 0.5mA

ENVIRONMENT

Working Temperature: ta: -20 ~ 45°C tc: 90°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C/10~95%RH
Temperature Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10-500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Shut down the output when current load≥102%, auto recovers.
Overheat Protection: Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers
Overvoltage protection: Shut down the output when non-load voltage ≥30V, re-power on to recover after fault condition is removed
Short Circuit Protection: Shut down automatically if short circuit occurs, auto recovers.

SAFETY & EMC

Withstand Voltage: I/P-O/P: 3750Vac
Insulation Resistance: 100MΩ/500VDC/25°C/70%RH
Safety Standards: Parameter Standard Test Level

CCC China GB19510.1, GB19510.14
TUV Germany EN61347-1, EN61347-2-13, EN62493
CB CB Member States IEC61347-1, IEC61347-2-13
CE European Union EN61347-1, EN61347-2-13, EN62384
KC Korea KC61347-1, KC61347-2-13
EAC Russia IEC61347-1, IEC61347-2-13
RCM Australia AS 61347-1, AS 61347-2-13
ENEC Europe EN61347-1, EN61347-2-13, EN62384
UKCA Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
BIS India IS 15885 (PART 2/SEC 13)
EMC Emission: Parameter Standard Test Level

CCC China GB/T17743, GB17625.1
CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC Korea KN15, KN61547
EAC Russia IEC62493, IEC61547, EH55015
RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
EMC Immunity: EN61000-4-2,3,4,5,6,8,11, EN61547

Parameter	Standard	Test Level
CCC	China	GB19510.1, GB19510.14
TUV	Germany	EN61347-1, EN61347-2-13, EN62493
CB	CB Member States	IEC61347-1, IEC61347-2-13
CE	European Union	EN61347-1, EN61347-2-13, EN62384
KC	Korea	KC61347-1, KC61347-2-13
EAC	Russia	IEC61347-1, IEC61347-2-13
RCM	Australia	AS 61347-1, AS 61347-2-13
ENEC	Europe	EN61347-1, EN61347-2-13, EN62384
UKCA	Britain	BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
BIS	India	IS 15885 (PART 2/SEC 13)

Parameter	Standard	Test Level
CCC	China	GB/T17743, GB17625.1
CE	European Union	EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC	Korea	KN15, KN61547
EAC	Russia	IEC62493, IEC61547, EH55015
RCM	Australia	EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA	Britain	BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547

ErP

Power Consumption Standby power consumption: <0.5W
Power Consumption No-load power consumption: When the lamp is not connected
Flicker/Stroboscopic Effect IEEE 1789: Meet IEEE 1789 standard/High frequency exemption level
Flicker/Stroboscopic Effect CIE SVM: Pst LM≤1.0，SVM≤0.4
DF Phase factor: DF≥0.9

OTHERS

Weight(N.W.): 266g±10g
Dimensions: 350×30×18mm(L×W×H)

Technical drawings

SN-150-24-G1N Product Size — Product Size

SN-150-24-G1N Dimensions (mm) — Dimensions (mm)

SN-150-24-G1N Wiring Diagram — Wiring Diagram

SN-150-24-G1N Application Diagram of Protective Cover — Application Diagram of Protective Cover

SN-150-24-G1N Installation Precautions — Installation Precautions

SN-150-24-G1N Relationship Diagrams — Relationship Diagrams

SN-150-24-G1N Lifetime[hours] — Lifetime[hours]

Typical applications

Indoor office lighting, decorative lighting and commercial lighting.

Downloads

Datasheet1

SN-150-24-G1N datasheetSN_150_24_G1N.pdf PDF Download

FAQ

What is this LED driver used for?

It is a constant voltage LED driver suitable for Class I, II, and III light fixtures, providing 24V DC output.

What are the output specifications?

It delivers 24V DC at a maximum current of 6.25A, with a maximum output power of 150W.

Does it support dimming?

Yes, it supports 0-100% dimming, down to 0.1%.

What is the input voltage range?

It operates on 220-240V AC at 50/60Hz.

What protections are included?

It includes overload, overheat, overvoltage, and short circuit protection, all with automatic recovery.

What is the IP rating and operating temperature?

It has an IP20 rating for indoor use and operates in ambient temperatures from -20°C to 45°C.

What are the physical dimensions?

The unit measures 350mm x 30mm x 18mm (L x W x H) and weighs approximately 266g.
