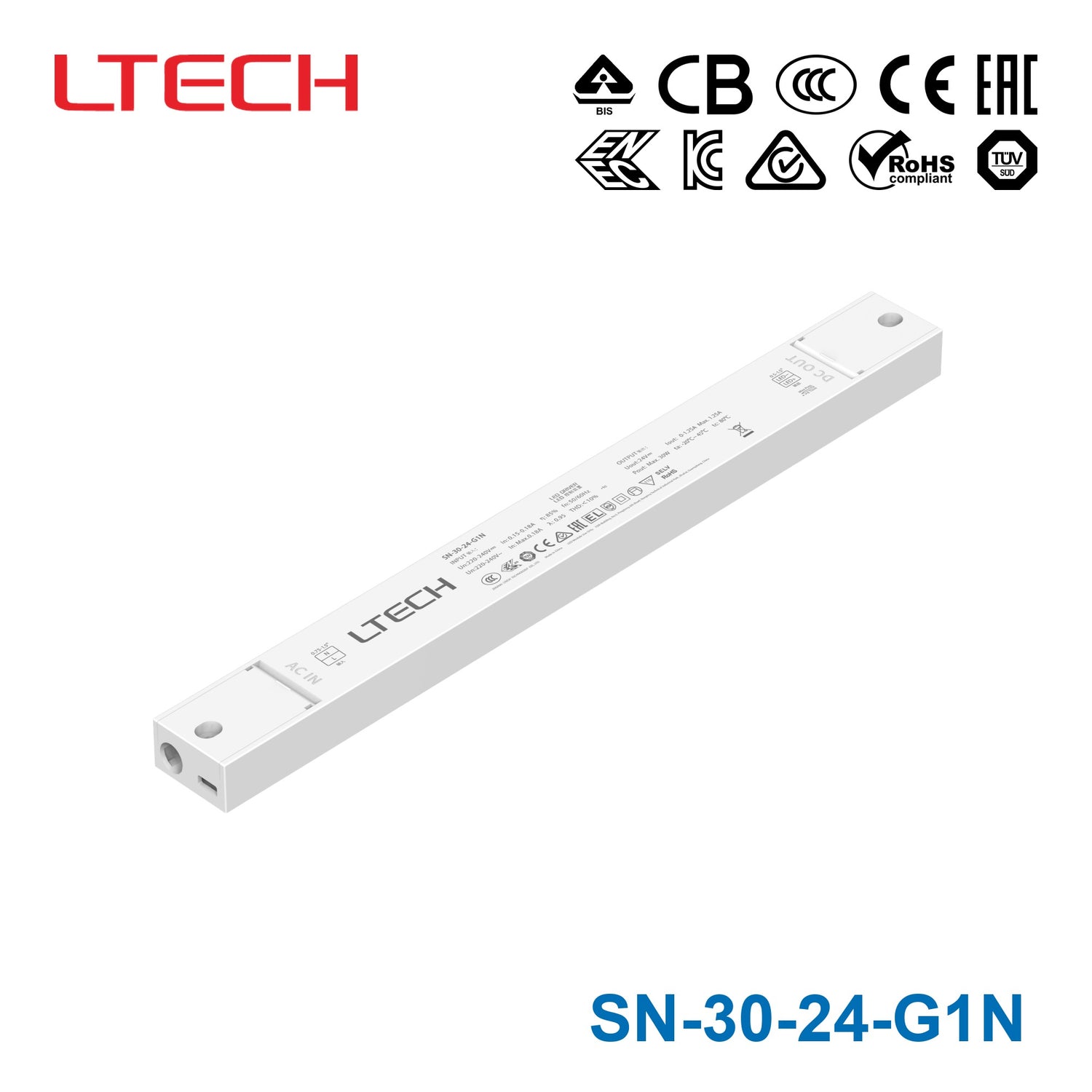

Ltech SN-30-24-G1N 30W 24VDC CV LED Driver 1.25A
Log in to see priceOverview
SN-30-24-G1N is the 24Vdc output model of this series: typical efficiency 85%.
Features
- Ultra-thin, ultra-small. Housing is made from V0 flame retardant PC materials.
- Clamshell twist screw integrated wire structure, wide opening Angle, an auxiliary buckle on the closure
- Innovative thermal management technology intelligently protects the life of the LED driver.
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲindoor light fixtures.
- Suitable for indoor LED strip lights and magnetic track lights.
- 5-year warranty (Rubycon capacitor).
Specifications
SN-30-24-G1NSpecifications from the official datasheetDownload datasheet PDF
Features
- Output Type
- Constant voltage
- Output Feature
- Isolation
- Protection Grade
- IP20
- Insulation Grade
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT
- Output Voltage
- 24Vdc
- Output Voltage Range
- 24Vdc±0.5Vdc
- Output Current
- Max. 1.25A
- Output Power
- Max. 30W
- Output power range
- 0-30W
- Ripple and Noise
- 250mVp-p
INPUT
- DC Voltage Range
- 220-240Vdc
- Input Voltage
- 220-240Vac
- Frequency
- 50/60Hz
- Input Current
- Max. 0.18A/230Vac
- Power Factor
- PF＞0.95, at full load
- THD
- THD＜10%, at full load
- Maximum Input Power
- Max. 38W
- Efficiency (Typ.)
- 85%
- Inrush Current
- Cold start 30A (Test twidth=162us tested under 50% Ipeak)/230Vac
- Anti Surge
- L-N: 2KV
- Leakage Current
- Max. 0.5mA
ENVIRONMENT
- Working Temperature
- ta: -20~45°C, tc: 80°C
- Working Humidity
- 20~95%RH, non-condensing
- Storage Temperature/Humidity
- -40~80°C/10~95%RH
- Temperature Coefficient
- ±0.03%/°C(0-50°C)
- Vibration
- 10~500Hz, 2G, 12min/cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- Shut down the output when rated power ≥102%, auto recovers
- Overheat Protection
- Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
- Overvoltage Protection
- Shut down the output when voltage ≥28V, and recover automatically
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Insulation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- SafetyStandards
-
Parameter Standard Test Level CCC China GB19510.1, GB19510.14 TUV Germany EN61347-1, EN61347-2-13, EN62493 CB CB Member States IEC61347-1, IEC61347-2-13 CE European Union EN61347-1, EN61347-2-13, EN62384 KC Korea KC61347-1, KC61347-2-13 EAC Russia IEC61347-1, IEC61347-2-13 RCM Australia AS61347-1, AS61347-2-13 ENEC Europe EN61347-1, EN61347-2-13, EN62384 UKCA Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493 - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743, GB17625.1 CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547 KC Korea KSC 9815, KSC 9547 EAC Russia IEC62493, IEC61547, EH55015 RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547 UKCA Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547
ErP
- Power Consumption
- No-load power consumption <0.5W (When the lamp is not connected)
- Flicker/Stroboscopic Effect
-
Parameter Standard IEEE1789 Meet IEEE 1789 standard/High frequency exemption level CIE SVM Pst LM≤1.0, SVM≤0.4 - DF
-
Parameter Standard Phase factor DF ≤ 0.9
OTHERS
- Weight(N.W.)
- 190g±10g
- Dimensions
- 300×30×17mm(L×W×H)
- Warranty
- 5-year warranty (Rubycon capacitor)
