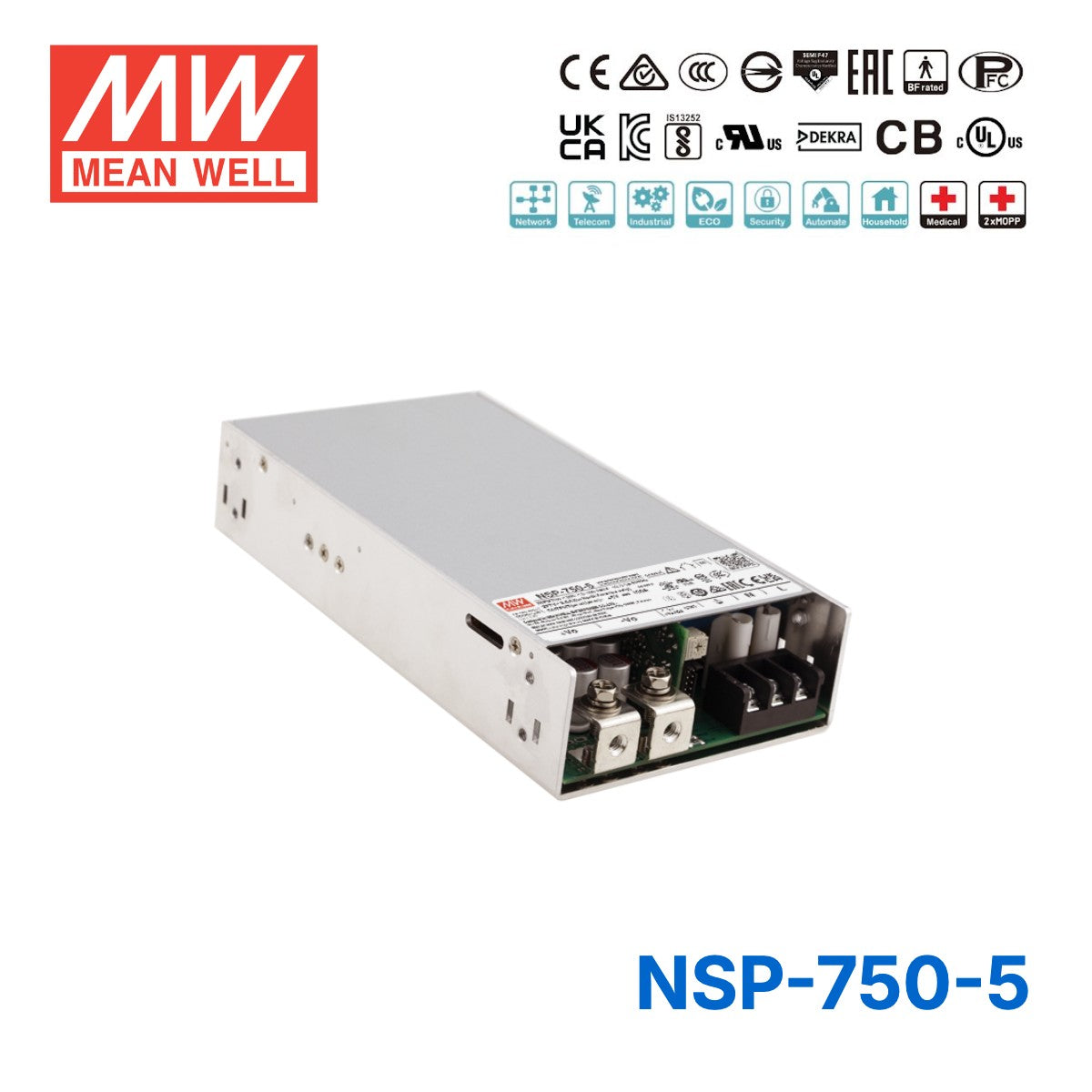

Mean Well 500W High Reliable Multi-Industries Power Supply 5V 100A
Please Login for Pricing
Description
Description
The MEAN WELL NSP-750 series is a 750W high-reliability AC/DC enclosed power supply engineered for industrial, medical, automation, telecommunications, PoE power sourcing, mechanical equipment, and home automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 95% efficiency and extremely low no-load power consumption under 0.75–1W depending on model. The compact 199×105×41 mm design incorporates forced-air cooling with a built-in temperature-controlled DC fan and supports 200% peak power capability for up to 5 seconds. The NSP-750 series features constant current limiting, wide operating temperature from –40°C to +85°C, remote ON/OFF, remote sense, auxiliary outputs (5V/12V), and a DC OK signal for system monitoring. With extremely low leakage current (<350µA), 2×MOPP medical safety approval, and certifications across ITE, medical, household, industrial, and energy-conversion standards, it offers robust performance for demanding multi-industry applications and high-altitude installations up to 5000 meters.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating500 Watt
-
Output Voltage5 Volt
-
Rated Current100 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length19.9 cm
-
Width10.5 cm
-
Height4.1 cm
-
Weight1.23 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the NSP-750-5 designed for?
The NSP-750-5 is intended for demanding B2B applications such as industrial automation, telecommunications, PoE power systems, mechanical equipment, medical devices, and home automation. Its high-reliability design, low leakage current, and broad safety approvals make it a strong fit for regulated and mission-critical environments.
What are the main output specifications of the NSP-750-5?
This model provides a 5V DC output at up to 100A, with a rated power of 500W. It is part of Mean Well's NSP-750 series and is designed for low-voltage, high-current applications that need stable DC power in a compact enclosed form factor.
What input range does the NSP-750-5 support?
The NSP-750-5 supports a universal input range of 85-305VAC or 120-431VDC. It also includes active power factor correction, which helps it operate efficiently across a wide range of industrial and commercial power environments.
Can the NSP-750-5 operate in harsh or high-temperature environments?
Yes. The NSP-750-5 is rated for operation from -40°C to +85°C, with derating above +60°C, and it uses forced-air cooling with a temperature-controlled DC fan. The conformal coated PCB and high-altitude rating of up to 5000 meters also support use in demanding environments.
What protection and monitoring features are included in the NSP-750-5?
The NSP-750-5 includes short circuit, overload, overvoltage, and overtemperature protection, along with constant current limiting. For system monitoring and control, it also provides remote ON/OFF, remote sense, auxiliary outputs, and a DC OK signal.
Is the NSP-750-5 suitable for medical or high-reliability equipment?
Yes. This model is part of a series with very low leakage current below 350uA and 2 x MOPP medical safety compliance, which supports use in medical and other high-reliability applications. It is also certified to multiple industrial, medical, household, and energy-conversion safety standards.
