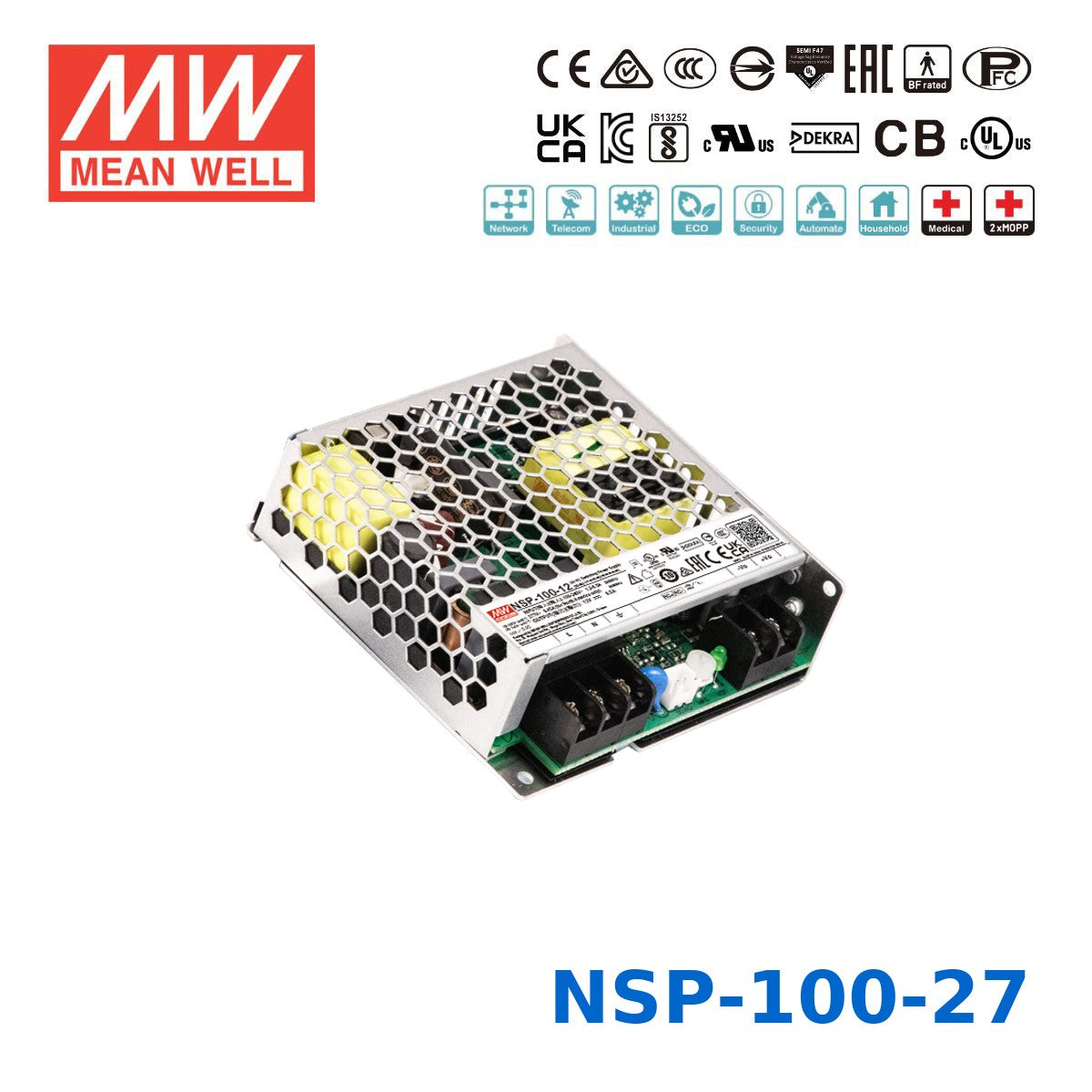

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

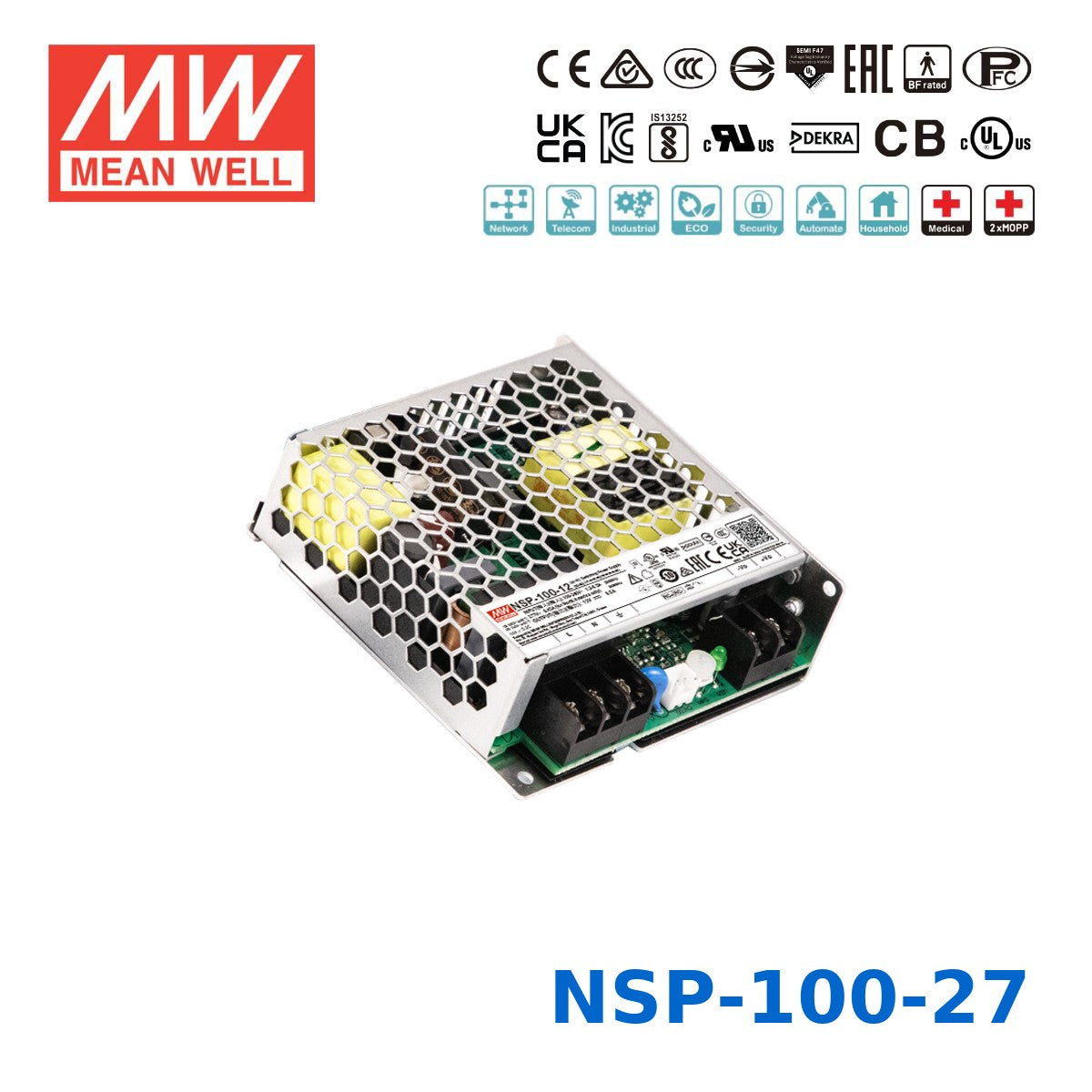

Mean Well 99.9W High Reliable Multi-Industries Power Supply 27V 3.7A

no load power consumption<0.3W~0.5W200% peak power capability(12~60V models)high efficiency up to 92%fanless designconformal coating

SKU NSP-100-27

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NSP-100-27 is the 27V output model of this series: rated current 3.7A, rated power 99.9W, typical efficiency 91%.

The NSP-100 series is a 100W AC/DC power supply with PFC function, designed for high reliability and suitable for multiple industries. Key features include: compact size (99*97*30 mm) for better space utilization in system installations, ultra-wide input range of 85~305Vac for global compatibility, up to 92% efficiency and low standby power consumption(<0.3W~ 0.5W) for energy-saving and carbon reduction, constant current design with 200% peak power capability, fanless design, wide operating temperature range from -40 to +85℃ (+60℃ at full load), compliance with OVCⅢ, built-in Remote Control, internal PCB coating, complete protections, certifications for multiple safety standards including 62368-1, 60601-1, 61558-1, 60335-1, 62477-1, and 61010-1, as well as 2 X MOPP compliance and extremely low leakage current(<350μA). It is suitable for BF-rated medical equipment and comes with a 5-years warranty, making it a highly cost-effective solution for industrial power supply needs.

Features

85~305Vac input with PFC(277Vac available)
No load power consumption <0.3W~0.5W by R.C.
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1,Household 60335-1, Industrial 61558-1/2-16/61010-1, Energy converter 62477-1)
200% peak power capability(12~60V models)
High efficiency up to 92%
-40~85℃ wide range operation temperature(> +60℃ derating)
Extremely low leakage current<350μA, 2 x MOPP, suitable for BF medical applications
Built-in constant current limiting circuit
Protections: Short circuit / Overload / Over voltage / Over temperature
Fanless design for noise sensitive applications
Built-in remote ON/OFF control
Over voltage category Ⅲ (OVC Ⅲ)
Operating altitude up to 5000 meters
Conformal coating
5 years warranty

Specifications

NSP-100-27Specifications from the official datasheet (2026-03-13 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 27V
RATED CURRENT: 3.7A
CURRENT RANGE: 0 ~ 3.7A
RATED POWER: 99.9W
PEAK CURRENT(5 sec.): 7.4A
PEAK POWER(5 sec.): 200W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: 26 ~ 32V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1500ms, 80ms/115Vac 1000ms, 80ms/230Vac 1000ms, 80ms/277Vac
HOLD UP TIME (Typ.): 16ms at full load

INPUT

VOLTAGE RANGE^Note.4: 85 ~ 305Vac 120 ~ 431Vdc
NO LOAD POWER CONSUMPTION(Typ.) Remote Power OFF: 0.3W/115Vac 0.5W/230Vac 0.5W/277Vac
NO LOAD POWER CONSUMPTION(Typ.) Remote Power ON: 2W/115Vac 2W/230Vac 2W/277Vac
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115Vac, PF>0.93/230Vac, PF>0.9/277Vac at full load
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 1.1A/115Vac 0.52A/230Vac 0.45A/277Vac
INRUSH CURRENT (Typ.): COLD START 20A/115Vac 35A/230Vac 45A/277Vac
LEAKAGE CURRENT: Earth leakage current <350μA(rms)@277Vac, touch current<100μA(rms) @ 277Vac

PROTECTION

SHORT CIRCUIT 5V: Hiccup mode,recovers automatically after fault condition is removed
SHORT CIRCUIT 7.5V: Constant current limiting for more than 5 seconds and then shut down o/p voltage, AC re-power on to recover
SHORT CIRCUIT 12V-60V: Constant current limiting for more than 5 seconds (Vout<30%) and then shut down o/p voltage, AC re-power on to recover
OVERLOAD 5V: 105%~170% rated output power; Hiccup mode,recovers automatically after fault condition is removed
OVERLOAD 7.5V: 105%~150% rated output power; Constant current limiting for more than 5 seconds and then shut down o/p voltage, AC re-power on to recover
OVERLOAD 12V ~ 60V: Normally works within 105 ~ 200% rated output power for more than 5 seconds and then constant current limiting without shutdown(Vout>30%), recovers automatically after fault condition is removed, or shut down o/p voltage when Vout<30%,AC re-power on to recover >200% rated power, constant current limiting (Vout>30%)with auto-recovery after fault condition is removed, or shut down o/p voltage when Vout<30%,AC re-power on to recover
OVER VOLTAGE: 33~ 42V Protection type : Shut down o/p voltage, AC re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, AC re-power on to recover

FUNCTION

REMOTE CONTROL: POWER ON: RC+~RC- 0~0.8Vdc or open POWER OFF: RC+~RC- 3.3~10 Vdc by external voltage

ENVIRONMENT

WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 5&6)

SAFETY STANDARDS: CB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC61010-1/-2-201, IEC60601-1; IEC62477-1 ; DEKRA BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN61010-1/-2-201, BS EN/EN60601-1(3.2 Version);BS EN/EN62477-1 ; UL UL62368-1, ANSI/AAMI ES60601-1(3.2 Version),UL61010-1/-2-201 ; CCC GB4943.1 ; BSMI CNS15598-1 ; EAC TP TC 004 ; SEMI F47 approved; ; KC/BIS KC 62368-1 and BIS IS 13252(Part 1) certified, no stock by request, contact sales for inquires
ISOLATION LEVEL (Note 7): Primary-Secondary: 2xMOPP, Primary-Earth: 1xMOPP, Secondary-Earth: 1xMOPP
OVER VOLTAGE CATEGORY (Note 8): IEC/EN 61558-1/-2-16 (OVC Ⅲ , altitude up to 2000M) ; IEC/EN/UL 62368-1 (OVC Ⅱ, altitude up to 5000M) ; IEC/EN 60335-1 (OVC Ⅱ, altitude up to 5000M) ; IEC/EN/ANSI/AAMI ES60601-1 (OVC Ⅱ, altitude up to 4000M) ; IEC/EN/UL 61010-1/-2-201 (OVC Ⅱ, altitude up to 5000M) ; IEC/EN 62477-1 (OVC Ⅱ, altitude up to 5000M)
SAFETY EXTRA-LOW VOLTAGE(SELV): IEC/EN 61558-2-16 (SELV, 5 ~ 36V) ; IEC/EN 60335-1 (SELV, 5 ~ 36V) ; IEC/EN/UL 62368-1 (SELV/ES1, 5 ~ 36V)
WITHSTAND VOLTAGE: I/P-O/P:4.2KVac I/P-FG:2.1KVac O/P-FG:1.5KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: BS EN/EN55035 ( CISPR35 ) , BS EN/EN 61000-6-2 (IEC61000-6-2),B S EN/EN60601-1-2(IEC60601-1-2), BS EN/EN55014-2(CISPR14-2),KS C 9835,SEMI F47 tested at 200Vac

Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32),CNS 15936,GB/T 9254.1,KS C 9832 Class B
Conducted BS EN/EN55014-1(CISPR14-1)
Conducted BS EN/EN55011(CISPR11) Class B
Radiated BS EN/EN55032(CISPR32),CNS 15936,GB/T 9254.1,KS C 9832 Class B
Radiated BS EN/EN55014-1(CISPR14-1)
Radiated BS EN/EN55011(CISPR11) Class B
Harmonic Current BS EN/ EN61000-3-2(IEC61000-3-2) Class A
Voltage Flicker BS EN/ EN61000-3-3(IEC61000-3-3)
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
Radiated BS EN/ EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT / Burst BS EN/ EN61000-4-4 Level 3, 2KV
Surge BS EN/ EN61000-4-5 Level 4, 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/ EN61000-4-6 Level 3, 10V
Magnetic Field BS EN/ EN61000-4-8 Level 4, 30A/m
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32),CNS 15936,GB/T 9254.1,KS C 9832	Class B
Conducted	BS EN/EN55014-1(CISPR14-1)
Conducted	BS EN/EN55011(CISPR11)	Class B
Radiated	BS EN/EN55032(CISPR32),CNS 15936,GB/T 9254.1,KS C 9832	Class B
Radiated	BS EN/EN55014-1(CISPR14-1)
Radiated	BS EN/EN55011(CISPR11)	Class B
Harmonic Current	BS EN/ EN61000-3-2(IEC61000-3-2)	Class A
Voltage Flicker	BS EN/ EN61000-3-3(IEC61000-3-3)

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
Radiated	BS EN/ EN61000-4-3	Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT / Burst	BS EN/ EN61000-4-4	Level 3, 2KV
Surge	BS EN/ EN61000-4-5	Level 4, 2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/ EN61000-4-6	Level 3, 10V
Magnetic Field	BS EN/ EN61000-4-8	Level 4, 30A/m
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 2163.5 K hrs min. Telcordia SR-332 (Bellcore) ; 250.4 K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H): 99*97*30mm
PACKING: 0.3Kg;45pcs/13.9Kg/0.91CUFT

Certifications & ratings

SEMI F47: Voltage Sag Immunity Characteristics Verified

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Derating may be need under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
5. The Regulatory Compliance Mark (RCM) is applied on a voluntary basis. The equipment meets the relevant IEC or AS/NZS standards, or AS/NZS 3820 where applicable. The use of the RCM mark complies with AS/NZS 4417.1.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. Some factory or model may not have the BIS logo, please contact your MEAN WELL sales for more information.
8. MOPP is suitable for 100-240Vac input only
9. The ambient temperature derating of 3.5℃/1000m with fanless models and 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

NSP-100-27 Block Diagram — Block Diagram

NSP-100-27 Derating Curve — Derating Curve

NSP-100-27 P pk x t + Pnpk x (T-t) — P pk x t + Pnpk x (T-t)

NSP-100-27 2.Remote Control — 2.Remote Control

NSP-100-27 Mechanical Specification — Mechanical Specification

NSP-100-27 Accessory List — Accessory List

Typical applications

Industrial automation machinery/ control system
Security system
Mechanical and electrical equipment
Electronic instruments, equipments orapparaturs
Network equipment
Telecom devices
Power sourcing equipment of PoE
Home automation
Medical devices

Downloads

Datasheet1

NSP-100-27 datasheetNSP_100_spec.pdf · 2026-03-13 edition PDF Download

FAQ

What output does the Mean Well NSP-100-27 provide?

The NSP-100-27 is a 99.9W enclosed AC/DC power supply with a 27V DC output rated at 3.7A. It is designed for applications that need a stable 27V supply in a compact 99 × 97 × 30 mm enclosed form factor.

What kinds of applications is the NSP-100-27 intended for?

This model is designed for multi-industry use, including industrial automation, telecommunications, security systems, and medical devices. Its high-reliability construction, wide input range, and broad safety certifications make it suitable for demanding commercial and industrial equipment.

Can the NSP-100-27 be used in medical or safety-sensitive equipment?

The NSP-100-27 is approved to IEC/EN 60601-1 and ANSI/AAMI ES60601-1 and provides 2×MOPP primary-to-secondary isolation (MOPP applies at 100-240VAC input). That makes it a strong candidate for medical-related equipment where those approvals are required, although final suitability still depends on the end-product design and certification path.

How does the NSP-100-27 perform in harsh temperature conditions?

This power supply is rated for operation from -40°C to +85°C, with output derating at higher ambient temperatures according to the derating curve. It is also rated for 10-500Hz, 2G vibration and 20-90% RH non-condensing humidity, supporting use in challenging industrial environments.

What makes the NSP-100-27 different from a standard 100W enclosed power supply?

Compared with a basic 100W enclosed supply, the NSP-100-27 adds high-reliability features such as active PFC, 91% typical efficiency, no-load consumption of 0.5W or less with remote OFF, 200% peak power for 5 seconds, and remote ON/OFF control. It also carries a broader set of safety approvals for industrial, household, laboratory, and medical-oriented applications.

Is the NSP-100-27 a good fit for always-on equipment or low-maintenance systems?

Yes. Its 91% typical efficiency helps reduce wasted energy in continuously powered systems, and no-load consumption drops to 0.3-0.5W when the output is switched off via remote control. An MTBF of 2163.5K hours (Telcordia SR-332) also supports long-service applications.
