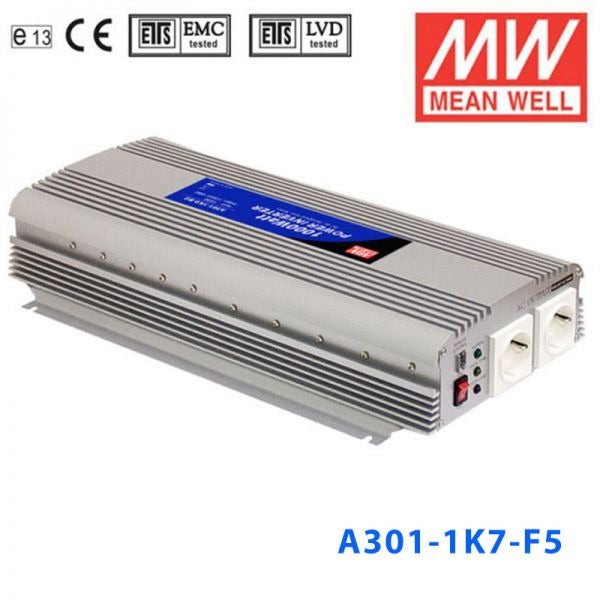

Mean Well A301-1K7-F5 Modified sine wave 1500W 230V - DC-AC Inverter
Please Login for Pricing
Description
Description
The A301-1K7 is a 1500W Mean Well. power converter.
Key Features
- ✓ Protections: Over voltage / Over temperature
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesA301/A302 Series
-
Power Rating1500 Watt
-
Output Voltage230 Volt
-
Input Voltage10V~15V
-
Standards MetCE,E13,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~30°C
-
Warranty1 Year
-
Length45.5 cm
-
Width21 cm
-
Height8.5 cm
-
Weight5.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well A301-1K7-F5 provide?
This model is a 1500W DC-AC inverter with a 230V AC output. Its output waveform is modified sine wave, and the stated output voltage regulation is ±10%.
Is the A301-1K7-F5 a pure sine wave inverter?
No. The A301-1K7-F5 uses a modified sine wave output rather than a pure sine wave output. That makes the waveform type an important selection point if your equipment requires a specific AC waveform.
What protection features are included on this inverter?
The A301-1K7-F5 includes protection for input reverse polarity, battery low shutdown, over voltage, overload, over temperature, and output short. The short-circuit response is shut-off, helping protect the inverter under fault conditions.
What operating temperature range should this inverter be used in?
The listed working condition is 0 to 30°C at 100% load. It is also rated for 40°C at 70% load, so output loading should be considered in warmer environments.
Does the A301-1K7-F5 support remote control and cooling management?
Yes. This model includes cooling fan ON-OFF control, and an ON/OFF remote control is available as an optional feature. It also has a built-in power ON-OFF switch on the unit.
What approvals and warranty come with the A301-1K7-F5?
The product listing states E13, EAC, CE, and UKCA approvals. It also includes a 1 year warranty.
Other A301-1K7 Models
1 other model| Model | Power | Voltage | Waveform | Frequency | |
|---|---|---|---|---|---|
| Mean Well A301-1K7-B2 Modified sine wave 1500W 110V - DC-AC Inverter | 1500W | 110V | Modifined Sine Wave | 60Hz | View |
