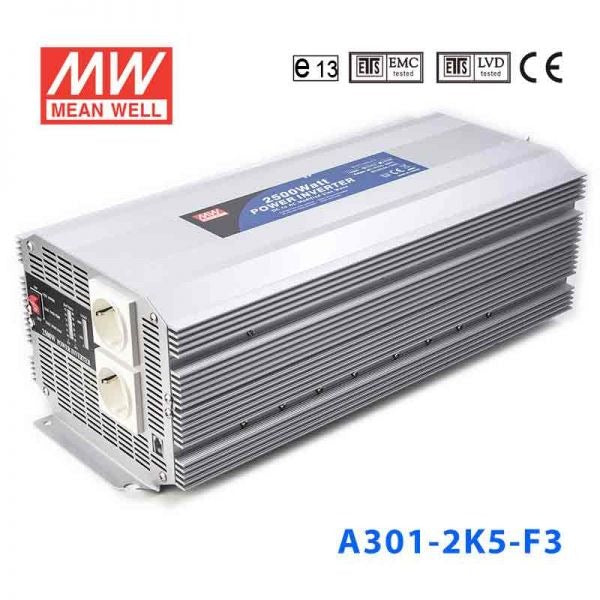

Mean Well A301-2K5-F5 Modified sine wave 2500W 230V - DC-AC Inverter
Please Login for Pricing
Description
Description
The A301-2K5 is a 2500W Mean Well. power converter. and an input range of 10~15VDC.
Key Features
- ✓ Input voltage range: 10~15VDC
- ✓ Protections: Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION RESISTANCE EMI RADIATION -30 ~ +70℃ / -22 ~ +158 F, 10 ~ 95% RH o ±0.05% / ℃ (0 ~ 50℃) EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesA301/A302 Series
-
Power Rating2500 Watt
-
Output Voltage230 Volt
-
Input Voltage10V~15V
-
Standards MetCE,E13,EMC,LVD
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~25°C
-
Warranty1 Year
-
Length43 cm
-
Width21 cm
-
Height15.9 cm
-
Weight8.7 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of inverter is the Mean Well A301-2K5-F5?
The A301-2K5-F5 is a DC-AC inverter with a modified sine wave output. This model is rated for 2500W and provides 230V AC output. It is intended for applications where modified sine wave power is acceptable.
What output voltage does the A301-2K5-F5 provide?
This model provides 230V AC output. The product family supports 110V and 230V versions, and the A301-2K5-F5 is the 230V variant. Output voltage regulation is specified at ±10%.
Is the A301-2K5-F5 a pure sine wave inverter?
No, this model uses a modified sine wave output rather than pure sine wave. That makes it better suited to loads that are compatible with modified sine wave power. Buyers comparing inverter types should confirm their equipment accepts this waveform before purchase.
What protections are included in the Mean Well A301-2K5-F5?
The A301-2K5-F5 includes protection for input reverse polarity, battery low shutdown, over voltage, overload, over temperature, and output short circuit. For output short conditions, the unit shuts off. These built-in protections help support safer operation in demanding power applications.
What operating temperature range is specified for this inverter?
The specified working temperature is 0°C to +25°C at 100% load. The overload temperature point is listed as 60±5°C. Buyers using the inverter in warmer environments should consider enclosure ventilation and ambient conditions when evaluating suitability.
What kinds of applications is the A301-2K5-F5 typically used for?
This 2500W DC-AC inverter is generally suited to professional and industrial applications that need 230V AC power from a DC source. Typical use cases include mobile, off-grid, vehicle, and backup power systems where modified sine wave output is acceptable. It is a better fit for compatible general-purpose loads than for equipment that specifically requires pure sine wave power.
Does the A301-2K5-F5 support remote on/off control?
Yes, remote ON/OFF control is listed as an optional feature for this model. The inverter also includes a built-in power ON-OFF switch and cooling fan ON-OFF control. Buyers needing remote control capability should verify the required accessory is included or ordered separately.
What certifications and warranty come with the A301-2K5-F5?
The product lists E13, EAC, CE, and UKCA approvals. Safety and EMC references in the specifications include EAC TP TC 004 and IEC61000-4-2,3 with EAC TP TC 020. Mean Well specifies a 1 year warranty for this model.
