Mean Well A301-2K5-F5 Modified sine wave 2500W 230V - DC-AC Inverter
Log in to see priceOverview
A301-2K5-F5 is the model of this series: rated power 2500W, typical efficiency 82%.
Features
- 12V or 24V DC input
- Power ON-OFF switch
- Input voltage range: -15% ~ +25%
- Output voltage regulation:±10%
- Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/ Over temp./Output short/Input polarity reverse/Over load.
- Output waveform: Modified sine wave
- Cooling fan ON-OFF control
- ON/OFF remote control(Optional/Order No.: RC-2500)
- Approvals: E13/ EAC / CE / UKCA
- 1 year warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- A301-2K5
- AC VOLTAGE
- 230V
- RATED POWER
- 2500W
- SURGE POWER
- 5000W
- WAVEFORM
- Modified Sine Wave
- FREQUENCY
- 50Hz±1%
- AC REGULATION
- ±10%
- STANDARD RECEPTACLES
- TYPE-5 (Australia)
- LED INDICATOR
- Green LED for power on; Yellow LED for O.T.P.; Red LED for O.L.P.; Battery V/A meter
INPUT
- DC CURRENT
- 250A
- NO LOAD CURRENT DRAW
- 0.9A
- DC VOLTAGE
- 12V
- VOLTAGE RANGE
- 10 ~ 15VDC
- EFFICIENCY (Typ.)
- 82%
- DC CONNECTOR
- None
- FUSE
- 30A*12
PROTECTION
- BAT. LOW ALARM
- 10±0.5V
- BAT. LOW SHUTDOWN
- 9.5±0.5V
- OVER LOAD
- >2700W shut down o/p voltage, re-power to recover
- OVER VOLTAGE
- 15 ~ 17V
- OVER TEMPERATURE
- 60±5℃/ 140±9oF
- OUTPUT SHORT
- Shut-off
- BAT. POLARITY
- By fuse open
ENVIRONMENT
- WORKING TEMP.
- 0 ~ +25℃@100% load
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05% / ℃ (0 ~ 50℃)
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 004 approved
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMI RADIATION
- Compliance to BS EN/EN55014-1, EAC TP TC 020
- EMS IMMUNITY
- Compliance to BS EN/EN55014-2, IEC61000-4-2,3, EAC TP TC 020
- LVD
- Compliance to BS EN/EN62368-1
OTHERS
- MTBF
- 37Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 430*210*159mm (L*W*H)
- PACKING
- 8.7kg ; 2pcs / 19kg / CARTON
- COOLING
- >40℃ (NTC) fan on
- APPLICATIONS
- Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc.

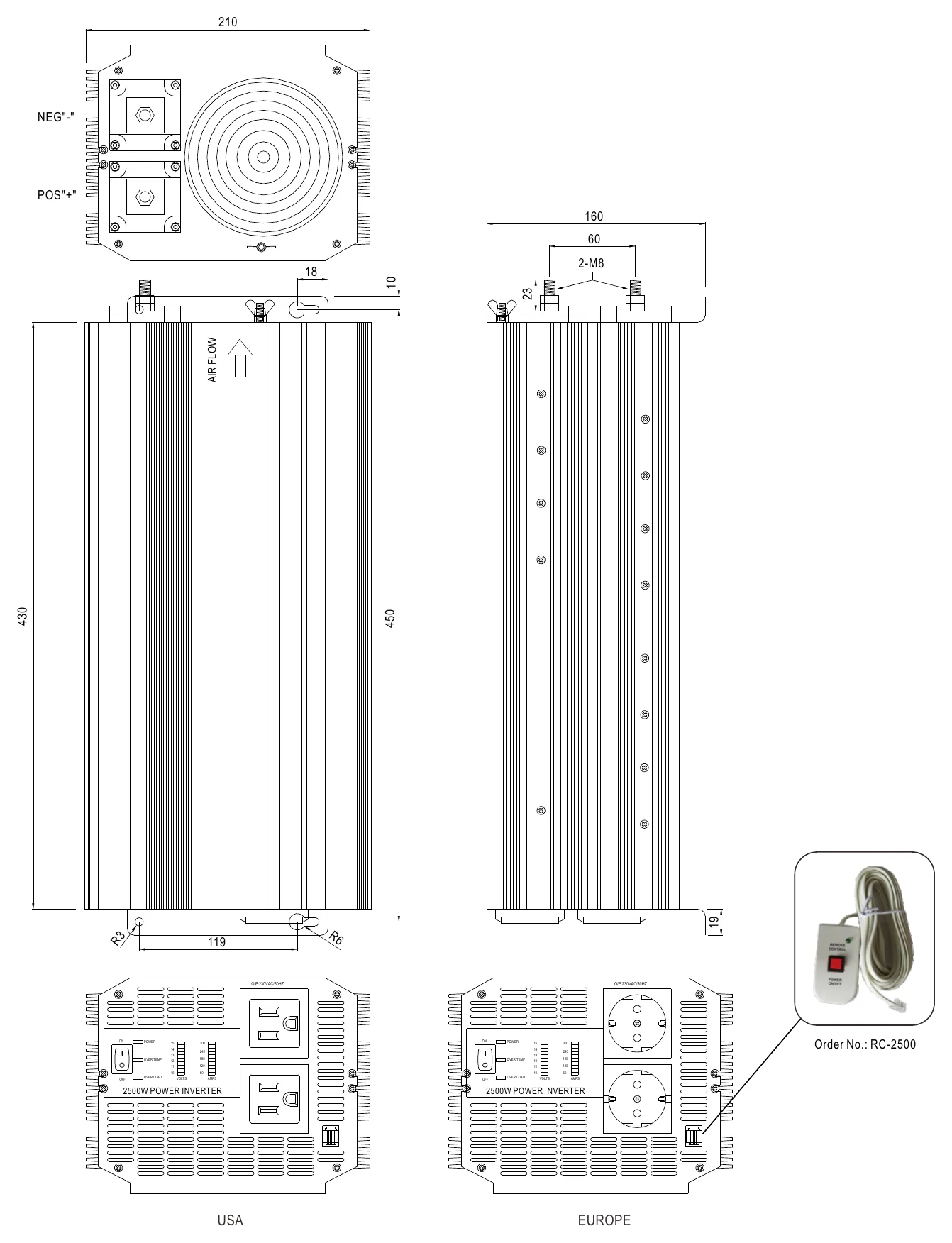

Technical drawings
Downloads
FAQ
What type of inverter is the Mean Well A301-2K5-F5?
The A301-2K5-F5 is a DC-AC inverter with a modified sine wave output. This model is rated for 2500W and provides 230V AC output. It is intended for applications where modified sine wave power is acceptable.
What output voltage does the A301-2K5-F5 provide?
This model provides 230V AC output. The product family supports 110V and 230V versions, and the A301-2K5-F5 is the 230V variant. Output voltage regulation is specified at ±10%.
Is the A301-2K5-F5 a pure sine wave inverter?
No, this model uses a modified sine wave output rather than pure sine wave. That makes it better suited to loads that are compatible with modified sine wave power. Buyers comparing inverter types should confirm their equipment accepts this waveform before purchase.
What protections are included in the Mean Well A301-2K5-F5?
The A301-2K5-F5 includes battery low alarm and shutdown, battery reverse polarity protection (by fuse open), over voltage, overload (shuts down above 2700W, re-power to recover), over temperature, and output short circuit protection. For output short conditions, the unit shuts off. These built-in protections help support safer operation in demanding power applications.
What operating temperature range is specified for this inverter?
The specified working temperature is 0°C to +25°C at 100% load. The over temperature protection point is listed as 60±5°C. Buyers using the inverter in warmer environments should consider enclosure ventilation and ambient conditions when evaluating suitability.
What kinds of applications is the A301-2K5-F5 typically used for?
This 2500W DC-AC inverter suits applications that need 230V AC power from a 12V DC battery source. The datasheet lists home appliances, power tools, office and portable equipment, and vehicles as typical applications where modified sine wave output is acceptable. It is a better fit for compatible general-purpose loads than for equipment that specifically requires pure sine wave power.
Does the A301-2K5-F5 support remote on/off control?
The spec sheet does not list remote ON/OFF control as a feature of this model. The inverter has a front-panel power ON/OFF switch, and its cooling fan is temperature controlled, switching on above 40°C (NTC). Buyers needing remote control capability should confirm options before ordering.
What certifications and warranty come with the A301-2K5-F5?
The sheet shows the E13 mark, and the safety standard is EAC TP TC 004 approved. EMI complies with BS EN/EN55014-1, EMS immunity with BS EN/EN55014-2 and IEC61000-4-2,3 (plus EAC TP TC 020), and LVD with BS EN/EN62368-1. The spec sheet does not state a warranty period for this model.
